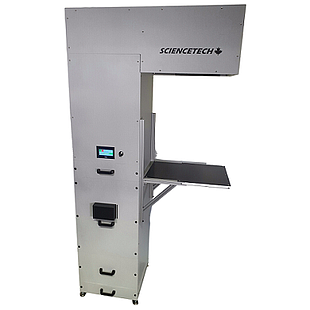

    Ultra High Efficiency Solar Simulators

    The Ultra High Efficiency UHE solar simulator series are class AAA and have a turnkey operating system. Due to their very high efficiency, these can be used for larger target areas and larger distances. Conveniently integrated systems suitable for a variety of research and testing requiring a stable and reliable uniform light source. The UHE comes standard with a downward facing stand. Each UHE Includes internal power supply. Large testing area and working distances can be achieved for easy integration. Numerous sample area accessories, instrument configuration options, and accessories are available.



    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

    Class: AAA (ASTM E927-19)
    Collimation Angle: 3.95º half angle
    Target Size: 150mm x 150 mm
    Working Distance: 500mm
    1000W Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 37,557.00
    In stock
    Class: AAA (ASTM E927-19)
    Collimation Angle: 3.95º half angle
    Target Size: 150mm x 150 mm
    Working Distance: 500mm
    1000W Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 37,557.00 37557.0 USD
    Price Valid only in North America

    Class: AAA (ASTM E927-19)
    Collimation Angle: 2.6º half angle
    Target Size: 200mm x 200 mm
    Working Distance: 575mm
    1000W Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 40,490.00
    In stock
    Class: AAA (ASTM E927-19)
    Collimation Angle: 2.6º half angle
    Target Size: 200mm x 200 mm
    Working Distance: 575mm
    1000W Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 40,490.00 40490.0 USD
    Price Valid only in North America

    Class: AAA (ASTM E927-19)
    Collimation Angle: 2.35º half angle
    Target Size: 250mm x 250 mm
    Working Distance: 650mm
    1600W Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    Requires 220-240V/ 50/60Hz, 12.1-9.0A, Fused 15A, 250V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 58,600.00
    In stock
    Class: AAA (ASTM E927-19)
    Collimation Angle: 2.35º half angle
    Target Size: 250mm x 250 mm
    Working Distance: 650mm
    1600W Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    Requires 220-240V/ 50/60Hz, 12.1-9.0A, Fused 15A, 250V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 58,600.00 58600.0 USD
    Price Valid only in North America

    Class: AAA (ASTM E927-10)
    Non-uniformity < 3% over 36 measurement locations
    Collimation Angle: 2.2º half angle
    Target Size: 300mm x 300 mm
    Working Distance: 650mm +/- 100mm
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 70,125.00
    In stock
    Class: AAA (ASTM E927-10)
    Non-uniformity < 3% over 36 measurement locations
    Collimation Angle: 2.2º half angle
    Target Size: 300mm x 300 mm
    Working Distance: 650mm +/- 100mm
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 70,125.00 70125.0 USD
    Price Valid only in North America

    Class: AAA
    Collimation Angle: 4.5º half angle
    Target Size: 75mm x 75 mm
    Working Distance: 225 mm
    300W Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 24,076.00
    In stock
    Class: AAA
    Collimation Angle: 4.5º half angle
    Target Size: 75mm x 75 mm
    Working Distance: 225 mm
    300W Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 24,076.00 24076.0 USD
    Price Valid only in North America

    Class: AAA
    Collimation Angle: 4.1º half angle
    Target Size: 100mm x 100 mm
    Working Distance: 300mm
    300W Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 31,270.00
    In stock
    Class: AAA
    Collimation Angle: 4.1º half angle
    Target Size: 100mm x 100 mm
    Working Distance: 300mm
    300W Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 31,270.00 31270.0 USD
    Price Valid only in North America

    Class: AAA
    Collimation Angle: 3.85º half angle
    Target Size: 125mm x 125 mm
    Working Distance: 300mm
    550W Xe Arc Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 34,401.00
    In stock
    Class: AAA
    Collimation Angle: 3.85º half angle
    Target Size: 125mm x 125 mm
    Working Distance: 300mm
    550W Xe Arc Lamp Included
    Integrated touch screen control unit
    RS232 interface and software for remote operation included
    Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 34,401.00 34401.0 USD
    Price Valid only in North America
