Spectralon Reflective Coating Standard,( Zenith White and Gold Coating available)
1.5" diameter entrance/exit port (1), 1" diameter application ports (3) (90 degree, North Pole and 180 degree)
Additional Ports and reduction of ports possible
Internal baffle on 90 deg port

3,681.00
In stock
Spectralon Reflective Coating Standard,( Zenith White and Gold Coating available)
1.5" diameter entrance/exit port (1), 1" diameter application ports (3) (90 degree, North Pole and 180 degree)
Additional Ports and reduction of ports possible
Internal baffle on 90 deg port

3,681.00 3681.0 USD
Price Valid only in North America

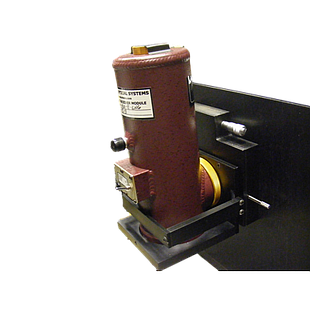

This mount will attach cryogenic detectors directly to a Sciencetech monochromator or spectrometer. Please note that this mount is designed specifically for cryogenically cooled detectors, and may not function for other types of detectors. If you are uncertain about whether you need this mount or not, please contact your Sciencetech Representative.
525.00
In stock
This mount will attach cryogenic detectors directly to a Sciencetech monochromator or spectrometer. Please note that this mount is designed specifically for cryogenically cooled detectors, and may not function for other types of detectors. If you are uncertain about whether you need this mount or not, please contact your Sciencetech Representative.
525.00 525.0 USD
Price Valid only in North America

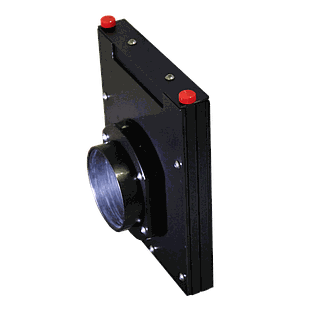

This is a quick release mount for many of Sciencetech's standard single element detectors or PMTs. It allows the user to easily replace one detector with another, and remain confident in the ability of the system to hold and align various detectors properly with minimal effort. This will not work with either LDA or CCD systems or Cryogenic detectors. Please speak to your Technical Sales member at Sciencetech for more information.
200.00
In stock
This is a quick release mount for many of Sciencetech's standard single element detectors or PMTs. It allows the user to easily replace one detector with another, and remain confident in the ability of the system to hold and align various detectors properly with minimal effort. This will not work with either LDA or CCD systems or Cryogenic detectors. Please speak to your Technical Sales member at Sciencetech for more information.
200.00 200.0 USD
Price Valid only in North America


A standard single-element detector mount for Sciencetech's line of monochromators and/or spectrometers. This quick release mount comes complete with Sciencetech's quick release mount (125-8012) as well as a quick release flange which mounts to a detector or component. The quick release flange has an internal 1.035-40 thread which can be used to mount Sciencetech's 525-5 line of detectors as well as other common optical components such as Thorlabs 1" lens tubes.

Please note that this mount will not work with dewer style detectors. If you are uncertain about what type of detector mount your system needs, please contact your Sciencetech representative.
181.00
In stock
A standard single-element detector mount for Sciencetech's line of monochromators and/or spectrometers. This quick release mount comes complete with Sciencetech's quick release mount (125-8012) as well as a quick release flange which mounts to a detector or component. The quick release flange has an internal 1.035-40 thread which can be used to mount Sciencetech's 525-5 line of detectors as well as other common optical components such as Thorlabs 1" lens tubes.

Please note that this mount will not work with dewer style detectors. If you are uncertain about what type of detector mount your system needs, please contact your Sciencetech representative.
181.00 181.0 USD
Price Valid only in North America


This upgrade allows a Manual 9030 to be operated by computer control. SciMono is included.
Only a single motorized upgrade is required for 9030DS, 9030DAs, or a single 9030.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
1,806.00
In stock
This upgrade allows a Manual 9030 to be operated by computer control. SciMono is included.
Only a single motorized upgrade is required for 9030DS, 9030DAs, or a single 9030.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
1,806.00 1806.0 USD
Price Valid only in North America


1,000.00 1000.0 USD
Price Valid only in North America

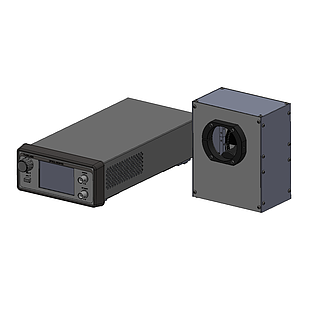

Rotating blade chopper
2 opening blade for frequency range of 4-200Hz.
Higher frequency ranges available with other blades.
Includes enclosure and driver
1-D slip ring with H4 hole pattern on input face, 2-D slip ring with S4 hole pattern on output face for integration with Sciencetech modular instruments.
** Warning ** This chopper accepts a maximum 1" diameter collimated beam at the chopper port. For 1" diameter collimated beams the CH-MC-E-1D1D chopper is usually used.
The CH-MC-E-1D2D chopper is usually used in cases where a convergent beam enters the chopper housing from a 2" optical tube.


This chopper is compatible with SciSpec and SciPV software. For integration into Sciencetech instruments or larger integrated systems see SciencetechCOM and SciAX software.

Third party control software is included with this chopper but is not supported by Sciencetech.
2,472.00
In stock
Rotating blade chopper
2 opening blade for frequency range of 4-200Hz.
Higher frequency ranges available with other blades.
Includes enclosure and driver
1-D slip ring with H4 hole pattern on input face, 2-D slip ring with S4 hole pattern on output face for integration with Sciencetech modular instruments.
** Warning ** This chopper accepts a maximum 1" diameter collimated beam at the chopper port. For 1" diameter collimated beams the CH-MC-E-1D1D chopper is usually used.
The CH-MC-E-1D2D chopper is usually used in cases where a convergent beam enters the chopper housing from a 2" optical tube.


This chopper is compatible with SciSpec and SciPV software. For integration into Sciencetech instruments or larger integrated systems see SciencetechCOM and SciAX software.

Third party control software is included with this chopper but is not supported by Sciencetech.
2,472.00 2472.0 USD
Price Valid only in North America

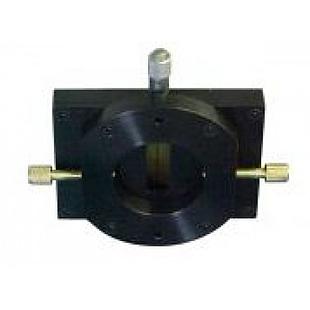

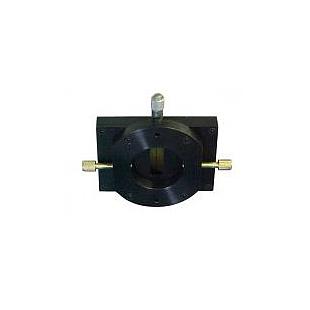

This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

200.00
In stock
This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

200.00 200.0 USD
Price Valid only in North America


This is a coupling tube, without optics, designed to hold lenses for integrating systems. In most cases, a customer will require [120-8036] as it includes the optical components required to couple effectively.
50.00
In stock
This is a coupling tube, without optics, designed to hold lenses for integrating systems. In most cases, a customer will require [120-8036] as it includes the optical components required to couple effectively.
50.00 50.0 USD
Price Valid only in North America


Slip ring for coupling 2" diameter lens tubes to a Sciencetech S4 hole pattern.
50.00
In stock
Slip ring for coupling 2" diameter lens tubes to a Sciencetech S4 hole pattern.
50.00 50.0 USD
Price Valid only in North America


45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The cold mirror eliminates IR (thermal) light on the sample (Transmission > 85% for the region 800 - 1200nm, Reflection >90% for the region 425 - 650nm)


788.00
In stock
45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The cold mirror eliminates IR (thermal) light on the sample (Transmission > 85% for the region 800 - 1200nm, Reflection >90% for the region 425 - 650nm)


788.00 788.0 USD
Price Valid only in North America


45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The UV cold mirror transmits IR (thermal) and some visible light on the sample (Transmission > 85% for the region 600 - 1200nm, Reflection >90% for the region 325 - 475nm)
788.00
In stock
45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The UV cold mirror transmits IR (thermal) and some visible light on the sample (Transmission > 85% for the region 600 - 1200nm, Reflection >90% for the region 325 - 475nm)
788.00 788.0 USD
Price Valid only in North America


The CTBT-RF is designed to work with Sciencetech's line of SS solar simulators (between 500W and 2.5kW). The CTBT-RF is designed to hold 3" x 4" cold mirrors. A heat sink is mounted behind the dichroic turning mirror to capture transmitted light. The CTBT-RF turns the beam 90 degrees from the standard horizontal output.


Four different cold mirror options exist (purchased separately):
1) 275-375nm
2) 325-450nm
3) 350-550nm
4) 450-725nm
5) UV Enhanced aluminum mirror (250-3000nm)


Please speak with your Sciencetech representative for ordering information.
1,350.00
In stock
The CTBT-RF is designed to work with Sciencetech's line of SS solar simulators (between 500W and 2.5kW). The CTBT-RF is designed to hold 3" x 4" cold mirrors. A heat sink is mounted behind the dichroic turning mirror to capture transmitted light. The CTBT-RF turns the beam 90 degrees from the standard horizontal output.


Four different cold mirror options exist (purchased separately):
1) 275-375nm
2) 325-450nm
3) 350-550nm
4) 450-725nm
5) UV Enhanced aluminum mirror (250-3000nm)


Please speak with your Sciencetech representative for ordering information.
1,350.00 1350.0 USD
Price Valid only in North America


Used to allow the SS150 to direct the beam downwards, upwards, or at 90 degrees to the usual output direction (horizontal). Not included in the Vertical Stand, due to the usual arrangement of allowing the beam to aim downwards (meaning in most cases this component is not required with the vertical stand option).
570.00
In stock
Used to allow the SS150 to direct the beam downwards, upwards, or at 90 degrees to the usual output direction (horizontal). Not included in the Vertical Stand, due to the usual arrangement of allowing the beam to aim downwards (meaning in most cases this component is not required with the vertical stand option).
570.00 570.0 USD
Price Valid only in North America


A Beam Turning Assembly can be mounted to the output port of many of Sciencetech's Solar Simulators to redirect the light downwards onto a sample platform. The Beam Turner may also be used to adjust the light path to any 90° angle perpendicular to the horizontal output beam.
1,200.00
In stock
A Beam Turning Assembly can be mounted to the output port of many of Sciencetech's Solar Simulators to redirect the light downwards onto a sample platform. The Beam Turner may also be used to adjust the light path to any 90° angle perpendicular to the horizontal output beam.
1,200.00 1200.0 USD
Price Valid only in North America


Sciencetech's FB1T filter box holds one filter per filter box and can accommodate up to 3" x 3" filters. The FB1T filter box is used to stop back reflections from travelling along the path of the incident light. The FB1T filter boxes are stackable, so multiple FB1T filter boxes can be attached if using more than one filter at once is required.
The FB1T has standard mounting for slip rings that are compatible with 2" diameter lens tubes. For mounting with 1" diameter lens tubes Sciencetech's S4-1D (100-8038) coupling adapator is required.

No filter holders are included and filter holders are dependent on the size of the filters to be used.

Compatible filter holders are the FT-series (e.g. FT-75).
410.00
Sciencetech's FB1T filter box holds one filter per filter box and can accommodate up to 3" x 3" filters. The FB1T filter box is used to stop back reflections from travelling along the path of the incident light. The FB1T filter boxes are stackable, so multiple FB1T filter boxes can be attached if using more than one filter at once is required.
The FB1T has standard mounting for slip rings that are compatible with 2" diameter lens tubes. For mounting with 1" diameter lens tubes Sciencetech's S4-1D (100-8038) coupling adapator is required.

No filter holders are included and filter holders are dependent on the size of the filters to be used.

Compatible filter holders are the FT-series (e.g. FT-75).
410.00 410.0 USD
Price Valid only in North America


This SMA Fiber Coupler mates a Sciencetech Beam Condensing Assembly to the input end of an SMA fiber such that the light collected is focused into the SMA fiber tip with great efficiency. The SMA Fiber Coupler screws onto the output end of the Beam Condensing Assembly. Once screwed on, the input tip of the fiber bundle is positioned at the output focal spot for optimum light collection. There are two flange sizes of the Fiber Bundle Coupler available to match the 1 and 2 inch diameter sizes of the Beam Condensing Assembly. Please note that the SMA Fiber Coupler should not be used on its own without the beam condensing assembly as otherwise the light collection efficiency from the light source will be very low.
228.00
In stock
This SMA Fiber Coupler mates a Sciencetech Beam Condensing Assembly to the input end of an SMA fiber such that the light collected is focused into the SMA fiber tip with great efficiency. The SMA Fiber Coupler screws onto the output end of the Beam Condensing Assembly. Once screwed on, the input tip of the fiber bundle is positioned at the output focal spot for optimum light collection. There are two flange sizes of the Fiber Bundle Coupler available to match the 1 and 2 inch diameter sizes of the Beam Condensing Assembly. Please note that the SMA Fiber Coupler should not be used on its own without the beam condensing assembly as otherwise the light collection efficiency from the light source will be very low.
228.00 228.0 USD
Price Valid only in North America


This SMA Fiber Coupler mates a Sciencetech 2" Beam Condensing Assembly (such as IO2 model condensors) to the input end of an SMA fiber such that the light collected is focused into the SMA fiber tip with great efficiency. The SMA Fiber Coupler screws onto the output end of the 2" Beam Condensing Assembly. Once screwed on, the input tip of the fiber bundle is positioned at the output focal spot for optimum light collection. This assembly also includes an X-Y optical coupler that can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. There are two flange sizes of the Fiber Bundle Coupler available to match the 1 and 2 inch diameter sizes of the Beam Condensing Assembly. Please note that the SMA Fiber Coupler should not be used on its own without the beam condensing assembly as otherwise the light collection efficiency from the light source is very low.
437.00
In stock
This SMA Fiber Coupler mates a Sciencetech 2" Beam Condensing Assembly (such as IO2 model condensors) to the input end of an SMA fiber such that the light collected is focused into the SMA fiber tip with great efficiency. The SMA Fiber Coupler screws onto the output end of the 2" Beam Condensing Assembly. Once screwed on, the input tip of the fiber bundle is positioned at the output focal spot for optimum light collection. This assembly also includes an X-Y optical coupler that can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. There are two flange sizes of the Fiber Bundle Coupler available to match the 1 and 2 inch diameter sizes of the Beam Condensing Assembly. Please note that the SMA Fiber Coupler should not be used on its own without the beam condensing assembly as otherwise the light collection efficiency from the light source is very low.
437.00 437.0 USD
Price Valid only in North America


This option adds an additional 2 filter positions to the FH-SS filter holder. The FH-SS and FH-SS-ADD option are designed to be used with Sciencetech FT-75-3 type blank filter holders as well as filters that include the -FT option. The FH-SS filter holder is used with Sciencetech's line of Fully Reflective solar simulators as well as the Solar Lightline and SciSun solar simulators.
350.00
This option adds an additional 2 filter positions to the FH-SS filter holder. The FH-SS and FH-SS-ADD option are designed to be used with Sciencetech FT-75-3 type blank filter holders as well as filters that include the -FT option. The FH-SS filter holder is used with Sciencetech's line of Fully Reflective solar simulators as well as the Solar Lightline and SciSun solar simulators.
350.00 350.0 USD
Price Valid only in North America


This is an SMA fiber coupler (FC style also available) with an interface flange mount to the input port of a Sciencetech monochromator or spectrograph (fiber not included). Please note two versions are available. One version is for the Sciencetech 9030 monochromator which utilizes its own slit interface flange design. The other version is for all other Sciencetech Series 9000 and 8000 monochromators and spectrographs which use a common slit interface flange design. With an FIB1 at the input port, a slit (fixed or adjustable) is not necessary as the width of the input fiber typically defines the input slit width. Please note that this fiber connection does not address the f number matching issue between the fiber and the monochromator or spectrograph. Hence if it is used at the input port of the monochromator or spectrograph, significant light loss can be expected with the fiber having an f number closer to 1. If this is an issue, please speak to a Sciencetech Applications Specialist about using a condensing lens assembly with the FIB4 or FIB5 instead.
230.00
In stock
This is an SMA fiber coupler (FC style also available) with an interface flange mount to the input port of a Sciencetech monochromator or spectrograph (fiber not included). Please note two versions are available. One version is for the Sciencetech 9030 monochromator which utilizes its own slit interface flange design. The other version is for all other Sciencetech Series 9000 and 8000 monochromators and spectrographs which use a common slit interface flange design. With an FIB1 at the input port, a slit (fixed or adjustable) is not necessary as the width of the input fiber typically defines the input slit width. Please note that this fiber connection does not address the f number matching issue between the fiber and the monochromator or spectrograph. Hence if it is used at the input port of the monochromator or spectrograph, significant light loss can be expected with the fiber having an f number closer to 1. If this is an issue, please speak to a Sciencetech Applications Specialist about using a condensing lens assembly with the FIB4 or FIB5 instead.
230.00 230.0 USD
Price Valid only in North America
