Fully Reflective Solar Simulators

Fully Reflective Solar Simulator

The Fully Reflective Class ABA Solar Simulator


All of Sciencetech's Fully Reflective line of solar simulators feature a design that does not require lenses or diffusers to make the output uniform at the target plane. As a result, the solar simulator is able to reach its optimal throughput efficiency and reach a consistant ABA class rating for every fully reflective solar simulator we provide, making Sciencetech's line of solar simulators substantially more efficient than our competitor's designs.

More Information


About Our Fully Reflective Class ABA Solar Simulators


Sciencetech manufactures four high power versions of Class ABA Fully Reflective Solar Simulators. Schiencetech's properietary fully reflective design uses metal coated mirrors and passes the whole spectrum, no compromise. This is a distinct advantage over refractive based systems that are limited by the properties of the transparent material used.

The fully reflective design utilizes a series of mirrors, including a special folding mirror that bends the light source without the drawbacks of refractive optics. This allows the simulator to direct the light beam from the arc lamp source to the target plane, producing a higher intensity, uniform illumination at the target plane than a competitor’s simulators.

In Sciencetech’s line of fully reflective solar simulators the power output will typically be 1.3 times more powerful when compared to simulators that use the same wattage of arc lamp with diffusers to make the light field uniform at the target.

The high pressure xenon lamp used in each simulator projects an excellent basic match for solar simulation. The solar spectral distribution at different Earth conditions can be simulated through use of Air Mass filters AM0 for Solar Simulator.

For more variation of where your test surface is located, several simulators can be mounted on a vertical stand, and if coupled with a beam turning accessory, enable the simulator’s ability to project towards a floor, wall, or ceiling, depending on your research requirements.

The air mass filters used with each simulator are 3" x 3" in size and can be easily switched in each model via a built-in access panel. There are two AM filter slots in each simulator; additional slots can be added upon consultation.

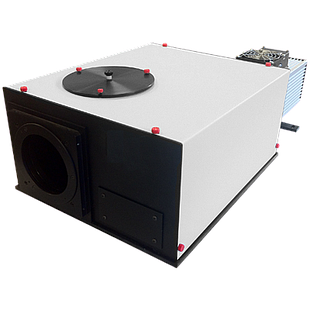

Sciencetech Fully Reflective Solar Simulator
1. The modularity designed lamp house makes lamp replacement easy. The built in ignite and metal casing protects external equipment from Electromagnetic Interference.
2. IR Filter Location for the best IR filtering option available.
3. Filter Drawer allows the user to stack up to 4 filters including air mass filters or specific bandpass filters such as UV A/B and C filters.
4. Brackets for optional mounting let you integrate Sciencetech solar simulators into your custom application.
5. The air cooled beam homogenizer and lamp house extends the system lifetime, protecting your investment.
6. The output mounting flange allows you to attach various beam direction and fitlering options.
Contact Us Today
Get more information or request a quote.
X

Product Category

View Filter

x
Clear all x

Filter Option

Class: ABA
Target Size: 75mm (3”) diameter
Working Distance: 450mm (18”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-500

Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-0.5kW includes air-cooled arc lamp housing, 0.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
25,975.00
In stock
Class: ABA
Target Size: 75mm (3”) diameter
Working Distance: 450mm (18”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-500

Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-0.5kW includes air-cooled arc lamp housing, 0.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
25,975.00 25975.0 USD
Price Valid only in North America

Class: ABA
Target Size: 125mm (5”) diameter
Working Distance: 750mm (30”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1k
CE compliant
Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.0kW includes air-cooled arc lamp housing, 1.0kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
29,024.00
In stock
Class: ABA
Target Size: 125mm (5”) diameter
Working Distance: 750mm (30”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1k
CE compliant
Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.0kW includes air-cooled arc lamp housing, 1.0kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
29,024.00 29024.0 USD
Price Valid only in North America

Class: ABA
Target Size: 50mm (2”) diameter
Working Distance: 760mm (31”) ± 25mm (1”)
Collimation: 2.5 degrees half angle
Power Supply: Sciencetech 500-150
Spectral Range 180 - 4400 nm

Sciencetech is pleased to offer the SS-150W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-150W includes air-cooled arc lamp housing, 150W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
20,233.00
In stock
Class: ABA
Target Size: 50mm (2”) diameter
Working Distance: 760mm (31”) ± 25mm (1”)
Collimation: 2.5 degrees half angle
Power Supply: Sciencetech 500-150
Spectral Range 180 - 4400 nm

Sciencetech is pleased to offer the SS-150W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-150W includes air-cooled arc lamp housing, 150W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
20,233.00 20233.0 USD
Price Valid only in North America

Class: ABA
Target Size: 160mm (6.2”) diameter
Working Distance: 900mm (36”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1.6k

Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.6kW includes air-cooled arc lamp housing, 1.6kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
37,230.00
In stock
Class: ABA
Target Size: 160mm (6.2”) diameter
Working Distance: 900mm (36”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1.6k

Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.6kW includes air-cooled arc lamp housing, 1.6kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
37,230.00 37230.0 USD
Price Valid only in North America

Class: ABA
Target Size: 200mm (7.8”) diameter
Working Distance: 1050mm (42”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-3k

Sciencetech is pleased to offer the SS-2.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-2.5kW includes air-cooled arc lamp housing, 2.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
43,610.00
In stock
Class: ABA
Target Size: 200mm (7.8”) diameter
Working Distance: 1050mm (42”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-3k

Sciencetech is pleased to offer the SS-2.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-2.5kW includes air-cooled arc lamp housing, 2.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
43,610.00 43610.0 USD
Price Valid only in North America
