A motorized 6 position filter wheel capable of holding 25mm (1") filters (either square or circular). The filter wheel connects via USB 2.0 to a computer (USB cable included). The filter wheel software includes a stand alone application but also includes development examples for integrating the filter wheel with LabView or C++ software.

Please select the flush mount option for use with Sciencetech monochromator slits, and select the lens tube mount option for all other cases with Sciencetech parts. For custom applications, please contact our sales team to provide more information on your specific application.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
2,050.00
A motorized 6 position filter wheel capable of holding 25mm (1") filters (either square or circular). The filter wheel connects via USB 2.0 to a computer (USB cable included). The filter wheel software includes a stand alone application but also includes development examples for integrating the filter wheel with LabView or C++ software.

Please select the flush mount option for use with Sciencetech monochromator slits, and select the lens tube mount option for all other cases with Sciencetech parts. For custom applications, please contact our sales team to provide more information on your specific application.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
2,050.00 2050.0 USD
Price Valid only in North America


Open/ close time ~200ms.
Automated with 601 or 611 series power supplies
Designed for use with the SciSun solar simulator
1,000.00
Open/ close time ~200ms.
Automated with 601 or 611 series power supplies
Designed for use with the SciSun solar simulator
1,000.00 1000.0 USD
Price Valid only in North America


The SH-XLH-B is a computer controlled shutter for 201, LH-S, XLH-S lamp houses and SF/SLB solar simulators. Based on the successful SSES lines of blade shutters for Sciencetech's line of high powered solar simulators.
An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. The best option for performing exposure testing is to integrate an electronic shutter system with the lamp house or solar simulator. This electronic shutter has an activation time of <150ms.

The SH-XLH-B can be controlled using Sciencetech 601 or 501 series power supplies (including automated explosure time control). Alternatively, a shutter controller model SH-C and SCI-SHUTTER Software are available for controlling the shutter. The SH-C controller is not included with this shutter.

This shutter can be used with any high powered light source and can effectively block a 2" diameter beam.
This shutter is closed frame and the shutter mechanism is not exposed. For an open frame shutter please see the SH-2-B-OF product.
1,000.00
In stock
The SH-XLH-B is a computer controlled shutter for 201, LH-S, XLH-S lamp houses and SF/SLB solar simulators. Based on the successful SSES lines of blade shutters for Sciencetech's line of high powered solar simulators.
An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. The best option for performing exposure testing is to integrate an electronic shutter system with the lamp house or solar simulator. This electronic shutter has an activation time of <150ms.

The SH-XLH-B can be controlled using Sciencetech 601 or 501 series power supplies (including automated explosure time control). Alternatively, a shutter controller model SH-C and SCI-SHUTTER Software are available for controlling the shutter. The SH-C controller is not included with this shutter.

This shutter can be used with any high powered light source and can effectively block a 2" diameter beam.
This shutter is closed frame and the shutter mechanism is not exposed. For an open frame shutter please see the SH-2-B-OF product.
1,000.00 1000.0 USD
Price Valid only in North America

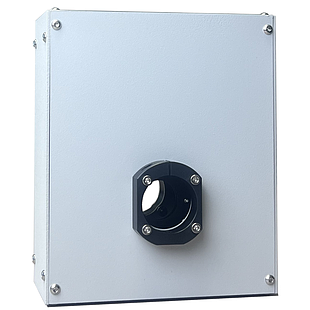

Sciencetech's FB1T filter box holds one filter per filter box and can accommodate up to 3" x 3" filters. The FB1T filter box is used to stop back reflections from travelling along the path of the incident light. The FB1T filter boxes are stackable, so multiple FB1T filter boxes can be attached if using more than one filter at once is required.
The FB1T has standard mounting for slip rings that are compatible with 2" diameter lens tubes. For mounting with 1" diameter lens tubes Sciencetech's S4-1D (100-8038) coupling adapator is required.

No filter holders are included and filter holders are dependent on the size of the filters to be used.

Compatible filter holders are the FT-series (e.g. FT-75).
410.00
Sciencetech's FB1T filter box holds one filter per filter box and can accommodate up to 3" x 3" filters. The FB1T filter box is used to stop back reflections from travelling along the path of the incident light. The FB1T filter boxes are stackable, so multiple FB1T filter boxes can be attached if using more than one filter at once is required.
The FB1T has standard mounting for slip rings that are compatible with 2" diameter lens tubes. For mounting with 1" diameter lens tubes Sciencetech's S4-1D (100-8038) coupling adapator is required.

No filter holders are included and filter holders are dependent on the size of the filters to be used.

Compatible filter holders are the FT-series (e.g. FT-75).
410.00 410.0 USD
Price Valid only in North America


This option adds an additional 2 filter positions to the FH-SS filter holder. The FH-SS and FH-SS-ADD option are designed to be used with Sciencetech FT-75-3 type blank filter holders as well as filters that include the -FT option. The FH-SS filter holder is used with Sciencetech's line of Fully Reflective solar simulators as well as the Solar Lightline and SciSun solar simulators.
350.00
This option adds an additional 2 filter positions to the FH-SS filter holder. The FH-SS and FH-SS-ADD option are designed to be used with Sciencetech FT-75-3 type blank filter holders as well as filters that include the -FT option. The FH-SS filter holder is used with Sciencetech's line of Fully Reflective solar simulators as well as the Solar Lightline and SciSun solar simulators.
350.00 350.0 USD
Price Valid only in North America


1,000.00 1000.0 USD
Price Valid only in North America

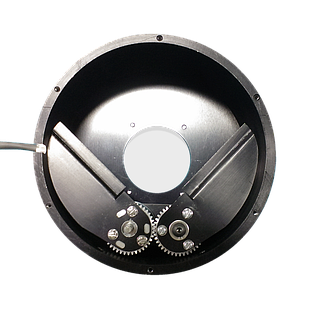

The SH-2-B-OF is a computer controlled shutter for 201, LH-S, XLH-S lamp houses and SF solar simulators. Based on the successful SSES lines of blade shutters for Sciencetech's line of high powered solar simulators.
An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. THe best option for performing exposure testing is to integrate an electronic shutter system inside the beam homogenizer. The electronic shutter is computer controlled with an activation time of <150ms. Software for the shutter controller is included with this item. The standard shutter controller connects to a computer via RS232. RS232-USB converters are available and work with this product. In addition to computer control the shutter can be controlled via a toggle switch on the shutter controller box.

This shutter can be used with any high powered light source and can effectively block a 2" diameter beam. See the brochure information for a mounting pattern.
This shutter is open frame and the shutter mechanism is exposed. For an enclosed shutter please see the SH-XLH-B product.

This device can be controlled through Sciencetech's touch screen power supplies (including automated exposure time control).
Please note leaving the shutter closed for extremely long periods of time while the arc lamp is on may cause damage to the motorized components.
500.00
In stock
The SH-2-B-OF is a computer controlled shutter for 201, LH-S, XLH-S lamp houses and SF solar simulators. Based on the successful SSES lines of blade shutters for Sciencetech's line of high powered solar simulators.
An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. THe best option for performing exposure testing is to integrate an electronic shutter system inside the beam homogenizer. The electronic shutter is computer controlled with an activation time of <150ms. Software for the shutter controller is included with this item. The standard shutter controller connects to a computer via RS232. RS232-USB converters are available and work with this product. In addition to computer control the shutter can be controlled via a toggle switch on the shutter controller box.

This shutter can be used with any high powered light source and can effectively block a 2" diameter beam. See the brochure information for a mounting pattern.
This shutter is open frame and the shutter mechanism is exposed. For an enclosed shutter please see the SH-XLH-B product.

This device can be controlled through Sciencetech's touch screen power supplies (including automated exposure time control).
Please note leaving the shutter closed for extremely long periods of time while the arc lamp is on may cause damage to the motorized components.
500.00 500.0 USD
Price Valid only in North America


This manual shutter mounts to light sources that use 2" (50.8mm) diameter lens tubes. The model MS-2 manual shutter can also be mounted on 2" Beam Turning Units (CTBT-2). This shutter can be used with XLH and LH lamp housings and products based on XLH and LH lamp housings.
150.00
In stock
This manual shutter mounts to light sources that use 2" (50.8mm) diameter lens tubes. The model MS-2 manual shutter can also be mounted on 2" Beam Turning Units (CTBT-2). This shutter can be used with XLH and LH lamp housings and products based on XLH and LH lamp housings.
150.00 150.0 USD
Price Valid only in North America

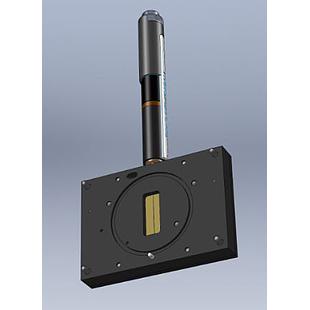

The SS-84-M is a High Resolution motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS84 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.

This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.
3,300.00
In stock
The SS-84-M is a High Resolution motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS84 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.

This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.
3,300.00 3300.0 USD
Price Valid only in North America


The SS-80-M is a Motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders. The SS-80-M motorized slit comes with Sciencetech SciSlit software for controlling the slit. See the product brochure for more information on the slit accuracy and step size.
2,988.00
In stock
The SS-80-M is a Motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders. The SS-80-M motorized slit comes with Sciencetech SciSlit software for controlling the slit. See the product brochure for more information on the slit accuracy and step size.
2,988.00 2988.0 USD
Price Valid only in North America

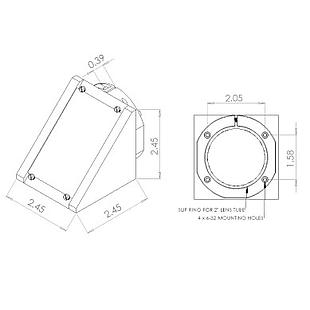

45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The UV cold mirror transmits IR (thermal) and some visible light on the sample (Transmission > 85% for the region 600 - 1200nm, Reflection >90% for the region 325 - 475nm)
788.00
In stock
45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The UV cold mirror transmits IR (thermal) and some visible light on the sample (Transmission > 85% for the region 600 - 1200nm, Reflection >90% for the region 325 - 475nm)
788.00 788.0 USD
Price Valid only in North America

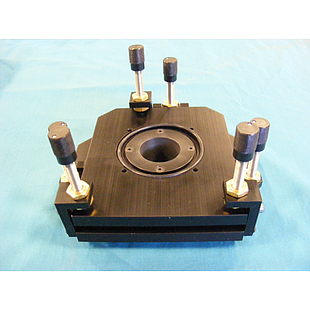

This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

200.00
In stock
This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

200.00 200.0 USD
Price Valid only in North America


This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.

Please note that these slits are not designed to maximize throughput for extremely high resolution monochromators, due to the straight orientation of the slits. For maximum resolution, the slits need to be designed on a curve that corresponds to the curvature of the point of least confusion. However, this is only a significant factor for systems with optical pathlengths of 1m and greater. Please speak with your authorized Sciencetech technical sales staff member if you need maximum resolution for a long pathlength system.
1,030.00
In stock
This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.

Please note that these slits are not designed to maximize throughput for extremely high resolution monochromators, due to the straight orientation of the slits. For maximum resolution, the slits need to be designed on a curve that corresponds to the curvature of the point of least confusion. However, this is only a significant factor for systems with optical pathlengths of 1m and greater. Please speak with your authorized Sciencetech technical sales staff member if you need maximum resolution for a long pathlength system.
1,030.00 1030.0 USD
Price Valid only in North America


This is a coupling tube, without optics, designed to hold lenses for integrating systems. In most cases, a customer will require [120-8036] as it includes the optical components required to couple effectively.
50.00
In stock
This is a coupling tube, without optics, designed to hold lenses for integrating systems. In most cases, a customer will require [120-8036] as it includes the optical components required to couple effectively.
50.00 50.0 USD
Price Valid only in North America


Slip ring for coupling 2" diameter lens tubes to a Sciencetech S4 hole pattern.
50.00
In stock
Slip ring for coupling 2" diameter lens tubes to a Sciencetech S4 hole pattern.
50.00 50.0 USD
Price Valid only in North America

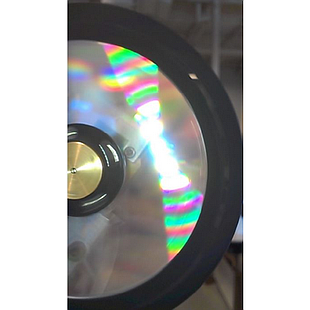

The Sciencetech Polarizing variable frequency optical chopper is used with the detectors during Martin-Puplett mode. The chopper is positioned in front of the output port, and captures the output at 45 degrees from the two planes of polarization. This facilitates the retrieval of the Fourier Transform Interferogram during M-P mode. The chopper itself is designed for high stability and a broad range of frequency control (from 0.5Hz to 100Hz). The price includes the servo motor and software controller.
4,908.00
The Sciencetech Polarizing variable frequency optical chopper is used with the detectors during Martin-Puplett mode. The chopper is positioned in front of the output port, and captures the output at 45 degrees from the two planes of polarization. This facilitates the retrieval of the Fourier Transform Interferogram during M-P mode. The chopper itself is designed for high stability and a broad range of frequency control (from 0.5Hz to 100Hz). The price includes the servo motor and software controller.
4,908.00 4908.0 USD
Price Valid only in North America


This holder is economical choice for slits for Sciencetech monochromators such as the 9055.
This slit holder is required when using the fixed slits designed for the 9030 (Product Numbers 120-9010, 120-9011, 120-9012, 120-9013, 120-9033, and 120-9034). This slit holder comes with one fixed width slit from these options. Only one slit holder is required per input/output; different slits can be exchanged using the same slit holder. Please specify the size of slit you would like at the time of ordering: sizes are available from 0.1mm (100um) up to 3mm. Slits are 8mm tall.
285.00
In stock
This holder is economical choice for slits for Sciencetech monochromators such as the 9055.
This slit holder is required when using the fixed slits designed for the 9030 (Product Numbers 120-9010, 120-9011, 120-9012, 120-9013, 120-9033, and 120-9034). This slit holder comes with one fixed width slit from these options. Only one slit holder is required per input/output; different slits can be exchanged using the same slit holder. Please specify the size of slit you would like at the time of ordering: sizes are available from 0.1mm (100um) up to 3mm. Slits are 8mm tall.
285.00 285.0 USD
Price Valid only in North America

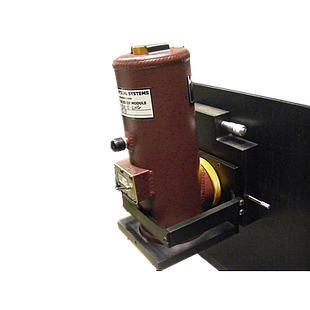

This mount will attach cryogenic detectors directly to a Sciencetech monochromator or spectrometer. Please note that this mount is designed specifically for cryogenically cooled detectors, and may not function for other types of detectors. If you are uncertain about whether you need this mount or not, please contact your Sciencetech Representative.
525.00
In stock
This mount will attach cryogenic detectors directly to a Sciencetech monochromator or spectrometer. Please note that this mount is designed specifically for cryogenically cooled detectors, and may not function for other types of detectors. If you are uncertain about whether you need this mount or not, please contact your Sciencetech Representative.
525.00 525.0 USD
Price Valid only in North America


This four slot filter-wheel was originally designed for the US military to work in a 10^(-7) Torr vacuum environment. Today, a standard non-vacuum version and the original vacuum version are available. The vacuum version can be manufactured in a Class 10,000 clean room, fully baked out, and meets Class A cleanliness standards, at a small additional cost. Please note that the optional external control electronics is not designed to operate in a vacuum. It must operate in ambient pressure environment.
5,127.00
In stock
This four slot filter-wheel was originally designed for the US military to work in a 10^(-7) Torr vacuum environment. Today, a standard non-vacuum version and the original vacuum version are available. The vacuum version can be manufactured in a Class 10,000 clean room, fully baked out, and meets Class A cleanliness standards, at a small additional cost. Please note that the optional external control electronics is not designed to operate in a vacuum. It must operate in ambient pressure environment.
5,127.00 5127.0 USD
Price Valid only in North America


Sciencetech's 120-9045 high speed shutter is a recommended accessory with Sciencetech's area scan CCD detectors, but can also be used with Sciencetech's LDA photodiodes or InGaAs linear array detectors. This shutter mounts inside a Sciencetech spectrograph behind the input port. Due to its sturdy steel construction, it can withstand approximately 5W/mm^2 (up to about 200 degrees Celsius). This product includes both the shutter and the controller, and can be either manually controlled (via externally mounted button) or computer controlled.
2,200.00
In stock
Sciencetech's 120-9045 high speed shutter is a recommended accessory with Sciencetech's area scan CCD detectors, but can also be used with Sciencetech's LDA photodiodes or InGaAs linear array detectors. This shutter mounts inside a Sciencetech spectrograph behind the input port. Due to its sturdy steel construction, it can withstand approximately 5W/mm^2 (up to about 200 degrees Celsius). This product includes both the shutter and the controller, and can be either manually controlled (via externally mounted button) or computer controlled.
2,200.00 2200.0 USD
Price Valid only in North America
