Ultra High Power Xe 3000W - 7000W

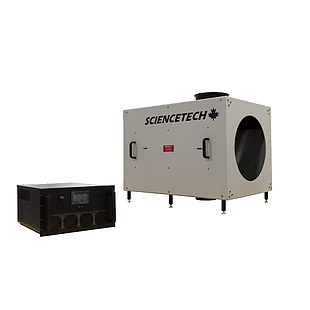

The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the 631 series touch screen computer controllable power supply, one 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

Designed for use in North America

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
-Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-220-B power supply designed for North America
Compatible with UPLH-E(F)-6500X-B lamp houses

Power Requirements:
200-240VAC, 50/60 Hz, 31.3A, 3 Phase (200-240V phase to phase) 4 wires (3P+E)

Includes hard wired 6 ft power cable with L15-50P termination.
Requires a minimum 40A 3-phase circuit, 200-240VAC (phase-phase), 4 wires (3P+E)

$ 40,106.00

The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes a 631 series touch screen computer controllable power supply, one 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

This system is designed for global use.

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
-Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-480-B power supply designed for North America
380-480VAC, 50/60 Hz, 16.8-13.3A 3 Phase
(380-480 V phase to phase , 4 wire)

Requires one L16 power cable selection.

$ 40,106.00

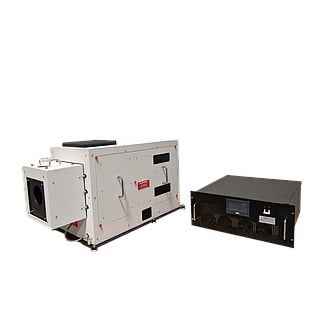

2500 W Focused Beam High Power Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focused image of the high intensity Xenon arc lamp. Includes 621 series touch screen computer controllable power supply, one lamp and digital copies of instrument test report, operating instructions and software.

$ 23,000.00

2500 W Collimated High Powered Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 621 series touch screen computer controllable power supply, One 2500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

$ 22,500.00
