Ultra High Efficiency Solar Simulators

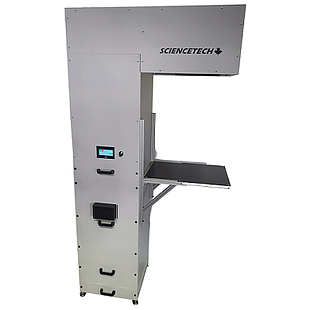

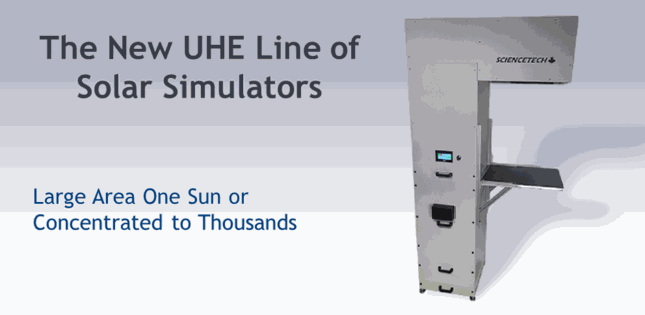

The Ultra High Efficiency UHE solar simulator series are class AAA and have a turnkey operating system. Due to their very high efficiency, these can be used for larger target areas and larger distances. Conveniently integrated systems suitable for a variety of research and testing requiring a stable and reliable uniform light source. The UHE comes standard with a downward facing stand. Each UHE Includes internal power supply. Large testing area and working distances can be achieved for easy integration. Numerous sample area accessories, instrument configuration options, and accessories are available.



X

Product Category

View Filter

x
Clear all x

Filter Option



Class: AAA
Collimation Angle: 3.85º half angle
Target Size: 125mm x 125 mm
Working Distance: 300mm
550W Xe Arc Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 1 IEC 60320 C13 compatible power cables
30,750.00
In stock
Class: AAA
Collimation Angle: 3.85º half angle
Target Size: 125mm x 125 mm
Working Distance: 300mm
550W Xe Arc Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 1 IEC 60320 C13 compatible power cables
30,750.00 30750.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-10)
Non-uniformity < 3% over 36 measurement locations
Collimation Angle: 2.2º half angle
Target Size: 300mm x 300 mm
Working Distance: 650mm +/- 100mm
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
70,125.00
In stock
Class: AAA (ASTM E927-10)
Non-uniformity < 3% over 36 measurement locations
Collimation Angle: 2.2º half angle
Target Size: 300mm x 300 mm
Working Distance: 650mm +/- 100mm
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
70,125.00 70125.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19)
Collimation Angle: 2.35º half angle
Target Size: 250mm x 250 mm
Working Distance: 650mm
1600W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 12.1-9.0A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
58,600.00
In stock
Class: AAA (ASTM E927-19)
Collimation Angle: 2.35º half angle
Target Size: 250mm x 250 mm
Working Distance: 650mm
1600W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 12.1-9.0A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
58,600.00 58600.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19)
Collimation Angle: 2.6º half angle
Target Size: 200mm x 200 mm
Working Distance: 575mm
1000W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
40,490.00
In stock
Class: AAA (ASTM E927-19)
Collimation Angle: 2.6º half angle
Target Size: 200mm x 200 mm
Working Distance: 575mm
1000W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
40,490.00 40490.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19)
Collimation Angle: 3.95º half angle
Target Size: 150mm x 150 mm
Working Distance: 500mm
500W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 1 IEC 60320 C13 compatible power cables
29,750.00
In stock
Class: AAA (ASTM E927-19)
Collimation Angle: 3.95º half angle
Target Size: 150mm x 150 mm
Working Distance: 500mm
500W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 1 IEC 60320 C13 compatible power cables
29,750.00 29750.0 USD
Price Valid only in North America


Class: AAA
Collimation Angle: 4.1º half angle
Target Size: 100mm x 100 mm
Working Distance: 300mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 1 IEC 60320 C13 compatible power cables
26,800.00
In stock
Class: AAA
Collimation Angle: 4.1º half angle
Target Size: 100mm x 100 mm
Working Distance: 300mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 1 IEC 60320 C13 compatible power cables
26,800.00 26800.0 USD
Price Valid only in North America


Class: AAA
Collimation Angle: 4.5º half angle
Target Size: 75mm x 75 mm
Working Distance: 225 mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 1 IEC 60320 C13 power cable
18,506.00
In stock
Class: AAA
Collimation Angle: 4.5º half angle
Target Size: 75mm x 75 mm
Working Distance: 225 mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 1 IEC 60320 C13 power cable
18,506.00 18506.0 USD
Price Valid only in North America
