Lamps

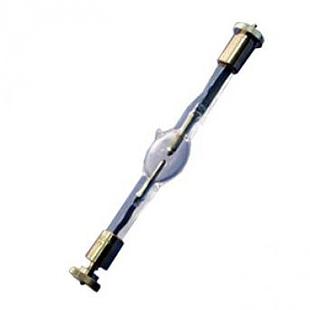

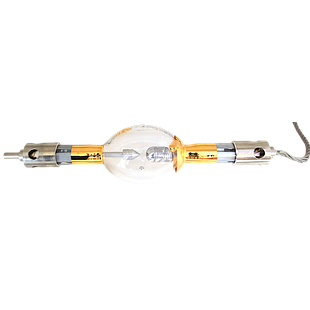

6500W Xenon arc lamp
Ozone Free
Compatible with Sciencetech Ultra-High Power Lamp Houses.

Nominal Wattage 6500 W
Nominal Voltage 39 V
Current (A) 165 A
Current Control Range (A) 133-173 A

Physical attributes
Base Anode SFAx30-14
Base Cathode SFa30-7.9

$ 2,826.00

$ 2,014.00

This lamp housing design is optimized for 300W xenon arc lamps. It features a parabolic reflector.

Lamp Power: 300W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,977.00

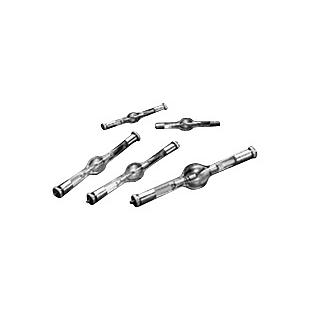

Replacement 150W Short arc Xenon lamp.
Vertical or Horizontal operation.

$ 460.00

A 300W xenon short arc lamp bulb, using a fused silica glass envelope. Please note that this lamp produces ozone.

$ 1,350.00

This is a housing designed for Sciencetech's 188-8060 IR Sources. It includes an Elliptical reflector for focusing the output IR light to a point. The reflector is an F/4.5 reflector, Sciencetech part # 620-0205.

For the Parabolic reflector option, please see part number 100-9071.

$ 2,250.00

This is a housing designed for Sciencetech's 188-8060 IR Sources. It includes a Gold Coated parabolic reflector.

For the Elliptical reflector option, please see part number 100-9074

$ 2,250.00

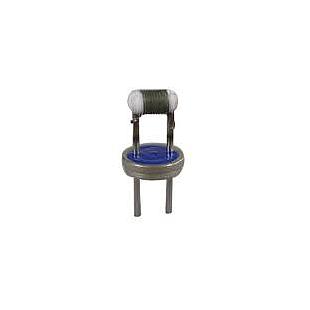

The IRE-12 a coiled filament operating at approximately 900 degrees Celsius when powered with 10 watts. The radiating element is a coil of resistance wire which has a high emissivity in the Infrared spectral region. The coil is supported by a grooved cylindrical substrate of alumina, resulting in the windings being electrically insulated from each other. This contributes to a more uniform radiating source. The unit does not require operation in a sealed atmosphere. The header is fabricated from cold-rolled steel. The support pins are hermetically sealed in glass.

$ 263.00

A 300W "super quiet" arc lamp replacement bulb.

$ 1,103.00

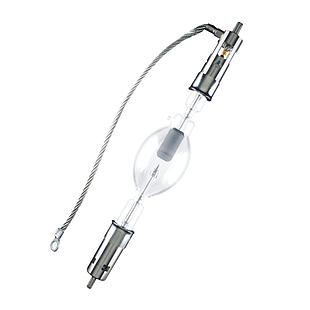

A 3000W (3kW) xenon arc lamp bulb replacement.

$ 1,925.00

A replacement 300W short arc xenon bulb.
Average lifetime = 1000hrs

$ 960.00

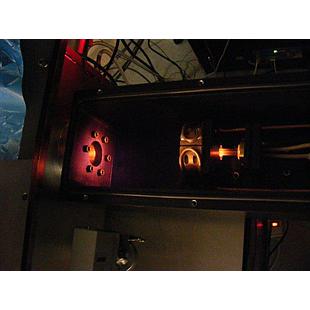

The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.

$ 8,100.00

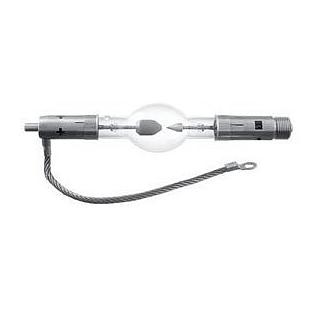

Osram brand Xenon short arc lamp,
Burning Positions: Vertical, horizontal
Envelope Diameter: 46.0 mm
Total Length: 235.0 mm
Length, cathode base to arc: 95.0mm
arc gap length: 3.8mm
Length, base to base: 205mm
Lifespan: 2500 h
Nominal wattage: 1600.00 W
Lamp voltage: 23 V
Nominal current: 65.0 A
Current control range: 50…75 A

Note a XE1600-O lamp may be used in a system previously using an XE1600-U lamp.
Due to the 3.5mm difference in cathode base to arc position, some adjustment in lamp position may be necessary.

$ 1,620.00

This one of the standard Xenon lamp recommended for the Model 500-500 Power Supply. Although it is rated at 450W, it can be driven at 500W with little effect on its service life. (18V 25A, 1300cd, avg life 2000 hours, length 260mm)

$ 868.00

A 500W Xenon arc lamp.
Nominal Current 28.0A
Nominal Voltage: 17.0V
Anode base SFa16-8 (8mm stud)
Cathode base SFa15-10 (10mm stud)

$ 895.00

Lamp Type 75W Xenon, Ozone Free
Power 75 W
Current 5.4 A
DC Voltage 14 V
Average Luminance 4000000 cd/mm2
Arc Size 0.25mm x 0.5mm
Average Life 400 h
Diameter 10 mm
Base Anode SFa9-2
Base cathode SFa7.5-2

$ 389.00

This 150W Xe bulb is recommended for Sciencetch solar simulator model SS150 only. It is a specially designed lamp to improve the uniformity of the SS150.

$ 957.00
