Electrochemical Workstations

Zahner Electrochemical Instruments

High Quality Expert Instruments

A Potentiostat is used in with a three electrode cell to perform a myriad of electrochemical experiments, ranging from measuring half-cell potentials, impedance spectroscopy, redox chemistry, and chemical phenomena. These experiments are relevant for corrosion studies, battery chemistry development, materials characterization and more.

Sciencetech is pleased to represent Zahner in Canada. With 40 years of experience in the field, Zahner’s high-quality electrochemical instruments are backed by years of expertise. Zahner’s systems are an excellent choice for many applications such as corrosion testing, photoelectrochemistry, fuel cell testing, and Li-ion battery testing .

Zahner potentiostats are designed to provide the highest level of performance in electrochemical experiments and have been proven to be precise and versatile devices for any kind of electrochemical application. Zahner potentiostats can be equipped with multiple plug and play add-on cards, which introduce additional analog and digital input/output signals. This modular function makes Zahner's potentiostats very flexible and allows the possibility to customize the potentiostat to suit the needs of its users.

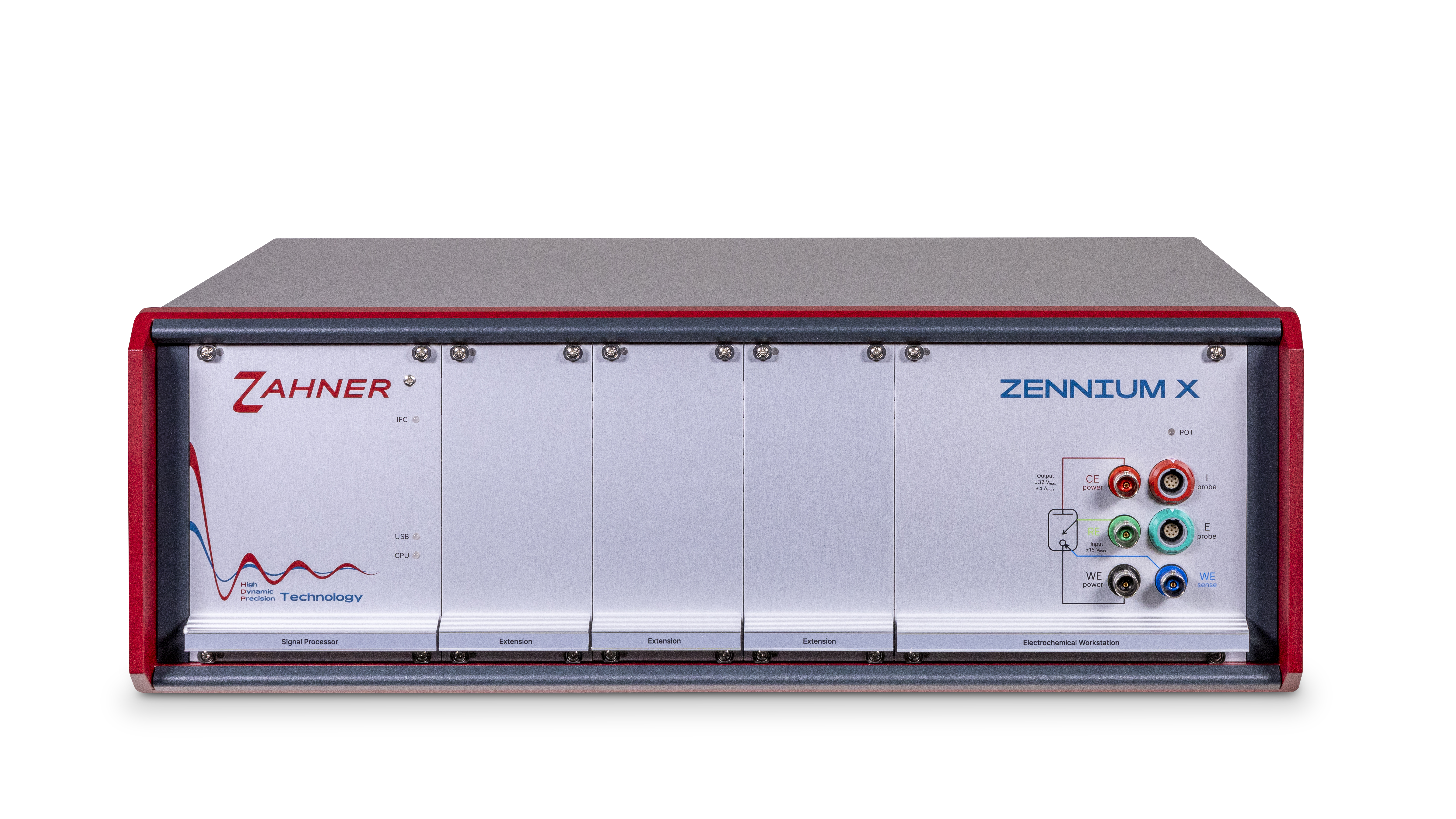

Zahner Zennium X

Zennium

Electrochemical Workstation


The core of the Zahner instrumentation is an electrochemical workstation. With the Zennium, Zennium E, Zennium-pro, and Zennium-X, there is a workstation available to support the most advanced techniques, as well as a cost-effective option for more straightforward applications. Supported by the Thales software, many different techniques can be accessed from the same software interface, making the Zahner line convenient and easy to use.

With modular components to add on, accessories for your specific technique can be simply and easily added to your workstation, customizing your setup for your specific requirements.

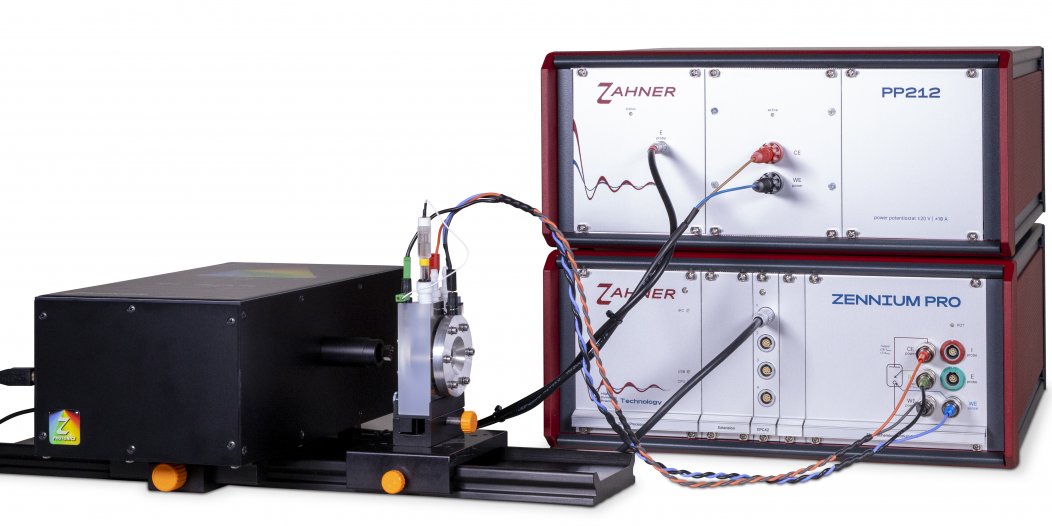

CIMPS Instruments

Photoelectrochemistry


For photoelectrochemistry, the CIMPS instruments are a powerful choice. With a light source included and kept stable by a control loop, considerations such as non-linearity, ageing, and temperature drift no longer need be considered. The package includes the light source (driven by an included slave potentiostat), optical bench, photoelectrochemical cell, and all required software. For QE and IPCE measurements, consider the CIMPS-QE/IPCE package, including all necessary components to collect QE and IPCE measurements from your sample.

The Zahner CIMPS measurement system has been designed with focus on the special demands of dynamic photo-electric investigations like IMPS and IMVS, popular today for instance in alternative solar cell research. Besides all traditional electrochemical investigations supported by THALES - like impedance measurements, cyclic voltammetry, current-potential curves, etc. - now mixed photo electric transfer functions, known as Intensity Modulated Photo Spectra(IMPS/IMVS), can be measured.

Zahner CIMPS

Electrochemical Workstation Models

Product Comparison

With the following electrochemical workstations available as a base, you can perform many measurements with the workstation alone or choose add-ons to customize your capabilities for your specific requirements:

Contact Us Today
Get more information or request a quote.
X

Product Category

View Filter

x
Clear all x

Filter Option



Upgrade: Cypress to FTDI USB Chip
-Including calibration of workstation

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Upgrade: Cypress to FTDI USB Chip
-Including calibration of workstation

For pricing information, please request a quotation from sales@sciencetech-inc.com.
3,333.00 3333.0 USD
Price Valid only in North America


Processor Upgrade for IM6 series
-ColdFire CPU board with USB-interface
-Slot covers, USB cable
-HD removal & backup (if possible)
-Factory calibration
-ThalesXT software
-System is controlled by a Windows7/8/10-PC (not included)

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Processor Upgrade for IM6 series
-ColdFire CPU board with USB-interface
-Slot covers, USB cable
-HD removal & backup (if possible)
-Factory calibration
-ThalesXT software
-System is controlled by a Windows7/8/10-PC (not included)

For pricing information, please request a quotation from sales@sciencetech-inc.com.
4,824.00 4824.0 USD
Price Valid only in North America


IM6 (with ColdFire Processor and EPC42 Card only) to CIMPS

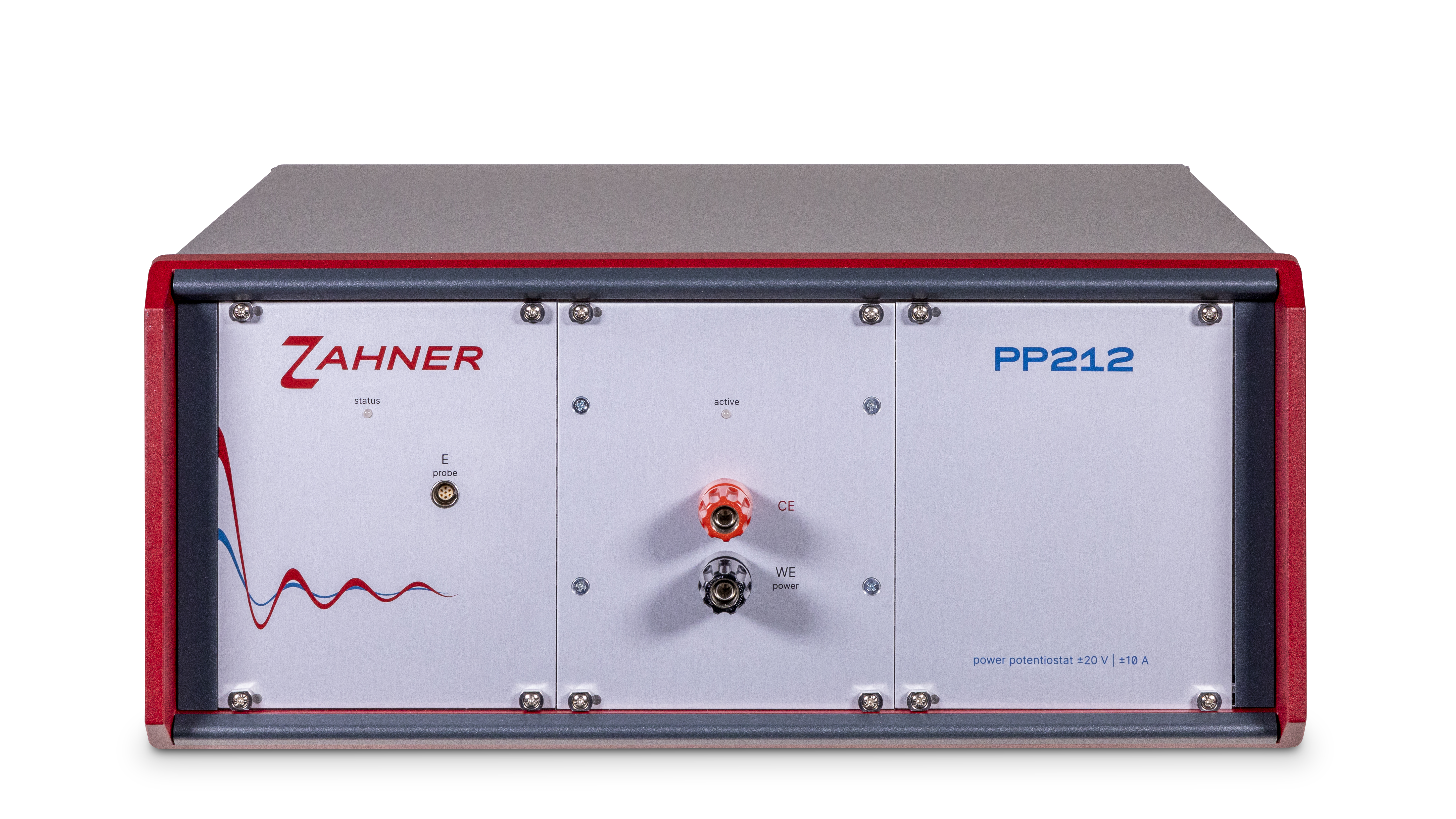

-LED potentiostat: PP212
-Current range: ± 10 A
-Voltage range: ± 20 V
-Frequency range: DC - 200 kHz
-LDA2 Light source setup
-Optical bench
-Calibrated feedback sensor
-LSW-1 plug-in LED
-CIMPS aligner bar
-ThalesXT software package
-SIMPECC, CIMPS cable set, calibration data

For pricing information, please request a quotation from sales@sciencetech-inc.com.
IM6 (with ColdFire Processor and EPC42 Card only) to CIMPS
-LED potentiostat: PP212
-Current range: ± 10 A
-Voltage range: ± 20 V
-Frequency range: DC - 200 kHz
-LDA2 Light source setup
-Optical bench
-Calibrated feedback sensor
-LSW-1 plug-in LED
-CIMPS aligner bar
-ThalesXT software package
-SIMPECC, CIMPS cable set, calibration data

For pricing information, please request a quotation from sales@sciencetech-inc.com.
10,751.00 10751.0 USD
Price Valid only in North America


TLS03 UV-Upgrade
-Extension of wavelength range to: 295-1020 nm
-Calibration for 1 mm distance
-Calibration for PECC-2 Q required, optional

For pricing information, please request a quotation from sales@sciencetech-inc.com.
TLS03 UV-Upgrade
-Extension of wavelength range to: 295-1020 nm
-Calibration for 1 mm distance
-Calibration for PECC-2 Q required, optional

For pricing information, please request a quotation from sales@sciencetech-inc.com.
10,887.00 10887.0 USD
Price Valid only in North America


Zennium/X/pro to CIMPS/X/pro
-EPC42 extension card for controlling PP212
-LED potentiostat: PP212
-Current range: ± 10 A
-Voltage range: ± 20 V
-Frequency range: DC - 200 kHz
-LDA2 Light source setup
-Optical bench
-Calibrated feedback sensor
-LSW-1 plug-in LED
-CIMPS aligner bar
-ThalesXT software package
-SIMPECC, CIMPS cable set, calibration data

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Zennium/X/pro to CIMPS/X/pro
-EPC42 extension card for controlling PP212
-LED potentiostat: PP212
-Current range: ± 10 A
-Voltage range: ± 20 V
-Frequency range: DC - 200 kHz
-LDA2 Light source setup
-Optical bench
-Calibrated feedback sensor
-LSW-1 plug-in LED
-CIMPS aligner bar
-ThalesXT software package
-SIMPECC, CIMPS cable set, calibration data

For pricing information, please request a quotation from sales@sciencetech-inc.com.
11,931.00 11931.0 USD
Price Valid only in North America


Lightsource LS 1550
-Dom. wavelength: 1550 nm
-Typ. intensity: 40 W/m²
-Max. input current: 800 mA

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Lightsource LS 1550
-Dom. wavelength: 1550 nm
-Typ. intensity: 40 W/m²
-Max. input current: 800 mA

For pricing information, please request a quotation from sales@sciencetech-inc.com.
2,472.00 2472.0 USD
Price Valid only in North America


Lightsource LS 1450
-Dom. wavelength: 1450 nm
-Max. input current: 800 mA

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Lightsource LS 1450
-Dom. wavelength: 1450 nm
-Max. input current: 800 mA

For pricing information, please request a quotation from sales@sciencetech-inc.com.
2,472.00 2472.0 USD
Price Valid only in North America


Lightsource LS 1300
-Dom. wavelength: 1300 nm
-Typ. intensity: 60 W/m²
-Max. input current: 800 mA

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Lightsource LS 1300
-Dom. wavelength: 1300 nm
-Typ. intensity: 60 W/m²
-Max. input current: 800 mA

For pricing information, please request a quotation from sales@sciencetech-inc.com.
2,472.00 2472.0 USD
Price Valid only in North America


Lightsource LS 1200
-Dom. wavelength: 1200 nm
-Max. input current: 1200 mA

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Lightsource LS 1200
-Dom. wavelength: 1200 nm
-Max. input current: 1200 mA

For pricing information, please request a quotation from sales@sciencetech-inc.com.
2,472.00 2472.0 USD
Price Valid only in North America


Lightsource LS 275
-Dom. wavelength: 275 nm
-Typ. intensity: 40 W/m²
-Max. input current: 1300 mA

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Lightsource LS 275
-Dom. wavelength: 275 nm
-Typ. intensity: 40 W/m²
-Max. input current: 1300 mA

For pricing information, please request a quotation from sales@sciencetech-inc.com.
2,872.00 2872.0 USD
Price Valid only in North America


CIMPS add-on for dynamic transmittance/reflectance measurements
-PAD4 card for parallel acquisition of up to 4 sensors
-4 calibrated sensor: 1x UV, 1x NIR, 2xVIS with filter catalogue
-White light source
-CIMPS-dtr/ois software

For pricing information, please request a quotation from sales@sciencetech-inc.com.
CIMPS add-on for dynamic transmittance/reflectance measurements
-PAD4 card for parallel acquisition of up to 4 sensors
-4 calibrated sensor: 1x UV, 1x NIR, 2xVIS with filter catalogue
-White light source
-CIMPS-dtr/ois software

For pricing information, please request a quotation from sales@sciencetech-inc.com.
12,654.00 12654.0 USD
Price Valid only in North America

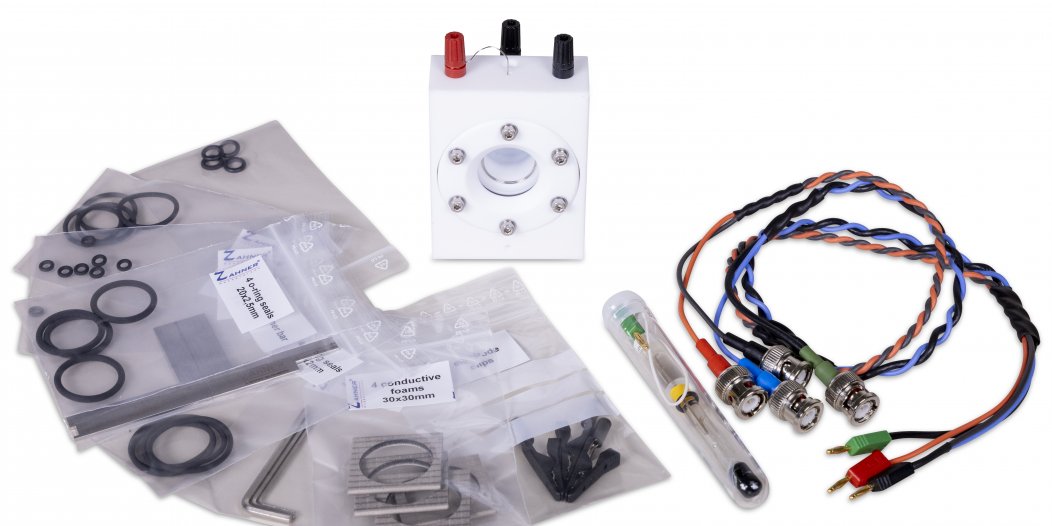

Photo-electrochemical cell
-Front window 20 mm diam., quartz
-Solid material: Teflon
-Ag/AgCl reference electrode & Pt counter-electrode
-Cable-set
-Dimensions: 60 x 25 x 80 mm; Volume: 7.9 cm³
-For photocurrent spectroscopy with TLS03, PECC-1 calibration is required

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Photo-electrochemical cell
-Front window 20 mm diam., quartz
-Solid material: Teflon
-Ag/AgCl reference electrode & Pt counter-electrode
-Cable-set
-Dimensions: 60 x 25 x 80 mm; Volume: 7.9 cm³
-For photocurrent spectroscopy with TLS03, PECC-1 calibration is required

For pricing information, please request a quotation from sales@sciencetech-inc.com.
2,121.00 2121.0 USD
Price Valid only in North America


Tool-Kit for Coating and Laminate Testing
-Cu-block, steel-electrodes
-Electrolyte carrier and buffer solution
-Cable set
-Electrode stand
-COLT software

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Tool-Kit for Coating and Laminate Testing
-Cu-block, steel-electrodes
-Electrolyte carrier and buffer solution
-Cable set
-Electrode stand
-COLT software

For pricing information, please request a quotation from sales@sciencetech-inc.com.
2,754.00 2754.0 USD
Price Valid only in North America


Photo-electrochemical cell
-Quartz front window
-Illuminated area 18 mm diam.
-Solid material: PCTFE
-Gas-proof with gas-in/outlet
-Ag/AgCl reference electrode & Pt counter-electrode
-Cable-set
-Dimensions: 60 x 25 x 80 mm; Volume: 7.2 cm³
-For photocurrent spectroscopy with TLS03, PECC-2 calibration is required

For pricing information, please request a quotation from sales@sciencetech-inc.com.
Photo-electrochemical cell
-Quartz front window
-Illuminated area 18 mm diam.
-Solid material: PCTFE
-Gas-proof with gas-in/outlet
-Ag/AgCl reference electrode & Pt counter-electrode
-Cable-set
-Dimensions: 60 x 25 x 80 mm; Volume: 7.2 cm³
-For photocurrent spectroscopy with TLS03, PECC-2 calibration is required

For pricing information, please request a quotation from sales@sciencetech-inc.com.
3,276.00 3276.0 USD
Price Valid only in North America

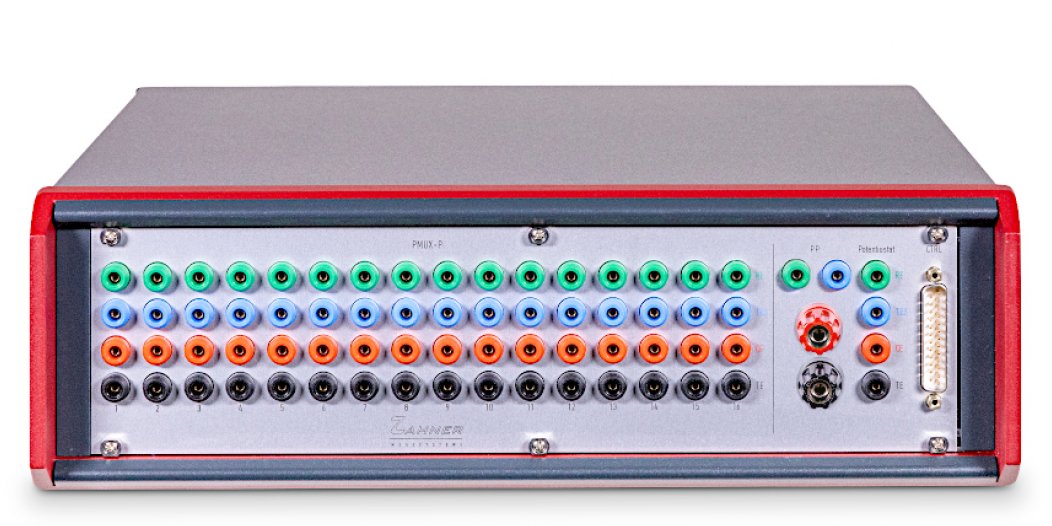

The PMUX-P is configured for sequentially measuring through up to 16 segments of segmented electrodes, e.g., of a fuel cell. For that application, a PP series potentiostat or an EL series electronic load is used for loading all segments except the one which is measured. The measurement is done by the internal ZENNIUM potentiostat. The software carries out sequential measurements through all segments of the fuel cell. With one PMUX-P these are up to 16 segments. Up to 4 PMUX-P modules can be stacked for a total of up to 64 segments. Both, the PP/EL and the ZENNIUM potentiostat have to be connected to the PMUX-P.

-Up to 64 channel segmented cells

For pricing information, please request a quotation from sales@sciencetech-inc.com.
The PMUX-P is configured for sequentially measuring through up to 16 segments of segmented electrodes, e.g., of a fuel cell. For that application, a PP series potentiostat or an EL series electronic load is used for loading all segments except the one which is measured. The measurement is done by the internal ZENNIUM potentiostat. The software carries out sequential measurements through all segments of the fuel cell. With one PMUX-P these are up to 16 segments. Up to 4 PMUX-P modules can be stacked for a total of up to 64 segments. Both, the PP/EL and the ZENNIUM potentiostat have to be connected to the PMUX-P.

-Up to 64 channel segmented cells

For pricing information, please request a quotation from sales@sciencetech-inc.com.
4,627.00 4627.0 USD
Price Valid only in North America


The battery cycling multiplexer BC-MUX is the link between the high power performances of your battery cycler and the EIS precision of our ZENNIUM potentiostats. The BC-MUX can address up to 16 channels to sequentially perform EIS measurements on the connected samples.

Switchboxes which serve as ports between the BC-MUX and the cycler are available as 16 A, 60 A, 150 A or custom made options.

-Sequential measurements on up to 16 channels
-Non-selected channels are connected to the battery cycler

For pricing information, please request a quotation from sales@sciencetech-inc.com.
The battery cycling multiplexer BC-MUX is the link between the high power performances of your battery cycler and the EIS precision of our ZENNIUM potentiostats. The BC-MUX can address up to 16 channels to sequentially perform EIS measurements on the connected samples.

Switchboxes which serve as ports between the BC-MUX and the cycler are available as 16 A, 60 A, 150 A or custom made options.

-Sequential measurements on up to 16 channels
-Non-selected channels are connected to the battery cycler

For pricing information, please request a quotation from sales@sciencetech-inc.com.
5,191.00 5191.0 USD
Price Valid only in North America


The Noise Probe is a low power potentiostat for the ZENNIUM-series potentiostats and is specially designed for all common electrochemical noise techniques. In addition Zahner developed CorrElNoise®. This revolutionary new method is superior to common ECN techniques as it measures the current and voltage noise in (quasi-)parallel condition by fast switching between the open circuit potential and short circuit conditions.

The Noise Probe can carry out different kind of measurements which are listed below.

-Open circuit potential noise (OCPN)
-Potentiostatic controlled current noise (PCCN)
-Galvanostatic controlled potential noise (GCPN)
-Uncorrelated current & potential noise (UCPN)
-Correlated electrochemical noise (CorrElNoise®)

For pricing information, please request a quotation from sales@sciencetech-inc.com.
The Noise Probe is a low power potentiostat for the ZENNIUM-series potentiostats and is specially designed for all common electrochemical noise techniques. In addition Zahner developed CorrElNoise®. This revolutionary new method is superior to common ECN techniques as it measures the current and voltage noise in (quasi-)parallel condition by fast switching between the open circuit potential and short circuit conditions.

The Noise Probe can carry out different kind of measurements which are listed below.

-Open circuit potential noise (OCPN)
-Potentiostatic controlled current noise (PCCN)
-Galvanostatic controlled potential noise (GCPN)
-Uncorrelated current & potential noise (UCPN)
-Correlated electrochemical noise (CorrElNoise®)

For pricing information, please request a quotation from sales@sciencetech-inc.com.
2,850.00 2850.0 USD
Price Valid only in North America

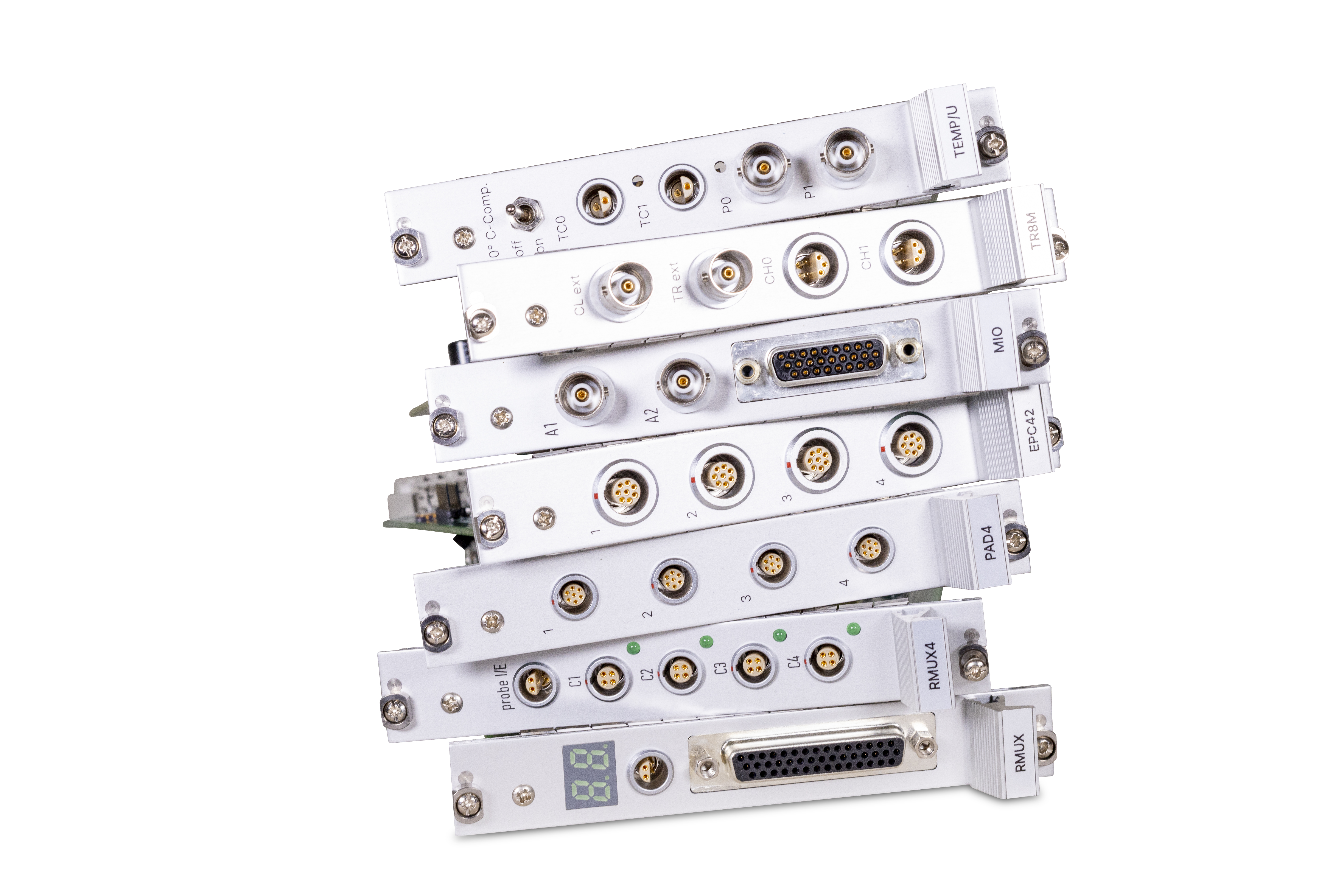

The TR8M addon card allows fast measurements of pulses or transients with a high sampling rate of up to 40 MHz. Together with a Pulse Probe and an external potentiostat or electronic load, high current interrupt measurements may also be performed.

-Two channels with sampling rate up to 20 MHz
-One channel with sampling rate up to 40 MHz
-Internal and external signals

For pricing information, please request a quotation from sales@sciencetech-inc.com.
The TR8M addon card allows fast measurements of pulses or transients with a high sampling rate of up to 40 MHz. Together with a Pulse Probe and an external potentiostat or electronic load, high current interrupt measurements may also be performed.

-Two channels with sampling rate up to 20 MHz
-One channel with sampling rate up to 40 MHz
-Internal and external signals

For pricing information, please request a quotation from sales@sciencetech-inc.com.
6,878.00 6878.0 USD
Price Valid only in North America


The ZENNIUM XC is a compact potentiostat / galvanostat including a frequency response analyser. It offers 32 bit DC resolution and 24 bit AC resolution across 12 different current ranges, which ensure exceptional accurate and precise measurements. The ZENNIUM XC combines compact design with the high-end measurements hardware.

A list of main electrochemical measurements possible with the ZENNIUM XC potentiostat is provided here.
-DC voltage ranges: ±5 V and ±14 V
-Current up to ±2 A over 12 current ranges
-EIS frequency range from 10 µHz to 5 MHz
-AC amplitude of 0 - 6 V or 0 - 2 A for EIS
-Switchable floating / grounded mode

For pricing information, please request a quotation from sales@sciencetech-inc.com.
The ZENNIUM XC is a compact potentiostat / galvanostat including a frequency response analyser. It offers 32 bit DC resolution and 24 bit AC resolution across 12 different current ranges, which ensure exceptional accurate and precise measurements. The ZENNIUM XC combines compact design with the high-end measurements hardware.

A list of main electrochemical measurements possible with the ZENNIUM XC potentiostat is provided here.
-DC voltage ranges: ±5 V and ±14 V
-Current up to ±2 A over 12 current ranges
-EIS frequency range from 10 µHz to 5 MHz
-AC amplitude of 0 - 6 V or 0 - 2 A for EIS
-Switchable floating / grounded mode

For pricing information, please request a quotation from sales@sciencetech-inc.com.
14,386.00 14386.0 USD
Price Valid only in North America


The EPC42 is the link between the ZENNIUM potentiostat and the power and auxiliary potentiostats or electronic loads. One EPC42 card can address up to four PP/EL/XPOT devices sequentially. Up to four EPC42 cards can be installed in a ZENNIUM X and ZENNIUM PRO potentiostat. In total, a ZENNIUM series potentiostat can be simultaneously connected with up to 16 external PPs/ELs, which can be controlled sequentially.

-Control up to 16 external potentiostats and loads

For pricing information, please request a quotation from sales@sciencetech-inc.com.
The EPC42 is the link between the ZENNIUM potentiostat and the power and auxiliary potentiostats or electronic loads. One EPC42 card can address up to four PP/EL/XPOT devices sequentially. Up to four EPC42 cards can be installed in a ZENNIUM X and ZENNIUM PRO potentiostat. In total, a ZENNIUM series potentiostat can be simultaneously connected with up to 16 external PPs/ELs, which can be controlled sequentially.

-Control up to 16 external potentiostats and loads

For pricing information, please request a quotation from sales@sciencetech-inc.com.
1,334.00 1334.0 USD
Price Valid only in North America
Copyright © Sciencetech
