Steady state solar simulators are light sources similar to natural sunlight that offer the advantage of consistent light output over a period of hours or more.

Sciencetech solar simulators are highly configurable and with an impressive range of solar simulator options, our systems have been serving multiple researches and testing applications. Our solar simulator systems comply with standards such as ASTM, IEC and JIS and provides variability is design to accommodate researcher’s requirements. With over 30 years of experience in the solar simulator designing and manufacturing field, our systems provide


1) Spectral emission closest to the sun’s spectrum

2) High spatial uniformity

3) High temporal stability

4) Configurable orientations in illumination direction

5) Variety of output collimation angles

6) Variable illumination areas

7) Easy to use, turn-key systems with full software control

8) Multiple add-ons and accessories such as fiber optic cables, beam turning units, filters and more.

X

Product Category

View Filter

x
Clear all x

Filter Option



This accessory is a base and post assembly designed to work with 2" diameter optical assemblies. The PM90 allows a 2" optical assembly to be held vertically or horizontally and rotated through any angle, and is adjustable to any height above the included base plate from 0 to 12". The included 6x12" base plate can be secured to a standard optical table or left free standing. This accessory can be used with Sciencetech's A1 and A4 Solar LightLine solar simulators to allow for horizontal or vertical operation (and at any angle) by holding to output optic at the end of the 4 foot light guide.
400.00
This accessory is a base and post assembly designed to work with 2" diameter optical assemblies. The PM90 allows a 2" optical assembly to be held vertically or horizontally and rotated through any angle, and is adjustable to any height above the included base plate from 0 to 12". The included 6x12" base plate can be secured to a standard optical table or left free standing. This accessory can be used with Sciencetech's A1 and A4 Solar LightLine solar simulators to allow for horizontal or vertical operation (and at any angle) by holding to output optic at the end of the 4 foot light guide.
400.00 400.0 USD
Price Valid only in North America


This option for SS0.5K, SS1.0K and SS1.6K solar simulators makes the solar simulator vertical standing. With this option the output from the solar simulator will be parallel to the floor it is standing on.
400.00
This option for SS0.5K, SS1.0K and SS1.6K solar simulators makes the solar simulator vertical standing. With this option the output from the solar simulator will be parallel to the floor it is standing on.
400.00 400.0 USD
Price Valid only in North America


This option for SS0.5K, SS1.0K and SS1.6K solar simulators makes the solar simulator vertical standing. The base is fitted with castors so that the simulator can be easily moved. This option is very useful if the simulator location may be changed from time to time. With this option the output from the solar simulator will be parallel to the floor it is standing on.
500.00
This option for SS0.5K, SS1.0K and SS1.6K solar simulators makes the solar simulator vertical standing. The base is fitted with castors so that the simulator can be easily moved. This option is very useful if the simulator location may be changed from time to time. With this option the output from the solar simulator will be parallel to the floor it is standing on.
500.00 500.0 USD
Price Valid only in North America


Sciencetech Inc. fully reflective solar simulators have the unparalleled ability to be realigned to allow the solar simulator to be used in many different customized scenarios. This allows the end user to reconfigure the simulator to provide a larger or smaller target with varying degrees of non-uniformity and power output. Most other simulators on the market today do not allow the end user to do this.
Sciencetech Solar Simulator System Alignment Kit includes:
1 sun calibrated alignment Silicon detector, laser and holder, UV protection glasses, Sciencetech multimeter.
Can be used on all of Sciencetech's fully reflective Solar Simulators.
550.00
Sciencetech Inc. fully reflective solar simulators have the unparalleled ability to be realigned to allow the solar simulator to be used in many different customized scenarios. This allows the end user to reconfigure the simulator to provide a larger or smaller target with varying degrees of non-uniformity and power output. Most other simulators on the market today do not allow the end user to do this.
Sciencetech Solar Simulator System Alignment Kit includes:
1 sun calibrated alignment Silicon detector, laser and holder, UV protection glasses, Sciencetech multimeter.
Can be used on all of Sciencetech's fully reflective Solar Simulators.
550.00 550.0 USD
Price Valid only in North America

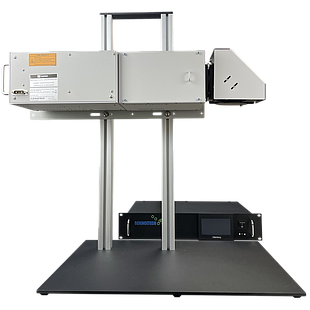

This vertical stand enables the SS150 fully reflective solar simulator to project its output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).
1,027.00
This vertical stand enables the SS150 fully reflective solar simulator to project its output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).
1,027.00 1027.0 USD
Price Valid only in North America


Every time the illumination target size of a Fully Reflective Solar Simulator changes, the reflective mirrors inside the solar simulator that direct the light from the source to the target need to be refocused. Although this can be performed manually, the procedure is a hassle should the user need to change the target spot size frequently. The solar simulator would need to be shut down and have each internal mirror re-adjusted to support a different focal spot size. With this variable focus option re-adjusting the internal mirrors of the solar simulator is performed through a single knob without having to shutdown the solar simulator. This feature can also be used to vary illumination intensity by spreading the light over a larger area or concentrating the light into a smaller area.
3,675.00
Every time the illumination target size of a Fully Reflective Solar Simulator changes, the reflective mirrors inside the solar simulator that direct the light from the source to the target need to be refocused. Although this can be performed manually, the procedure is a hassle should the user need to change the target spot size frequently. The solar simulator would need to be shut down and have each internal mirror re-adjusted to support a different focal spot size. With this variable focus option re-adjusting the internal mirrors of the solar simulator is performed through a single knob without having to shutdown the solar simulator. This feature can also be used to vary illumination intensity by spreading the light over a larger area or concentrating the light into a smaller area.
3,675.00 3675.0 USD
Price Valid only in North America


Class: ABA
Spot size: 25 mm (1”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Working distance (with optional beam turner): 40-70mm (1.5-3”) from output port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-150) Adjustable Power Supply with Touchscreen Control

The SF-150-B is a low cost 150W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-150-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*The SF-150B can produce up to 50mm (2") diameter spot size at 1 sun, but will reduce the specifications to Class CBA, with a working distance <25mm (1") from exit port.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,314.00
In stock
Class: ABA
Spot size: 25 mm (1”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Working distance (with optional beam turner): 40-70mm (1.5-3”) from output port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-150) Adjustable Power Supply with Touchscreen Control

The SF-150-B is a low cost 150W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-150-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*The SF-150B can produce up to 50mm (2") diameter spot size at 1 sun, but will reduce the specifications to Class CBA, with a working distance <25mm (1") from exit port.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,314.00 6314.0 USD
Price Valid only in North America


Class: ABA
Spot size: 50 mm (2”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 50 mm (2”) at 1 sun
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-B is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-300-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,495.00
In stock
Class: ABA
Spot size: 50 mm (2”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 50 mm (2”) at 1 sun
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-B is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-300-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,495.00 6495.0 USD
Price Valid only in North America


Class: AAA
Spot size: 25 mm (1”) diameter at 1 sun*
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-A is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-300-A includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*Spot size can be increased to 50mm (2") but will reduce the specifications to Class ABA.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,850.00
In stock
Class: AAA
Spot size: 25 mm (1”) diameter at 1 sun*
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-A is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-300-A includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*Spot size can be increased to 50mm (2") but will reduce the specifications to Class ABA.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,850.00 6850.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50×50 mm
Intensity: 2 Suns using 300W, 1 Sun using 150W
ND filter for 1 sun operation included with 300W version
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM1.5G spectral matching is the standard option. For AM0 matching, please see the AM0 SciSun product. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 2 Suns, 150 W produces a maximum intensity of 1 Sun.
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the 300W SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
8,465.00
In stock
Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50×50 mm
Intensity: 2 Suns using 300W, 1 Sun using 150W
ND filter for 1 sun operation included with 300W version
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM1.5G spectral matching is the standard option. For AM0 matching, please see the AM0 SciSun product. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 2 Suns, 150 W produces a maximum intensity of 1 Sun.
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the 300W SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
8,240.00 8240.0 USD
Price Valid only in North America


With the Sciencetech Solar LightLine you can direct the Class AAA solar light anywhere you want. Classic designs for solar simulators require you to bring your sample to the solar simulator. Now, you can bring the solar simulator to your sample! This makes the Sciencetech Solar LightLine series of fiberized solar simulators ideal for research that just can't accommodate traditional bulky solar simulators. The solar light can be easily integrated with a glove box without mounting the entire solar simulator in the glove box, saving space and adding flexibility. The standard 4-foot-long fiber makes the simulator ideal for doing spot checks of devices on manufacturing lines or in dedicated setups that can't accommodate a bulky solar simulator.

The Lightline includes space for fitting one internal accessory. Options are a motorized, 6-position filter wheel, with a variety of spectral or neutral density filters that can be supplied. Or a manual or motorized attenuation system that provides continuous control over intensity at the target from 10-100%. Internal accessories must be selected at the time of order and cannot be added at a later time.

Every Lightline includes an internal two-position filter tray that accommodates Sciencetech FT style filters. Model AX-100 and AX-200 come with a removeable FT-style filter that permits one sun operation. One filter location is reserved for the selected air mass filter. Air mass filters must be selected in the order for spectral match classification.

Classification is performed to ASTM E927-19. Classification to IEC 60904-9 and JIS C 08912 standards can be performed on request. Please contact your Sciencetech Technical Representative for details.

- Includes adjustable touchscreen 601-series power supply with current control from 80-100% of max current.
- Includes computer-controlled high intensity shutter.
- Length of light guide: 4 feet (other light guide lengths are possible) Light guides can be fitted with KF flanges for glovebox integration.
- Includes one 300W xenon short arc lamp.

This unit runs on 120/220VAC.
CE compliant.
9,200.00
With the Sciencetech Solar LightLine you can direct the Class AAA solar light anywhere you want. Classic designs for solar simulators require you to bring your sample to the solar simulator. Now, you can bring the solar simulator to your sample! This makes the Sciencetech Solar LightLine series of fiberized solar simulators ideal for research that just can't accommodate traditional bulky solar simulators. The solar light can be easily integrated with a glove box without mounting the entire solar simulator in the glove box, saving space and adding flexibility. The standard 4-foot-long fiber makes the simulator ideal for doing spot checks of devices on manufacturing lines or in dedicated setups that can't accommodate a bulky solar simulator.

The Lightline includes space for fitting one internal accessory. Options are a motorized, 6-position filter wheel, with a variety of spectral or neutral density filters that can be supplied. Or a manual or motorized attenuation system that provides continuous control over intensity at the target from 10-100%. Internal accessories must be selected at the time of order and cannot be added at a later time.

Every Lightline includes an internal two-position filter tray that accommodates Sciencetech FT style filters. Model AX-100 and AX-200 come with a removeable FT-style filter that permits one sun operation. One filter location is reserved for the selected air mass filter. Air mass filters must be selected in the order for spectral match classification.

Classification is performed to ASTM E927-19. Classification to IEC 60904-9 and JIS C 08912 standards can be performed on request. Please contact your Sciencetech Technical Representative for details.

- Includes adjustable touchscreen 601-series power supply with current control from 80-100% of max current.
- Includes computer-controlled high intensity shutter.
- Length of light guide: 4 feet (other light guide lengths are possible) Light guides can be fitted with KF flanges for glovebox integration.
- Includes one 300W xenon short arc lamp.

This unit runs on 120/220VAC.
CE compliant.
9,200.00 9200.0 USD
Price Valid only in North America

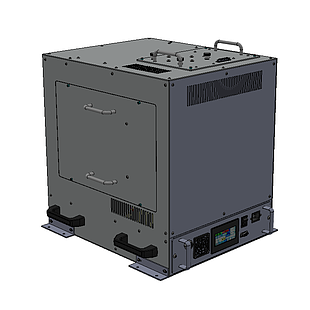

Sciencetech's XE-LUM Luminaire is a low cost solution for researchers requiring large areas of illumination with good spectral matching but do not require high levels of spatial uniformity. The XE-LUM includes a 1.6kW Xenon arc lamp and efficient collection reflectors. At a working distance of 50cm an irradiance of 1 sun AM1.5G sun level can be achieved with an illumination area of 50x50cm. The area of illumination is up to 1.0m x 1.0m with a working distance of 1 meter.
The XE-LUM can achieve better uniformity when paired with multiple units in an array to flood the illumination plane.

The stand is an accessory that is sold separately. The XE-LUM can be arranged for vertical or horizontal illumination. In either configuration, the Luminaire can be rotated through 360 degrees in both sagittal and tangential planes.

200 to 240 VAC, 12.1 to 9.0 A.

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Please speak with your authorized Sciencetech technical sales staff member for larger illumination areas, different spectral matches, or to have other customized options for this system.
11,220.00
In stock
Sciencetech's XE-LUM Luminaire is a low cost solution for researchers requiring large areas of illumination with good spectral matching but do not require high levels of spatial uniformity. The XE-LUM includes a 1.6kW Xenon arc lamp and efficient collection reflectors. At a working distance of 50cm an irradiance of 1 sun AM1.5G sun level can be achieved with an illumination area of 50x50cm. The area of illumination is up to 1.0m x 1.0m with a working distance of 1 meter.
The XE-LUM can achieve better uniformity when paired with multiple units in an array to flood the illumination plane.

The stand is an accessory that is sold separately. The XE-LUM can be arranged for vertical or horizontal illumination. In either configuration, the Luminaire can be rotated through 360 degrees in both sagittal and tangential planes.

200 to 240 VAC, 12.1 to 9.0 A.

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Please speak with your authorized Sciencetech technical sales staff member for larger illumination areas, different spectral matches, or to have other customized options for this system.
11,220.00 11220.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50 × 50 mm
Intensity: 1.5 Suns
ND filter for 1 sun operation included
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM0 spectral matching is the standard option. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 1.5 Suns (AM0 irradiance level).
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
13,930.00
Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50 × 50 mm
Intensity: 1.5 Suns
ND filter for 1 sun operation included
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM0 spectral matching is the standard option. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 1.5 Suns (AM0 irradiance level).
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
13,930.00 13930.0 USD
Price Valid only in North America


Class: AAA
Collimation Angle: 4.5º half angle
Target Size: 75mm x 75 mm
Working Distance: 225 mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
18,506.00
In stock
Class: AAA
Collimation Angle: 4.5º half angle
Target Size: 75mm x 75 mm
Working Distance: 225 mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
18,506.00 18506.0 USD
Price Valid only in North America


A single LASI unit. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination. Non-Uniformity is not tested, and typical values are quoted.

LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

200 to 240 VAC, 12.1 to 9.0 A.

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).
18,900.00
In stock
A single LASI unit. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination. Non-Uniformity is not tested, and typical values are quoted.

LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

200 to 240 VAC, 12.1 to 9.0 A.

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).
18,900.00 18900.0 USD
Price Valid only in North America


Sciencetech’s fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.

Main Features:
Class ABA Solar Simulator
Fully reflective design instead of diffusing lens to create uniformity on target spot
No Chromatic Aberration
150W xenon arc lamp
Air cooled lamp housing
Adjustable power supply, includes igniter
Standard horizontal operation, vertical option
Optional folding mirror to redirect output beam
20,233.00
Sciencetech’s fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.

Main Features:
Class ABA Solar Simulator
Fully reflective design instead of diffusing lens to create uniformity on target spot
No Chromatic Aberration
150W xenon arc lamp
Air cooled lamp housing
Adjustable power supply, includes igniter
Standard horizontal operation, vertical option
Optional folding mirror to redirect output beam
20,233.00 20233.0 USD
Price Valid only in North America


Class: ABA
Target Size: 50mm (2”) diameter
Working Distance: 760mm (31”) ± 25mm (1”)
Collimation: 2.5 degrees half angle
Power Supply: Sciencetech 500-150
Spectral Range 180 - 4400 nm

Sciencetech is pleased to offer the SS-150W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-150W includes air-cooled arc lamp housing, 150W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
20,233.00
In stock
Class: ABA
Target Size: 50mm (2”) diameter
Working Distance: 760mm (31”) ± 25mm (1”)
Collimation: 2.5 degrees half angle
Power Supply: Sciencetech 500-150
Spectral Range 180 - 4400 nm

Sciencetech is pleased to offer the SS-150W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-150W includes air-cooled arc lamp housing, 150W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
20,233.00 20233.0 USD
Price Valid only in North America


This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 20 cm (8") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 1.6kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 611-1.6k adjustable touchscreen supply
Filter Mounting: for one 7.6 × 7.6 cm (3" × 3") filter (not included)

Includes: 20 cm (8") diameter UV transmitting Fresnel lens, igniter.

200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

* Systems can be built for downfacing operation if specified at time of order
22,000.00
This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 20 cm (8") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 1.6kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 611-1.6k adjustable touchscreen supply
Filter Mounting: for one 7.6 × 7.6 cm (3" × 3") filter (not included)

Includes: 20 cm (8") diameter UV transmitting Fresnel lens, igniter.

200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

* Systems can be built for downfacing operation if specified at time of order
22,000.00 22000.0 USD
Price Valid only in North America


Class: ABA
Target Size: 75mm (3”) diameter
Working Distance: 450mm (18”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-500

Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-0.5kW includes air-cooled arc lamp housing, 0.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
25,975.00
In stock
Class: ABA
Target Size: 75mm (3”) diameter
Working Distance: 450mm (18”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-500

Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-0.5kW includes air-cooled arc lamp housing, 0.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
25,975.00 25975.0 USD
Price Valid only in North America


Class: AAA
Collimation Angle: 4.1º half angle
Target Size: 100mm x 100 mm
Working Distance: 300mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
26,800.00
In stock
Class: AAA
Collimation Angle: 4.1º half angle
Target Size: 100mm x 100 mm
Working Distance: 300mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
26,800.00 26800.0 USD
Price Valid only in North America
Copyright © Sciencetech
