    Cell Chucks

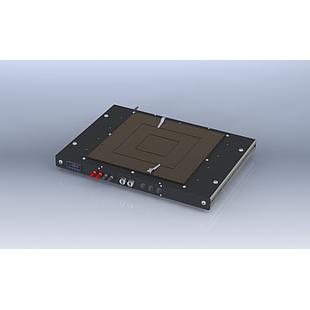

    Sciencetech Cell Chucks

    Cell chucks are used to hold a sample and connect a sample to electronics for current-voltage (IV) measurement, as well as offering sample temperature control and sample positioning options.

    Sciencetech offers a wide range of cell holding options for various cell sizes and budgets. We offer low-cost un-cooled cell holders with probe stations, or cooled options using either thermoelectric or liquid cooling and heating.

    All cell chucks have 4 binding posts to connect probe assemblies to measurement electronics. Not all products are shown on the website.

    Product Cooling Sample Size Vacuum Ready
    SCI-SCC2 (175-9051) TE Up to 48 mm Dia Included
    SCI-SCC3 (165-8201) None 9 x 9 cm (3.5 x 3.5") Yes
    SCI-SCC3-TE (165-8202) TE 9 x 9 cm (3.5 x 3.5") Yes
    SCI-SCC6 (165-8203) None 16.5 x 16.5 cm (6.5 x 6.5") Yes
    SCI-SCC6-L (165-8204) Liquid 16.5 x 16.5 cm (6.5 x 6.5") Yes
    SCI-SCC6-TE (165-8205) TE 16.5 x 16.5 cm (6.5 x 6.5") Yes
    SCI-SCC12 (165-8206) None 30 x 30 cm (12 x 12") Yes
    SCI-SCC12-L (165-8207) Liquid 30 x 30 cm (12 x 12") Yes

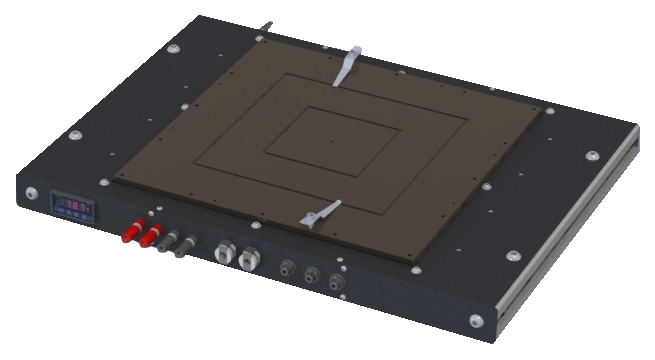

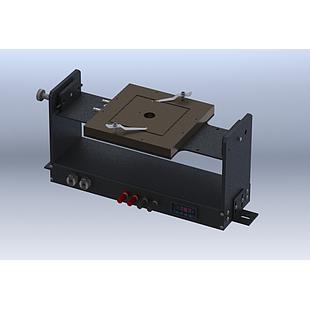

    Cell Chuck

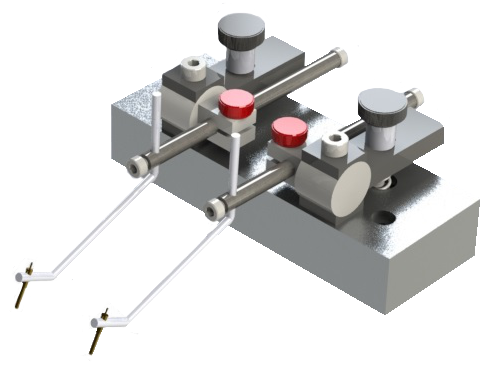

    Sciencetech Probe Stations

    Probe stations are used in conjunction with a cell chuck to provide electrical contact to the sample for current-voltage (IV) measurements.

    Sciencetech cell chucks are designed to be used with our probe stations. All cell chucks can take measurements from the bottom of the test cell but we have a number of options for the for the top side probes as well.

    Probe Station

    Sciencetech Temperature Controllers

    Sciencetech provides temperature controllers for all of our cooled cell chucks.

    Temperature Controller

    Sciencetech Vacuum Pumps

    Sciencetech provides vacuum pumps for all Sciencetech cell chucks. All of Sciencetech's cell chucks are 'vacuum ready' which means you can simply plug in an adequate vacuum pump and have instant vacuum hold down capabilities.

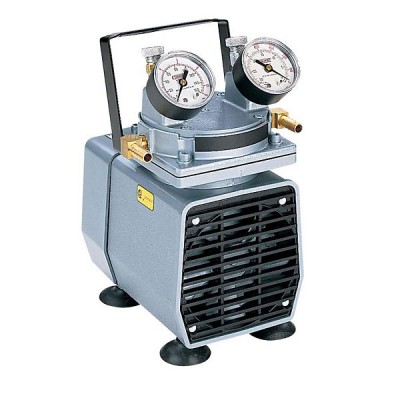

    Vacuum Pump
    Contact Us Today
    Get more information or request a quote.
    Contact Us
    Request Quote
    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

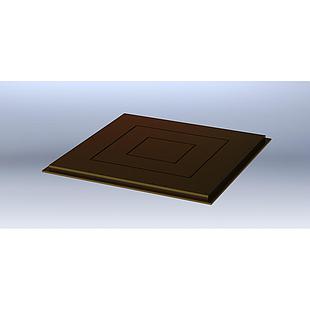

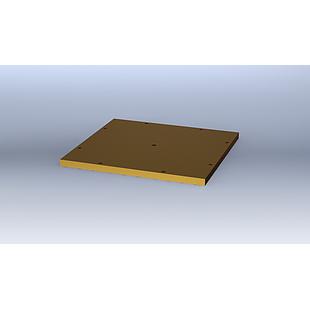

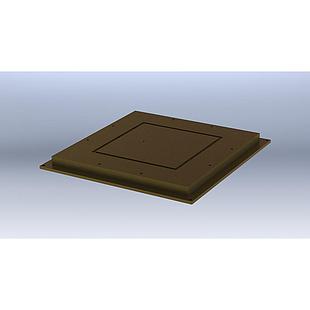

    Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
    $ 200.00
    In stock
    Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
    $ 200.00 200.0 USD
    Price Valid only in North America

    Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
    $ 300.00
    In stock
    Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
    $ 300.00 300.0 USD
    Price Valid only in North America

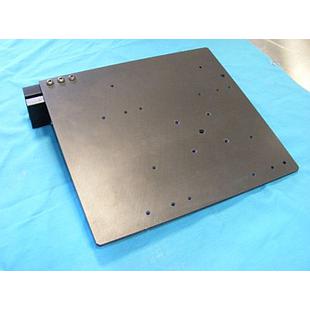

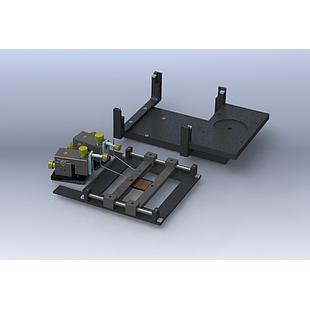

    A sample platform designed to operate for any of Sciencetech's line of Fully Reflective solar simulators. The sample tray is intended to be used with SS0.5k-SS1.6k simulators with downward facing beams. For a complete downward facing package for your SS0.5k-SS10.6k fully reflective solar simulator please see product (DFS-SS).
    This sample platform includes a clamp for maintaining its position. The sample platform can be used to mount a variety of cell chucks offered by Sciencetech. Please speak with your authorized Sciencetech technical sales staff member to discuss cell chucks, probes, vacuum, or water cooling options.
    $ 350.00
    In stock
    A sample platform designed to operate for any of Sciencetech's line of Fully Reflective solar simulators. The sample tray is intended to be used with SS0.5k-SS1.6k simulators with downward facing beams. For a complete downward facing package for your SS0.5k-SS10.6k fully reflective solar simulator please see product (DFS-SS).
    This sample platform includes a clamp for maintaining its position. The sample platform can be used to mount a variety of cell chucks offered by Sciencetech. Please speak with your authorized Sciencetech technical sales staff member to discuss cell chucks, probes, vacuum, or water cooling options.
    $ 350.00 350.0 USD
    Price Valid only in North America

    Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
    $ 400.00
    In stock
    Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
    $ 400.00 400.0 USD
    Price Valid only in North America

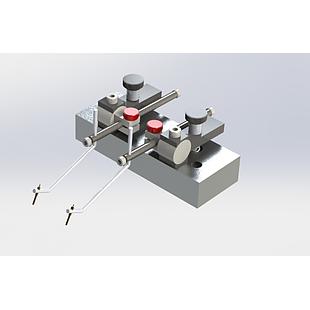

    Sciencetech's (SCP-2G) is an economical probe station that provides 2 gold plated spring-tip probes to provide contacts to the top surface of your test device.

    Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
    $ 545.00
    In stock
    Sciencetech's (SCP-2G) is an economical probe station that provides 2 gold plated spring-tip probes to provide contacts to the top surface of your test device.

    Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
    $ 545.00 545.0 USD
    Price Valid only in North America

    The SCI-SCC3 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

    Working Area: 3.5" x 3.5"
    Temperature Range: N/A
    Power Input: N/A
    Power Usage: N/A
    Options: Vacuum Pump
    $ 565.00
    In stock
    The SCI-SCC3 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

    Working Area: 3.5" x 3.5"
    Temperature Range: N/A
    Power Input: N/A
    Power Usage: N/A
    Options: Vacuum Pump
    $ 565.00 565.0 USD
    Price Valid only in North America

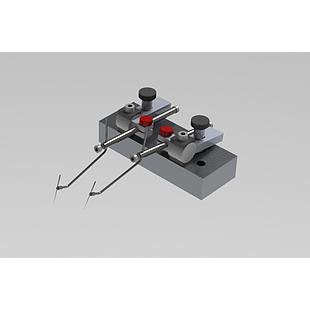

    Sciencetech's (SCP-2T) is an economical probe station that provides 2 tungsten needle-tip probes to provide contacts to the top surface of your test device.

    Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
    Please note: Tungsten needle-tip probes are very sharp and might not be suitable for some cell technologies. For such application, Gold spring loaded probes such as SCP-2G is recommended.
    $ 585.00
    In stock
    Sciencetech's (SCP-2T) is an economical probe station that provides 2 tungsten needle-tip probes to provide contacts to the top surface of your test device.

    Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
    Please note: Tungsten needle-tip probes are very sharp and might not be suitable for some cell technologies. For such application, Gold spring loaded probes such as SCP-2G is recommended.
    $ 585.00 585.0 USD
    Price Valid only in North America

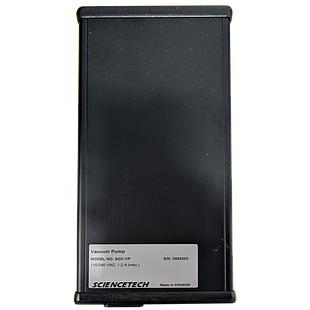

    The SCC-VP vacuum pump is designed for use with Sciencetech's solar cell chucks and provides ~10 psi of vacuum in a light, and inexpensive package.
    The SCC-VP produces considerable vibration noise.
    For a quiet vacuum pump see the SCC-VPME1.
    $ 685.00
    In stock
    The SCC-VP vacuum pump is designed for use with Sciencetech's solar cell chucks and provides ~10 psi of vacuum in a light, and inexpensive package.
    The SCC-VP produces considerable vibration noise.
    For a quiet vacuum pump see the SCC-VPME1.
    $ 685.00 685.0 USD
    Price Valid only in North America

    The SCI-SCC3-B cell chuck is an economical way of providing electrical connection to the back of your test cells. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.
    This cell chuck can be used with Sciencetech's PTS systems
    Working Area: 3" x 3"
    Temperature Range: N/A
    Power Input: N/A
    Power Usage: N/A
    Options: N/A
    $ 698.00
    In stock
    The SCI-SCC3-B cell chuck is an economical way of providing electrical connection to the back of your test cells. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.
    This cell chuck can be used with Sciencetech's PTS systems
    Working Area: 3" x 3"
    Temperature Range: N/A
    Power Input: N/A
    Power Usage: N/A
    Options: N/A
    $ 698.00 698.0 USD
    Price Valid only in North America

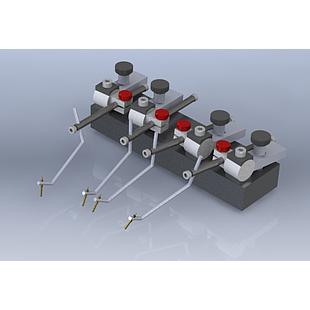

    Sciencetech's (SCP-4G) is an economical probe station that provides 4 gold plated spring-tip probes to provide contacts to the top surface of your test device.

    Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
    $ 715.00
    In stock
    Sciencetech's (SCP-4G) is an economical probe station that provides 4 gold plated spring-tip probes to provide contacts to the top surface of your test device.

    Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
    $ 715.00 715.0 USD
    Price Valid only in North America

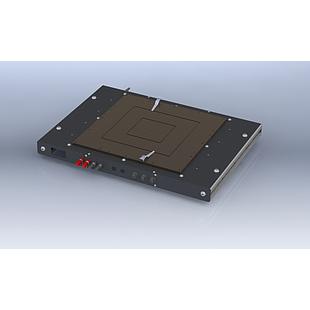

    The SCI-SCC6 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

    Working Area: 6" x 6"
    Temperature Range: N/A
    Power Input: N/A
    Power Usage: N/A
    Options: Vacuum Pump
    $ 840.00
    In stock
    The SCI-SCC6 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

    Working Area: 6" x 6"
    Temperature Range: N/A
    Power Input: N/A
    Power Usage: N/A
    Options: Vacuum Pump
    $ 840.00 840.0 USD
    Price Valid only in North America

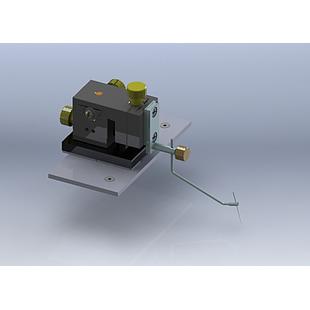

    Sciencetech's (SCP-SP-T) is a micropositioning probe station with a magnetic base and a tungsten needle-tip probe. It utilizes thumbscrews for adjustment. 0.3” is the magnitude of fine adjustment for this probe.

    Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
    $ 930.00
    In stock
    Sciencetech's (SCP-SP-T) is a micropositioning probe station with a magnetic base and a tungsten needle-tip probe. It utilizes thumbscrews for adjustment. 0.3” is the magnitude of fine adjustment for this probe.

    Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
    $ 930.00 930.0 USD
    Price Valid only in North America

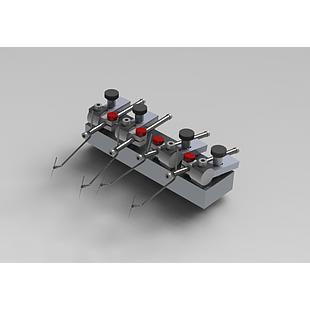

    Sciencetech's (SCP-4T) is an economical probe station that provides 4 tungsten needle-tip probes to provide contacts to the top surface of your test device.

    Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
    $ 960.00
    In stock
    Sciencetech's (SCP-4T) is an economical probe station that provides 4 tungsten needle-tip probes to provide contacts to the top surface of your test device.

    Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
    $ 960.00 960.0 USD
    Price Valid only in North America

    Sciencetech’s (SCP-SP-G) is a micropositioning probe station with a magnetic base and a gold-plated spring probe. It utilizes thumbscrews for adjustment. 0.3” is the magnitude of fine adjustment for this probe.

    Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
    $ 970.00
    In stock
    Sciencetech’s (SCP-SP-G) is a micropositioning probe station with a magnetic base and a gold-plated spring probe. It utilizes thumbscrews for adjustment. 0.3” is the magnitude of fine adjustment for this probe.

    Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
    $ 970.00 970.0 USD
    Price Valid only in North America

    The SCI-SCC3-L-B cell chuck is an economical way of providing electrical connection to the back of your test cells and liquid cooling. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.

    This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

    Working Area: 3" x 3"
    Temperature Range: dew point - 80 ºC
    Power Input: N/A
    Power Usage: N/A
    Options: Water Recirculator or Temperature Control Unit
    $ 1,200.00
    In stock
    The SCI-SCC3-L-B cell chuck is an economical way of providing electrical connection to the back of your test cells and liquid cooling. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.

    This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

    Working Area: 3" x 3"
    Temperature Range: dew point - 80 ºC
    Power Input: N/A
    Power Usage: N/A
    Options: Water Recirculator or Temperature Control Unit
    $ 1,200.00 1200.0 USD
    Price Valid only in North America

    The SCI-SCC6-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

    This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

    Cooling area: 6" x 6"
    Temperature Range: 1 - 80 ºC
    Power Input: 115-240VAC
    Power Usage: 2W (not including recirculator or temp control unit)
    Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
    $ 1,400.00
    In stock
    The SCI-SCC6-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

    This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

    Cooling area: 6" x 6"
    Temperature Range: 1 - 80 ºC
    Power Input: 115-240VAC
    Power Usage: 2W (not including recirculator or temp control unit)
    Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
    $ 1,400.00 1400.0 USD
    Price Valid only in North America

    The SCI-SCC3-TE cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and has an integrated thermoelectric controller that can heat or cool your test cells from dew point to 60 ºC.

    This product is not compatible with PTS systems. For PTS systems add the SCI-SCC3-TE-PTS version of this cell chuck

    Cooling area: 3.5" x 3.5"
    Temperature Range: 10 - 60 ºC
    Power Input: 115-240VAC
    Power Usage: 80W
    Options: Vacuum Pump
    $ 1,566.00
    In stock
    The SCI-SCC3-TE cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and has an integrated thermoelectric controller that can heat or cool your test cells from dew point to 60 ºC.

    This product is not compatible with PTS systems. For PTS systems add the SCI-SCC3-TE-PTS version of this cell chuck

    Cooling area: 3.5" x 3.5"
    Temperature Range: 10 - 60 ºC
    Power Input: 115-240VAC
    Power Usage: 80W
    Options: Vacuum Pump
    $ 1,566.00 1566.0 USD
    Price Valid only in North America

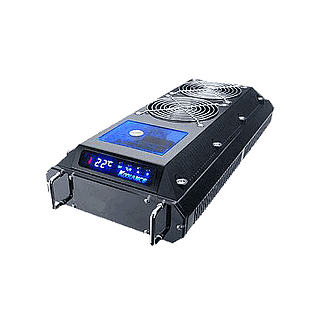

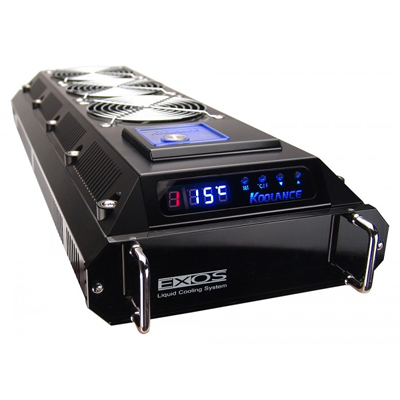

    Sciencetech's [130-REC] is a cooling water recirculator. It is designed to work with any of Sciencetech's liquid cooled solar cell chucks. This recirculator can maintain your sample at room temperature while sinking up to 500W of power from your light source.

    -Dissipates up to 500W of thermal heat
    -External fan cooled radiator system
    -Cools to ambient temperature
    -Real time sample temperature display (in °C or °F)
    -Adjustable cooling rate
    $ 1,716.00
    In stock
    Sciencetech's [130-REC] is a cooling water recirculator. It is designed to work with any of Sciencetech's liquid cooled solar cell chucks. This recirculator can maintain your sample at room temperature while sinking up to 500W of power from your light source.

    -Dissipates up to 500W of thermal heat
    -External fan cooled radiator system
    -Cools to ambient temperature
    -Real time sample temperature display (in °C or °F)
    -Adjustable cooling rate
    $ 1,716.00 1716.0 USD
    Price Valid only in North America

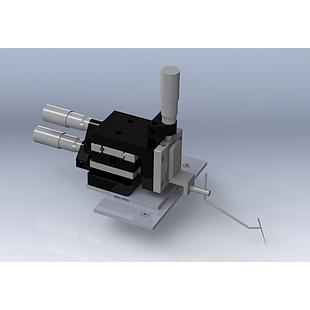

    Sciencetech's (SCP-MP-T) is a micropositioning probe station with a magnetic base and a tungsten needle-tip probe. It utilizes micrometer heads for accurate repeatable adjustment. 0.5” is the magnitude of fine adjustment for this probe.

    Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
    $ 1,970.00
    In stock
    Sciencetech's (SCP-MP-T) is a micropositioning probe station with a magnetic base and a tungsten needle-tip probe. It utilizes micrometer heads for accurate repeatable adjustment. 0.5” is the magnitude of fine adjustment for this probe.

    Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
    $ 1,970.00 1970.0 USD
    Price Valid only in North America

    Sciencetech's (SCP-MP-G) is a micropositioning probe station with a magnetic base and a gold-plated spring probe. It utilizes micrometer heads for accurate repeatable adjustment. 0.5” is the magnitude of fine adjustment for this probe.

    Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
    $ 2,010.00
    In stock
    Sciencetech's (SCP-MP-G) is a micropositioning probe station with a magnetic base and a gold-plated spring probe. It utilizes micrometer heads for accurate repeatable adjustment. 0.5” is the magnitude of fine adjustment for this probe.

    Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
    $ 2,010.00 2010.0 USD
