Optical Components

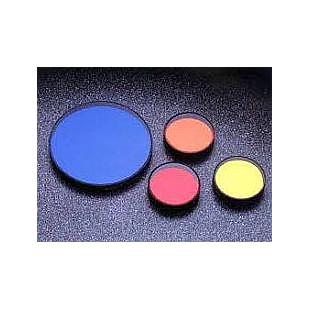

This filter is part of Sciencetech's standard "Order Sorting Filter Set". It can be ordered separately if required.
Please see the technical datasheet for additional information.

$ 30.00

Blue, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 263.00

Red, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 263.00

Green, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 263.00

Neutral density wire mesh filter, transmitting a percentage of incident light, mounted in an FT style holder. These filters are robust to high-powered applications (such as solar simulation), do not affect the non-uniformity of the target, and transmission is spectrally flat. Please select the desired transmission percentage for your application.

Each filter is mounted in an FT-style filter holder.
Each filter has a 73 mm clear aperture.

$ 333.00

This filter set consists of three wire-mesh neutral-density filters to be installed in the filter wheel. This filter set is designed to be used with the Sciencetech's Solar Lightline fiber-based solar simulator. Optical density of each filter is selected such that the final beam output from the light guide and collimator will be selectable at 0.25, 0.5, 0.75 and 1 of maximum irradiance for the AX Lightline system.

$ 354.00

Set of 6 optical density filters in values of 0.15, 0.3, 0.4, 0.6, 0.9, and 2.5. Each is 25mm diameter and unmounted.
These are absorption filters (as opposed to reflective neutral density).

$ 354.00

This high-powered filter passes visible light and blocks UV and NIR. This filter has an average transmission of 95% from 400-700 nm, and high reflection <400 nm and from 700-1200 nm. This filter is designed for 0 degree angle of incidence. This filter is mounted in a FT style filter holder and has a clear aperture of 73 mm diameter.

$ 404.00

This high-powered filter blocks UV light below 320 nm. This filter is designed for 0 degree angle of incidence. This filter is mounted in a FT style filter holder and has a clear aperture of 73 mm diameter.

$ 404.00

A Longpass filter designed for use with Sciencetech systems in the Infrared range.
Diameter (mm) 25.0
Diameter Tolerance (mm) +0.0 / -0.1
Thickness (mm) 1.0
Thickness Tolerance (mm) ±0.2
Clear Aperture (%) 90
Surface Accuracy (λ) 3 - 5
Surface Quality 60-40
Parallelism (arcminutes) <10
Transmission (%) >90
Transmission Wavelength (μm) 2.52 - 4.80
Optical Density OD >3.0
Cut-On Wavelength (μm) 2.40
Cut-On Wavelength Tolerance (μm) 0.09
Cut-On Tolerance (%) 5 of Peak Transmission
Slope Factor (%) <6
Substrate Germanium
Operating Temperature (°C) -62 to +71
RoHS Compliant

Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.

$ 525.00

Interference type Infrared IR Longpass filter with wavelength cutoff of 1500 nm
> 80% Transmission Starts : 1792nm
Maximum Wavelength Suggested: 3080nm

$ 537.00

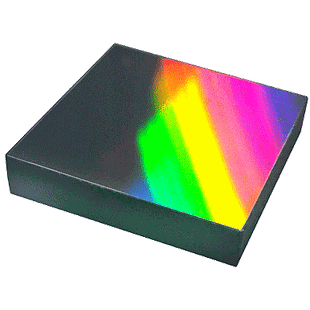

Grating for use with 9055, 9057, or 9072 monochromators (including imaging, single, and double monochromator configurations). A grating holder is included with each grating, compatible with the grating mount. Gratings cannot be removed from their holders once installed, but the grating-holder combination can be removed from the grating mount in the monochromator.

Grating size options for the 9055, 9057, and 9072 series are:
30 × 30 mm (9072 only)
50 × 50 mm (9055 and 9057 only)

For single monochromator configurations, please select one grating. Additional gratings can be purchased to cover different wavelengths.
For double monochromator configurations, please select a quantity of two identical gratings. These gratings must be the same for the double monochromator configuration to operate correctly. Additional gratings can be purchased to cover different wavelengths, if purchased in pairs.

Custom gratings can be accommodated. If you intend to use a custom grating or don't see the option you require, please speak with a Sciencetech Technical Representative.

$ 605.00

This high-powered filter blocks UV light below 400 nm. This filter is designed for 0 degree angle of incidence. This filter is mounted in a FT style filter holder and has a clear aperture of 73 mm diameter.

$ 605.00

This high-powered filter passes NIR light and blocks UV and VIS. This filter passes 700 to 2000 nm and blocks <700 nm. This filter is designed for 0 degree angle of incidence. This filter is mounted in a FT style filter holder and has a clear aperture of 73 mm diameter.

$ 606.00

This high-powered filter is designed for band blocking of near-infrared radiation.

This filter contains a hot mirror for filtering out IR light to remove thermal heat on the target. However, standard hot mirrors also remove UV light as a side-effect which mean it cannot be used in UV applications. This special hot mirror removes IR light between 730-1100nm while preserving UVA and UVB light (280-400nm) in addition to visible light. This filter is ideal for Sciencetech UV solar simulators where the filtering of thermal heat on the target is desired and preservation of UVA and UVB light is required. This filter is intended for use at 0 degree angle of incidence.

This filter is mounted in Sciencetech FT style filter mount with a 73 mm diameter clear aperture.

Please note this filter does not eliminate all thermal heat in the IR range as this filter stops at 1,100nm. Hence IR heat beyond 1,100nm still pass through. To remove more IR light see Sciencetech's range of IR water filters or contact a Sciencetech application scientist to learn about other options.

$ 606.00

This high-powered filter blocks UVA light and transmits UVB as well as visible and IR light. This filter has an average transmission of better than 70% from 260-315nm, and reflection greater than 95% from 320 to 400nm. This filter is designed for 0 degree angle of incidence. This filter is mounted in a FT style filter holder and has a clear aperture of 73 mm diameter. This filter is suitable for use with Sciencetech's line of SS solar simulators.

$ 808.00

An F/4 off-axis parabolic mirror assembly with protected aluminum mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 859.00

Sun Screen Testing Industry standard filters for isolating UVA wavelengths (320-400nm)
Schott UG11 Filter for eliminating visible and infrared rays (>400nm)
Schott WG335/3mm or WG345/1mm filter for eliminating UVB and UVC rays (<320nm)
Used in the UVA Protection Factor Test Method (Persistent Pigment Darkening)

$ 909.00

An F/4 off-axis parabolic mirror assembly with protected gold mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 960.00

An F/2 off-axis parabolic mirror assembly with protected aluminum mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 1,061.00
