    Modular Spectrometers

    FTIR Spectrometers
    Monochromators and Spectrographs
    Integrated and Modular Systems
    Far Infrared Systems (THz)

    Modular Spectroscopy Overview chart:

    MONOCHROMATORS AND SPECTROGRAPHS


    MODEL

    FOCAL LENGTH (mm)

    F/#

    RESOLUTION (nm)

    DISPERSION (nm/mm)

    TURRET CONFIGURATION

    SPECIAL FEATURES

    SMALL SERIES

    9030

    100

    F/3.2

    1

    8

    Single Grating 32mm x 32mm

    Compact Monochromator

    9030DA

    100x2

    F/3.2

    0.5

    4

    Single Grating 32mm x 32mm

    Double Additive

    9030DS

    100x2

    F/3.2

    1

    Effectively 0

    Single Grating 32mm x 32mm

    Double Subtractive

    9072

    125

    F/3.5

    0.4

    7

    Triple Grating 30mm x 30mm

    Motorized Compact Monochromator

    9072DA

    125x2

    F/3.5

    0.2

    3.5

    Triple Grating 30mm x 30mm

    Double Additive

    9072DS

    125x2

    F/3.5

    0.4

    Effectively 0

    Triple Grating 30mm x 30mm

    Double Subtractive

    STANDARD SERIES

    9010

    200

    F/3.5

    0.4

    4

    Double Grating 50mm x 50mm

    Manual Monochromator/Spectrograph

    9055

    250

    F/3.5

    0.2

    4

    Triple Grating 50mm x 50mm

    Motorized Monochromator/Spectrograph

    9055F

    250

    F/2.5

    0.4

    3.3

    Double Grating 64mm x 64mm

    Fast Version Motorized Monochromator/Spectrograph

    9055DX

    250x2

    F/3.5

    0.1

    1.7

    Triple Grating 50mm x 50mm

    Motorized Double Additive/Subtractive

    9055DX-i

    250x2

    F/3.5

    0.09

    1.7

    Triple Grating 50mm x 50mm

    Motorized Imaging Monochromator/Spectrograph

    9057

    457

    F/8

    0.2

    1.79

    Triple Grating 50mm x 50mm

    Half Meter Motorized Monochromator/Spectrograph

    9057i

    457

    F/8

    0.1

    1.79

    Triple Grating 50mm x 50mm

    Half Meter Motorized Imaging Monochromator/Spectrograph

    9057F

    457

    F/5.9

    0.1

    1.79

    Triple Grating 64mm x 64mm

    Fast Version Half Meter Motorized Monochromator/Spectrograph

    HIGH RESOLUTION SERIES

    9040

    550

    F/6.9

    0.03

    1.53

    Up to 3 gratings 64mm x 64mm

    Half Meter High Resolution

    9040F

    550

    F/5.2

    0.03

    1.53

    Single Grating 84mm x 84mm

    Half Meter High Resolution Fast Version

    9040EF

    550

    F/4.0

    0.05

    1.53

    Single Grating 110mm x 110mm

    Half Meter High Performace

    9040-DS

    550

    F/6.9

    0.03

    Effectively 0

    Single Grating 64mm x 64mm

    Half Meter High Resolution Double Subtractive

    9040DA

    550

    F/6.9

    0.015

    4

    Single Grating 64mm x 64mm

    Half Meter High Resolution Double Additive

    9490

    1000

    F/13

    0.017

    0.83

    Up to 3 gratings 64mm x 64mm

    One Meter High Resolution

    9490SD

    1000

    F/13

    0.009

    0.42

    Up to 3 gratings 64mm x 64mm

    One Meter High Resolution Single/Double Pass

    9150

    1500

    F/12

    0.013

    0.5

    Single Grating 110mm x 110mm

    One and a Half Meter High Resolution

    9150SD

    1500x2

    F/12

    0.0063

    0.25

    Single Grating 110mm x 110mm

    One and a Half Meter Single/Double Pass

    9150X

    1500

    F/25

    N/A

    1pm/1px

    Special gratings

    One and a Half Meter Echelle Spectrometer






    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Grating Size
      (Clear all)
    • Filter By
      Grating Type
      (Clear all)
    • Filter By
      Lines @ Blaze
      (Clear all)
    • Filter By
      Mirror Coating
      (Clear all)
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

    This upgrade is for Sciencetech's High Resolution line of monochromators, including the 9040, 9490, and 9150 (for both the single and double pass options for those systems). It moves the output port from the front of the monochromator to the side or lateral position. This allows different orientations of the system in relation to various sample chambers or detectors, and may be required depending on the size of the detector you are using due to the close proximity and limited space between the input and output slit on the front plate.
    Please note that this upgrade does not allow both output ports to be used; it only moves the default output from the front of the system to the side. If you require both output ports be usable, please see DPOUT-HI products.
    This upgrade is for Sciencetech's High Resolution line of monochromators, including the 9040, 9490, and 9150 (for both the single and double pass options for those systems). It moves the output port from the front of the monochromator to the side or lateral position. This allows different orientations of the system in relation to various sample chambers or detectors, and may be required depending on the size of the detector you are using due to the close proximity and limited space between the input and output slit on the front plate.
    Please note that this upgrade does not allow both output ports to be used; it only moves the default output from the front of the system to the side. If you require both output ports be usable, please see DPOUT-HI products.
    $ 364.00 364.0 USD
    Price Valid only in North America

    This is an upgrade to Sciencetech's High Resolution monochromators, including the 9040, 9490, and 9150 (for both the Single and Double Pass configurations of these systems). It moves the input slit from the default position on the front of the monochromator to the side or lateral position.
    Please note that this upgrade does not allow both input ports to be used, it only moves the position. If you require both input ports and the flipping mirror to select between them, please see DPIN-HI products.
    This is an upgrade to Sciencetech's High Resolution monochromators, including the 9040, 9490, and 9150 (for both the Single and Double Pass configurations of these systems). It moves the input slit from the default position on the front of the monochromator to the side or lateral position.
    Please note that this upgrade does not allow both input ports to be used, it only moves the position. If you require both input ports and the flipping mirror to select between them, please see DPIN-HI products.
    $ 449.00 449.0 USD
    Price Valid only in North America

    This is an upgrade to Sciencetech's line of high resolution monochromators, including the 9040, 9490, 9150, and the double pass versions of these monochromators. This allows the use of two output ports on the system. It also includes a manual flipping mirror to select between the two ports. It does not include a second slit, any coupling optics for sample chambers, or coupling mechanisms for CCDs. These must be purchased separately.

    Mirror UV Enhanced Aluminum
    Coating Ravg >85% @190-2000nm
    This is an upgrade to Sciencetech's line of high resolution monochromators, including the 9040, 9490, 9150, and the double pass versions of these monochromators. This allows the use of two output ports on the system. It also includes a manual flipping mirror to select between the two ports. It does not include a second slit, any coupling optics for sample chambers, or coupling mechanisms for CCDs. These must be purchased separately.

    Mirror UV Enhanced Aluminum
    Coating Ravg >85% @190-2000nm
    $ 1,499.00 1499.0 USD
    Price Valid only in North America

    This is an upgrade to Sciencetech's line of high resolution monochromators, including the 9040, 9490, 9150, and the double pass versions of these monochromators. The upgrade includes both the port itself and a manual flipping mirror to allow selection of input port. It does not include another slit, any coupling optics for sample chambers, or coupling mechanisms for CCDs. These must be purchased separately.

    Mirror coating
    UV Enhanced Aluminum
    Coating Ravg >85% @190-2000nm
    This is an upgrade to Sciencetech's line of high resolution monochromators, including the 9040, 9490, 9150, and the double pass versions of these monochromators. The upgrade includes both the port itself and a manual flipping mirror to allow selection of input port. It does not include another slit, any coupling optics for sample chambers, or coupling mechanisms for CCDs. These must be purchased separately.

    Mirror coating
    UV Enhanced Aluminum
    Coating Ravg >85% @190-2000nm
    $ 1,499.00 1499.0 USD
    Price Valid only in North America

    This is a configuration option for high resolution series monochromators. The motorized flipping mirror allows the selection of the front output port or side output port. The port can be selected through software. The port can be selected through software. The mirror is calibrated in Sciencetech's factory to ensure side port selection and front port selection beam follow the same optical path.
    It does not include another slit, any coupling optics for sample chambers, or coupling mechanisms for CCDs. These must be purchased separately. For side output selection a standard enhanced aluminum mirror is used. Other mirror coatings are available upon request.

    Mirror coating
    UV Enhanced Aluminum
    Coating Ravg >85% @190-2000nm
    This is a configuration option for high resolution series monochromators. The motorized flipping mirror allows the selection of the front output port or side output port. The port can be selected through software. The port can be selected through software. The mirror is calibrated in Sciencetech's factory to ensure side port selection and front port selection beam follow the same optical path.
    It does not include another slit, any coupling optics for sample chambers, or coupling mechanisms for CCDs. These must be purchased separately. For side output selection a standard enhanced aluminum mirror is used. Other mirror coatings are available upon request.

    Mirror coating
    UV Enhanced Aluminum
    Coating Ravg >85% @190-2000nm
    $ 2,500.00 2500.0 USD
    Price Valid only in North America

    This is a configuration option for high resolution series monochromators. The motorized flipping mirror allows the selection of the front input port or side input port. The port can be selected through software. The mirror is calibrated in Sciencetech's factory to ensure side port selection and front port selection beam follow the same optical path.
    It does not include another slit, any coupling optics for sample chambers, or coupling mechanisms for CCDs. These must be purchased separately. For side input selection a standard enhanced aluminum mirror is used. Other mirror coatings are available upon request.

    Mirror coating
    UV Enhanced Aluminum
    Coating Ravg >85% @190-2000nm
    This is a configuration option for high resolution series monochromators. The motorized flipping mirror allows the selection of the front input port or side input port. The port can be selected through software. The mirror is calibrated in Sciencetech's factory to ensure side port selection and front port selection beam follow the same optical path.
    It does not include another slit, any coupling optics for sample chambers, or coupling mechanisms for CCDs. These must be purchased separately. For side input selection a standard enhanced aluminum mirror is used. Other mirror coatings are available upon request.

    Mirror coating
    UV Enhanced Aluminum
    Coating Ravg >85% @190-2000nm
    $ 2,500.00 2500.0 USD
    Price Valid only in North America

    Grating for use with 9040, 9490, and 9150 monochromators (including imaging, single, and double monochromator configurations). A grating holder is included with each grating, compatible with the grating mount. Gratings cannot be removed from their holders once installed, the grating-holder combination can be removed from the grating mount in the monochromator.

    Grating size options for the 9040, 9490, and 9150 series are:
    64 × 64 mm
    84 × 84 mm
    102 × 102 mm

    For single monochromator configurations, please select one grating. Additional gratings can be purchased to cover different wavelengths.
    For double monochromator configurations, please select a quantity of two identical gratings. These gratings must be the same for the double monochromator configuration to operate correctly. Additional gratings can be purchased to cover different wavelengths, if purchased in pairs.

    Custom gratings can be accommodated. If you intend to use a custom grating or don't see the option you require, please speak with a Sciencetech Technical Representative.
    Grating for use with 9040, 9490, and 9150 monochromators (including imaging, single, and double monochromator configurations). A grating holder is included with each grating, compatible with the grating mount. Gratings cannot be removed from their holders once installed, the grating-holder combination can be removed from the grating mount in the monochromator.

    Grating size options for the 9040, 9490, and 9150 series are:
    64 × 64 mm
    84 × 84 mm
    102 × 102 mm

    For single monochromator configurations, please select one grating. Additional gratings can be purchased to cover different wavelengths.
    For double monochromator configurations, please select a quantity of two identical gratings. These gratings must be the same for the double monochromator configuration to operate correctly. Additional gratings can be purchased to cover different wavelengths, if purchased in pairs.

    Custom gratings can be accommodated. If you intend to use a custom grating or don't see the option you require, please speak with a Sciencetech Technical Representative.
    $ 2,699.00 2699.0 USD
    Price Valid only in North America

    The Sciencetech 9030 monochromator is a compact, single grating, scanning monochromator with 100 mm focal length (both output and input). It has a manual wavelength selector dial with an optional external motor drive for computerized control. The compact design is made possible by its Seya-Namioka optical layout, using a single holographic concave grating and f/3.2 aperture. The input and output ports are purposely placed optically in-line, making it a simple addition to a straight line beam in an optical system. Being a scanning monochromator, it does not have a flat output field and hence cannot be operated as a spectrograph with a multi-channel detector mounted at the output port. However, it can be used as an excitation wavelength tunable light source.

    Mirror coatings have been chosen for this model to enhance performance in the VIS-IR region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a VIS to NIR range to pair with the VIS/IR mirror coatings on this model.

    Please add a minimum of two slits (for the input and output) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 3,539.00
    The Sciencetech 9030 monochromator is a compact, single grating, scanning monochromator with 100 mm focal length (both output and input). It has a manual wavelength selector dial with an optional external motor drive for computerized control. The compact design is made possible by its Seya-Namioka optical layout, using a single holographic concave grating and f/3.2 aperture. The input and output ports are purposely placed optically in-line, making it a simple addition to a straight line beam in an optical system. Being a scanning monochromator, it does not have a flat output field and hence cannot be operated as a spectrograph with a multi-channel detector mounted at the output port. However, it can be used as an excitation wavelength tunable light source.

    Mirror coatings have been chosen for this model to enhance performance in the VIS-IR region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a VIS to NIR range to pair with the VIS/IR mirror coatings on this model.

    Please add a minimum of two slits (for the input and output) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 3,539.00 3539.0 USD
    Price Valid only in North America

    The Sciencetech 9030 monochromator is a compact, single grating, scanning monochromator with 100 mm focal length (both output and input). It has a manual wavelength selector dial with an optional external motor drive for computerized control. The compact design is made possible by its Seya-Namioka optical layout, using a single holographic concave grating and f/3.2 aperture. The input and output ports are purposely placed optically in-line, making it a simple addition to a straight line beam in an optical system. Being a scanning monochromator, it does not have a flat output field and hence cannot be operated as a spectrograph with a multi-channel detector mounted at the output port. However, it can be used as an excitation wavelength tunable light source.

    Mirror coatings have been chosen for this model to enhance performance in the UV-VIS region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a UV to VIS range to pair with the UV/VIS mirror coatings on this model.

    Please add a minimum of two slits (for the input and output) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 3,639.00
    The Sciencetech 9030 monochromator is a compact, single grating, scanning monochromator with 100 mm focal length (both output and input). It has a manual wavelength selector dial with an optional external motor drive for computerized control. The compact design is made possible by its Seya-Namioka optical layout, using a single holographic concave grating and f/3.2 aperture. The input and output ports are purposely placed optically in-line, making it a simple addition to a straight line beam in an optical system. Being a scanning monochromator, it does not have a flat output field and hence cannot be operated as a spectrograph with a multi-channel detector mounted at the output port. However, it can be used as an excitation wavelength tunable light source.

    Mirror coatings have been chosen for this model to enhance performance in the UV-VIS region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a UV to VIS range to pair with the UV/VIS mirror coatings on this model.

    Please add a minimum of two slits (for the input and output) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 3,639.00 3639.0 USD
    Price Valid only in North America

    This grid polarizing beam-splitters for use in the far-infrared and terahertz spectral regions. These beamsplitters divide the incoming beam according to its polarization. The beam-splitter consist of very fine parallel aluminum lines spaced 4 µm apart on a thin mylar substrate. It has the widest spectral range with a higher frequency cut-off than that of other polarizers that work in the near-millimeter wavelength range.
    This particular model is 1" (2.5cm) diameter, and is the smallest IR beam-splitter polarizer Sciencetech offers. For larger sizes or a full set of technical specifications, please speak with your authorized Sciencetech technical sales staff member.
    $ 4,334.00
    This grid polarizing beam-splitters for use in the far-infrared and terahertz spectral regions. These beamsplitters divide the incoming beam according to its polarization. The beam-splitter consist of very fine parallel aluminum lines spaced 4 µm apart on a thin mylar substrate. It has the widest spectral range with a higher frequency cut-off than that of other polarizers that work in the near-millimeter wavelength range.
    This particular model is 1" (2.5cm) diameter, and is the smallest IR beam-splitter polarizer Sciencetech offers. For larger sizes or a full set of technical specifications, please speak with your authorized Sciencetech technical sales staff member.
    $ 4,334.00 4334.0 USD
    Price Valid only in North America

    Sciencetech manufactures grid polarizing beam-splitters for use in the far-infrared and terahertz spectral regions. These beamsplitters divide the incoming beam according to its polarization. The beam-splitter consist of very fine parallel aluminum lines spaced 4 µm apart on a thin mylar substrate. It has the widest spectral range with a higher frequency cut-off than that of other polarizers that work in the near-millimeter wavelength range.
    This particular model is 2" (5cm) diameter, and is one of the smallest IR beam-splitter polarizer Sciencetech offers. For larger sizes or a full list of technical specifications, please speak with your authorized Sciencetech technical sales staff member.
    $ 6,740.00
    Sciencetech manufactures grid polarizing beam-splitters for use in the far-infrared and terahertz spectral regions. These beamsplitters divide the incoming beam according to its polarization. The beam-splitter consist of very fine parallel aluminum lines spaced 4 µm apart on a thin mylar substrate. It has the widest spectral range with a higher frequency cut-off than that of other polarizers that work in the near-millimeter wavelength range.
    This particular model is 2" (5cm) diameter, and is one of the smallest IR beam-splitter polarizer Sciencetech offers. For larger sizes or a full list of technical specifications, please speak with your authorized Sciencetech technical sales staff member.
    $ 6,740.00 6740.0 USD
    Price Valid only in North America

    9072S is a small 1/8m scanning monochromator. The 9072S uses plane gratings 30mm x 30mm in size and utilizes a Czerny Turner optical configuration. The 9072S is designed to be used with single channel detectors or connected to another 9072S to form a double additive or subtractive system. The base 9072S system has a triple grating turret which is computer controlled. 4-grating turret is optional.

    Gratings and Grating Holders (120-8512) are sold separately.
    The 9072S is compatible with SS80 and SS84 adjustable slits and SS-F fixed slits. Comes with the adjustable slit.
    It includes Sci-mono software for basic wavelength control. Our fully-featured spectroscopy package, SciSpec, is sold separately.

    For applications requiring better signal to noise, reduced stray light and better resolution than the standard model a double additive model (9072DA) is available.
    For applications requiring a tunable bandpass or notch filter light source, the double subtractive model (9072DS) is an ideal choice.

    This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 7,088.00
    In Stock
    9072S is a small 1/8m scanning monochromator. The 9072S uses plane gratings 30mm x 30mm in size and utilizes a Czerny Turner optical configuration. The 9072S is designed to be used with single channel detectors or connected to another 9072S to form a double additive or subtractive system. The base 9072S system has a triple grating turret which is computer controlled. 4-grating turret is optional.

    Gratings and Grating Holders (120-8512) are sold separately.
    The 9072S is compatible with SS80 and SS84 adjustable slits and SS-F fixed slits. Comes with the adjustable slit.
    It includes Sci-mono software for basic wavelength control. Our fully-featured spectroscopy package, SciSpec, is sold separately.

    For applications requiring better signal to noise, reduced stray light and better resolution than the standard model a double additive model (9072DA) is available.
    For applications requiring a tunable bandpass or notch filter light source, the double subtractive model (9072DS) is an ideal choice.

    This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 7,088.00 7088.0 USD
    Price Valid only in North America

    Sciencetech manufactures grid polarizing beam-splitters for use in the far-infrared and terahertz spectral regions. These beamsplitters divide the incoming beam according to its polarization. The beam-splitter consist of very fine parallel aluminum lines spaced 4 µm apart on a thin mylar substrate. It has the widest spectral range with a higher frequency cut-off than that of other polarizers that work in the near-millimeter wavelength range.
    This particular model is 3" (7.5cm) diameter, and is the middle size of the IR beam-splitter polarizer Sciencetech offers. For larger or smaller sizes, or for a full list of technical specifications, please speak with your authorized Sciencetech technical sales staff member.
    $ 8,425.00
    Sciencetech manufactures grid polarizing beam-splitters for use in the far-infrared and terahertz spectral regions. These beamsplitters divide the incoming beam according to its polarization. The beam-splitter consist of very fine parallel aluminum lines spaced 4 µm apart on a thin mylar substrate. It has the widest spectral range with a higher frequency cut-off than that of other polarizers that work in the near-millimeter wavelength range.
    This particular model is 3" (7.5cm) diameter, and is the middle size of the IR beam-splitter polarizer Sciencetech offers. For larger or smaller sizes, or for a full list of technical specifications, please speak with your authorized Sciencetech technical sales staff member.
    $ 8,425.00 8425.0 USD
    Price Valid only in North America

    The Sciencetech 9055 is a 250mm asymmetric focal length modified Czerny-Turner monochromator. It has a flat field output for use as a spectrograph. This model has an f/3.5 aperture (for the "Fast" version with f/2.5, please see the 9055F). It has a computer-controlled interchangeable turret for automatic grating and wavelength selection.
    Both the input and output ports are located on the front faceplate of the monochromator, and the system includes one SS80 slit at the input port. CE compliant.

    It Includes a Sci-Mono, a Windows based software module with a simple graphical user interface for controlling Sciencetech stepping monochromator wavelength selection. SciMono is provided free of charge with a Sciencetech motorized monochromator when SciSpec software has not been purchased. Sciencetech Software (Sci-Spec) is available at an additional cost. It is a standalone data acquisition and allows controlling the monochromator by itself. This system does not include gratings or a host computer. If you require any of these components, please speak with your technical sales staff member.

    Refer to the technical datasheet for additional information.

    This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 8,453.00
    In Stock
    The Sciencetech 9055 is a 250mm asymmetric focal length modified Czerny-Turner monochromator. It has a flat field output for use as a spectrograph. This model has an f/3.5 aperture (for the "Fast" version with f/2.5, please see the 9055F). It has a computer-controlled interchangeable turret for automatic grating and wavelength selection.
    Both the input and output ports are located on the front faceplate of the monochromator, and the system includes one SS80 slit at the input port. CE compliant.

    It Includes a Sci-Mono, a Windows based software module with a simple graphical user interface for controlling Sciencetech stepping monochromator wavelength selection. SciMono is provided free of charge with a Sciencetech motorized monochromator when SciSpec software has not been purchased. Sciencetech Software (Sci-Spec) is available at an additional cost. It is a standalone data acquisition and allows controlling the monochromator by itself. This system does not include gratings or a host computer. If you require any of these components, please speak with your technical sales staff member.

    Refer to the technical datasheet for additional information.

    This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 8,453.00 8453.0 USD
    Price Valid only in North America

    The 9030DS consists of two 100 mm scanning monochromators placed in series in subtractive mode. Bandpass is determined by the width of an intermediate slit, but the 9030DS has a net output dispersion of zero because the monochromators are optically coupled so that the dispersion of the second grating cancels that of the first. This leads to homogenized wavelengths at the output port - there is no spectrum, only a single undispersed slit image - which allows the unit to act as a tunable bandpass or notch filter.

    Stray light of all sorts is drastically reduced in a double monochromator, and in the 9030DS it is further minimized by the use of concave holographic gratings. It is ideal for applications where stray light is a problem - where there may be a strong scattered background, such as in spectroradiometry, Raman, or measurements of solar radiation.

    The 9030DS can be used as a tunable notch filter to remove one particular wavelength while allowing all others over the bandpass to pass through, making it an ideal instrument to pre-filter out the strong laser excitation wavelength in a fluorescence or Raman system so that the weaker output signals can be observed.

    The 9030DS is a fully integrated unit with the two diffraction gratings coupled mechanically for accurate positioning, adjusted manually using a thumb-wheel. It can be upgraded to be motorized and controlled by a computer with the 9030 Motorized Upgrade. Only one motor and drive unit is required for both monochromators, enabling control via Sciencetech Sci-Mono Active-X library or full featured Sci-Spec software.

    The Model 9030DS can also be used to pass or filter out several selected wavelengths by using a custom intermediate multi-slit mask instead of a single width intermediate slit. Please contact a Sciencetech Applications Specialist for such custom wavelength filtering.

    Mirror coatings have been chosen for this model to enhance performance in the UV-VIS region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a UV to VIS range to pair with the UV/VIS mirror coatings on this model. Two gratings are required.

    Please add a minimum of three slits (for the input, output, and intermediate position) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 9,399.00
    In Stock
    The 9030DS consists of two 100 mm scanning monochromators placed in series in subtractive mode. Bandpass is determined by the width of an intermediate slit, but the 9030DS has a net output dispersion of zero because the monochromators are optically coupled so that the dispersion of the second grating cancels that of the first. This leads to homogenized wavelengths at the output port - there is no spectrum, only a single undispersed slit image - which allows the unit to act as a tunable bandpass or notch filter.

    Stray light of all sorts is drastically reduced in a double monochromator, and in the 9030DS it is further minimized by the use of concave holographic gratings. It is ideal for applications where stray light is a problem - where there may be a strong scattered background, such as in spectroradiometry, Raman, or measurements of solar radiation.

    The 9030DS can be used as a tunable notch filter to remove one particular wavelength while allowing all others over the bandpass to pass through, making it an ideal instrument to pre-filter out the strong laser excitation wavelength in a fluorescence or Raman system so that the weaker output signals can be observed.

    The 9030DS is a fully integrated unit with the two diffraction gratings coupled mechanically for accurate positioning, adjusted manually using a thumb-wheel. It can be upgraded to be motorized and controlled by a computer with the 9030 Motorized Upgrade. Only one motor and drive unit is required for both monochromators, enabling control via Sciencetech Sci-Mono Active-X library or full featured Sci-Spec software.

    The Model 9030DS can also be used to pass or filter out several selected wavelengths by using a custom intermediate multi-slit mask instead of a single width intermediate slit. Please contact a Sciencetech Applications Specialist for such custom wavelength filtering.

    Mirror coatings have been chosen for this model to enhance performance in the UV-VIS region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a UV to VIS range to pair with the UV/VIS mirror coatings on this model. Two gratings are required.

    Please add a minimum of three slits (for the input, output, and intermediate position) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 9,399.00 9399.0 USD
    Price Valid only in North America

    The 9030DA double additive monochromator consists of two 9030 monochromators placed in series. Stray light is drastically reduced in a double monochromator, and in the 9030DA it is further minimized by the use of concave holographic gratings. The inbound light is dispersed by the first grating and again by the second. Both gratings rotate simultaneously in the same direction, and the monochromators are coupled so that the dispersion is double that of a single 9030 monochromator. Bandpass is half of the corresponding 9030 monochromator for the same output slit, and resolution using a 100 µm slit is 0.4 nm.

    Mirror coatings have been chosen for this model to enhance performance in the UV-VIS spectral region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a UV to VIS range to pair with the UV/VIS mirror coatings on this model. Two gratings are required.

    The 9030DA is a fully integrated unit with the two diffraction gratings coupled mechanically for accurate positioning, adjusted manually using a thumb-wheel. It can be upgraded to be motorized and controlled by a computer with the 9030 Motorized Upgrade. Only one motor and drive unit is required for both monochromators, enabling control via Sciencetech Sci-Mono Active-X library or full featured Sci-Spec software.

    Please add a minimum of three slits (for the input, output, and intermediate position) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 9,399.00
    In Stock
    The 9030DA double additive monochromator consists of two 9030 monochromators placed in series. Stray light is drastically reduced in a double monochromator, and in the 9030DA it is further minimized by the use of concave holographic gratings. The inbound light is dispersed by the first grating and again by the second. Both gratings rotate simultaneously in the same direction, and the monochromators are coupled so that the dispersion is double that of a single 9030 monochromator. Bandpass is half of the corresponding 9030 monochromator for the same output slit, and resolution using a 100 µm slit is 0.4 nm.

    Mirror coatings have been chosen for this model to enhance performance in the UV-VIS spectral region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a UV to VIS range to pair with the UV/VIS mirror coatings on this model. Two gratings are required.

    The 9030DA is a fully integrated unit with the two diffraction gratings coupled mechanically for accurate positioning, adjusted manually using a thumb-wheel. It can be upgraded to be motorized and controlled by a computer with the 9030 Motorized Upgrade. Only one motor and drive unit is required for both monochromators, enabling control via Sciencetech Sci-Mono Active-X library or full featured Sci-Spec software.

    Please add a minimum of three slits (for the input, output, and intermediate position) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 9,399.00 9399.0 USD
    Price Valid only in North America

    The 9030DA double additive monochromator consists of two 9030 monochromators placed in series. Stray light is drastically reduced in a double monochromator, and in the 9030DA it is further minimized by the use of concave holographic gratings. The inbound light is dispersed by the first grating and again by the second. Both gratings rotate simultaneously in the same direction, and the monochromators are coupled so that the dispersion is double that of a single 9030 monochromator. Bandpass is half of the corresponding 9030 monochromator for the same output slit, and resolution using a 100 µm slit is 0.4 nm.

    Mirror coatings have been chosen for this model to enhance performance in the VIS-NIR spectral region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a VIS to NIR range to pair with the VIS/IR mirror coatings on this model. Two gratings are required.

    The 9030DA is a fully integrated unit with the two diffraction gratings coupled mechanically for accurate positioning, adjusted manually using a thumb-wheel. It can be upgraded to be motorized and controlled by a computer with the 9030 Motorized Upgrade. Only one motor and drive unit is required for both monochromators, enabling control via Sciencetech Sci-Mono Active-X library or full featured Sci-Spec software.

    Please add a minimum of three slits (for the input, output, and intermediate position) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 9,399.00
    In Stock
    The 9030DA double additive monochromator consists of two 9030 monochromators placed in series. Stray light is drastically reduced in a double monochromator, and in the 9030DA it is further minimized by the use of concave holographic gratings. The inbound light is dispersed by the first grating and again by the second. Both gratings rotate simultaneously in the same direction, and the monochromators are coupled so that the dispersion is double that of a single 9030 monochromator. Bandpass is half of the corresponding 9030 monochromator for the same output slit, and resolution using a 100 µm slit is 0.4 nm.

    Mirror coatings have been chosen for this model to enhance performance in the VIS-NIR spectral region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a VIS to NIR range to pair with the VIS/IR mirror coatings on this model. Two gratings are required.

    The 9030DA is a fully integrated unit with the two diffraction gratings coupled mechanically for accurate positioning, adjusted manually using a thumb-wheel. It can be upgraded to be motorized and controlled by a computer with the 9030 Motorized Upgrade. Only one motor and drive unit is required for both monochromators, enabling control via Sciencetech Sci-Mono Active-X library or full featured Sci-Spec software.

    Please add a minimum of three slits (for the input, output, and intermediate position) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 9,399.00 9399.0 USD
    Price Valid only in North America

    The 9030DS consists of two 100 mm scanning monochromators placed in series in subtractive mode. Bandpass is determined by the width of an intermediate slit, but the 9030DS has a net output dispersion of zero because the monochromators are optically coupled so that the dispersion of the second grating cancels that of the first. This leads to homogenized wavelengths at the output port - there is no spectrum, only a single undispersed slit image - which allows the unit to act as a tunable bandpass or notch filter.

    Stray light of all sorts is drastically reduced in a double monochromator, and in the 9030DS it is further minimized by the use of concave holographic gratings. It is ideal for applications where stray light is a problem - where there may be a strong scattered background, such as in spectroradiometry, Raman, or measurements of solar radiation.

    The 9030DS can be used as a tunable notch filter to remove one particular wavelength while allowing all others over the bandpass to pass through, making it an ideal instrument to pre-filter out the strong laser excitation wavelength in a fluorescence or Raman system so that the weaker output signals can be observed.

    The 9030DS is a fully integrated unit with the two diffraction gratings coupled mechanically for accurate positioning, adjusted manually using a thumb-wheel. It can be upgraded to be motorized and controlled by a computer with the 9030 Motorized Upgrade. Only one motor and drive unit is required for both monochromators, enabling control via Sciencetech Sci-Mono Active-X library or full featured Sci-Spec software.

    The Model 9030DS can also be used to pass or filter out several selected wavelengths by using a custom intermediate multi-slit mask instead of a single width intermediate slit. Please contact a Sciencetech Applications Specialist for such custom wavelength filtering.

    Mirror coatings have been chosen for this model to enhance performance in the VIS-NIR region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a VIS to NIR range to pair with the VIS/IR mirror coatings on this model. Two gratings are required.

    Please add a minimum of three slits (for the input, output, and intermediate position) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 9,399.00
    In Stock
    The 9030DS consists of two 100 mm scanning monochromators placed in series in subtractive mode. Bandpass is determined by the width of an intermediate slit, but the 9030DS has a net output dispersion of zero because the monochromators are optically coupled so that the dispersion of the second grating cancels that of the first. This leads to homogenized wavelengths at the output port - there is no spectrum, only a single undispersed slit image - which allows the unit to act as a tunable bandpass or notch filter.

    Stray light of all sorts is drastically reduced in a double monochromator, and in the 9030DS it is further minimized by the use of concave holographic gratings. It is ideal for applications where stray light is a problem - where there may be a strong scattered background, such as in spectroradiometry, Raman, or measurements of solar radiation.

    The 9030DS can be used as a tunable notch filter to remove one particular wavelength while allowing all others over the bandpass to pass through, making it an ideal instrument to pre-filter out the strong laser excitation wavelength in a fluorescence or Raman system so that the weaker output signals can be observed.

    The 9030DS is a fully integrated unit with the two diffraction gratings coupled mechanically for accurate positioning, adjusted manually using a thumb-wheel. It can be upgraded to be motorized and controlled by a computer with the 9030 Motorized Upgrade. Only one motor and drive unit is required for both monochromators, enabling control via Sciencetech Sci-Mono Active-X library or full featured Sci-Spec software.

    The Model 9030DS can also be used to pass or filter out several selected wavelengths by using a custom intermediate multi-slit mask instead of a single width intermediate slit. Please contact a Sciencetech Applications Specialist for such custom wavelength filtering.

    Mirror coatings have been chosen for this model to enhance performance in the VIS-NIR region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a VIS to NIR range to pair with the VIS/IR mirror coatings on this model. Two gratings are required.

    Please add a minimum of three slits (for the input, output, and intermediate position) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
    Available slits include:
    Model Slit Width
    SF005 - 50 μm
    SF010 - 100μm
    SF025 - 250μm
    SF050 - 500μm
    SF100 - 1mm
    SF200 - 2mm
    SF300 - 3mm
    $ 9,399.00 9399.0 USD
    Price Valid only in North America

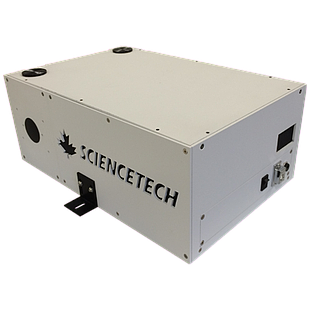

    The Sciencetech 9055i is a 250 mm asymmetric focal length modified Czerny-Turner monochromator. It has a flat field output for use as a spectrograph, with an area of 25 mm wide and 12 mm high. This model has an f/3.5 aperture. It has a computer-controlled interchangeable turret for automatic grating and wavelength selection. Both the input and output ports are located on the front faceplate of the monochromator, and the system includes one SS80 slit at the input port. CE compliant.

    It Includes a Sci-Mono, a Windows based software module with a simple graphical user interface for controlling Sciencetech stepping monochromator wavelength selection. SciMono is provided free of charge with a Sciencetech motorized monochromator when SciSpec software has not been purchased. Sciencetech Software (Sci-Spec) is available at an additional cost. It is a standalone data acquisition and allows controlling the monochromator by itself. This system does not include gratings or a host computer. If you require any of these components, please speak with your technical sales staff member.

    Refer to the technical datasheet for additional information.

    This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 10,020.00
    In Stock
    The Sciencetech 9055i is a 250 mm asymmetric focal length modified Czerny-Turner monochromator. It has a flat field output for use as a spectrograph, with an area of 25 mm wide and 12 mm high. This model has an f/3.5 aperture. It has a computer-controlled interchangeable turret for automatic grating and wavelength selection. Both the input and output ports are located on the front faceplate of the monochromator, and the system includes one SS80 slit at the input port. CE compliant.

    It Includes a Sci-Mono, a Windows based software module with a simple graphical user interface for controlling Sciencetech stepping monochromator wavelength selection. SciMono is provided free of charge with a Sciencetech motorized monochromator when SciSpec software has not been purchased. Sciencetech Software (Sci-Spec) is available at an additional cost. It is a standalone data acquisition and allows controlling the monochromator by itself. This system does not include gratings or a host computer. If you require any of these components, please speak with your technical sales staff member.

    Refer to the technical datasheet for additional information.

    This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 10,020.00 10020.0 USD
    Price Valid only in North America

    Sciencetech manufactures grid polarizing beam-splitters for use in the far-infrared and terahertz spectral regions. These beamsplitters divide the incoming beam according to its polarization. The beam-splitter consist of very fine parallel aluminum lines spaced 4 µm apart on a thin mylar substrate. It has the widest spectral range with a higher frequency cut-off than that of other polarizers that work in the near-millimeter wavelength range.
    This particular model is 4" (10cm) diameter, and is the second largest size of the IR beam-splitter polarizer Sciencetech offers. For larger or smaller sizes, or for a full list of technical specifications, please speak with your authorized Sciencetech technical sales staff member.
    $ 10,530.00
    Sciencetech manufactures grid polarizing beam-splitters for use in the far-infrared and terahertz spectral regions. These beamsplitters divide the incoming beam according to its polarization. The beam-splitter consist of very fine parallel aluminum lines spaced 4 µm apart on a thin mylar substrate. It has the widest spectral range with a higher frequency cut-off than that of other polarizers that work in the near-millimeter wavelength range.
    This particular model is 4" (10cm) diameter, and is the second largest size of the IR beam-splitter polarizer Sciencetech offers. For larger or smaller sizes, or for a full list of technical specifications, please speak with your authorized Sciencetech technical sales staff member.
    $ 10,530.00 10530.0 USD
    Price Valid only in North America
    Copyright © Sciencetech
