9055F - Computer Controlled 1/4m f/2.5 Monochromator and Spectrograph

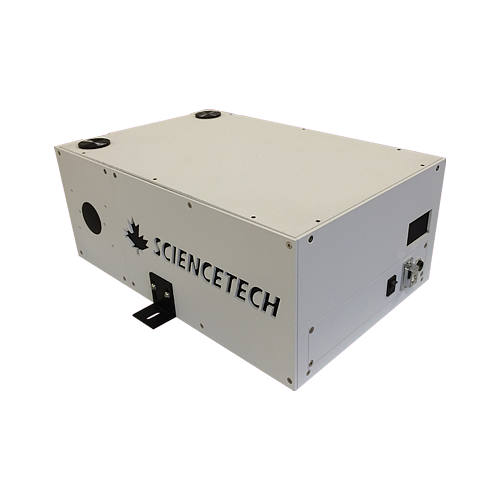

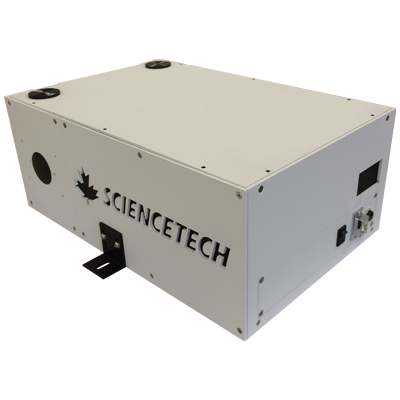

The Sciencetech 9055F is a 250 mm focal length modified Czerny-Turner monochromator, with a flat field output for spectrograph use. This is designed as a faster version of the 9055 with larger optics for higher light throughput and f/2.5 aperture. All 9055Fs have a computer controlled, motorized turret for automatic grating and wavelength selection. Both input and output ports are situated on the front faceplate of the monochromator/spectrograph, and the system includes one adjustable SS80 slit at the input port. The 9055F supports up to two 64 x 64 mm (clear aperture) gratings.

Please see technical datasheet for further information.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).



Price Unavailable

SKU Unavailable

This selection is an invalid combination.
Please make another selection.

10,143.00 10143.0 USD

10,143.00

SKU: 120-9023



Category: Standard Series

Price Valid in USD and only in North America

Product Attachments

Technical Brochure Download

Additional Information

SKU 120-9023
Name 9055F - Computer Controlled 1/4m f/2.5 Monochromator and Spectrograph
Focal Length Range 200 to 300mm
Nominal Resolution Range 0.1nm? X < 0.5nm
f/# range Up to 3.4
Dispersion Range 4 to 1.8 nm/mm
Linear Reciprocal Dispersion 3.3 nm/mm
Optical Axis Height 86.4 mm
Focal Length 250 mm
Resolution (with 1200l/mm grating) 0.4 nm
Special Features enhanced size of gratings for faster measurements
Available Grating Sizes 277
Wavelength Accuracy 0.2 nm
Wavelength Repeatability 0.03 nm
Grating Size 64mm x 64mm

Customization:

SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
