Optical Components

Wavelength range: 300-1200nm
Dispersion: 12nm/mm (When used with 9030 monochromator)

$ 1,450.00

An AM0 filter compatible with Sciencetech solar simulators, including FT-style filter holder. Filter clear aperture is a diameter of 76 mm (3"). Please select the product line the filter is intended to be used with to ensure the proper spectral output.

AM0 simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

$ 1,380.00

An AM1.5D filter compatible with Sciencetech solar simulators, including FT-style filter holder. Filter clear aperture is a diameter of 76 mm (3"). Please select the product line the filter is intended to be used with to ensure the proper spectral output.

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.

Please note that for some simulator models the same filter is used to supply an AM1.5G spectral match. Purchasing separate AM1.5G and AM1.5D filters for the same model simulator may not provide a different spectrum.

$ 1,380.00

An AM1.5G filter compatible with Sciencetech solar simulators, including FT-style filter holder. Filter clear aperture is a diameter of 76 mm (3"). Please select the product line the filter is intended to be used with to ensure the proper spectral output.

If the filter is not intended to be used with a Sciencetech solar simulator, the product line "None" may be selected, but the spectral output cannot be guaranteed when paired with a non-Sciencetech source.

AM1.5G simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes both direct light from the sun, and the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the total radiation, known as global radiation, which reaches the ground.

$ 1,380.00

This adapter couples light from a standard SMA terminated fiber (0.22NA) to an F/3 monochromator input port. The fiber can be adjusted +- 6mm in X and Y directions to optimize the alignment. The optical lenses are made from BK7 glass giving good transmission over a wavelength range of 350nm-2000nm

$ 1,210.00

An F/2 off-axis parabolic mirror assembly with protected gold mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 1,180.00

IR broad band pass filter, operating in approximately 2.5um to 5.0um.
This price includes the filter only; it does not include a holder, which must be purchased separately.

$ 1,150.00

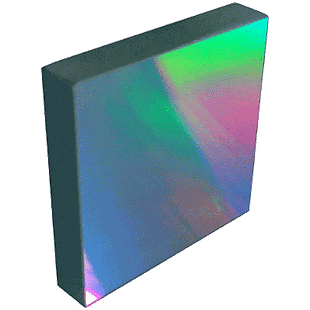

Sciencetech is proud to offer a wide range of gratings in various sizes.
We are also happy to find custom gratings for highly specialized applications. If you feel one of the standard gratings we offer will not be sufficient for your specific application, please speak with one of our authorized Sciencetech technical sales staff members about your needs!

$ 1,100.00

.

$ 1,095.00

An F/2 off-axis parabolic mirror assembly with protected aluminum mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 1,050.00

An F/4 off-axis parabolic mirror assembly with protected gold mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 950.00

Sciencetech's sample chambers can be connected to either the input or output port of a Sciencetech monochromator/spectrograph. The coupling tube that connects them together is 1" in diameter, and has one lens with a matching monochromator F number. When the sample chamber is connected to the input port of a monochromator/spectrograph, collimated light from the sample chamber is then focused into the slit of the monochromator matching its input F number using a single lens. When the sample chamber is connected to the output port of a monochromator, the output light of the monochromator is collected by a single lens with matching output F number and then collimated for entry into the sample chamber.
This product includes the F-matching lens, tubes, and mechanical connections required to couple the sample chamber to the monochromator. Please specify if this will be an input or output coupling when ordering. This product will only work for Sciencetech's line of sample chambers: for custom optical coupling, please speak with your authorized Sciencetech technical sales staff member.

$ 909.00

Sciencetech's sample chambers can be connected to either the input or output port of a Sciencetech monochromator/spectrograph. The coupling tube that connects them together is 1" in diameter, and has one lens with a matching monochromator F number. When the sample chamber is connected to the input port of a monochromator/spectrograph, collimated light from the sample chamber is then focused into the slit of the monochromator matching its input F number using a single lens. When the sample chamber is connected to the output port of a monochromator, the output light of the monochromator is collected by a single lens with matching output F number and then collimated for entry into the sample chamber.
This product includes the F-matching lens, tubes, and mechanical connections required to couple the sample chamber to the monochromator. Please specify if this will be an input or output coupling when ordering. This product will only work for Sciencetech's line of sample chambers: for custom optical coupling, please speak with your authorized Sciencetech technical sales staff member.

$ 909.00

Sun Screen Testing Industry standard filters for isolating UVA wavelengths (320-400nm)
Schott UG11 Filter for eliminating visible and infrared rays (>400nm)
Schott WG335/3mm or WG345/1mm filter for eliminating UVB and UVC rays (<320nm)
Used in the UVA Protection Factor Test Method (Persistent Pigment Darkening)

$ 900.00

This assembly is a custom F/# matched lens assembly. It is a double lens assembly of 2" diameter PCX lenses.
Lens material is Fused Quartz or Fused Silica depending on availability.
Specify required F/# at time of ordering. F/# can be set from F/0.8 to F/10.0
Lenses mounted in 2.2" diameter coupling tube. Accessories and adapters for coupling available.

$ 881.00

.

$ 850.00

An F/4 off-axis parabolic mirror assembly with protected aluminum mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 850.00

Sciencetech's Compact 1.75" Optical Liquid Filter is designed to filter wavelengths 1000nm and greater (if distilled water is used). The compact size allows it to be installed in one of Sciencetech's FH- style filter boxes. This filter requires a cooling water recirculator (sold separately).

$ 850.00

Substrate dimensions: 68 x 68 x 9.5 mm
Clear aperture: 64 x 64 mm

$ 850.00

.Substrate dimensions: 68 x 68 x 9.5 mm
Clear aperture: 64 x 64 mm

$ 850.00
