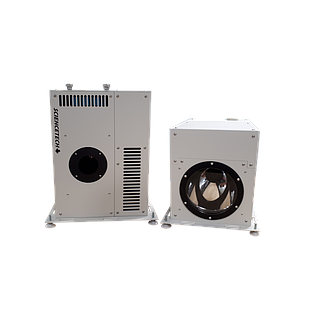

All Sciencetech XLH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

This lamp housing design accommodates light sources from 500 to 1600 W, with a range of options for light source and back reflector shape. Options with a spherical reflector (XLH-S-options) require output optics to be used. See the SLCOL/IO product to select the compatible optics of your choice.

Each system includes the lamp housing, power supply, and lamp.

Light Source Options:
- XE500 - Xenon, 500 W
- XE1000 - Xenon, 1000 W
- XE1600 - Xenon, 1600 W
- QT1000 - Quartz Tungsten Halogen, 1000 W

Reflector Options:
- Spherical - for high-quality collimated or focused output, requires SLCOL output optics.
- Elliptical - for efficient focused light output, F/2.5.
- Diamond-turned Elliptical - only for compatibility with Sciencetech's SS-series solar simulators. For all other applications, choose standard elliptical or spherical options.

Power Supply Features:
- For xenon arc lamps:
Adjustable Touchscreen Control
- For quartz tungsten halogen lamps:
Fixed Manual Control

A wide variety of collimated or focused output optics is available for use with the XLH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more. For any questions about product compatibility, please contact us.

Contact for Pricing

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

This lamp housing design accommodates light sources from 30 to 300 W, with a range of options for light source, back reflector shape, and power supply options. Options with a spherical reflector (LH-S-options) require output optics to be used. See the SLCOL/IO product to select the compatible optics of your choice.

Each system includes the lamp housing, power supply, and lamp.

Light Source Options:
- XE075 - Xenon, 75 W
- XE150 - Xenon, 150 W
- XE300 - Xenon, 300 W
- QT250 - Quartz Tungsten Halogen, 250 W
- IR037 - IR Element, 37 W
- DT030 - Deuterium, 30 W

Reflector Options:
- Spherical - for high-quality collimated or focused output, requires SLCOL output optics.
- Elliptical - for efficient focused light output, F/4.5.
- Extra-Fast Elliptical - for efficient focused light output, F/1.2.
- Parabolic - for efficient collimated light, has a toroidal intensity profile.

Power Supply Options:
- For xenon arc lamps:
Adjustable Touchscreen Control
Adjustable Manual Control (XE150 and XE300 only)
- For quartz tungsten halogen lamps:
Adjustable Touchscreen Control (QT250 only)
- For IR elements:
Adjustable Touchscreen Control
- For deuterium:
Fixed Manual Control

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 4,746.00

As an arc lamp ages, the output intensity slowly declines. This natural lamp aging can be compensated for by using this light intensity stabilizer, which operates by increasing the power level on the variable power supply, using feedback from an optical sensor.

This stabilizer is meant to stabilize the light output on a time scale of hours or days, useful for longer-running experiments. It does not improve temporal instability on the order of seconds (or even a single hour).

This light intensity stabilizer is compatible with Sciencetech's computer-controlled xenon arc lamp power supplies and housings (PS-XE###-A-T). This product is not compatible with manually-controlled power supplies (PS-XE###-A-M).

$ 3,029.00

This 50 mm (2") diameter beam turner is designed for use with Sciencetech's high-powered xenon or QTH light sources (1000 W+). The fused silica substrate is chosen for its low thermal expansion and resistance to cracking when heated.

Two coating options are available:
Enhanced Aluminum - best for 400-1100 nm +
UV-enhanced Aluminum - best for 250-700 nm

For lower-power applications, see CTBT-3 or CTBT-2.

Contact for Pricing

This accessory can be added to an XLH-style lamp housing to vent ozone produced by UV-enhanced xenon arc lamp sources. This product is compatible with all XLH-series housings for 500-1600 W xenon short arc lamps.

The LH-O3-VENT-KIT can be added to offer compatible hosing and an exhaust fan.

Contact for Pricing

This accessory can be added to an LH-style lamp housing to vent ozone produced by UV-enhanced xenon arc lamp sources. This product is compatible with all LH-series housings for 75-300 W xenon short arc lamps.

The LH-O3-VENT-KIT can be added to offer compatible hosing and an exhaust fan.

Contact for Pricing

Class: A+A+A+ (IEC 60904-9 Ed.3-2020)
Target size: 50 × 50 mm
Intensity: 1 Sun
Lamp Power: 300 W
Working distance: 380 mm (with included beam turner)

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM1.5G spectral matching included.
- Power Supply: The included power supply is a full-featured, adjustable touchscreen-controlled supply, with included software for power supply control.
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature. The beam turner is required for Class A+A+A+ operation.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. The touchscreen power supply controls the shutter, or both can be controlled through the included software.
-Attenuators are not compatible with this model. For attenuation, please use manual attenuating filters. Contact Sciencetech for more details or recommendations.

Power Requirements: 100–240 VAC, 50/60 Hz, 4.0 A. This system requires 1 IEC 60320 C13 compatible power cable. Please select 1 region-specific power cable (see product 491-9001) at no cost.

Also included are a xenon arc lamp, filter holder, and testing report.

Contact for Pricing

The PS-XE150-A-M is part of Sciencetech's line of economy constant power supplies for xenon short arc lamps. This supply is intended to pair with Sciencetech's line of LH lamp housings and other systems built with LH lamp housings.

The PS-XE150-A-M can deliver up to 150 W to a properly paired xenon arc lamp. Power is delivered to the lamp through a single 7W2 connector. This power supply features 2 LCD screens for monitoring lamp current and voltage, lamp ON/OFF buttons, and an adjustment knob allows the operator to adjust the current delivered to the lamp.

If you need more advanced features such as a touchscreen interface, integrated shutter control, and computer control features, please see Sciencetech's PS-XE150-A-T power supplies.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 2,019.00

The PS-XE300-A-M is part of Sciencetech's line of economy constant power supplies for xenon short arc lamps. This supply is intended to pair with Sciencetech's line of LH lamp housings and other systems built with LH lamp housings.

The PS-XE300-A-M can deliver up to 300 W to a properly paired xenon arc lamp. Power is delivered to the lamp through a single 7W2 connector. This power supply features 2 LCD screens for monitoring lamp current and voltage, lamp ON/OFF buttons, and an adjustment knob allows the operator to adjust the current delivered to the lamp.

If you need more advanced features such as a touchscreen interface, integrated shutter control, and computer control features, please see Sciencetech's PS-XE300-A-T power supplies.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 2,019.00

Class: AAA (ASTM E927-19, IEC 60904-9 Ed.3-2020 classification available upon request)
Target size: 50 × 50 mm
Intensity: 1.5 Suns
ND filter for 1 sun operation included
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM0 spectral matching is the standard option. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 1.5 Suns (AM0 irradiance level).
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply, or a simpler, manually-operated power supply.
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

Power Requirements: 100–240 VAC, 50/60 Hz, 4.0 A. This system requires 1 IEC 60320 C13 compatible power cable. Please select 1 region-specific power cable (see product 491-9001) at no cost.

Also included are a xenon arc lamp, filter holder, and testing report.

$ 12,951.00

Class: AAA (ASTM E927-19, IEC 60904-9 Ed.3-2020 classification available upon request)
Target size: 50 × 50 mm
Intensity: 2 Suns using 300 W, 1 Sun using 150 W
ND filter for 1 sun operation included with 300 W version
Working distance: 380 mm (with beam turning unit CTBT-3)
The SciSun can be configured to precisely suit user requirements.
The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM1.5G spectral matching included. For AM0 matching, please see the AM0 SciSun product. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 2 Suns, 150 W produces a maximum intensity of 1 Sun.
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply, or a simpler, manually-operated power supply.
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the 300 W SciSun will still come with a removeable neutral density filter to permit 1 sun operation.
Power Requirements: 100–240 VAC, 50/60 Hz, 4.0 A (SciSun-300) or 2.5 A (SciSun-150). This system requires 1 IEC 60320 C13 compatible power cable. Please select 1 region-specific power cable (see product 491-9001) at no cost.
Also included are a xenon arc lamp, filter holder, and testing report.

$ 9,493.00

The PSS-series of flash (or pulsed) solar simulators are designed to illuminate large photovoltaic devices up to 2 × 2 m in size with up to 1 sun irradiance, with spectral matching to terrestrial (AM1.5G) or space (AM0) conditions. Spectral match must be selected at the time of order and cannot be changed after production. The system comes with an included device trolley, with a tilted target plane calibrated for the system.

These systems are based on a heavy-duty xenon flash lamp, combined with spectral filtering and a built-in beam conditioning reflector. The standard flash measurement window is 0.2 ms, but an optional pulse current regulator can be selected to allow for a flat, stable pulse within a measurement window of 4.0 ms.

This product includes a flash head, power supply, flash lamp, air mass filter, variable attenuator, temperature sensor, system housing, current-voltage measurement system, computer, and sample trolley.

Please see the PSS table to select the best IV measurement system for your application.

Specifications:
Spectral Match: up to Class A, see Brochure
Spatial Non-Uniformity: up to Class A, see Brochure
Temporal Instability: Class A
Target Size: up to 1.9 × 1.9 m, see Brochure
Spectral Range: Depends on AM filter selection
Collimation: Non-collimated

Please note: Mains voltage must be selected at the time of purchase, and cannot be changed after production.

$ 100,999.00

With the Sciencetech Solar LightLine you can direct the Class AAA solar light anywhere you want. Classic designs for solar simulators require you to bring your sample to the solar simulator. Now, you can bring the solar simulator to your sample! This makes the Sciencetech Solar LightLine series of fiberized solar simulators ideal for research that just can't accommodate traditional bulky solar simulators. The solar light can be easily integrated with a glove box without mounting the entire solar simulator in the glove box, saving space and adding flexibility. The standard 4-foot-long fiber makes the simulator ideal for doing spot checks of devices on manufacturing lines or in dedicated setups that can't accommodate a bulky solar simulator.

The Lightline includes space for fitting one internal accessory. Options are a motorized 6-position filter wheel with a variety of spectral or neutral density filters that can be supplied, or a manual or motorized attenuation system that provides continuous control over intensity at the target from 10-100%. Internal accessories must be selected at the time of order and cannot be added at a later time.

Every Lightline includes an internal two-position filter tray that accommodates Sciencetech FT style filters. One filter location is reserved for the selected air mass filter. Air mass filters must be selected in the order for spectral match classification.

Classification is performed to ASTM E927-19. Classification to IEC 60904-9 and JIS C 08912 standards can be performed on request. Please contact your Sciencetech Technical Representative for details.

- Includes adjustable touchscreen PS-XE300-A-T power supply with current control from 80-100% of max current.
- Includes computer-controlled high intensity shutter.
- 4 feet light guide (other light guide lengths are possible), light guides can be fitted with KF flanges for glovebox integration.
- Includes one 300 W xenon short arc lamp.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 11,614.00

The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the PS-XE6500-A-T-220 computer-controllable power supply, one 6500 W xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

Designed for use in North America

Includes ultra high-powered, focused-beam arc-lamp housing UPLH-EF-XE6500.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500 W xenon short arc lamp
-Includes annealed glass safety window (Fused quartz upgrade available)
-Horizontally operated, can be mounted for downward-facing operation (requires stand)

Includes PS-XE6500-A-T-220 power supply designed for North America
Compatible with UPLH-E(F)-XE6500 lamp houses

Power Requirements: 200-240 VAC, 50/60 Hz, 31 A 3P+E. Includes one L15-50P power cable, hardwired, 2 m in length. Commonly used in North America.

$ 40,507.00

The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500 W xenon short arc lamp. This packages includes a PS-XE6500-A-T touchscreen computer-controllable power supply, one 6500 W xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

This system is designed for global use.

Includes ultra high-powered, focused-beam arc-lamp housing UPLH-EF-XE6500
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500 W xenon short arc lamp
-Includes annealed glass safety window (Fused quartz upgrade available)
-Horizontally operated, can be mounted for downward-facing operation (requires stand)

Power Requirements: 380-480 VAC, 50/60 Hz, 17.4 A, 3P+E. Includes one L16-30 power cable, detachable, 3.6 m in length. Commonly used globally.

$ 40,507.00

Lamp Power: 2500 W
Lamp Type: Xenon
Output Beam Type: Focused, F/3
Lens Type: Two Single Plano-Convex Lenses
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Two fused silica lenses in the optical assembly minimizes surfaces and permits maximum UV output.

Power Requirements: 200-240 VAC, 50/60 Hz, 20 A. This system requires 1 NEMA L6-30P compatible power cable. Please select one region-specific power cable (see product 491-9004) at no cost.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

$ 23,230.00

Lamp Power: 2500 W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 76 mm (3")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

Power Requirements: 200-240 VAC, 50/60 Hz, 20 A. This system requires 1 NEMA L6-30P compatible power cable. Please select one region-specific power cable (see product 491-9004) at no cost.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

$ 22,725.00

6500W Xenon arc lamp
Ozone Free
Compatible with Sciencetech Ultra-High Power Lamp Houses.

Nominal Wattage 6500 W
Nominal Voltage 39 V
Current (A) 165 A
Current Control Range (A) 133-173 A

Physical attributes
Base Anode SFAx30-14
Base Cathode SFa30-7.9

$ 2,854.00

$ 2,034.00

This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5G filters (included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 20 cm (8") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 1600 W ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: PS-XE1600-A-T adjustable touchscreen supply

Includes: 20 cm (8") diameter UV transmitting Fresnel lens, igniter.

Power Requirements: 200-240 VAC, 50/60 Hz, 12.1 A. This system requires 1 IEC 60320 C19 compatible power cables. Please select one region-specific power cable (see product 491-9003) at no cost.

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter.

* Systems can be built for downward-facing operation if specified at time of order.

$ 32,825.00
