    A light source is a complete system capable of illumination, consisting of a lamp, a lamp housing, a power supply, and necessary optics, cables, and hardware.

    Sciencetech manufactures a variety of light sources with applications for both research and industry. For more information about our light sources and capabilities select a product group below and contact us at sales contact today!

    Sciencetech Light Sources

    SCIENCETECH offers light sources from UV to Infrared. A complete light source typically includes the lamp mounted in a housing with condensing/coupling optics, a power supply and all the necessary cables and hardware. For spectroscopic applications, a DC stabilized power supply is required. Arc sources also include a stand-alone igniter to break down the gas and establish the plasma discharge. A full line of accessories such as light condensers and collimators, filters, optical feedback units output stabilization and light shutters are available.



    We offer several standard types of light sources:

    • Xenon Arc lamp Light Sources.  Arc lamps contain plasma confined in a quartz envelope, which produces radiation from 200nm to 2.5um. They have a very strong ultraviolet output and, since the emitting plasma volume is very small, their brightness in the visible region is approximately one order of magnitude higher than that of QTH sources, making them excellent for illuminating small targets. The main arc bulb types are Xenon (Xe), Mercury (Hg), Mercury-Xenon (Hg-Xe) and metal halide under high pressure for maximum brightness.





      Quartz Tungsten Halogen. (QTH) Light from QTH lamps is emitted by a heated filament. The filament is enclosed in a quartz envelope filled with gases. The spectral distribution is close to that of a blackbody curve with a color temperature of approximately 3000°K. QTH lamps have a useful spectral output from 300nm to 2.7µm.





      Deuterium and Dual Deuterium Tungsten. Deuterium (D2) sources are ideal for UV spectroscopy since they have a high ultraviolet output with little visible and infrared emission. UV grade fused silica envelopes can also be used, instead of the standard UV glass envelope, for missions below 180 nm.





      Infrared Light Source. Sciencetech offers both IR emitter housing Elliptical Reflector or Parabolic Reflector.

    • Coupling our capabilities in light source manufacture and spectroscopy allows us to manufacture complete systems such as our Sciencetech Tunable Light Source.



      Our expertise extends to Sciencetech Solar Simulators which are broad band light sources with specific spectral and radiant intensity properties.

    Contact us for more information or request a quote

    sales@sciencetech-inc.com

    Fill form to request a quote

    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Power Supply Selection
      (Clear all)
    • Filter By
      Light Source
      (Clear all)
    • Filter By
      Mirror Coating
      (Clear all)
    • Filter By
      Reflector Shape
      (Clear all)
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    This lamp housing design accommodates light sources from 30 to 300 W, with a range of options for light source, back reflector shape, and power supply options. Options with a spherical reflector (LH-S-options) require output optics to be used. See the SLCOL/IO product to select the compatible optics of your choice.

    Each system includes the lamp housing, power supply, and lamp.

    Light Source Options:
    - XE075 - Xenon, 75 W
    - XE150 - Xenon, 150 W
    - XE300 - Xenon, 300 W
    - QT250 - Quartz Tungsten Halogen, 250 W
    - IR037 - IR Element, 37 W
    - DT030 - Deuterium, 30 W

    Reflector Options:
    - Spherical - for high-quality collimated or focused output, requires SLCOL output optics.
    - Elliptical - for efficient focused light output, F/4.5.
    - Extra-Fast Elliptical - for efficient focused light output, F/1.2.
    - Parabolic - for efficient collimated light, has a toroidal intensity profile.

    Power Supply Options:
    - For xenon arc lamps:
    Adjustable Touchscreen Control
    Adjustable Manual Control (XE150 and XE300 only)
    - For quartz tungsten halogen lamps:
    Adjustable Touchscreen Control (QT250 only)
    - For IR elements:
    Adjustable Touchscreen Control
    - For deuterium:
    Fixed Manual Control

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 4,746.00
    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    This lamp housing design accommodates light sources from 30 to 300 W, with a range of options for light source, back reflector shape, and power supply options. Options with a spherical reflector (LH-S-options) require output optics to be used. See the SLCOL/IO product to select the compatible optics of your choice.

    Each system includes the lamp housing, power supply, and lamp.

    Light Source Options:
    - XE075 - Xenon, 75 W
    - XE150 - Xenon, 150 W
    - XE300 - Xenon, 300 W
    - QT250 - Quartz Tungsten Halogen, 250 W
    - IR037 - IR Element, 37 W
    - DT030 - Deuterium, 30 W

    Reflector Options:
    - Spherical - for high-quality collimated or focused output, requires SLCOL output optics.
    - Elliptical - for efficient focused light output, F/4.5.
    - Extra-Fast Elliptical - for efficient focused light output, F/1.2.
    - Parabolic - for efficient collimated light, has a toroidal intensity profile.

    Power Supply Options:
    - For xenon arc lamps:
    Adjustable Touchscreen Control
    Adjustable Manual Control (XE150 and XE300 only)
    - For quartz tungsten halogen lamps:
    Adjustable Touchscreen Control (QT250 only)
    - For IR elements:
    Adjustable Touchscreen Control
    - For deuterium:
    Fixed Manual Control

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 6,222.00 6222.0 USD
    Price Valid only in North America

    This 50 mm (2") diameter beam turner is designed for use with Sciencetech's high-powered xenon or QTH light sources (1000 W+). The fused silica substrate is chosen for its low thermal expansion and resistance to cracking when heated.

    Two coating options are available:
    Enhanced Aluminum - best for 400-1100 nm +
    UV-enhanced Aluminum - best for 250-700 nm

    For lower-power applications, see CTBT-3 or CTBT-2.
    This 50 mm (2") diameter beam turner is designed for use with Sciencetech's high-powered xenon or QTH light sources (1000 W+). The fused silica substrate is chosen for its low thermal expansion and resistance to cracking when heated.

    Two coating options are available:
    Enhanced Aluminum - best for 400-1100 nm +
    UV-enhanced Aluminum - best for 250-700 nm

    For lower-power applications, see CTBT-3 or CTBT-2.
    $ 576.00 576.0 USD
    Price Valid only in North America

    This accessory can be added to an XLH-style lamp housing to vent ozone produced by UV-enhanced xenon arc lamp sources. This product is compatible with all XLH-series housings for 500-1600 W xenon short arc lamps.

    The LH-O3-VENT-KIT can be added to offer compatible hosing and an exhaust fan.
    This accessory can be added to an XLH-style lamp housing to vent ozone produced by UV-enhanced xenon arc lamp sources. This product is compatible with all XLH-series housings for 500-1600 W xenon short arc lamps.

    The LH-O3-VENT-KIT can be added to offer compatible hosing and an exhaust fan.
    $ 504.00 504.0 USD
    Price Valid only in North America

    This accessory can be added to an LH-style lamp housing to vent ozone produced by UV-enhanced xenon arc lamp sources. This product is compatible with all LH-series housings for 75-300 W xenon short arc lamps.

    The LH-O3-VENT-KIT can be added to offer compatible hosing and an exhaust fan.
    This accessory can be added to an LH-style lamp housing to vent ozone produced by UV-enhanced xenon arc lamp sources. This product is compatible with all LH-series housings for 75-300 W xenon short arc lamps.

    The LH-O3-VENT-KIT can be added to offer compatible hosing and an exhaust fan.
    $ 504.00 504.0 USD
    Price Valid only in North America

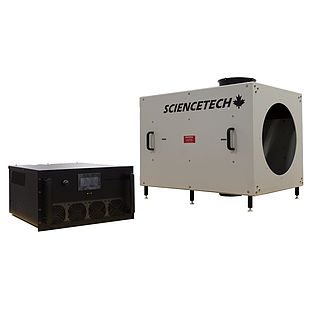

    The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the PS-XE6500-A-T-220 computer-controllable power supply, one 6500 W xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

    Designed for use in North America

    Includes ultra high-powered, focused-beam arc-lamp housing UPLH-EF-XE6500.
    -Scientific research grade arc lamp housing
    -High power focused beam
    -Efficient ellipsoidal reflector for light collection
    -f/2.4 ellipsoidal reflector aperture
    -Uses 6500 W xenon short arc lamp
    -Includes annealed glass safety window (Fused quartz upgrade available)
    -Horizontally operated, can be mounted for downward-facing operation (requires stand)

    Includes PS-XE6500-A-T-220 power supply designed for North America
    Compatible with UPLH-E(F)-XE6500 lamp houses

    Power Requirements: 200-240 VAC, 50/60 Hz, 31 A 3P+E. Includes one L15-50P power cable, hardwired, 2 m in length. Commonly used in North America.
    $ 40,507.00
    The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the PS-XE6500-A-T-220 computer-controllable power supply, one 6500 W xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

    Designed for use in North America

    Includes ultra high-powered, focused-beam arc-lamp housing UPLH-EF-XE6500.
    -Scientific research grade arc lamp housing
    -High power focused beam
    -Efficient ellipsoidal reflector for light collection
    -f/2.4 ellipsoidal reflector aperture
    -Uses 6500 W xenon short arc lamp
    -Includes annealed glass safety window (Fused quartz upgrade available)
    -Horizontally operated, can be mounted for downward-facing operation (requires stand)

    Includes PS-XE6500-A-T-220 power supply designed for North America
    Compatible with UPLH-E(F)-XE6500 lamp houses

    Power Requirements: 200-240 VAC, 50/60 Hz, 31 A 3P+E. Includes one L15-50P power cable, hardwired, 2 m in length. Commonly used in North America.
    $ 40,507.00 40507.0 USD
    Price Valid only in North America

    The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500 W xenon short arc lamp. This packages includes a PS-XE6500-A-T touchscreen computer-controllable power supply, one 6500 W xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

    This system is designed for global use.

    Includes ultra high-powered, focused-beam arc-lamp housing UPLH-EF-XE6500
    -Scientific research grade arc lamp housing
    -High power focused beam
    -Efficient ellipsoidal reflector for light collection
    -f/2.4 ellipsoidal reflector aperture
    -Uses 6500 W xenon short arc lamp
    -Includes annealed glass safety window (Fused quartz upgrade available)
    -Horizontally operated, can be mounted for downward-facing operation (requires stand)

    Power Requirements: 380-480 VAC, 50/60 Hz, 17.4 A, 3P+E. Includes one L16-30 power cable, detachable, 3.6 m in length. Commonly used globally.
    $ 40,507.00
    The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500 W xenon short arc lamp. This packages includes a PS-XE6500-A-T touchscreen computer-controllable power supply, one 6500 W xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

    This system is designed for global use.

    Includes ultra high-powered, focused-beam arc-lamp housing UPLH-EF-XE6500
    -Scientific research grade arc lamp housing
    -High power focused beam
    -Efficient ellipsoidal reflector for light collection
    -f/2.4 ellipsoidal reflector aperture
    -Uses 6500 W xenon short arc lamp
    -Includes annealed glass safety window (Fused quartz upgrade available)
    -Horizontally operated, can be mounted for downward-facing operation (requires stand)

    Power Requirements: 380-480 VAC, 50/60 Hz, 17.4 A, 3P+E. Includes one L16-30 power cable, detachable, 3.6 m in length. Commonly used globally.
    $ 40,507.00 40507.0 USD
    Price Valid only in North America

    Lamp Power: 2500 W
    Lamp Type: Xenon
    Output Beam Type: Focused, F/3
    Lens Type: Two Single Plano-Convex Lenses
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    Two fused silica lenses in the optical assembly minimizes surfaces and permits maximum UV output.

    Power Requirements: 200-240 VAC, 50/60 Hz, 20 A. This system requires 1 NEMA L6-30P compatible power cable. Please select one region-specific power cable (see product 491-9004) at no cost.

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 23,230.00
    In Stock
    Lamp Power: 2500 W
    Lamp Type: Xenon
    Output Beam Type: Focused, F/3
    Lens Type: Two Single Plano-Convex Lenses
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    Two fused silica lenses in the optical assembly minimizes surfaces and permits maximum UV output.

    Power Requirements: 200-240 VAC, 50/60 Hz, 20 A. This system requires 1 NEMA L6-30P compatible power cable. Please select one region-specific power cable (see product 491-9004) at no cost.

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 23,230.00 23230.0 USD
    Price Valid only in North America

    Lamp Power: 2500 W
    Lamp Type: Xenon
    Output Beam Type: Collimated
    Output Beam Diameter: 76 mm (3")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    Power Requirements: 200-240 VAC, 50/60 Hz, 20 A. This system requires 1 NEMA L6-30P compatible power cable. Please select one region-specific power cable (see product 491-9004) at no cost.

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 22,725.00
    In Stock
    Lamp Power: 2500 W
    Lamp Type: Xenon
    Output Beam Type: Collimated
    Output Beam Diameter: 76 mm (3")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    Power Requirements: 200-240 VAC, 50/60 Hz, 20 A. This system requires 1 NEMA L6-30P compatible power cable. Please select one region-specific power cable (see product 491-9004) at no cost.

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 22,725.00 22725.0 USD
    Price Valid only in North America

    The TLS-55-XE300-SS includes all the features and functionality of a standard TLS-55-XE300 but with the addition of homogenization optics to allow for a solar simulator mode along with the tunable light source mode. This system produces homogenized monochromatic output along with homogenized broadband solar simulator output.

    This complete plug and play system consists of:
    - 300 W Xe lamp with housing and collection optics
    - PS-XE300-A-T touchscreen power supply
    - 9055 monochromator (1/4 meter)
    - Filter wheel (with 4 sort-order filters)
    - AM1.5G filter
    - Homogenization system
    - SciSpec Software is included for complete computer control of the system

    Each system is pre-aligned during production and packaged with system’s test data and detailed manual.

    Tunable Light Source Specifications:

    - 0.2-24 nm bandpass over UV-VIS spectral range
    - 0.4-48 nm bandpass over VIS-NIR
    - Bandpass adjustable with included manual slits
    - 300-1800 nm spectral range
    - 25 mm diameter target size
    - ~240 mm working distance

    Solar Simulator Specifications:

    - 1 Sun, AM1.5G Irradiance
    - 25 mm diameter target
    - Class ABA, ASTM E927-19
    - 25 mm diameter target size
    - ~240 mm working distance

    Please note the classified area is 25 mm diameter circle. The fully illuminated area is a slightly larger hexagon.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 29,573.00
    The TLS-55-XE300-SS includes all the features and functionality of a standard TLS-55-XE300 but with the addition of homogenization optics to allow for a solar simulator mode along with the tunable light source mode. This system produces homogenized monochromatic output along with homogenized broadband solar simulator output.

    This complete plug and play system consists of:
    - 300 W Xe lamp with housing and collection optics
    - PS-XE300-A-T touchscreen power supply
    - 9055 monochromator (1/4 meter)
    - Filter wheel (with 4 sort-order filters)
    - AM1.5G filter
    - Homogenization system
    - SciSpec Software is included for complete computer control of the system

    Each system is pre-aligned during production and packaged with system’s test data and detailed manual.

    Tunable Light Source Specifications:

    - 0.2-24 nm bandpass over UV-VIS spectral range
    - 0.4-48 nm bandpass over VIS-NIR
    - Bandpass adjustable with included manual slits
    - 300-1800 nm spectral range
    - 25 mm diameter target size
    - ~240 mm working distance

    Solar Simulator Specifications:

    - 1 Sun, AM1.5G Irradiance
    - 25 mm diameter target
    - Class ABA, ASTM E927-19
    - 25 mm diameter target size
    - ~240 mm working distance

    Please note the classified area is 25 mm diameter circle. The fully illuminated area is a slightly larger hexagon.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 29,573.00 29573.0 USD
    Price Valid only in North America

    The TLS-55-XE300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 300 W Xe lamp, PS-XE300-A-T touchscreen power supply, 9055 monochromator (1/4 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
    SciSpec Software is included for controlling the monochromator and filter wheel.
    Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
    The TLS-55-XE300 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 20,544.00
    The TLS-55-XE300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 300 W Xe lamp, PS-XE300-A-T touchscreen power supply, 9055 monochromator (1/4 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
    SciSpec Software is included for controlling the monochromator and filter wheel.
    Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
    The TLS-55-XE300 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 20,544.00 20544.0 USD
    Price Valid only in North America

    The TLS-72-XE300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 300 W Xe lamp, PS-XE300-A-T touchscreen power supply, 9072 monochromator (1/8 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
    SciSpec Software is included for controlling the monochromator and filter wheel.
    Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
    TLS-72-XE300 is advanced system with optical bandpass as small as 0.5 nm over UV and VIS spectral range, and 0.7 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 19,594.00
    The TLS-72-XE300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 300 W Xe lamp, PS-XE300-A-T touchscreen power supply, 9072 monochromator (1/8 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
    SciSpec Software is included for controlling the monochromator and filter wheel.
    Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
    TLS-72-XE300 is advanced system with optical bandpass as small as 0.5 nm over UV and VIS spectral range, and 0.7 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 19,594.00 19594.0 USD
    Price Valid only in North America

    Class: BBA, ASTM E927-19
    Target Size: 76 mm diameter
    Working Distance: 450 mm
    Collimation: 3 degrees, half angle
    Power Supply: PS-XE500-A-T (included)
    Lamp: 500 W Xenon Arc Lamp, Ozone free (included)
    Air Mass Filter: AM1.5G (included)

    Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-0.5kW includes air-cooled arc lamp housing, 500 W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

    This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

    Class AAA available upon request. Please speak with your authorized Sciencetech Representative for further details and a full range of options.

    Requires 100-240 V/ 50/60 Hz, 9.1-3.8 A, Fused 15 A, 250 V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 46,459.00
    In Stock
    Class: BBA, ASTM E927-19
    Target Size: 76 mm diameter
    Working Distance: 450 mm
    Collimation: 3 degrees, half angle
    Power Supply: PS-XE500-A-T (included)
    Lamp: 500 W Xenon Arc Lamp, Ozone free (included)
    Air Mass Filter: AM1.5G (included)

    Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-0.5kW includes air-cooled arc lamp housing, 500 W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

    This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

    Class AAA available upon request. Please speak with your authorized Sciencetech Representative for further details and a full range of options.

    Requires 100-240 V/ 50/60 Hz, 9.1-3.8 A, Fused 15 A, 250 V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 46,459.00 46459.0 USD
    Price Valid only in North America
    Copyright © Sciencetech
