The SCI-SCC6-L-F cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

The SCI-SCC6-L-F is a reversible chuck that allows you to make electrical contacts to the back of your device under test and flip the chuck for back-illumination.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit

$ 3,400.00

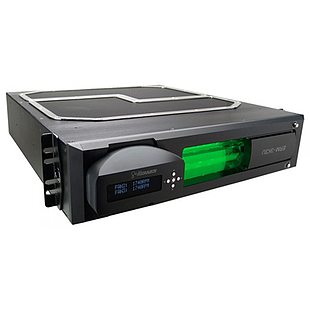

Cooling capacity: 800W (2730BTU/hr) @ 25°C liquid/ambient
Temperature options: liquid set-point (1 to 50°C), optional external thermocouple set-point (1 to 149°C), liquid and ambient delta-T (± -50 to 50°C), external sensor and ambient delta-T (± -50 to 50°C).
Select only values you want displayed on the front 2-line OLED display (fixed or rotating)
Adjust pump speed with 10 level increments
Show pump impeller speed in RPM
Show coolant flow rate in LPM/GPM
Show condenser fan speed in RPM
Adjust audio alarm based on temperatures
Relay trigger can be configured as NO or NC and adjusted based on temperatures
Refrigerant: R-134a
Power input: 120VAC, 60Hz
Maximum power consumption @ ambient (approximate): 450W @ 25°C, 650W @ 35°C
Designed for an operational temperature range of 0-40°C (ambient and liquid)
Reservoir capacity: 3 liters
G 1/4 BSPP threads on back for fittings
NOTE: Requires 120VAC, 60Hz input power. Keep unit upright at all times, and for at least 24 hours before applying power to ensure sufficient oil reaches the compressor.


Weight 57.00 lb (25.86 kg)
Max Pressure @ 25°C 2kgf/cm2 (28.5psi)
Max Temperature 40°C (104°F)

$ 2,520.00

Sciencetech's (SCP-4G) is an economical probe station that provides 4 gold plated spring-tip probes to provide contacts to the top surface of your test device.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.

$ 715.00

A filter holder designed to hold filters in Sciencetechs SS-FH filter holder. The SS-FH filter holder is used in Sciencetech's line of fully reflective solar simulators. The FT-75-35 filter holder accepts filters up to 3.5mm thick.

$ 232.00

45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The UV cold mirror transmits IR (thermal) and some visible light on the sample (Transmission > 85% for the region 600 - 1200nm, Reflection >90% for the region 325 - 475nm)

$ 788.00

Sciencetech's (SCP-SP-T) is a micropositioning probe station with a magnetic base and a tungsten needle-tip probe. It utilizes thumbscrews for adjustment. 0.3” is the magnitude of fine adjustment for this probe.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.

$ 930.00

This option includes all cables, and USB data acquisition device. The Sci-Spec Windows application software to interface a Sciencetech photon counting PMT detector to a Windows Based PC is required and is sold separately. Such detectors output digital signals through a BNC connector which then gets counted and digitized over USB via a computer interface. A power supply for the detector itself is also required, but is sold with the detector

$ 1,000.00

An F/2 off-axis parabolic mirror assembly with protected gold mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 1,180.00

An F/4 off-axis parabolic mirror assembly with protected gold mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 950.00

A downward facing stand for Sciencetech LH series lamp houses, including the SF-series and SLB-series of solar simulators.
The stand is built using T-Slot rails to allow the addition of other accessories or bracketing. LH series lamp houses or SF/SLB series solar simulators mount easily to the downward facing stand.
The DFS-LH can be used with legacy products such as the 201-100 lamp house, please specify your requirement when placing an order.

$ 570.00

An F/2 off-axis parabolic mirror assembly with protected aluminum mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 1,050.00

An F/4 off-axis parabolic mirror assembly with protected aluminum mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 850.00

Sciencetech cold mirrors reflect visible energy and transmit the infrared (heat energy). The cold mirrors are vacuum deposited and all dielectric.
UV cold mirror is specially designed to reflect more than 95% average of ultra-violet rays from 350-450nm and transmit more than 90% average 550-1200nm at 45 degrees angle of incidence. Custom angles of incidence can be designed to specification.

Substrate borofloat 1.4762
Transmits >85% 600-1200nm
Reflects >90% 325-475nm.
Cut to 2.25" x 3.5" +0/-0.1"

$ 1,500.00

Sciencetech's (SCP-MP-T) is a micropositioning probe station with a magnetic base and a tungsten needle-tip probe. It utilizes micrometer heads for accurate repeatable adjustment. 0.5” is the magnitude of fine adjustment for this probe.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.

$ 1,970.00

Sciencetech's (SCP-4T) is an economical probe station that provides 4 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.

$ 960.00

Sciencetech's (SCP-2T) is an economical probe station that provides 2 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
Please note: Tungsten needle-tip probes are very sharp and might not be suitable for some cell technologies. For such application, Gold spring loaded probes such as SCP-2G is recommended.

$ 585.00

Sciencetech's (SCP-2G) is an economical probe station that provides 2 gold plated spring-tip probes to provide contacts to the top surface of your test device.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.

$ 545.00

The SCI-SCC12-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells between 1 and 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 12" x 12"
Temperature Range: 1 – 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit

$ 4,900.00

The SCI-SCC12 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 30 x 30 cm (12" x 12")
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump

$ 3,200.00

The SCI-SCC6-TE cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and has thermoelectric cooling elements that can heat or cool your test cells from dew point to 60 ºC.

Cooling area: 6" x 6"
Temperature Range: 10 - 60 ºC
Power Input: 115-240VAC
Power Usage: 300W
Options: Vacuum Pump

$ 5,600.00
