This hot mirror filters out IR light to remove thermal heat on the target. However, standard hot mirrors also remove UV light as a side-effect which mean it cannot be used in UV applications. This special hot mirror removes IR light between 730-1100nm while preserving UVA and UVB light (280-400nm) in addition to visible light. This filter is ideal for Sciencetech UV solar simulators where the filtering of thermal heat on the target is desired and preservation of UVA and UVB light is required.FT
This filter is intended for use at 0 degree angle of incidence.

This filter is mounted in Sciencetech FT style filter mount with a 76.2mm diameter clear aperture.

Please note this filter does not eliminate all thermal heat in the IR range as this filter stops at 1,100nm. Hence IR heat beyond 1,100nm still pass through. To remove more IR light see Sciencetech's range of IR water filters or contact a Sciencetech application scientist to learn about other options.
600.00
In stock
This hot mirror filters out IR light to remove thermal heat on the target. However, standard hot mirrors also remove UV light as a side-effect which mean it cannot be used in UV applications. This special hot mirror removes IR light between 730-1100nm while preserving UVA and UVB light (280-400nm) in addition to visible light. This filter is ideal for Sciencetech UV solar simulators where the filtering of thermal heat on the target is desired and preservation of UVA and UVB light is required.FT
This filter is intended for use at 0 degree angle of incidence.

This filter is mounted in Sciencetech FT style filter mount with a 76.2mm diameter clear aperture.

Please note this filter does not eliminate all thermal heat in the IR range as this filter stops at 1,100nm. Hence IR heat beyond 1,100nm still pass through. To remove more IR light see Sciencetech's range of IR water filters or contact a Sciencetech application scientist to learn about other options.
600.00 600.0 USD
Price Valid only in North America


An AM1.5D 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-Flash Series Solar Simulators (Class A, ASTM E927-19)

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.
4,133.00
In stock
An AM1.5D 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-Flash Series Solar Simulators (Class A, ASTM E927-19)

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.
4,133.00 4133.0 USD
Price Valid only in North America


Sciencetech's 120-9045 high speed shutter is a recommended accessory with Sciencetech's area scan CCD detectors, but can also be used with Sciencetech's LDA photodiodes or InGaAs linear array detectors. This shutter mounts inside a Sciencetech spectrograph behind the input port. Due to its sturdy steel construction, it can withstand approximately 5W/mm^2 (up to about 200 degrees Celsius). This product includes both the shutter and the controller, and can be either manually controlled (via externally mounted button) or computer controlled.
2,200.00
In stock
Sciencetech's 120-9045 high speed shutter is a recommended accessory with Sciencetech's area scan CCD detectors, but can also be used with Sciencetech's LDA photodiodes or InGaAs linear array detectors. This shutter mounts inside a Sciencetech spectrograph behind the input port. Due to its sturdy steel construction, it can withstand approximately 5W/mm^2 (up to about 200 degrees Celsius). This product includes both the shutter and the controller, and can be either manually controlled (via externally mounted button) or computer controlled.
2,200.00 2200.0 USD
Price Valid only in North America


A longpass filter has low transmission in the shortwave region (stopped) and high transmission in the longwave range (passband).
Size: 2" diameter
Material thickness: 3 mm
Surface Quality: 80-50
This filter includes the holder required to mount into Sciencetech's line of filter holders. For mounting into other applications, please speak with your authorized Sciencetech technical sales staff member.
360.00
In stock
A longpass filter has low transmission in the shortwave region (stopped) and high transmission in the longwave range (passband).
Size: 2" diameter
Material thickness: 3 mm
Surface Quality: 80-50
This filter includes the holder required to mount into Sciencetech's line of filter holders. For mounting into other applications, please speak with your authorized Sciencetech technical sales staff member.
360.00 360.0 USD
Price Valid only in North America

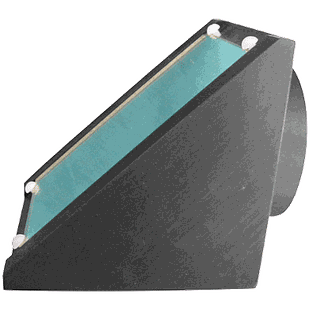

The CTBT-RF is designed to work with Sciencetech's line of SS solar simulators (between 500W and 2.5kW). The CTBT-RF is designed to hold 3" x 4" cold mirrors. A heat sink is mounted behind the dichroic turning mirror to capture transmitted light. The CTBT-RF turns the beam 90 degrees from the standard horizontal output.


Four different cold mirror options exist (purchased separately):
1) 275-375nm
2) 325-450nm
3) 350-550nm
4) 450-725nm
5) UV Enhanced aluminum mirror (250-3000nm)


Please speak with your Sciencetech representative for ordering information.
1,350.00
In stock
The CTBT-RF is designed to work with Sciencetech's line of SS solar simulators (between 500W and 2.5kW). The CTBT-RF is designed to hold 3" x 4" cold mirrors. A heat sink is mounted behind the dichroic turning mirror to capture transmitted light. The CTBT-RF turns the beam 90 degrees from the standard horizontal output.


Four different cold mirror options exist (purchased separately):
1) 275-375nm
2) 325-450nm
3) 350-550nm
4) 450-725nm
5) UV Enhanced aluminum mirror (250-3000nm)


Please speak with your Sciencetech representative for ordering information.
1,350.00 1350.0 USD
Price Valid only in North America


This filter is mounted in Sciencetech FT style filter mount with a 76.2mm diameter clear aperture.

Visible band block, UV pass filter
Clear aperture 3" diameter
Pass band 280-390nm
Blocking 420-750nm
Interference filter
Angle of incidence = 0 deg

2,000.00
In stock
This filter is mounted in Sciencetech FT style filter mount with a 76.2mm diameter clear aperture.

Visible band block, UV pass filter
Clear aperture 3" diameter
Pass band 280-390nm
Blocking 420-750nm
Interference filter
Angle of incidence = 0 deg

2,000.00 2000.0 USD
Price Valid only in North America


An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. The best option for performing exposure testing is to integrate an electronic shutter system inside the beam homogenizer. The electronic shutter is computer controlled with an activation time of <150ms. Software for the shutter controller is included with this item. The standard shutter controller connects to a computer via RS232. RS232-USB converters are available and work with this product. In addition to computer control, the shutter can be controlled via an interface on the power supply.

This shutter can be used with any mid-ranged powered light source and can effectivley block a 3" diameter beam. See the brochure information for a mounting pattern.

The shutter can also be controlled through Sciencetech's touch screen power supplies, including automated opening and closing of the shutter as well as preprogrammed exposure times. Ask your authorized Sciencetech technical sales staff member if you are uncertain whether your system includes one of our new power supplies.

Please note that leaving the shutter closed for extremely long periods of time while the arc lamp is on may cause damage to the motorized components.
1,756.00
In stock
An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. The best option for performing exposure testing is to integrate an electronic shutter system inside the beam homogenizer. The electronic shutter is computer controlled with an activation time of <150ms. Software for the shutter controller is included with this item. The standard shutter controller connects to a computer via RS232. RS232-USB converters are available and work with this product. In addition to computer control, the shutter can be controlled via an interface on the power supply.

This shutter can be used with any mid-ranged powered light source and can effectivley block a 3" diameter beam. See the brochure information for a mounting pattern.

The shutter can also be controlled through Sciencetech's touch screen power supplies, including automated opening and closing of the shutter as well as preprogrammed exposure times. Ask your authorized Sciencetech technical sales staff member if you are uncertain whether your system includes one of our new power supplies.

Please note that leaving the shutter closed for extremely long periods of time while the arc lamp is on may cause damage to the motorized components.
1,756.00 1756.0 USD
Price Valid only in North America


This bandpass filter has a transmission band surrounded by two blocking bands that allow only the UV part of the spectrum to pass.
This product includes the filter and a frame for mounting in a standard Sciencetech filter box.
302.00
In stock
This bandpass filter has a transmission band surrounded by two blocking bands that allow only the UV part of the spectrum to pass.
This product includes the filter and a frame for mounting in a standard Sciencetech filter box.
302.00 302.0 USD
Price Valid only in North America


IR broad band pass filter, operating in approximately 2.5um to 5.0um.
This price includes the filter only; it does not include a holder, which must be purchased separately.

1,150.00
In stock
IR broad band pass filter, operating in approximately 2.5um to 5.0um.
This price includes the filter only; it does not include a holder, which must be purchased separately.

1,150.00 1150.0 USD
Price Valid only in North America


Blue, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00
In stock
Blue, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00 260.0 USD
Price Valid only in North America


Red, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00
In stock
Red, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00 260.0 USD
Price Valid only in North America


Green, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00
In stock
Green, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00 260.0 USD
Price Valid only in North America


.
500.00 500.0 USD
Price Valid only in North America


Spectralon Reflective Coating Standard,( Zenith White and Gold Coating available)
1.5" diameter entrance/exit port (1), 1" diameter application ports (3) (90 degree, North Pole and 180 degree)
Additional Ports and reduction of ports possible
Internal baffle on 90 deg port

3,681.00
In stock
Spectralon Reflective Coating Standard,( Zenith White and Gold Coating available)
1.5" diameter entrance/exit port (1), 1" diameter application ports (3) (90 degree, North Pole and 180 degree)
Additional Ports and reduction of ports possible
Internal baffle on 90 deg port

3,681.00 3681.0 USD
Price Valid only in North America


.
730.00 730.0 USD
Price Valid only in North America


.
730.00 730.0 USD
Price Valid only in North America


Active Area: 13mm^2 (3.6 x 3.6mm)
Rise Time: 10ns @20V
NEP: 1.2 x 10^(-14) W/Hz^(1/2) @ 900nm, 20V
Dark Current: 20nA @ 20V
Junction capacitance: 40pF @ 10V
320.00
In stock
Active Area: 13mm^2 (3.6 x 3.6mm)
Rise Time: 10ns @20V
NEP: 1.2 x 10^(-14) W/Hz^(1/2) @ 900nm, 20V
Dark Current: 20nA @ 20V
Junction capacitance: 40pF @ 10V
320.00 320.0 USD
Price Valid only in North America


Active Area: 100mm^2 (10 x 10mm)
Rise Time: 150ns
NEP: 1.5 x 10^(-14) W/Hz^(1/2) @ 960nm
Dark Current: 200pA @ 5V
Junction capacitance: 380pF @ 5V
320.00
In stock
Active Area: 100mm^2 (10 x 10mm)
Rise Time: 150ns
NEP: 1.5 x 10^(-14) W/Hz^(1/2) @ 960nm
Dark Current: 200pA @ 5V
Junction capacitance: 380pF @ 5V
320.00 320.0 USD
Price Valid only in North America


Material: Si
Wavelength Range: 350-1100
Detector Size: 3.6 x 3.6mm
Gain (Fixed): 8 x 10 dB steps
Bandwidth Range: DC - 17MHz
NEP: 2.1x10^(-12) to 7.7x10^(-11) W/Hz^(1/2)
650.00
In stock
Material: Si
Wavelength Range: 350-1100
Detector Size: 3.6 x 3.6mm
Gain (Fixed): 8 x 10 dB steps
Bandwidth Range: DC - 17MHz
NEP: 2.1x10^(-12) to 7.7x10^(-11) W/Hz^(1/2)
650.00 650.0 USD
Price Valid only in North America


Material: Si
Wavelength Range: 350-1100
Detector Size: 0.8mm diameter
Gain (Fixed): 100kV/A
Bandwidth Range: DC - 50MHz
NEP: 6.5x10^(-11) W/Hz^(1/2)
800.00
In stock
Material: Si
Wavelength Range: 350-1100
Detector Size: 0.8mm diameter
Gain (Fixed): 100kV/A
Bandwidth Range: DC - 50MHz
NEP: 6.5x10^(-11) W/Hz^(1/2)
800.00 800.0 USD
Price Valid only in North America
