The SCI-SCC12 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 30 x 30 cm (12" x 12")
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
3,200.00
In stock
The SCI-SCC12 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 30 x 30 cm (12" x 12")
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
3,200.00 3200.0 USD
Price Valid only in North America


The SCI-SCC6-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W (not including recirculator or temp control unit)
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
1,400.00
In stock
The SCI-SCC6-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W (not including recirculator or temp control unit)
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
1,400.00 1400.0 USD
Price Valid only in North America


The SCI-SCC6 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 6" x 6"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
840.00
In stock
The SCI-SCC6 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 6" x 6"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
840.00 840.0 USD
Price Valid only in North America


The SCI-SCC3-TE cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and has an integrated thermoelectric controller that can heat or cool your test cells from dew point to 60 ºC.

This product is not compatible with PTS systems. For PTS systems add the SCI-SCC3-TE-PTS version of this cell chuck

Cooling area: 3.5" x 3.5"
Temperature Range: 10 - 60 ºC
Power Input: 115-240VAC
Power Usage: 80W
Options: Vacuum Pump

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
2,180.00
In stock
The SCI-SCC3-TE cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and has an integrated thermoelectric controller that can heat or cool your test cells from dew point to 60 ºC.

This product is not compatible with PTS systems. For PTS systems add the SCI-SCC3-TE-PTS version of this cell chuck

Cooling area: 3.5" x 3.5"
Temperature Range: 10 - 60 ºC
Power Input: 115-240VAC
Power Usage: 80W
Options: Vacuum Pump

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
2,180.00 2180.0 USD
Price Valid only in North America


The SCI-SCC3 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 3.5" x 3.5"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
743.00
In stock
The SCI-SCC3 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 3.5" x 3.5"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
743.00 743.0 USD
Price Valid only in North America


The cuvette holder inside the sample chamber can be replaced with an optional thin film holder. This thin film holder is 2" x 2" square, although other sizes are available (please enquire). The thin film holder is placed at an angle to the input port such that the angle of incidence is 45 degrees. Should the optional TE sample cooling pad be ordered, this cooler connects directly to the thin film holder frame at the base, hence cooling of the sample is done through physical contact with the frame.
300.00
In stock
The cuvette holder inside the sample chamber can be replaced with an optional thin film holder. This thin film holder is 2" x 2" square, although other sizes are available (please enquire). The thin film holder is placed at an angle to the input port such that the angle of incidence is 45 degrees. Should the optional TE sample cooling pad be ordered, this cooler connects directly to the thin film holder frame at the base, hence cooling of the sample is done through physical contact with the frame.
300.00 300.0 USD
Price Valid only in North America

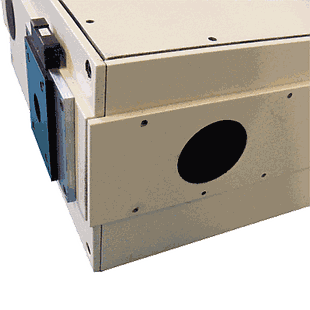

The SC-12 is a general purpose sample chamber that can be configured in multiple ways to address a number of application requirements. The SC-12 includes 4 optical ports (on three sides and one on the top) as well as a side door for easy access to the sample area.
Three of the side walls feature optical ports with a Sciencetech standard B4 hole pattern as well as removable anodized access panels that can be machined to accommodate most types of feedthroughs including electrical, liquid and gas.

The SC-12 can be configured for spectroscopy applications such as diffuse reflection and transmission spectroscopy, or as a light tight reaction chamber for photoelectrolysis research. The 2.2" diameter opening on the top port of the sample chamber is designed to mate to Sciencetech's line of lens based solar simulators such as the SF or SLB series simulators, the Solar LightLine solar simulator, as well as Sciencetech's line of 201-100 lamp houses.

The base of the sample chamber is an imperial optical breadboard with 1/4-20 tapped holes. For the metric version see model SC-12-M.

The SC-12 is 311x 311x 219mm (12.5" x 12.5" x 8.625")(LxWxH) with internal dimensions of approximately 298 x 298 x 200mm (11.75" x 11.75" x 7.8").
Side inputs have a 3" optical height which can be increased using the included baseplate and levelling feet.
The baseplate is 355 x 355 x 6.3mm (14" x 14" x 1/4")

The standard system does not come with a sample holder. See the product literature for more information on how to configure the sample chamber.

Please see our detailed product literature for more information or contact a technical sales representative to discuss how we can help you with your specific application.

Options (not included)
- Valved water inlet and outlet ports
- Push to connect hose feedthrough (standard for Sciencetech vacuum chucks)
- AC power entry module
- Binding posts for electrical feedthrough
- Gas inlet and outlet ports (6mm Swagelok)
- Height adjustable sample tray
- Temperature controlled sample platform

Discuss your full technical needs with an authorized Sciencetech Technical Sales Staff member for further details.
1,650.00
In stock
The SC-12 is a general purpose sample chamber that can be configured in multiple ways to address a number of application requirements. The SC-12 includes 4 optical ports (on three sides and one on the top) as well as a side door for easy access to the sample area.
Three of the side walls feature optical ports with a Sciencetech standard B4 hole pattern as well as removable anodized access panels that can be machined to accommodate most types of feedthroughs including electrical, liquid and gas.

The SC-12 can be configured for spectroscopy applications such as diffuse reflection and transmission spectroscopy, or as a light tight reaction chamber for photoelectrolysis research. The 2.2" diameter opening on the top port of the sample chamber is designed to mate to Sciencetech's line of lens based solar simulators such as the SF or SLB series simulators, the Solar LightLine solar simulator, as well as Sciencetech's line of 201-100 lamp houses.

The base of the sample chamber is an imperial optical breadboard with 1/4-20 tapped holes. For the metric version see model SC-12-M.

The SC-12 is 311x 311x 219mm (12.5" x 12.5" x 8.625")(LxWxH) with internal dimensions of approximately 298 x 298 x 200mm (11.75" x 11.75" x 7.8").
Side inputs have a 3" optical height which can be increased using the included baseplate and levelling feet.
The baseplate is 355 x 355 x 6.3mm (14" x 14" x 1/4")

The standard system does not come with a sample holder. See the product literature for more information on how to configure the sample chamber.

Please see our detailed product literature for more information or contact a technical sales representative to discuss how we can help you with your specific application.

Options (not included)
- Valved water inlet and outlet ports
- Push to connect hose feedthrough (standard for Sciencetech vacuum chucks)
- AC power entry module
- Binding posts for electrical feedthrough
- Gas inlet and outlet ports (6mm Swagelok)
- Height adjustable sample tray
- Temperature controlled sample platform

Discuss your full technical needs with an authorized Sciencetech Technical Sales Staff member for further details.
1,650.00 1650.0 USD
Price Valid only in North America


This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

299.00
In stock
This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

299.00 299.0 USD
Price Valid only in North America

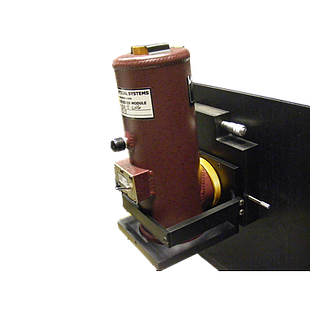

The Sciencetech PMH-01 Photon Counting Module is self-contained compact unit incorporating PMT tube, high-speed amplifier, discriminator, and high voltage power supply. The output signal (train of pulses, the number of which corresponds to the number of detected photons) can be sent via a BNC connector, to an external counting/displaying circuit. The PMH-01 outputs digital signal (pulses) only. There is no analog output port.

The photon counting head used has low power consumption (max 0.5W). It is already adjusted for best S/N ratio. There is no additional adjustment necessary to start the operation.

Parameter Value
Operating Temperature Range +5 to + 40 °C
Storage Temperature Range -20 to +50 °C
Effective Area 4 x 6 sq.mm
Spectral Response 185 to 900 nm
Dark Count (Typical) 400 cps
Dark Count (Max.) 800 cps
Counting Linearity 2.5 Mcps
Pulse Pair Resolution 35 ns
Output Pulse Width 30 ns
Output Logic TTL, positive
Input Voltage +5 V
Input Current at 2.5 Mcps Output max. 80 mA
Output Signal Cable RG-174/U
4,000.00
In stock
The Sciencetech PMH-01 Photon Counting Module is self-contained compact unit incorporating PMT tube, high-speed amplifier, discriminator, and high voltage power supply. The output signal (train of pulses, the number of which corresponds to the number of detected photons) can be sent via a BNC connector, to an external counting/displaying circuit. The PMH-01 outputs digital signal (pulses) only. There is no analog output port.

The photon counting head used has low power consumption (max 0.5W). It is already adjusted for best S/N ratio. There is no additional adjustment necessary to start the operation.

Parameter Value
Operating Temperature Range +5 to + 40 °C
Storage Temperature Range -20 to +50 °C
Effective Area 4 x 6 sq.mm
Spectral Response 185 to 900 nm
Dark Count (Typical) 400 cps
Dark Count (Max.) 800 cps
Counting Linearity 2.5 Mcps
Pulse Pair Resolution 35 ns
Output Pulse Width 30 ns
Output Logic TTL, positive
Input Voltage +5 V
Input Current at 2.5 Mcps Output max. 80 mA
Output Signal Cable RG-174/U
4,000.00 4000.0 USD
Price Valid only in North America

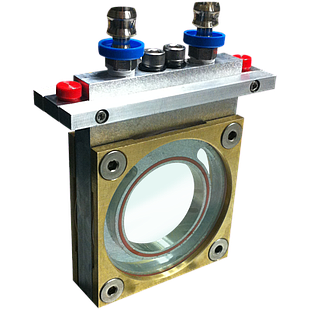

Sciencetech's Compact 1.75" Optical Liquid Filter is designed to filter wavelengths 1000nm and greater (if distilled water is used). The compact size allows it to be installed in one of Sciencetech's FH- style filter boxes. This filter requires a cooling water recirculator (sold separately).
850.00
In stock
Sciencetech's Compact 1.75" Optical Liquid Filter is designed to filter wavelengths 1000nm and greater (if distilled water is used). The compact size allows it to be installed in one of Sciencetech's FH- style filter boxes. This filter requires a cooling water recirculator (sold separately).
850.00 850.0 USD
Price Valid only in North America


Substrate dimensions: 68 x 68 x 9.5 mm
Clear aperture: 64 x 64 mm
850.00
In stock
Substrate dimensions: 68 x 68 x 9.5 mm
Clear aperture: 64 x 64 mm
850.00 850.0 USD
Price Valid only in North America


The Sciencetech variable focus assembly is coupled to the output port of Model 201-1K arc lamp housing for refocusing its collimated light into a divergent spot. An adjustable lever is used to move the 4 lens assembly along the optical axis. The output beam can be refocused at any f number from infinity (collimated) to f/2. This feature can be used as an intensity controller as the light can be concentrated to any size spot larger or smaller than the 2" diameter of the output port.

To adjust the focus simply use the handles provided to slide the lens tube in or out of the lamp housing. Note that the lens tube has approximately 1” of travel. Stoppers on either end of the lens tube prevent the lens tube from contacting the lamp or from being pulled out of the lamp house.

This assembly uses UV-Fused Silica lenses for optimal UV light transmission.
1,870.00
The Sciencetech variable focus assembly is coupled to the output port of Model 201-1K arc lamp housing for refocusing its collimated light into a divergent spot. An adjustable lever is used to move the 4 lens assembly along the optical axis. The output beam can be refocused at any f number from infinity (collimated) to f/2. This feature can be used as an intensity controller as the light can be concentrated to any size spot larger or smaller than the 2" diameter of the output port.

To adjust the focus simply use the handles provided to slide the lens tube in or out of the lamp housing. Note that the lens tube has approximately 1” of travel. Stoppers on either end of the lens tube prevent the lens tube from contacting the lamp or from being pulled out of the lamp house.

This assembly uses UV-Fused Silica lenses for optimal UV light transmission.
1,870.00 1870.0 USD
Price Valid only in North America


A 300W xenon short arc lamp bulb, using a fused silica glass envelope. Please note that this lamp produces ozone.
1,350.00
In stock
A 300W xenon short arc lamp bulb, using a fused silica glass envelope. Please note that this lamp produces ozone.
1,350.00 1350.0 USD
Price Valid only in North America

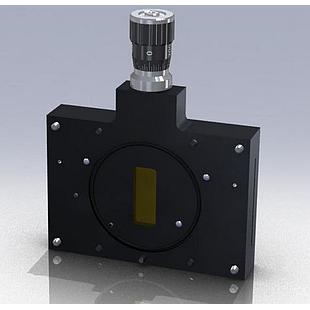

This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.

Please note that these slits are not designed to maximize throughput for extremely high resolution monochromators, due to the straight orientation of the slits. For maximum resolution, the slits need to be designed on a curve that corresponds to the curvature of the point of least confusion. However, this is only a significant factor for systems with optical pathlengths of 1m and greater. Please speak with your authorized Sciencetech technical sales staff member if you need maximum resolution for a long pathlength system.
1,030.00
In stock
This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.

Please note that these slits are not designed to maximize throughput for extremely high resolution monochromators, due to the straight orientation of the slits. For maximum resolution, the slits need to be designed on a curve that corresponds to the curvature of the point of least confusion. However, this is only a significant factor for systems with optical pathlengths of 1m and greater. Please speak with your authorized Sciencetech technical sales staff member if you need maximum resolution for a long pathlength system.
1,030.00 1030.0 USD
Price Valid only in North America

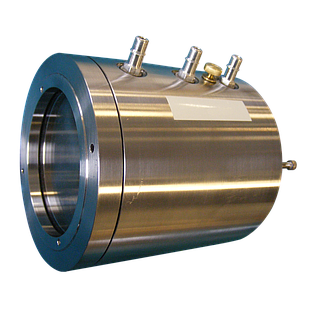

This standard optical liquid filter is equipped with BK7 windows (350 to 2000 nm). Can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Stainless steel provides superior corrosion resistance compared to aluminum for corrosive liquids.
2,199.00
In stock
This standard optical liquid filter is equipped with BK7 windows (350 to 2000 nm). Can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Stainless steel provides superior corrosion resistance compared to aluminum for corrosive liquids.
2,199.00 2199.0 USD
Price Valid only in North America


This standard optical liquid filter is equipped with fused quartz windows (270 to 2500 nm) which transmit UV light. This allows it to be used for UV applications. Can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Stainless steel provides superior corrosion resistance compared to aluminum for corrosive liquids.
2,199.00
In stock
This standard optical liquid filter is equipped with fused quartz windows (270 to 2500 nm) which transmit UV light. This allows it to be used for UV applications. Can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Stainless steel provides superior corrosion resistance compared to aluminum for corrosive liquids.
2,199.00 2199.0 USD
Price Valid only in North America


This is a coupling tube, without optics, designed to hold lenses for integrating systems. In most cases, a customer will require [120-8036] as it includes the optical components required to couple effectively.
99.00
In stock
This is a coupling tube, without optics, designed to hold lenses for integrating systems. In most cases, a customer will require [120-8036] as it includes the optical components required to couple effectively.
99.00 99.0 USD
Price Valid only in North America


Slip ring for coupling 2" diameter lens tubes to a Sciencetech S4 hole pattern.
99.00
In stock
Slip ring for coupling 2" diameter lens tubes to a Sciencetech S4 hole pattern.
99.00 99.0 USD
Price Valid only in North America

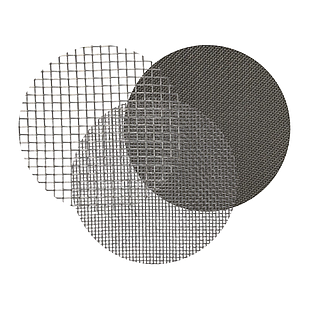

This filter set consists of three wire-mesh neutral-density filters to be installed in the filter wheel. This filter set is designed to be used with the Sciencetech's Solar Lightline fiber-based solar simulator. Optical density of each filter is selected such that the final beam output from the light guide and collimator will be selectable at 1, 2, 3 or 4 suns for the A4 Lightline (no ND filter) or 0.25, 0.5, 0.75 and 1 Suns for the A1 and AX Lightline systems.
350.00
In stock
This filter set consists of three wire-mesh neutral-density filters to be installed in the filter wheel. This filter set is designed to be used with the Sciencetech's Solar Lightline fiber-based solar simulator. Optical density of each filter is selected such that the final beam output from the light guide and collimator will be selectable at 1, 2, 3 or 4 suns for the A4 Lightline (no ND filter) or 0.25, 0.5, 0.75 and 1 Suns for the A1 and AX Lightline systems.
350.00 350.0 USD
Price Valid only in North America


Sciencetech's Model [210-REC] is a Cooling Water Recirculator. It sink up to 2500W of heat.

-Dissipates up to 2500W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate

Sciencetech's Model [210-REC] is a Cooling Water Recirculator. It sink up to 2500W of heat.

-Dissipates up to 2500W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate

2,200.00 2200.0 USD
Price Valid only in North America
