Optical Components

Sciencetech is proud to offer a wide range of gratings in various sizes.
We are also happy to find custom gratings for highly specialized applications. If you feel one of the standard gratings we offer will not be sufficient for your specific application, please speak with one of our authorized Sciencetech technical sales staff members about your needs!

$ 1,100.00

.

$ 5,500.00

.

$ 5,500.00

.

$ 5,500.00

This long pass filter is made of absorbing glass. It is primarily used to remove UV light. It is effective at removing wavelengths <320nm.

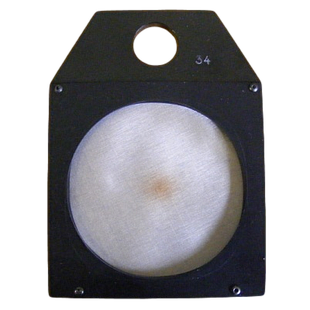

This filter is mounted in Sciencetech FT style filter mount with a 76.2mm diameter clear aperture.

$ 400.00

.

$ 500.00

.

$ 3,500.00

.

$ 500.00

.

$ 5,500.00

.

$ 5,500.00

.

$ 4,000.00

.

$ 4,000.00

.

$ 4,000.00

This hot mirror filters out IR light to remove thermal heat on the target. However, standard hot mirrors also remove UV light as a side-effect which mean it cannot be used in UV applications. This special hot mirror removes IR light between 730-1100nm while preserving UVA and UVB light (280-400nm) in addition to visible light. This filter is ideal for Sciencetech UV solar simulators where the filtering of thermal heat on the target is desired and preservation of UVA and UVB light is required.FT
This filter is intended for use at 0 degree angle of incidence.

This filter is mounted in Sciencetech FT style filter mount with a 76.2mm diameter clear aperture.

Please note this filter does not eliminate all thermal heat in the IR range as this filter stops at 1,100nm. Hence IR heat beyond 1,100nm still pass through. To remove more IR light see Sciencetech's range of IR water filters or contact a Sciencetech application scientist to learn about other options.

$ 600.00

An AM1.5D 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-Flash Series Solar Simulators (Class A, ASTM E927-19)

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.

$ 4,133.00

A longpass filter has low transmission in the shortwave region (stopped) and high transmission in the longwave range (passband).
Size: 2" diameter
Material thickness: 3 mm
Surface Quality: 80-50
This filter includes the holder required to mount into Sciencetech's line of filter holders. For mounting into other applications, please speak with your authorized Sciencetech technical sales staff member.

$ 360.00

This filter is mounted in Sciencetech FT style filter mount with a 76.2mm diameter clear aperture.

Visible band block, UV pass filter
Clear aperture 3" diameter
Pass band 280-390nm
Blocking 420-750nm
Interference filter
Angle of incidence = 0 deg

$ 2,000.00

This bandpass filter has a transmission band surrounded by two blocking bands that allow only the UV part of the spectrum to pass.
This product includes the filter and a frame for mounting in a standard Sciencetech filter box.

$ 302.00

IR broad band pass filter, operating in approximately 2.5um to 5.0um.
This price includes the filter only; it does not include a holder, which must be purchased separately.

$ 1,150.00

Blue, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 260.00
