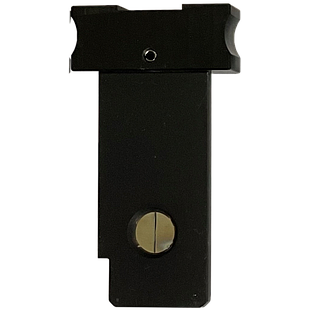

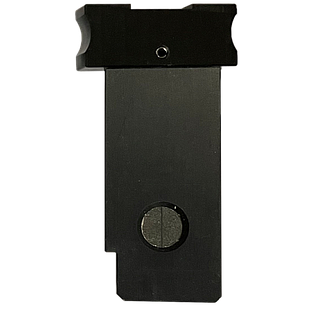

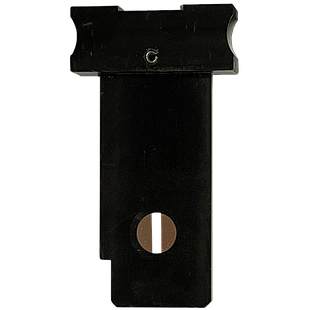

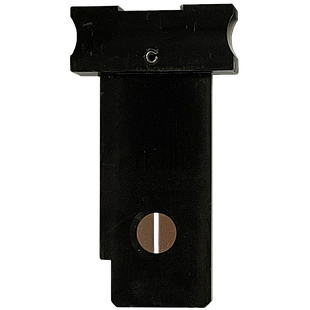

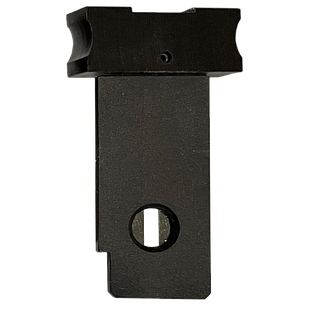

This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 2mm.
250.00
In stock
This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 2mm.
250.00 250.0 USD
Price Valid only in North America


The SS80 is a manual controlled bilaterally adjustable slit for the input or output port. Most Sciencetech monochromators/spectrograph models already include one SS80 slit at the input port but an additional one at the output port is usually required if the monochromator is mated to a single channel detector, PMT detector, or used as a tunable wavelength light source. If the dual port option is selected for a Sciencetech monochromator, an additional SS80 slit for the second port may also be required. The slit width can be adjusted between 0-6mm, in 10µm spacing using a micrometer thumbwheel. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.
761.00
In stock
The SS80 is a manual controlled bilaterally adjustable slit for the input or output port. Most Sciencetech monochromators/spectrograph models already include one SS80 slit at the input port but an additional one at the output port is usually required if the monochromator is mated to a single channel detector, PMT detector, or used as a tunable wavelength light source. If the dual port option is selected for a Sciencetech monochromator, an additional SS80 slit for the second port may also be required. The slit width can be adjusted between 0-6mm, in 10µm spacing using a micrometer thumbwheel. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.
761.00 761.0 USD
Price Valid only in North America

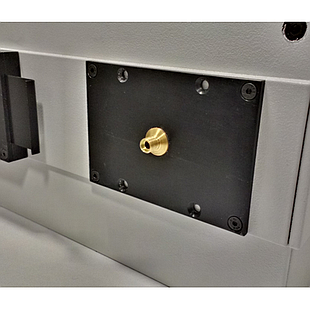

This is an SMA fiber coupler (FC style also available) with an interface flange mount to the input port of a Sciencetech monochromator or spectrograph (fiber not included). Please note two versions are available. One version is for the Sciencetech 9030 monochromator which utilizes its own slit interface flange design. The other version is for all other Sciencetech Series 9000 and 8000 monochromators and spectrographs which use a common slit interface flange design. With an FIB1 at the input port, a slit (fixed or adjustable) is not necessary as the width of the input fiber typically defines the input slit width. Please note that this fiber connection does not address the f number matching issue between the fiber and the monochromator or spectrograph. Hence if it is used at the input port of the monochromator or spectrograph, significant light loss can be expected with the fiber having an f number closer to 1. If this is an issue, please speak to a Sciencetech Applications Specialist about using a condensing lens assembly with the FIB4 or FIB5 instead.
230.00
In stock
This is an SMA fiber coupler (FC style also available) with an interface flange mount to the input port of a Sciencetech monochromator or spectrograph (fiber not included). Please note two versions are available. One version is for the Sciencetech 9030 monochromator which utilizes its own slit interface flange design. The other version is for all other Sciencetech Series 9000 and 8000 monochromators and spectrographs which use a common slit interface flange design. With an FIB1 at the input port, a slit (fixed or adjustable) is not necessary as the width of the input fiber typically defines the input slit width. Please note that this fiber connection does not address the f number matching issue between the fiber and the monochromator or spectrograph. Hence if it is used at the input port of the monochromator or spectrograph, significant light loss can be expected with the fiber having an f number closer to 1. If this is an issue, please speak to a Sciencetech Applications Specialist about using a condensing lens assembly with the FIB4 or FIB5 instead.
230.00 230.0 USD
Price Valid only in North America
