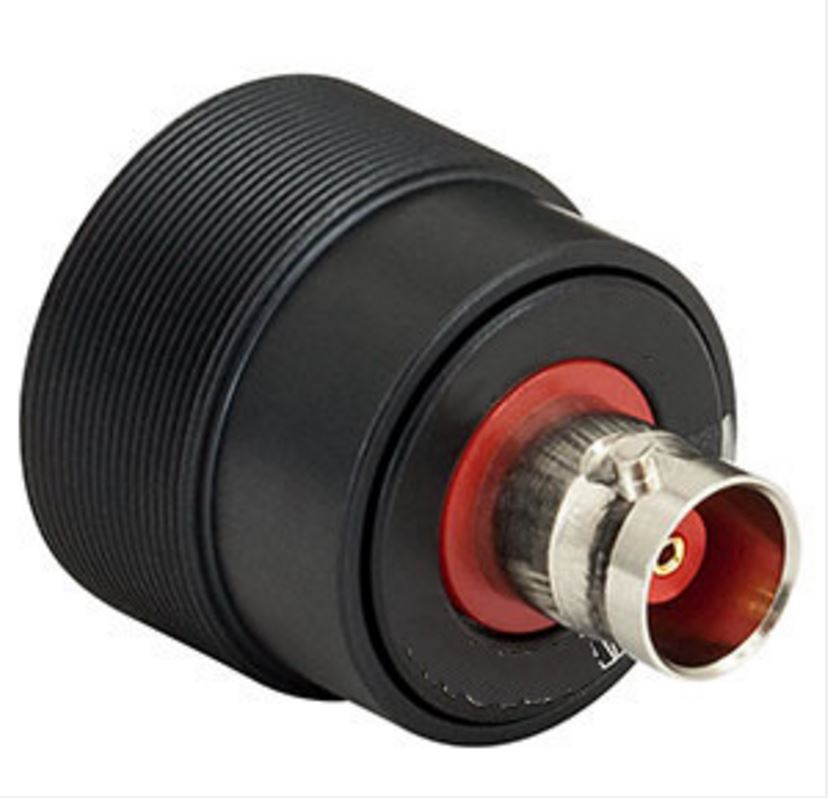

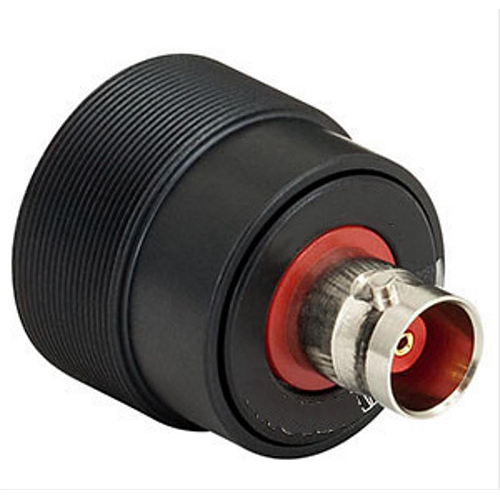

Mounted Large Area Silicon Photodiode, (350-1100 nm), Anode Grounded

Active Area: 100mm^2 (10 x 10mm)
Rise Time: 150ns
NEP: 1.5 x 10^(-14) W/Hz^(1/2) @ 960nm
Dark Current: 200pA @ 5V
Junction capacitance: 380pF @ 5V



Price Unavailable

SKU Unavailable

This selection is an invalid combination.
Please make another selection.

320.00 320.0 USD

320.00

SKU: 582-4009



Category: Detectors

Price Valid in USD and only in North America

Product Attachments

525-4009 Download

Additional Information

SKU 582-4009
Name Mounted Large Area Silicon Photodiode, (350-1100 nm), Anode Grounded
Spectral Region 89,87,88
Active Area (diameter or square) 10+mm
Active Area (diameter or square) 10+mm
Temperature Control Non-cooled
AC or DC Coupling DC Coupled
Single or Multichannel Single
Detector Type 122
Spectral Range (nm) 340 - 1100
Detector Material 240
NEP 1.5 E-14
Detectivity (cm-Hz^1/2/W) not applicable
Responsivity 0.6 A/W

Customization:

SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
