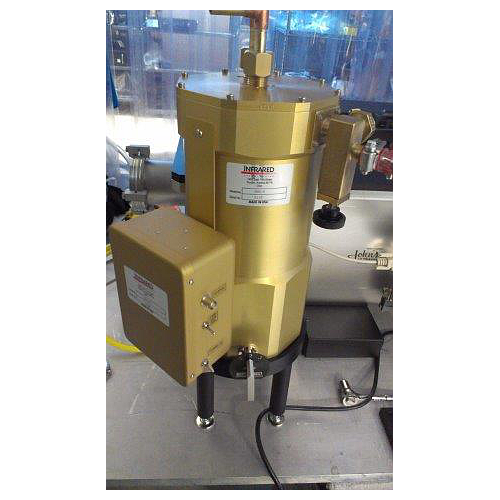

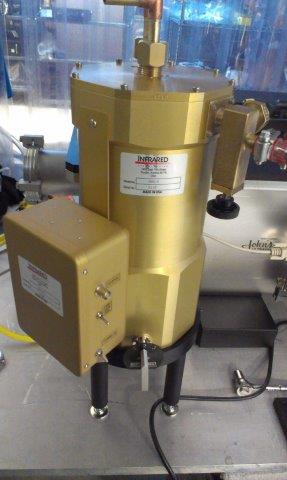

Liquid Helium Cooled Bolometer (1.6K Version)

Liquid Helium Cooled Bolometers are 10^2 to 10^4 (two to four orders magnitude) more sensitive than room temperature pyro-electric detectors
Liquid Helium Cooled 1.6K
5u - 2000u spectral range
Liquid Nitrogen required in outer jacket (dual stage cooling)
2.5 mm diameter diamond absorber
0.5" F/3.8 diameter condensing cone as input optics
Preamp circuitry generates +/-14V max
5" Diameter Dewar Included

Filterwheel Position #1 - Long pass 5micron cut-on
Position #2 - Wedged P13 filter (13micron cut-on long pass)
Position #3 - Wedged C103 filter (103 micron cut-on long pass filter)
Wedged Diamond window Diameter = 25.0mm




Price Unavailable

SKU Unavailable

This selection is an invalid combination.
Please make another selection.

54,340.00 54340.0 USD

54,340.00

SKU: 188-9013



Price Valid in USD and only in North America

Product Attachments

IR Labs 1.6K and 4.2K Bolometers Download

Additional Information

SKU 188-9013
Name Liquid Helium Cooled Bolometer (1.6K Version)
Spectral Region 221,222
Active Area (diameter or square) 5mm
Temperature Control 106
AC or DC Coupling AC Coupled
Single or Multichannel Single
Detector Type Thermopile/Pyroelectric
Spectral Range (nm) Spectral Range: 300um < l < 5000um (suggested) (window dependent)
Detector Material 229
NEP 7.55x10^(-14) W/Hz^(1/2)
Detectivity (cm-Hz^1/2/W) not applicable
Responsivity 4.33E+05 V/W

Customization:

SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
