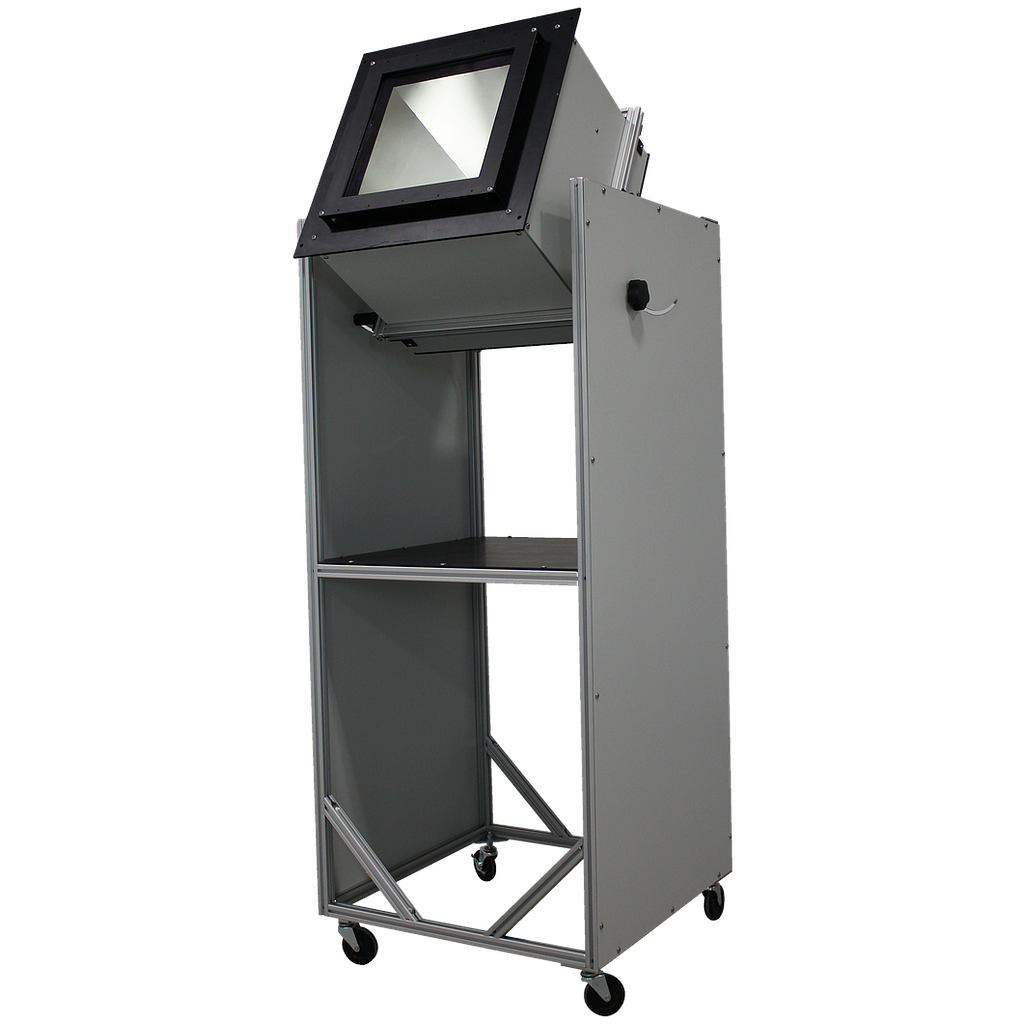

(XE-LUM) Large Area Luminaire

Sciencetech's XE-LUM Luminaire is a low cost solution for researchers requiring large areas of illumination with good spectral matching but do not require high levels of spatial uniformity. The XE-LUM includes a 1.6kW Xenon arc lamp and efficient collection reflectors. At a working distance of 50cm an irradiance of 1 sun AM1.5G sun level can be achieved with an illumination area of 50x50cm. The area of illumination is up to 1.0m x 1.0m with a working distance of 1 meter.
The XE-LUM can achieve better uniformity when paired with multiple units in an array to flood the illumination plane.

The stand is an accessory that is sold separately. The XE-LUM can be arranged for vertical or horizontal illumination. In either configuration, the Luminaire can be rotated through 360 degrees in both sagittal and tangential planes.

200 to 240 VAC, 12.1 to 9.0 A.
Requires 1 IEC 60320 C19 power cord


Please speak with your authorized Sciencetech technical sales staff member for larger illumination areas, different spectral matches, or to have other customized options for this system.
