    (SOL-METER-D) Solar Reference Detector with Power Meter

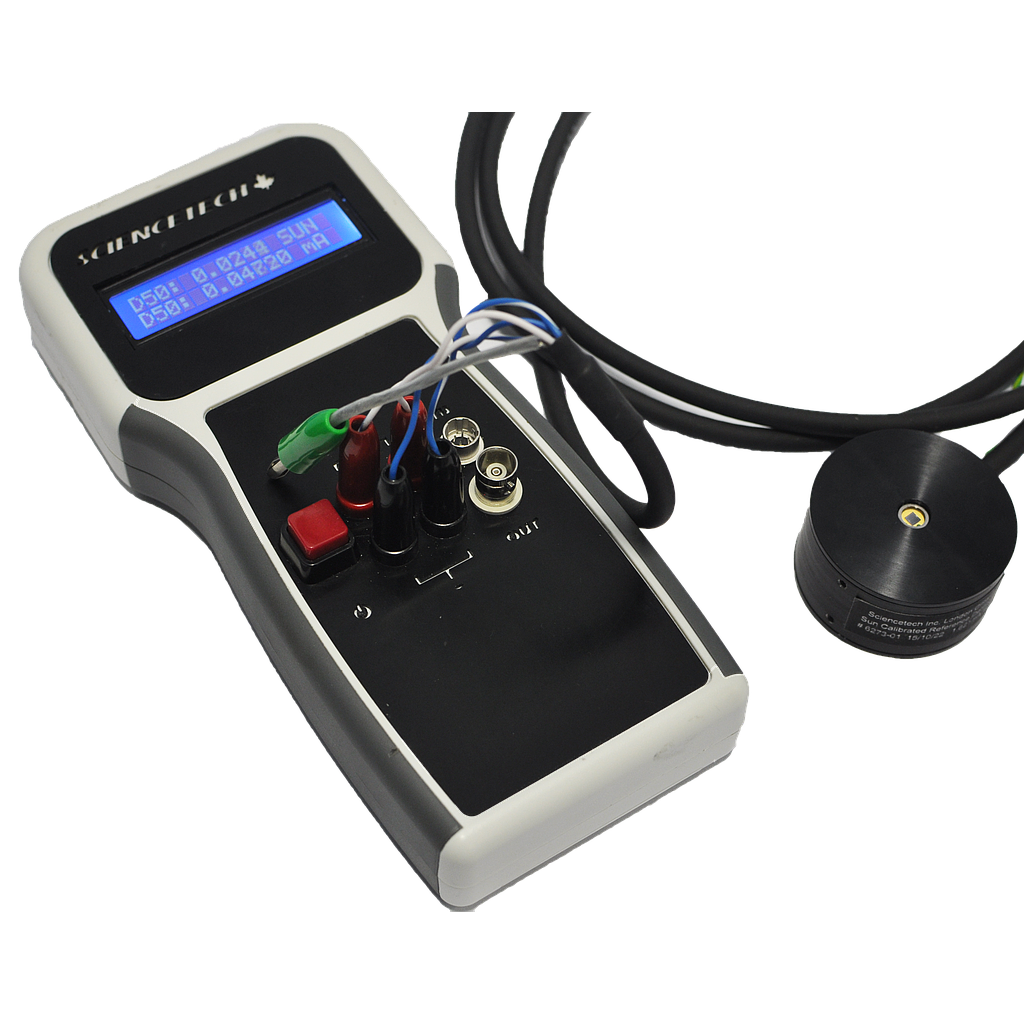

    This product consists of the Sciencetech SOL-METER and our SSIVT-REF sun calibrated reference detector. The SOL-METER is a digital meter for use with solar calibrated detectors such as detector models SSIVT-REF or SC-LT. The meter converts detector measurements to a Sun value. It has a handheld meter that is compact, has a sturdy design, and is appropriate for indoor or outdoor applications.

    The Sciencetech Reference Detector, which is an integral part of solar simulator calibration and solar cell I-V characterization, consists of a single element silicon detector and is designed to be used for monitoring and verifying the Sun level of solar simulators. The SSIVT-REF detector is used effective in sensing wavelengths between 190 nm and 1100 nm and is calibrated at Sciencetech against a NIST traceable calibrated reference cell. Comes with a detachable cable with 4 banana plugs for connecting to a measurement device. CE compliant.

    Rise time: 0.2 μs
    Effective active area: 5.7 sqmm
    Dimensions: 50.8 x 50.8 x 25.4 mm

    Price Unavailable

    SKU Unavailable

    This selection is an invalid combination.
    Please make another selection.

    $ 2,800.00 2800.0 USD

    $ 2,800.00

    SKU: 125-9012

    Price Valid in USD and only in North America

    Additional Information

    SKU 125-9012
    Name (SOL-METER - D) Solar Reference Detector with Power Meter
    Spectral Region 89,87,88
    Active Area (diameter or square) 2.5mm
    Temperature Control Non-cooled
    AC or DC Coupling DC Coupled
    Single or Multichannel Single
    Detector Type 122
    Spectral Range (nm) 180-1100 nm
    Detector Material 241
    NEP < 8.1E-15 W/Hz
    Detectivity (cm-Hz^1/2/W) N/A
    Responsivity @200nm 0.12 A/W Typical (0.10 minimum), Peak @960nm 0.5A/W

    Customization:

    SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
