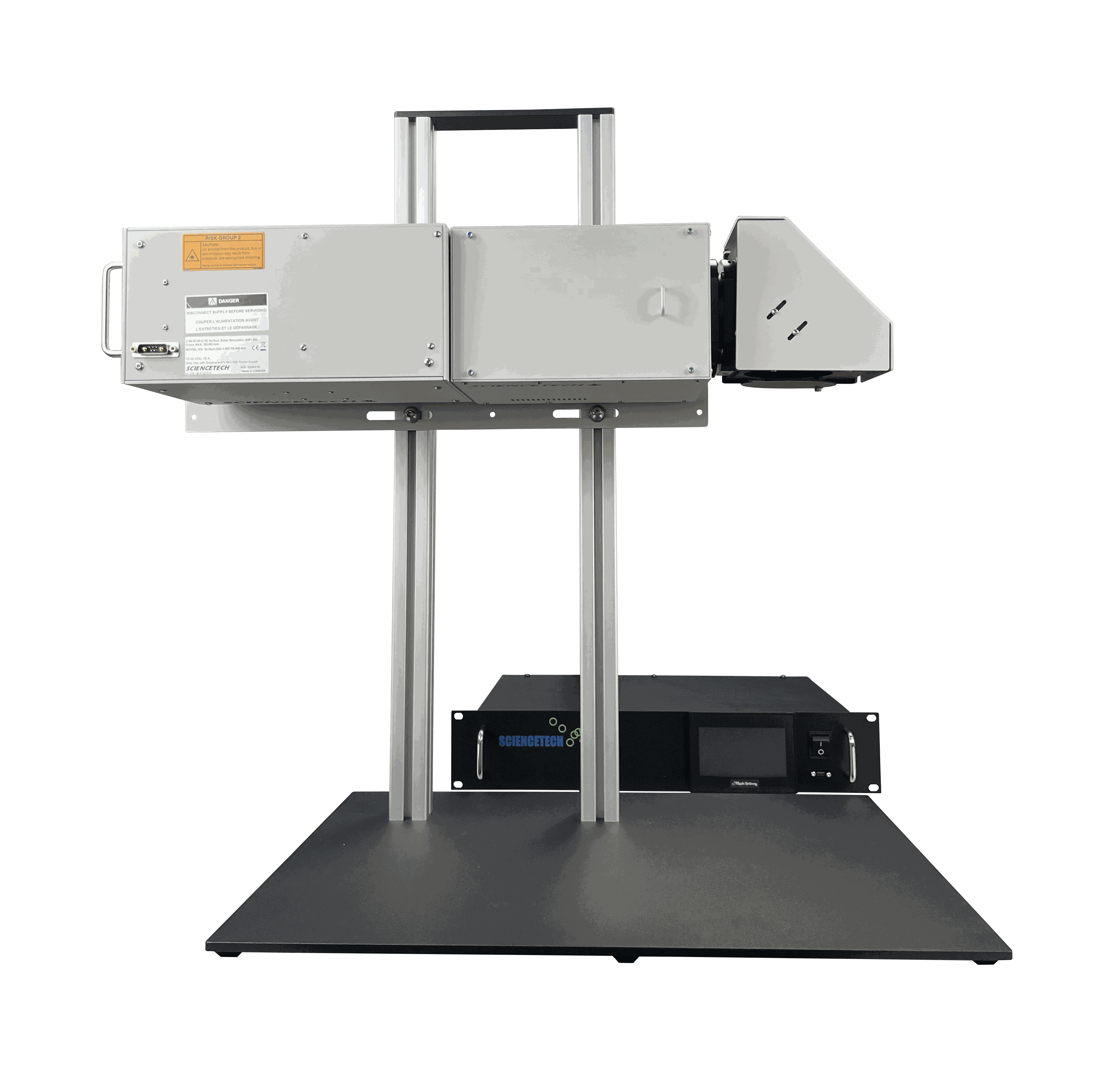

The SF series solar simulator is a low cost solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF includes arc lamp housing, arc lamp, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.
Available Air Mass filters include AM0, AM1.5D, and AM1.5G. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Please select desired filters when ordering. Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
Power Requirements: 100–240 VAC, 50/60 Hz, 4.0 A (SF300) or 2.5 A (SF150). This system requires 1 IEC 60320 C13 compatible power cable. Please select 1 region-specific power cable (see product 491-9001) at no cost.
Classification: AAA to UBA (see specific model), ASTM E927-19
Spot Size: 25 mm (1”) to 50 mm (2") diameter at AM1.5G 1 Sun (1000 W/m^2)
Working distance: 100-130mm (4-5”) from exit port
Collimation: 1 degree half angle
Sciencetech Power Supply: Adjustable Power Supply with Touchscreen Control or Manual Control
Lamp included.
Filter included if selected (None, AM1.5D, AM1.5G, or AM0).
For a selection of class B uniformity and 150 W lamp, the target diameter is 25 mm.
For a selection of class B uniformity and 300 W lamp, the target diameter is 50 mm.
For a selection of class A uniformity and 300 W lamp, the target diameter is 25 mm.
$ 6,968.00
