    Single Channel Detector

    Sciencetech supplies and integrates a wide variety of single channel detectors. Detectors vary by a number of important parameters.



    Detector Material and Spectral Region:

    semiconductor-type detectors are sensitive to the spectral region matched to the bandgap energy of the semiconductor. This means that detectors of different material types are sensitive to different wavelength regions. Use the shop by spectral region or detector material selections on the right-hand side of the screen to select the best detector for your application



    Temperature Control:

    Some detectors can be temperature controlled or require cryogenics such as liquid helium or liquid nitrogen in order to be operable.



    AC or DC Coupling:

    Some detectors are photoconductors and require modulated light in order to detect a signal. These types of detectors are listed as AC coupled. Generally, for AC coupled detectors a lock-in amplifier (LIA) or demodulator are required before measurements can be performed.


    SINGLE CHANNEL DETECTORS




    MODEL

    MATERIAL

    SPECTRAL RANGE, nm

    SPECIAL FEATURES

    PRICE (US$)

    PHOTOMULTIPLIERS

    589-0001

    Multialkaline phtocathode

    185-900

    (PMT-01) Multialkaline High Sensitivity Photomultiplier Tube

    $1,004

    589-0002

    Ag-O-Cs photocathode

    400-1200

    PMT Tube, Mamamatsu R5108

    $1,946

    589-0004

    Multialkaline phtocathode

    185-900

    PMT Tube, Hamamatsu R2949

    $1,020

    589-0005

    low noise bialkali photocathode

    185-710

    PMT Tube, Hamamatsu R4220

    $730

    589-0006

    GaAs (Cs) photocathode

    185-930

    PMT Tube, Hamamatsu R636-10

    $2,170

    589-0007

    Multialkaline phtocathode

    185-850

    Photomultiplier Module, Photon Counting PMT, H8259-01

    $3,663

    125-9010

    InP/InGaAsP photocathode

    950-1700

    Near InfraRed Photomultiplier Tube System (NIR-PMT)

    $44,625

    125-9018

    Multialkaline phtocathode

    125-900

    PMH-01-HR Photon Counting PMT Module

    $4,000

    SILICON DETECTORS

    582-4000

    UV Enhanced Si

    200-1100

    Mounted UV-Enhanced-Si Photodiode, Cathode Grounded

    $290

    582-4001

    Si

    350-1100

    Mounted Si Photodiode, Cathode Grounded

    $360

    582-4002

    UV Enhanced Si

    200-1100

    Mounted UV-Enhanced-Si Photodiode, Cathode Grounded

    $620

    582-4003

    Si

    350-1100

    Mounted Si Photodiode, Cathode Grounded

    $360

    582-4004

    Si

    350-1100

    High Speed Biased Si Photodetector

    $560

    582-4005

    UV Enhanced Si

    200-1100

    Amplified Enhanced-Si Photodetector diameter 1mm

    $605

    582-4006

    Si

    350-1100

    Amplified Si Photodetector diameter 0.8 mm

    $800

    582-4007

    Si

    350-1100

    Amplified Si Photodetector 3.6x3.6 mm

    $650

    582-4008

    UV Enhanced Si

    200-1100

    Mounted UV-Enhanced-Si Photodiode, Anode Grounded

    $320

    582-4009

    Si

    350-1100

    Mounted Silicon Photodiode, Anode Grounded

    $320

    582-4010

    Si

    350-1100

    Mounted Silicon Photodiode, Anode Grounded

    $320

    583-5001

    UV Enhanced Si

    200-1000

    (UVS-050-H) Detector, UV Silicon Photo Diode Receiver

    $364

    583-5003

    UV Enhanced Si

    200-1000

    (UVS-100-H) Detector, UV Silicon, 10mm x 10mm

    $554.40

    583-5005

    UV Enhanced Si

    200-1000

    (UVS-025-H) Detector, Si photodiode

    $369.60

    583-5007

    Si

    300-1000

    (S-100-H) Detector, Silicon Photo Diode Reciever

    $488

    583-5012

    Si

    300-1000

    (S-025-TE2-H) Detector, Si, TE-Cooled

    $787.50

    125-9007

    UV Enhanced Si

    190-1100

    (SSIVT-REF) SSIVT Reference Detector

    $425.00

    THERMOPILE DETECTORS

    585-0001

    Thermopile

    190-20000

    (BBT-30) Broadband Thermopile Detector - (1mW to 30 W)

    $1,375

    585-0002

    Thermopile

    190-20000

    (BBT-03) Broadband Thermopile Detector - 3W

    $1,727

    585-0006

    Thermopile

    190-20000

    (BBT-15) Broadband Theropile Detector - (1mW to 15W)

    $1,030

    GERMANIUM DETECTORS

    583-5004

    Germanium

    800-1800

    (G-050-H) Detector, Germanium

    $497.76

    583-5018

    Germanium

    700-1800

    (G-100-H) Detector, Germanium - 10mm diameter

    $1,505

    583-5013

    Germanium

    800-1800

    (G-020-TE2-H) Detector, Ge, TE-Cooled, 2mm

    $425

    584-6005

    Germanium

    800-1500

    (G-050-E-LN6N) Detector, Germanium, Cryogenic Receiver

    $2,985

    InGaAs DETECTORS

    583-5006

    InGaAs

    1300-2500

    (IGA2.2-010-TE2-H) Detector, InGaAs, TE-Cooled

    $1,130

    583-5008

    InGaAs

    1200-2600

    (IGA2.2-030-H) Detector

    $3,775

    583-5014

    InGaAs

    800-1700

    (IGA-010-H/3MHz) Detector

    $652.50

    583-5016

    Extended InGaAs

    1200-2600

    (IGA(2.2)-010-H/3MHz) Detector, InGaAs, Extended Range

    $870

    583-5017

    Extended InGaAs

    1300-2500

    (IGA(2.2)-010-TE2-H/3MHz) Detector, InGaAs, Extended Range TE Cooled

    $1,215

    583-5019

    InGaAs

    800-1700

    (IGA-010-H) Detector, InGaAs, 1mm round

    $502.50

    MCT DETECTORS

    584-6001

    MCT

    2000-12000+

    (MCT-10-010-E-LN) Detector - MCT Cryogenic Receiver, LN2 cooled - 1x1mm

    $2,935

    584-6002

    MCT

    2000-15000+

    (MCT-14-20-E-LN) Detector - MCT Cryogenic Receiver, LN2 cooled 2x2mm Square

    $3,295

    584-6003

    MCT

    2000-12000+

    (MCT-10-020-E-LN) Detector - MCT Cryogenic Receiver LN2 cooled, 2mm diameter

    $2,835

    584-6004

    MCT

    2000-15000+

    (MCT-14-10-LN) Detector - MCT Cryogenic Receiver LN2 cooled, 1x1mm Square

    $2,520

    584-6007

    MCT

    2000-15000+

    (MCT-20-20-E-LN6N) Detector - MCT Cryogenic Receiver LN2 cooled, 2x2mm Square

    $4,095

    PBS DETECTORS

    583-5009

    PBS

    1000-2800

    (PBS-050-TE2-H) Detector, PBS

    $965

    PYROELECTRIC DETECTORS

    126-0001

    Lithium Tantalate

    100nm - 1mm

    (SCI420BJ-0) Pyroelectric Repetitive Pulse Energy Sensor

    $3,400

    126-0003

    Lithium Tantalate

    100nm - 3mm

    (SCI425CMBO) Large Area Terahertz Detector

    $3,200

    126-0005

    Lithium Tantalate

    100nm - 1mm

    (SCIEL400CMB) Wideband Pyroelectric Detector for FTIR Alignment

    $4,200

    126-9001

    Lithium Tantalate

    180nm - 2500nm

    (SCI425CMA) Large Area Reference Detector

    $2,400

    125-9015

    Lithium Tantalate

    100nm - 2500nm

    (SCIEL420CM) Sciencetech TeraHertz Lithium Tantalate Pyroelectric Detector Head (100-150kV/W Sensitivity)

    $3,230

    DTGS DETECTORS

    126-0004

    DTGS

    UV,VIS,NIR,MIR,FIR,THz

    (SCIDTGS-PE) Low Noise DTGS TeraHertz Detector

    $6,200

    188-9008

    DTGS

    UV,VIS,NIR,MIR,FIR,THz

    SPS-300 DTGS Detector

    $7,200

    BOLOMETER DETECTORS

    188-9012

    Bolometer

    20um - 100um

    Liquid Helium Cooled Bolometer (4.2K Version)

    $34,340

    188-9013

    Bolometer

    MIR,FIR,THz

    Liquid Helium Cooled Bolometer (1.6K Version)

    $54,340

    188-9021

    InSb

    200um - 5000um

    Hot Electron Bolometer (HEB)

    $50,000

    InSb DETECTORS

    584-6006

    InSb

    1000-5500

    Detector, InSb, Round, 4mm, Liquid Nitrogen Cooled

    $4,359

    OTHER DETECTORS

    585-0004

    Complex Structure

    190-20000

    (BBT-3000) Power Meter, 4kW, Water Cooled, 100mm Aperture

    $7,911

    TWO COLOR DETECTORS

    583-5011

    UV-Si/PbS

    1000-2600

    (UVS-PBS-025/020-H) Detector, Two Color UV Silicon PbS

    $800

    583-5021

    UV-Si/InAs

    200-3500

    (UVS/IA-025/020-H) UV- Silicon / Indium Arsenide detector, 2mm active area, non-cooled

    $1,208



    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

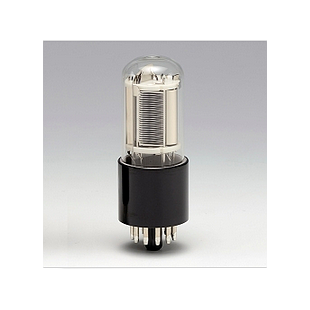

    A 28mm, side-on type PMT Tube from Hamamatsu.
    The effective range is from 185nm to 900nm.
    Special feature: extra low dark current, transit time 22ns
    input window: 6x8 mm

    For full technical specifications, please ask your authorized Sciencetech technical sales staff member.
    $ 1,020.00
    In Stock
    A 28mm, side-on type PMT Tube from Hamamatsu.
    The effective range is from 185nm to 900nm.
    Special feature: extra low dark current, transit time 22ns
    input window: 6x8 mm

    For full technical specifications, please ask your authorized Sciencetech technical sales staff member.
    $ 1,020.00 1020.0 USD
    Price Valid only in North America

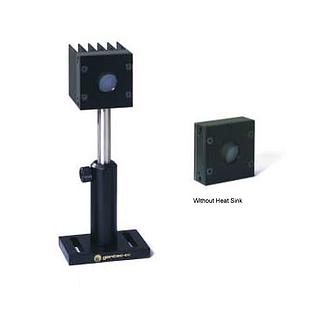

    This Broadband Thermopile Detector allows the measurement of infrared light in the 0.19 – 20 µm range. This detector has a 12mm diameter sensor, measures up to 3 W (0.5 uW NEP). Please note that this detector head requires either an external display controller or computer interface (such as the UNO-1, sold separately) to show the measured power. The price shown includes the detector head, post, post holder, and base only.

    This thermopile is recommended for smaller light sources (collimated 500W arc lamps and below) and standard solar simulators (<5 Suns, <500 mW/cm2).
    $ 1,727.00
    In Stock
    This Broadband Thermopile Detector allows the measurement of infrared light in the 0.19 – 20 µm range. This detector has a 12mm diameter sensor, measures up to 3 W (0.5 uW NEP). Please note that this detector head requires either an external display controller or computer interface (such as the UNO-1, sold separately) to show the measured power. The price shown includes the detector head, post, post holder, and base only.

    This thermopile is recommended for smaller light sources (collimated 500W arc lamps and below) and standard solar simulators (<5 Suns, <500 mW/cm2).
    $ 1,727.00 1727.0 USD
    Price Valid only in North America

    28 mm (1-1/8 inch) transmission mode S-1 photocathode, Side-on type.
    Spectral Response: 400 - 1200nm
    Wavelength of Maximum Response: 800nm
    Minimum Effective Area (HxW): 16 x 18

    Quantum Efficiency (at 25 degrees): 0.04% (Typical)
    Anode Dark Current (after 30 min storage in darkness): 350 (typical), 1000 (max) nA
    $ 1,946.00
    In Stock
    28 mm (1-1/8 inch) transmission mode S-1 photocathode, Side-on type.
    Spectral Response: 400 - 1200nm
    Wavelength of Maximum Response: 800nm
    Minimum Effective Area (HxW): 16 x 18

    Quantum Efficiency (at 25 degrees): 0.04% (Typical)
    Anode Dark Current (after 30 min storage in darkness): 350 (typical), 1000 (max) nA
    $ 1,946.00 1946.0 USD
    Price Valid only in North America

    Multialkali high sensitivity side-on PMT
    Spectral range: 185-900 nm,
    Peak sensitivity wavelength: 400nm
    Glass UV Envelope

    Photocathode Area Size 8 x 24 mm
    Photocathode Material Multialkali
    Window Material UV glass
    Dynode Structure Circular-cage
    Anode to Cathode Voltage 1250 V
    Average Anode Current 0.1 mA
    Anode to Cathode Supply Voltage 1000 V
    Luminous Sensitivity Min. 140 μA/lm
    Luminous Sensitivity Typ. 250 μA/lm
    Radiant Sensitivity Typ. 74 mA/W
    Anode Luminous Sensitivity Min. 400 A/lm
    Anode Luminous Sensitivity Typ. 2500 A/lm
    Anode Radiant Sensitivity Typ. 7.4e5 A/W
    Anode Dark Current (after 30min.) Typ. 3 nA
    Anode Dark Current (after 30min.) Max. 50 nA
    Time Response Rise Time Typ. 2.2 ns
    Time Response Transit Time Typ. 22 ns
    $ 1,299.00
    Multialkali high sensitivity side-on PMT
    Spectral range: 185-900 nm,
    Peak sensitivity wavelength: 400nm
    Glass UV Envelope

    Photocathode Area Size 8 x 24 mm
    Photocathode Material Multialkali
    Window Material UV glass
    Dynode Structure Circular-cage
    Anode to Cathode Voltage 1250 V
    Average Anode Current 0.1 mA
    Anode to Cathode Supply Voltage 1000 V
    Luminous Sensitivity Min. 140 μA/lm
    Luminous Sensitivity Typ. 250 μA/lm
    Radiant Sensitivity Typ. 74 mA/W
    Anode Luminous Sensitivity Min. 400 A/lm
    Anode Luminous Sensitivity Typ. 2500 A/lm
    Anode Radiant Sensitivity Typ. 7.4e5 A/W
    Anode Dark Current (after 30min.) Typ. 3 nA
    Anode Dark Current (after 30min.) Max. 50 nA
    Time Response Rise Time Typ. 2.2 ns
    Time Response Transit Time Typ. 22 ns
    $ 1,299.00 1299.0 USD
    Price Valid only in North America

    This Broadband Thermopile Detector allows the measurement of total broadband radiation emitted by a light source. It could also be used to measure the light power density on a surface (in W/cm2) which is particularly useful for uniformity measurements and for checking solar simulator performance. This detector has a 19mm diameter sensor and picks up all wavelengths between 190-11μm (UV-VIS-IR). Please note that this detector head requires either an external display controller or computer interface (sold separately - see below) to show the measured power. The price shown includes the detector head, post, post holder, and base only.

    This thermopile is recommended for high-powered light sources (such as focused 500W + arc lamps) and concetrator solar simulators (5 Suns +, 500 mW/cm2).
    $ 1,418.00
    In Stock
    This Broadband Thermopile Detector allows the measurement of total broadband radiation emitted by a light source. It could also be used to measure the light power density on a surface (in W/cm2) which is particularly useful for uniformity measurements and for checking solar simulator performance. This detector has a 19mm diameter sensor and picks up all wavelengths between 190-11μm (UV-VIS-IR). Please note that this detector head requires either an external display controller or computer interface (sold separately - see below) to show the measured power. The price shown includes the detector head, post, post holder, and base only.

    This thermopile is recommended for high-powered light sources (such as focused 500W + arc lamps) and concetrator solar simulators (5 Suns +, 500 mW/cm2).
    $ 1,418.00 1418.0 USD
    Price Valid only in North America

    This Broadband Thermopile Detector allows the measurement of total broadband radiation emitted by a light source. It could also be used to measure the light power density on a surface (in W/cm2) which is particularly useful for uniformity measurements and for checking solar simulator performance. This detector has a 19mm diameter sensor and picks up all wavelengths between 190-11μm (UV-VIS-IR). Please note that this detector head requires either an external display controller or computer interface (sold separately) to show the measured power. The price shown includes the detector head, post, post holder, and base only. (1mW NEP).

    This thermopile is recommended for high-powered light sources (such as focused 500W + arc lamps) and concetrator solar simulators (5 Suns +, 500 mW/cm2).
    $ 1,375.00
    In Stock
    This Broadband Thermopile Detector allows the measurement of total broadband radiation emitted by a light source. It could also be used to measure the light power density on a surface (in W/cm2) which is particularly useful for uniformity measurements and for checking solar simulator performance. This detector has a 19mm diameter sensor and picks up all wavelengths between 190-11μm (UV-VIS-IR). Please note that this detector head requires either an external display controller or computer interface (sold separately) to show the measured power. The price shown includes the detector head, post, post holder, and base only. (1mW NEP).

    This thermopile is recommended for high-powered light sources (such as focused 500W + arc lamps) and concetrator solar simulators (5 Suns +, 500 mW/cm2).
    $ 1,375.00 1375.0 USD
    Price Valid only in North America

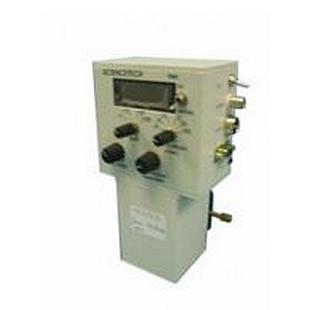

    4 digits LCD displays high voltage output signal
    BNC analog signal ouput
    External high voltage control for the PMT (for computer control)
    Six time constants switchable from a front panel control (from .01ms to 1sec.)
    Zero adjustment control to cancel the effect of dark current and stray light
    Adjustable gain 1, 10, 100 and 1,000 X
    Includes power supply.
    $ 2,398.00
    In Stock
    4 digits LCD displays high voltage output signal
    BNC analog signal ouput
    External high voltage control for the PMT (for computer control)
    Six time constants switchable from a front panel control (from .01ms to 1sec.)
    Zero adjustment control to cancel the effect of dark current and stray light
    Adjustable gain 1, 10, 100 and 1,000 X
    Includes power supply.
    $ 2,398.00 2398.0 USD
    Price Valid only in North America
    Copyright © Sciencetech
