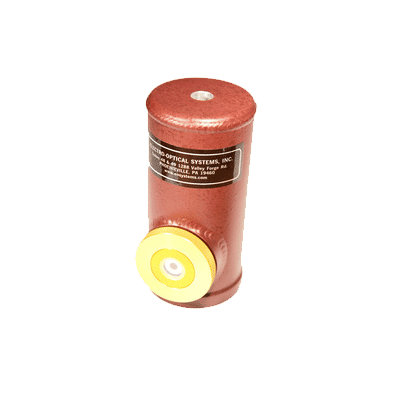

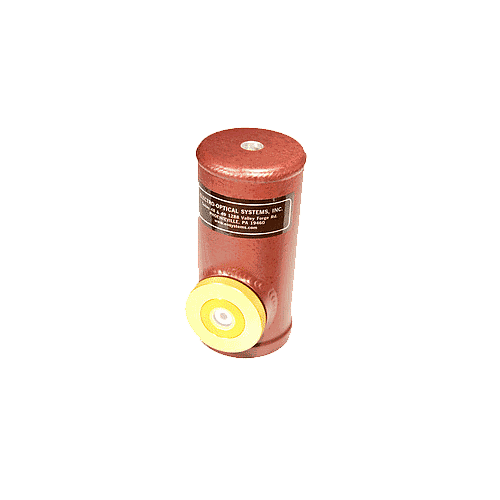

(MCT-10-010-E-LN) Detector - MCT Cryogenic Receiver, LN2 cooled - 1x1mm

Element Size: 1mm x 1mm sq.
Operating Wavelength: 2 – 13um
Wavelength Peak: ~12.0um
Wavelength Response: >= 13.0um (750cm-1)
D* (λp,10000,1) (cmHz1/2W-1): >= 4.0^10
Dewar Hold Time: 12 hours minimum with liquid N2
FoV/Window: 60 degrees/ ZnSe
Responsivity: >= 2000 (pk. (V/W))
Resistance: 20-100 ohms
Time Constant: ~1.0 usec
MSL-8 side looking metal Dewar 8 hour hold time



Price Unavailable

SKU Unavailable

This selection is an invalid combination.
Please make another selection.

2,935.00 2935.0 USD

2,935.00

SKU: 584-6001



Price Valid in USD and only in North America

Product Attachments

MCT-525-600X Download

Additional Information

SKU 584-6001
Name (MCT-10-010-E-LN) Detector - MCT Cryogenic Receiver, LN2 cooled - 1x1mm
Spectral Region MIR, NIR
Active Area (diameter or square) 3mm
Temperature Control 109
AC or DC Coupling AC Coupled
Single or Multichannel Single
Detector Type Infrared
Spectral Range (nm) 2000 - 12000+
Detector Material 232
NEP N/A
Detectivity (cm-Hz^1/2/W) >5 E10
Responsivity 1.0 E6 V/W

Customization:

SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
