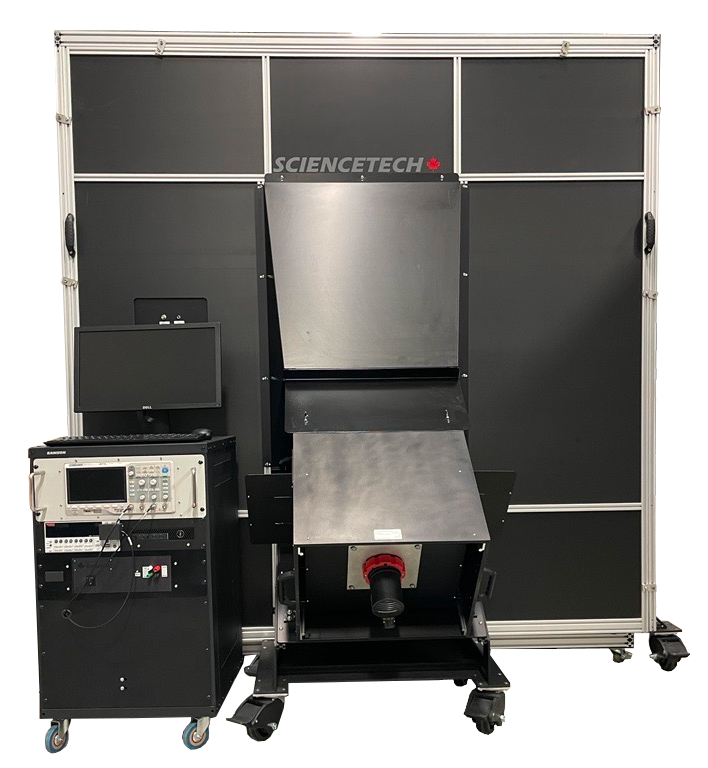

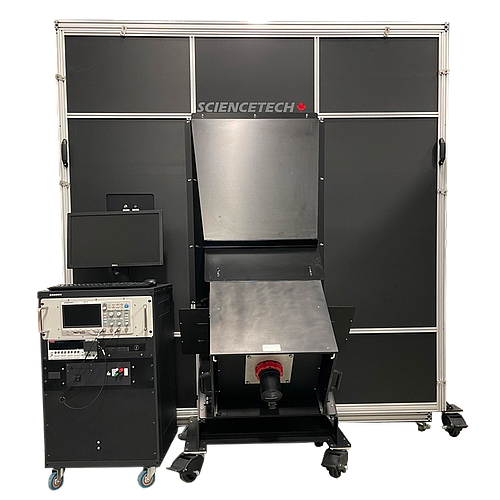

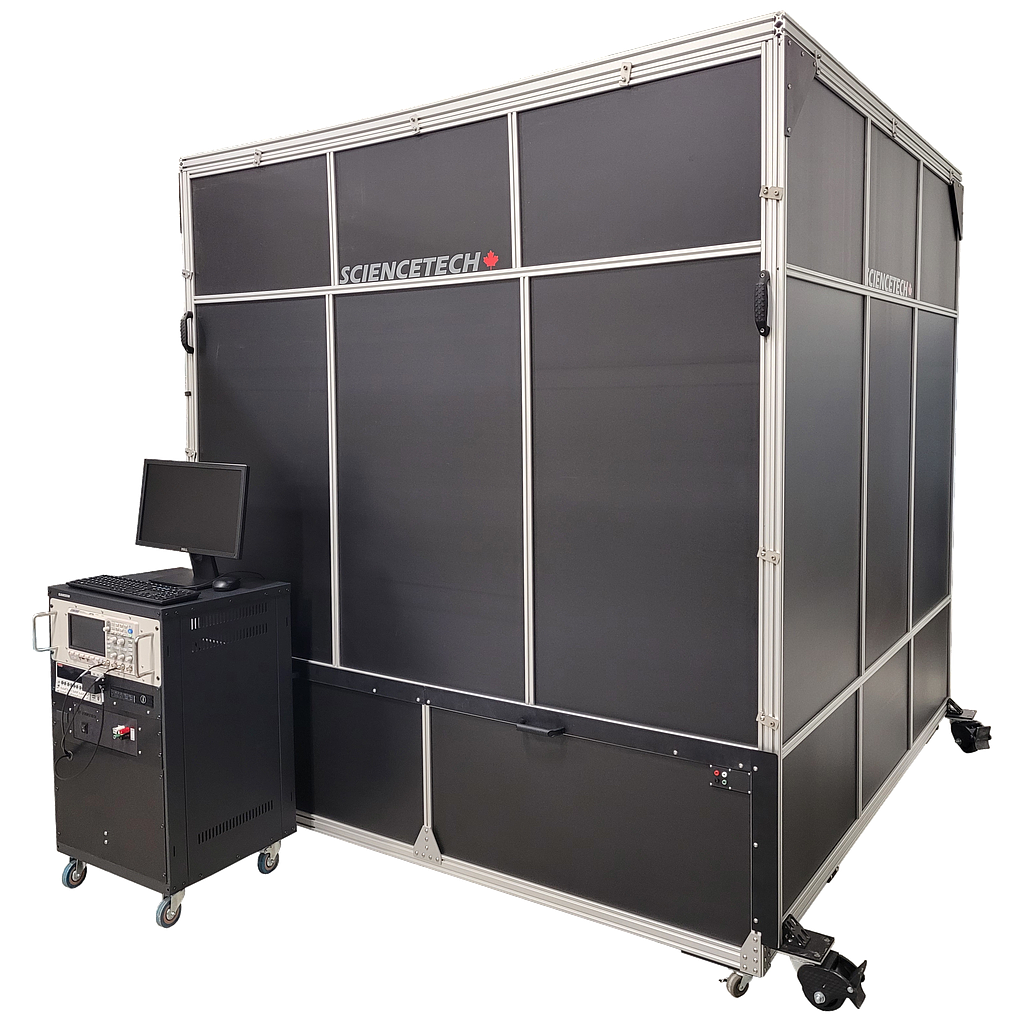

PSS-Series Large Area Flash/Pulsed Solar Simulator

The PSS-series of flash (or pulsed) solar simulators are designed to illuminate large photovoltaic devices up to 2 × 2 m in size with up to 1 sun irradiance, with spectral matching to terrestrial (AM1.5G) or space (AM0) conditions. Spectral match must be selected at the time of order and cannot be changed after production. The system comes with an included device trolley, with a tilted target plane calibrated for the system.

These systems are based on a heavy-duty xenon flash lamp, combined with spectral filtering and a built-in beam conditioning reflector. The standard flash measurement window is 0.2 ms, but an optional pulse current regulator can be selected to allow for a flat, stable pulse within a measurement window of 4.0 ms.

This product includes a flash head, power supply, flash lamp, air mass filter, variable attenuator, temperature sensor, system housing, current-voltage measurement system, computer, and sample trolley.

Please see the table below to select the best IV measurement system for your application.

Specifications:
Spectral Match: up to Class A, see table below
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 0.9 × 0.9 m - 2 × 2 m, see table below
Spectral Range: Depends on AM filter selection
Collimation: Non-collimated

Please note: Mains voltage must be selected at the time of purchase, and cannot be changed after production.




Price Unavailable

SKU Unavailable

This selection is an invalid combination.
Please make another selection.

53,190.00 53190.0 USD

40,280.00

SKU: 191-9101


PSS Model Selection

Air MassPSS ModelTarget Area (m × m)Spectral Match
AM1.5G1.00.9Class A
AM1.5G1.51.5Class A
AM1.5G2.01.9Class A
AM01.00.9Class B
AM01.51.5Class B
AM02.01.9Class C




PSS-Series IV Measurement System Options

ModelMax. Voltage (V)Max. Current (A)Max. Power (W)SMU InterfaceMin. Voltage, Current
SSIVT-FT-200-2020020400Touchscreen10nV, 10fA
SSIVT-FT-200-4020040800Touchscreen10nV, 10fA

Category: Large Area Flash Solar Simulators

Price Valid in USD and only in North America

Product Attachments

Technical Brochure Download
SKU 191-9101

Customization:

SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
