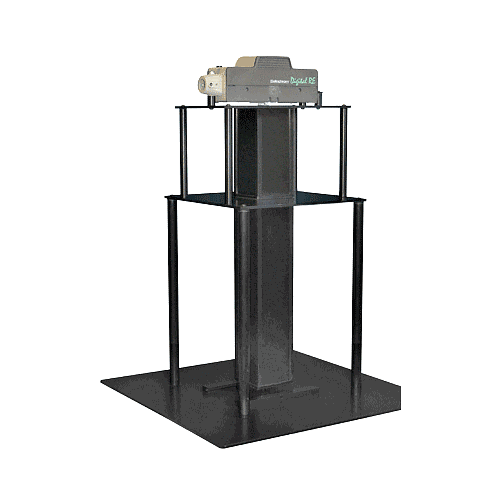

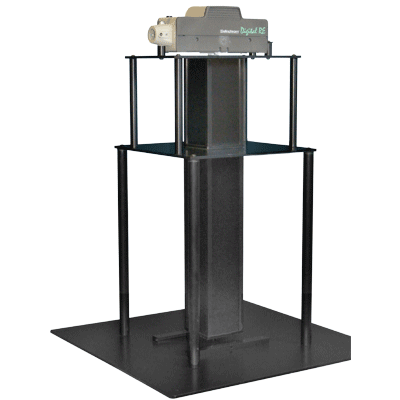

(FSSC-4000) Flash Solar Simulator Concentrator

Sciencetech’s FSSC flash solar simulator is designed to illuminate small photovoltaic devices up to 5cm × 5cm in size with up to 4000 Suns peak intensity. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately). The uniformity of the system is better than 2% at the target plane.

This product includes a flash system, power supply, and lamp. Air mass filters are sold separately (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 5cm × 5cm (up to 4000 Suns)
Working Distance: 3mm
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: Non-collimated



Price Unavailable

SKU Unavailable

This selection is an invalid combination.
Please make another selection.

109,620.00 109620.0 USD

109,620.00

SKU: 191-9001



Category: Concentrator Flash Solar Simulators

Price Valid in USD and only in North America

Product Attachments

Flash Concentrator Download

Additional Information

SKU 191-9001
Name (FSSC-4000) Flash Solar Simulator Concentrator
Target Size 50mm x 50mm
Typical Power Output up to 4000 Suns
Collimation Angle most power within 30 degree angle
Non-Uniformity Classification A
Temporal Instability Classification A
Spectral Match Classification A - AM1.5D is usually used
Working Distance 1-7mm
Lamp Power 2400 Joules
Power Requirements 120/220VAC - 10A
Target Size Diameter Less than 7cm
Target Size Square Less than 5.5x5.5cm
Intensity on Target Greater than 50 Sun
Classification Xe, 550W
Solar Simulator Type Flash

Customization:

SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
