    (SSIVT-C) Current-Voltage Measurement System for Continuous Solar Simulators (IV Tester)

    The SSIVT is a complete electrical current-voltage measurement system used to characterize photovoltaic cell performance. This current-voltage tester works by sampling current at different voltages of the photovoltaic cell with a variable impedance load.

    This IV measurement system has a separate terminal interface for voltage and current measurements. Each IV curve dataset is saved as a separate text file.
    This I-V Testing Measurement System has a 4 wire Kelvin configuration to remove the resistance effects of the leads and bias the cell at specific voltages.

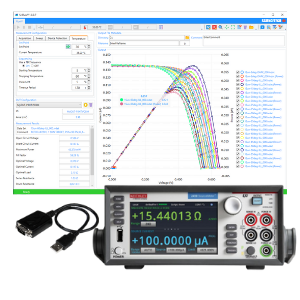

    The I-V Measurement System SSIVT-C includes:
    - Source Measure Unit (SMU) - See table for specifications depending on chosen model.
    - Sciencetech's SciPV-IV Software for Windows-based control - Windows 10/11
    - RS232 to USB dongle
    - Test cell

    Compatible with Steady State (Continuous) Solar Simulators only.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).


    ModelMax. VoltageMax. CurrentResolution (Voltage / Current)Touchscreen
    SSIVT-CT-200-1200 V1 A10 nV / 10 fAYes
    SSIVT-CN-020-120 V1 A100 nV / 1 pANo
    SSIVT-CT-100-7100 V7 A100 nV / 10 pA

    Yes

    SSIVT-CT-030-130 V1 A30 µV / 10pAYes

    Price Unavailable

    SKU Unavailable

    This selection is an invalid combination.
    Please make another selection.

    $ 10,620.00 10620.0 USD

    $ 4,399.00

    SKU: 175-9120

    • Maximum Voltage, Current
    • SourceMeter Interface

    Category: Solar Simulators

    Price Valid in USD and only in North America

    Product Attachments

    Technical Brochure Download
    SKU 175-9120

    Customization:

    SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
