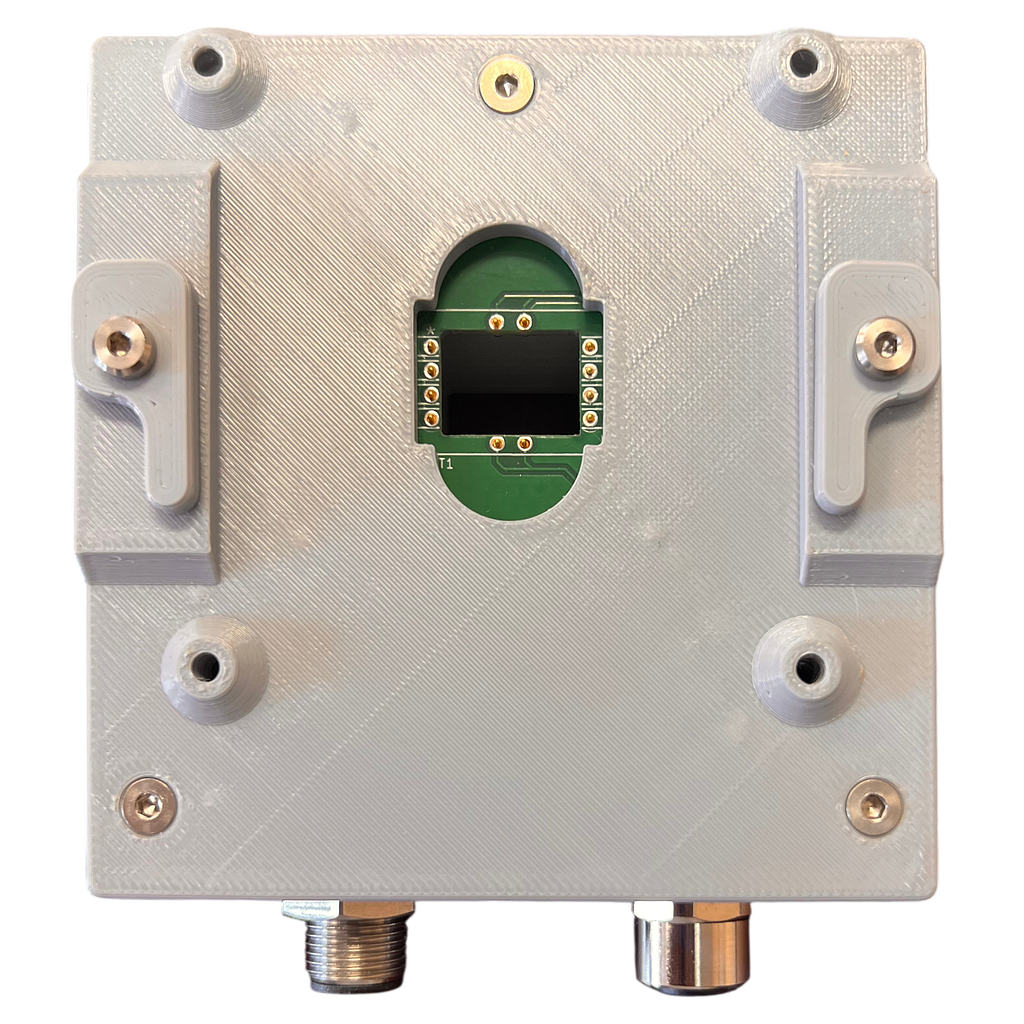

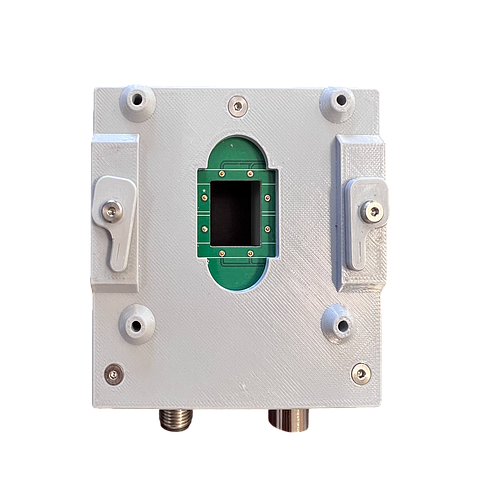

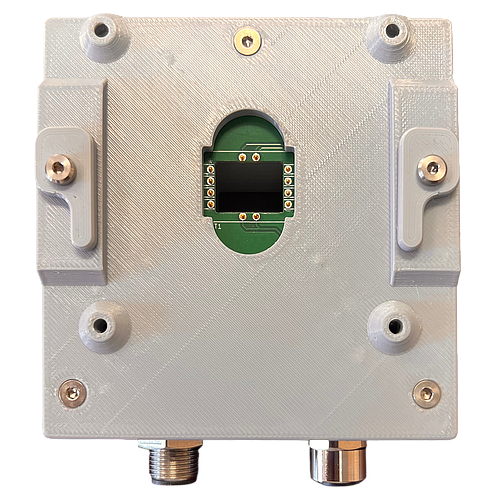

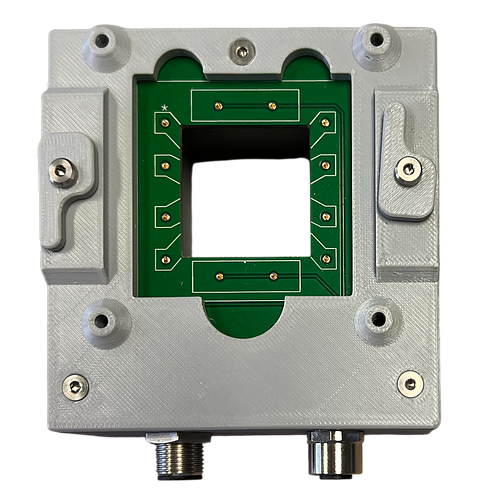

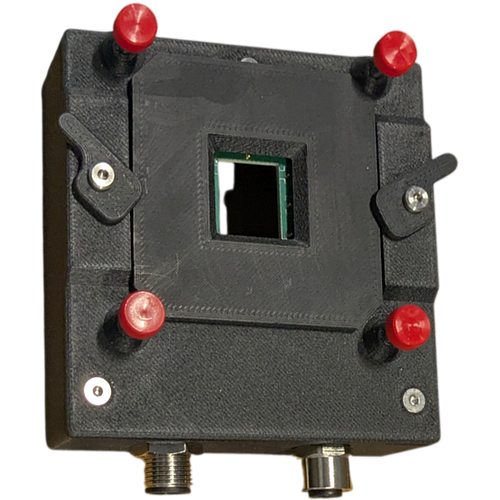

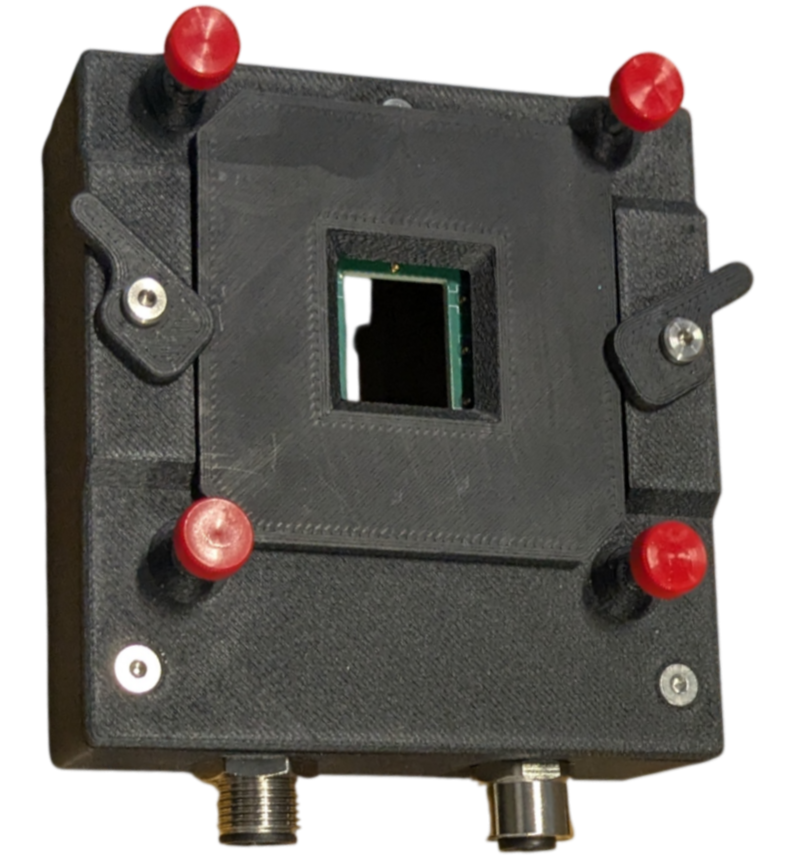

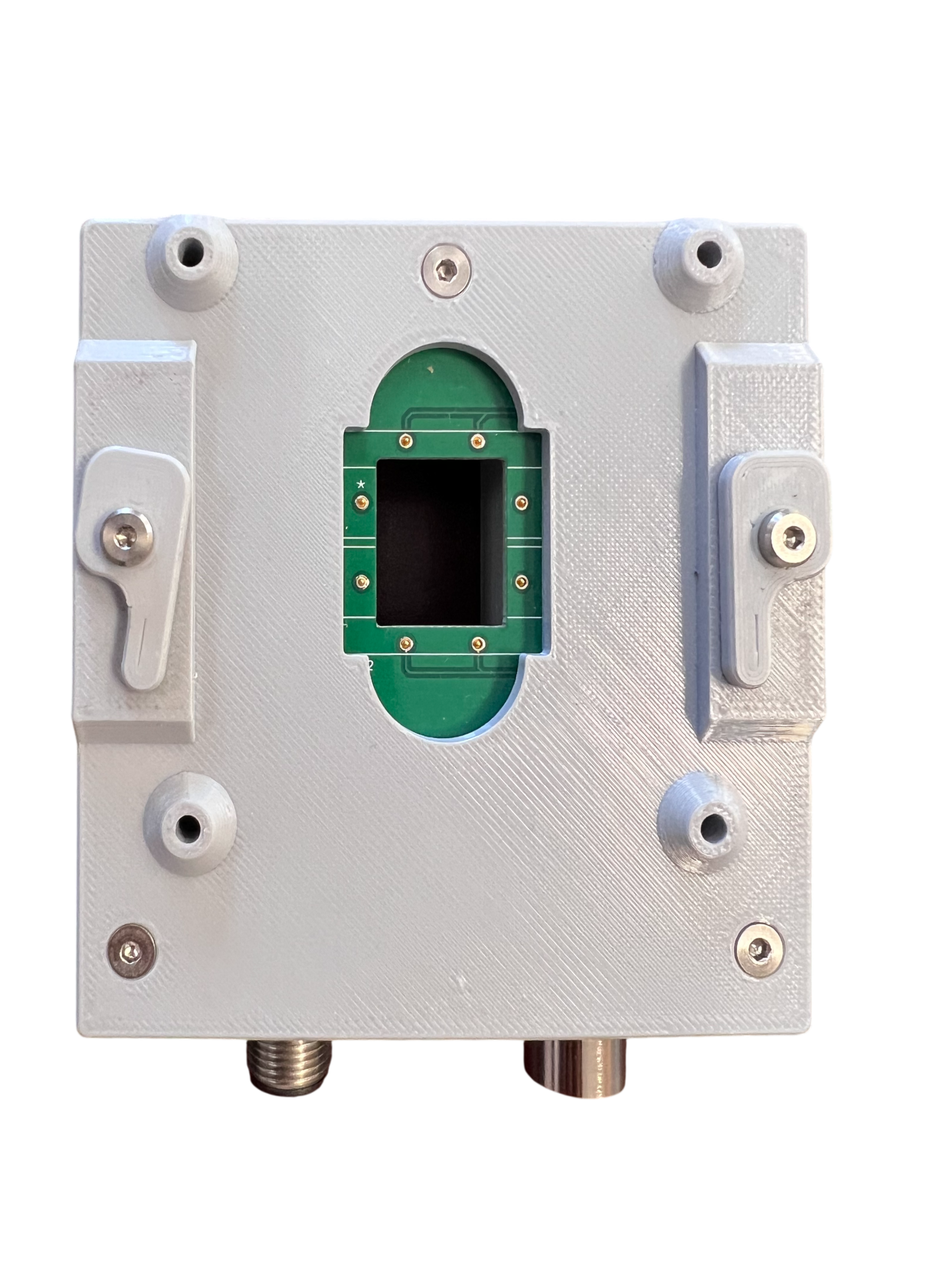

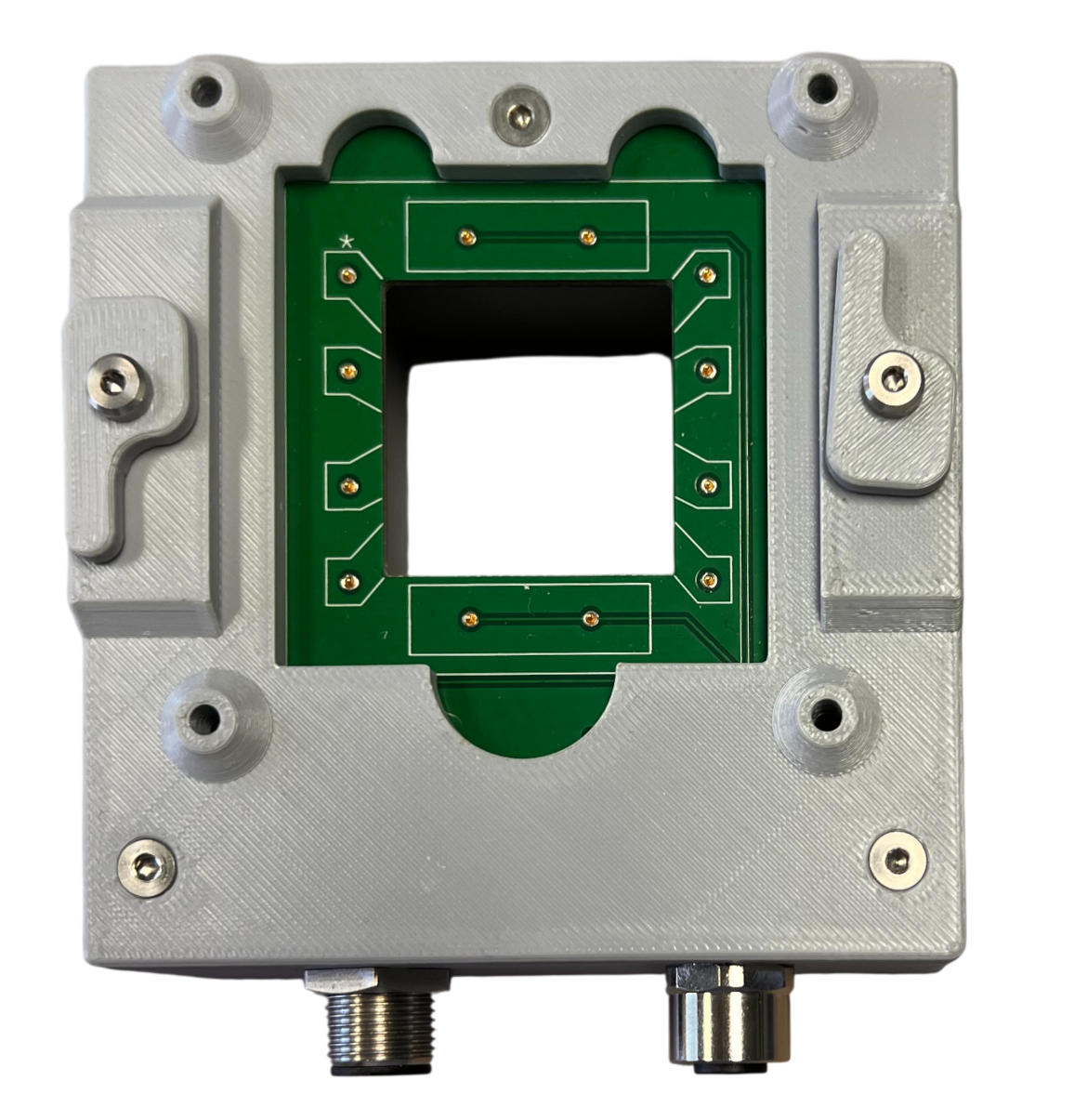

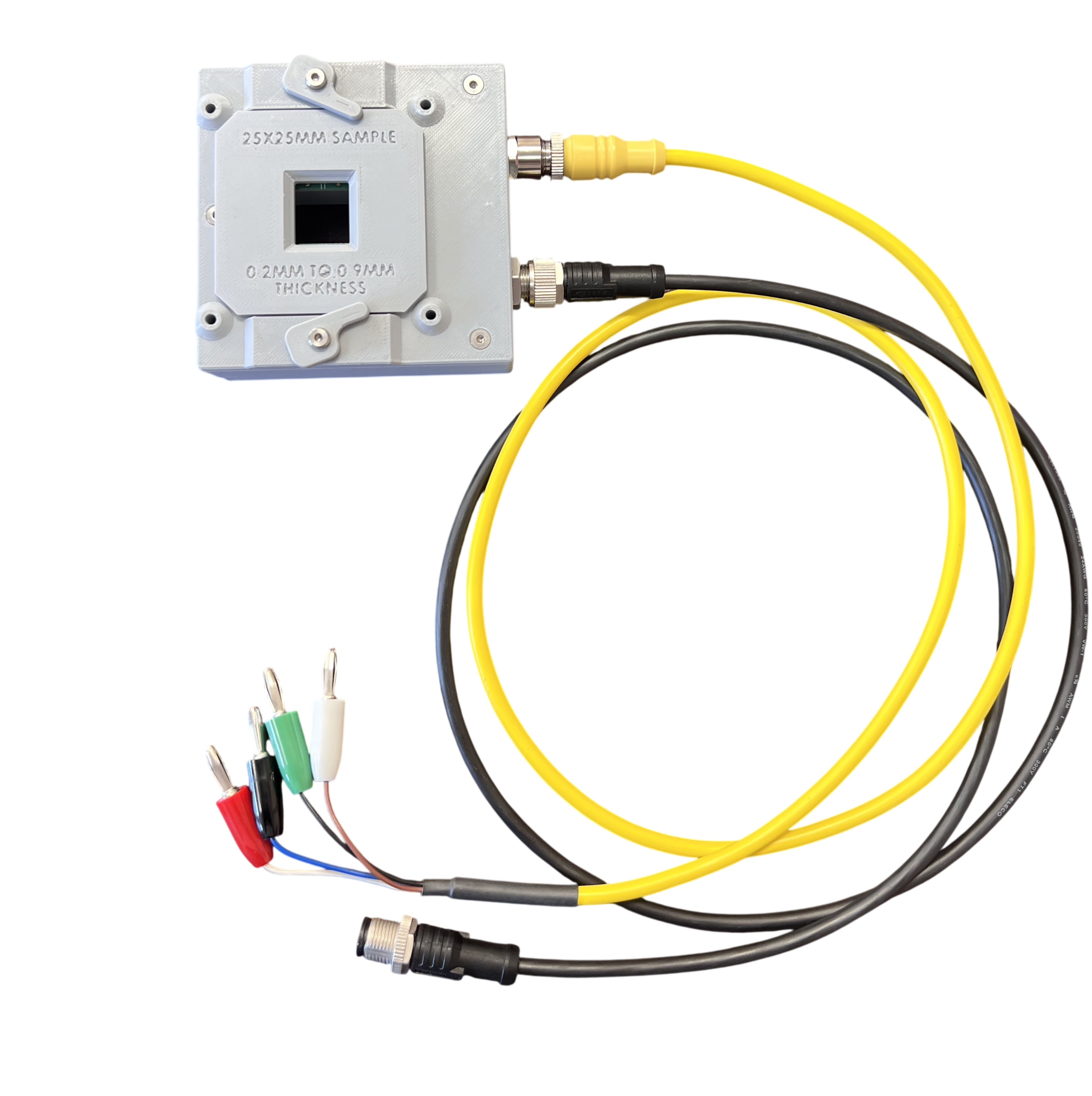

(SCC-MUX) Solar Cell Chuck with 8-Channel Multiplexer, Uncooled

Keep data perfectly organized and accelerate testing workflows. Designed for seamless integration, the SCC-MUX modular cell chucks allow users to connect up to eight independent devices simultaneously for precise 4-wire measurements. Multiple measurements can be queued up and left to run without further input. The system automatically sequences through each channel and indexes the data, eliminating human error and significantly speeding up device characterization workflows. These cell chucks can be customized to a user-specified cell size and electrical layout.

This chuck features a multiplexer add‑on and is designed for use with Sciencetech’s PTS and IV measurement systems. It requires:
- Sciencetech GEN5 switchbox (supplied with PTS systems or available as the MODQE switchbox add‑on for IV systems)
- SciPV software

Terminal connectors are compatible with AWG 22–16 wiring. Through the SciPV software, users can select individual channels or enable automatic sequencing across all channels.

Working Area: Customizable upon order
Baseplate Size: Customizable upon order
Options: User-specified cell holder
