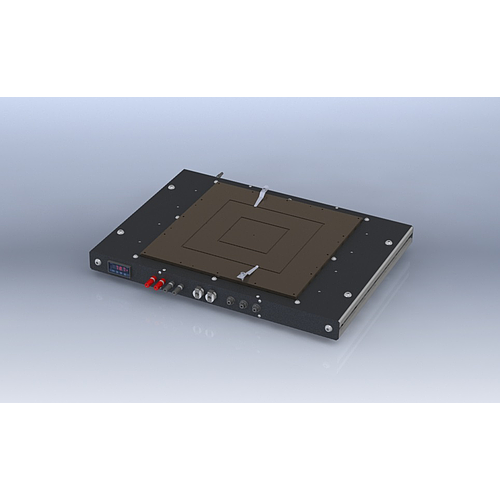

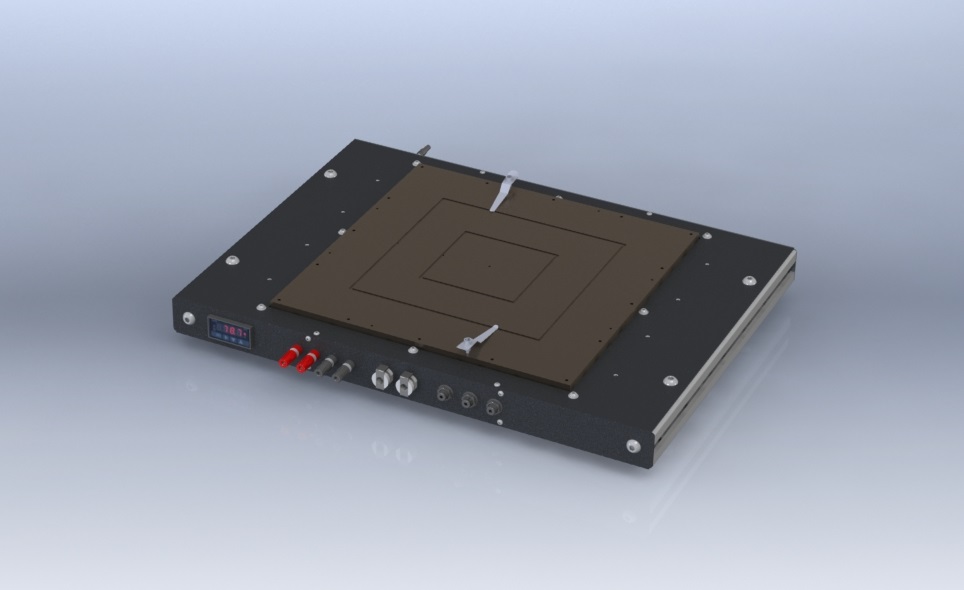

(SCC-12-L) 30 × 30 cm (12" × 12") Solar Cell Chuck, Liquid Cooled, Vacuum Ready

The SCC-12-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells between 1 and 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 30 × 30 cm (12" × 12")
Baseplate Size: 33 × 33 cm (13.25" × 13.25")
Temperature Range: 1 – 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
