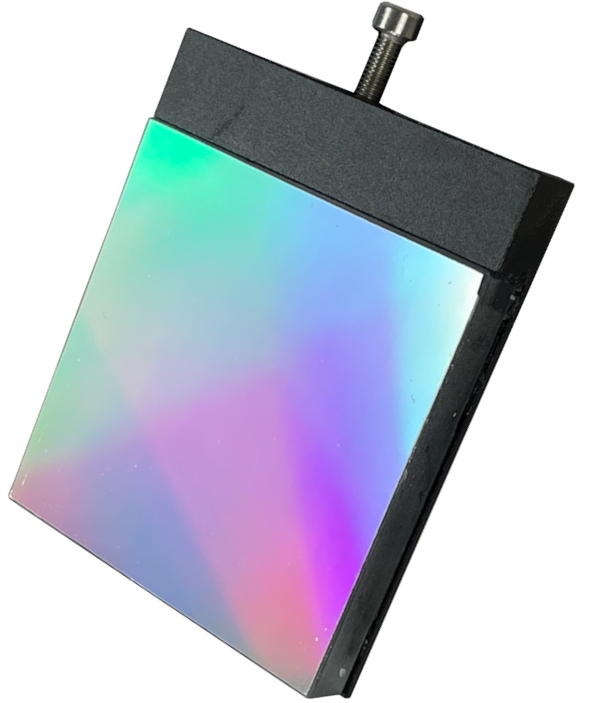

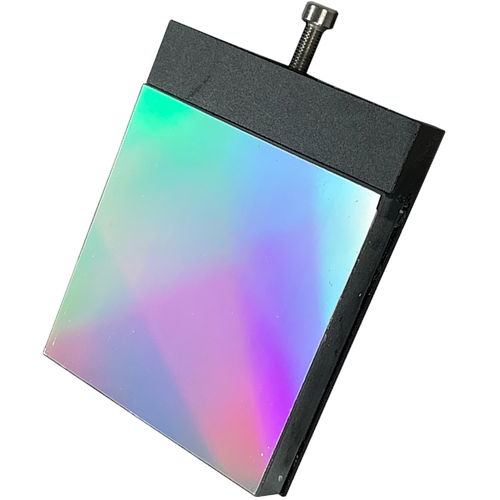

(G-9055) Grating for 9055, 9057, and 9072 Monochromators, 50x50 or 30x30 mm

Grating for use with 9055, 9057, or 9072 monochromators (including imaging, single, and double monochromator configurations). A grating holder is included with each grating, compatible with the grating mount. Gratings cannot be removed from their holders once installed, but the grating-holder combination can be removed from the grating mount in the monochromator.

Grating size options for the 9055, 9057, and 9072 series are:

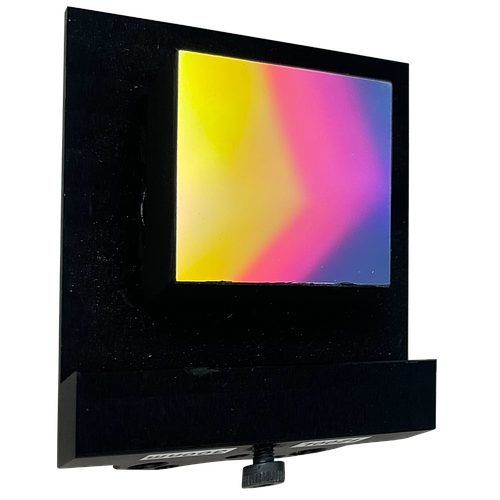

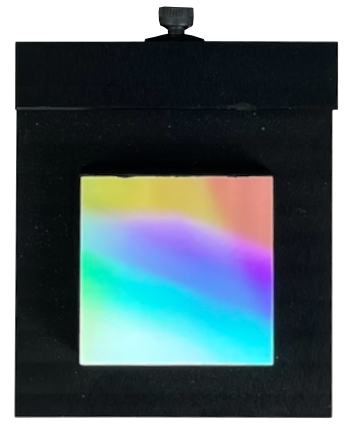

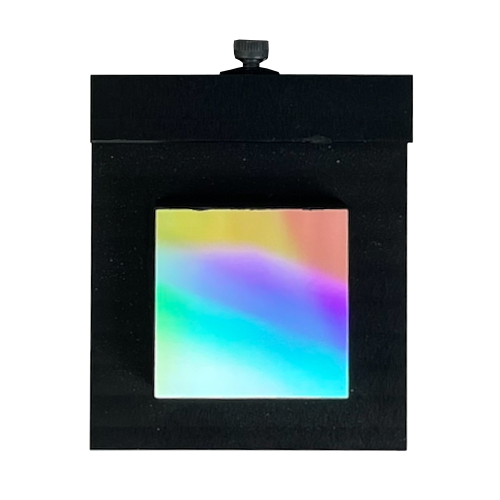

30 × 30 mm (9072 only)

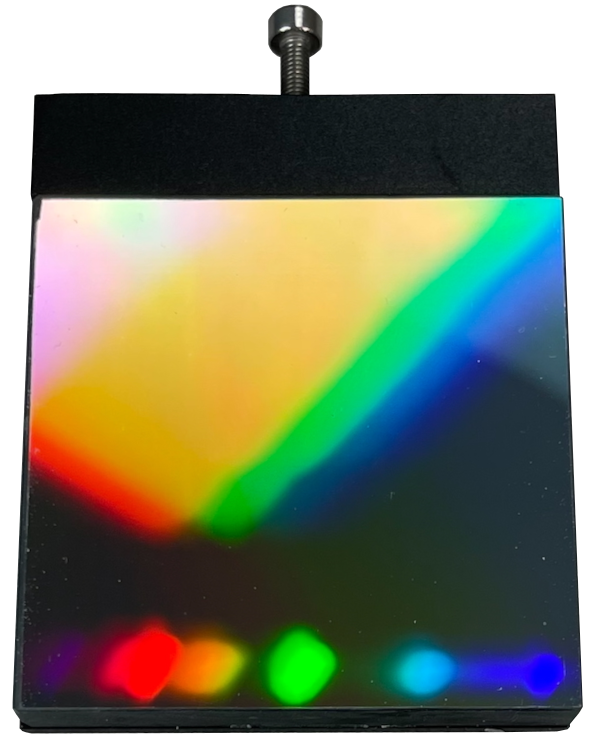

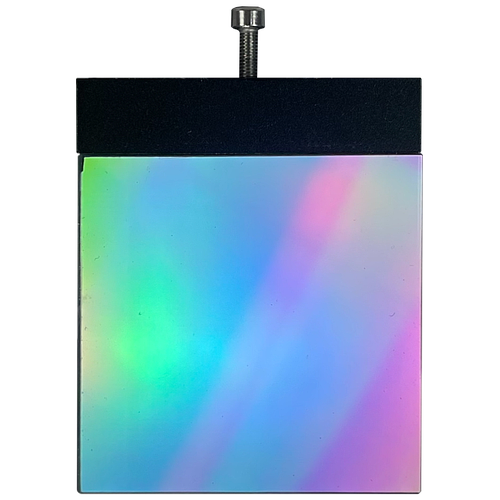

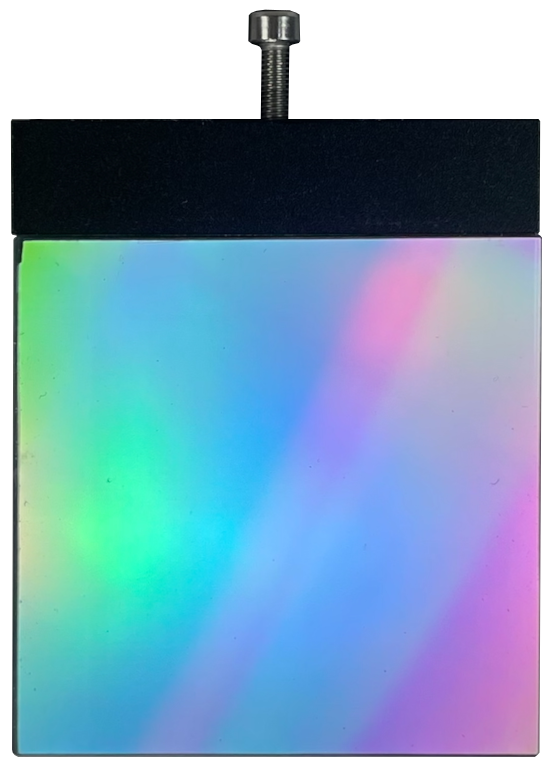

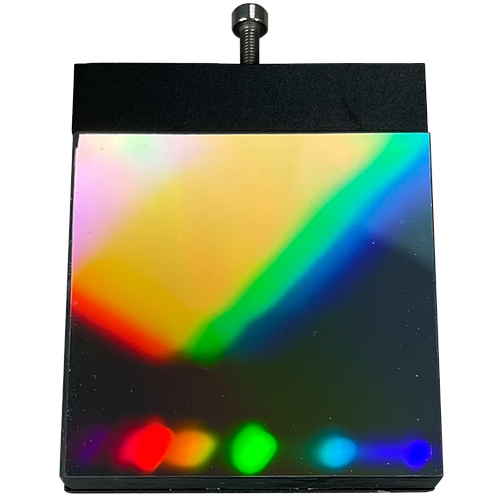

50 × 50 mm (9055 and 9057 only)

For single monochromator configurations, please select one grating. Additional gratings can be purchased to cover different wavelengths.
For double monochromator configurations, please select a quantity of two identical gratings. These gratings must be the same for the double monochromator configuration to operate correctly. Additional gratings can be purchased to cover different wavelengths, if purchased in pairs.

Custom gratings can be accommodated. If you intend to use a custom grating or don't see the option you require, please speak with a Sciencetech Technical Representative.
