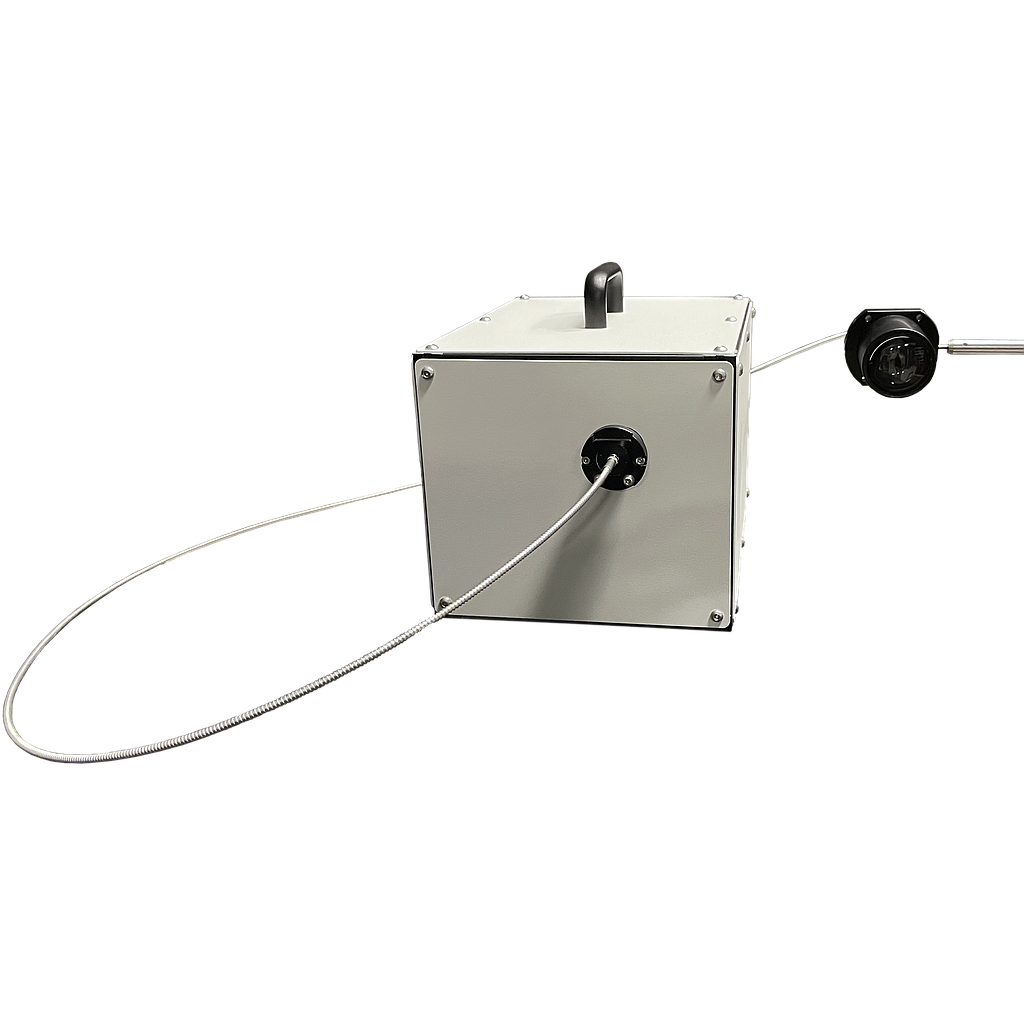

(SciVidi) Calibrated Spectroradiometer

The SciVidi spectroradiometer is an integrated spectrordadiometer system designed to measure bot AC and continuous wave light sources such as solar simulators over a wide spectral range.
The standard SciVidi system includes two spectral dispersion systems with integrated diode array detectors for measuring spectral irradiance from 300-2000nm. The SciVidi is calibrated for spectral irradiance with a Deuterium and calibrated quartz tungsten halogen lamp. The spectroradiometer can measure spectral irradiance in time intervals as short as 500uS and can be synchronized with a TTL pulse. A cosine corrected optical head is connected to the spectroradiometer by a 2m fiber optic.

For a system that meets your specific requirements please contact a Sciencetech technical sales representative.

60,000.00 60000.0 USD

60,000.00

SKU: 120-9047

Category: Integrated and Modular Systems

Price Valid only in North America

Product Attachments

SCI VIDI Spectroradiometer Download

Additional Information

SKU 120-9047
Name (SciVidi) Calibrated Spectroradiometer
Focal Length Range Up to 100mm
Focal Length Range Up to 200mm
Nominal Resolution Range < 0.5nm
f/# range Up to 3.4
Focal Length 1/8 meter
Resolution (with 1200l/mm grating) N/A
Special Features full range spectroradiometer
Available Grating Sizes 278
Wavelength Accuracy <0.5nm
Grating Size 50mm x 50mm
