An F/4 off-axis parabolic mirror assembly with protected aluminum mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.
850.00
In stock
An F/4 off-axis parabolic mirror assembly with protected aluminum mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.
850.00 850.0 USD
Price Valid only in North America


Sciencetech cold mirrors reflect visible energy and transmit the infrared (heat energy). The cold mirrors are vacuum deposited and all dielectric.
UV cold mirror is specially designed to reflect more than 95% average of ultra-violet rays from 350-450nm and transmit more than 90% average 550-1200nm at 45 degrees angle of incidence. Custom angles of incidence can be designed to specification.

Substrate borofloat 1.4762
Transmits >85% 600-1200nm
Reflects >90% 325-475nm.
Cut to 2.25" x 3.5" +0/-0.1"
1,500.00
Sciencetech cold mirrors reflect visible energy and transmit the infrared (heat energy). The cold mirrors are vacuum deposited and all dielectric.
UV cold mirror is specially designed to reflect more than 95% average of ultra-violet rays from 350-450nm and transmit more than 90% average 550-1200nm at 45 degrees angle of incidence. Custom angles of incidence can be designed to specification.

Substrate borofloat 1.4762
Transmits >85% 600-1200nm
Reflects >90% 325-475nm.
Cut to 2.25" x 3.5" +0/-0.1"
1,500.00 1500.0 USD
Price Valid only in North America


Sciencetech's (SCP-MP-T) is a micropositioning probe station with a magnetic base and a tungsten needle-tip probe. It utilizes micrometer heads for accurate repeatable adjustment. 0.5” is the magnitude of fine adjustment for this probe.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
2,601.00
In stock
Sciencetech's (SCP-MP-T) is a micropositioning probe station with a magnetic base and a tungsten needle-tip probe. It utilizes micrometer heads for accurate repeatable adjustment. 0.5” is the magnitude of fine adjustment for this probe.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
2,601.00 2601.0 USD
Price Valid only in North America


Sciencetech's (SCP-4T) is an economical probe station that provides 4 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
1,629.00
In stock
Sciencetech's (SCP-4T) is an economical probe station that provides 4 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
1,629.00 1629.0 USD
Price Valid only in North America


Sciencetech's (SCP-2T) is an economical probe station that provides 2 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
Please note: Tungsten needle-tip probes are very sharp and might not be suitable for some cell technologies. For such application, Gold spring loaded probes such as SCP-2G is recommended.
1,029.00
In stock
Sciencetech's (SCP-2T) is an economical probe station that provides 2 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
Please note: Tungsten needle-tip probes are very sharp and might not be suitable for some cell technologies. For such application, Gold spring loaded probes such as SCP-2G is recommended.
1,029.00 1029.0 USD
Price Valid only in North America


Sciencetech's (SCP-2G) is an economical probe station that provides 2 gold plated spring-tip probes to provide contacts to the top surface of your test device.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
898.00
In stock
Sciencetech's (SCP-2G) is an economical probe station that provides 2 gold plated spring-tip probes to provide contacts to the top surface of your test device.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
898.00 898.0 USD
Price Valid only in North America


The SCI-SCC12-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells between 1 and 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 12" x 12"
Temperature Range: 1 – 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
4,900.00
In stock
The SCI-SCC12-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells between 1 and 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 12" x 12"
Temperature Range: 1 – 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
4,900.00 4900.0 USD
Price Valid only in North America


The SCI-SCC12 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 30 x 30 cm (12" x 12")
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
3,200.00
In stock
The SCI-SCC12 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 30 x 30 cm (12" x 12")
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
3,200.00 3200.0 USD
Price Valid only in North America


The SCI-SCC6-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W (not including recirculator or temp control unit)
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
1,400.00
In stock
The SCI-SCC6-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W (not including recirculator or temp control unit)
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
1,400.00 1400.0 USD
Price Valid only in North America


The SCI-SCC6 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 6" x 6"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
840.00
In stock
The SCI-SCC6 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 6" x 6"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
840.00 840.0 USD
Price Valid only in North America


The SCI-SCC3-TE cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and has an integrated thermoelectric controller that can heat or cool your test cells from dew point to 60 ºC.

This product is not compatible with PTS systems. For PTS systems add the SCI-SCC3-TE-PTS version of this cell chuck

Cooling area: 3.5" x 3.5"
Temperature Range: 10 - 60 ºC
Power Input: 115-240VAC
Power Usage: 80W
Options: Vacuum Pump

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
2,180.00
In stock
The SCI-SCC3-TE cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and has an integrated thermoelectric controller that can heat or cool your test cells from dew point to 60 ºC.

This product is not compatible with PTS systems. For PTS systems add the SCI-SCC3-TE-PTS version of this cell chuck

Cooling area: 3.5" x 3.5"
Temperature Range: 10 - 60 ºC
Power Input: 115-240VAC
Power Usage: 80W
Options: Vacuum Pump

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
2,180.00 2180.0 USD
Price Valid only in North America


The SCI-SCC3 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 3.5" x 3.5"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
743.00
In stock
The SCI-SCC3 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 3.5" x 3.5"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
743.00 743.0 USD
Price Valid only in North America


The cuvette holder inside the sample chamber can be replaced with an optional thin film holder. This thin film holder is 2" x 2" square, although other sizes are available (please enquire). The thin film holder is placed at an angle to the input port such that the angle of incidence is 45 degrees. Should the optional TE sample cooling pad be ordered, this cooler connects directly to the thin film holder frame at the base, hence cooling of the sample is done through physical contact with the frame.
300.00
In stock
The cuvette holder inside the sample chamber can be replaced with an optional thin film holder. This thin film holder is 2" x 2" square, although other sizes are available (please enquire). The thin film holder is placed at an angle to the input port such that the angle of incidence is 45 degrees. Should the optional TE sample cooling pad be ordered, this cooler connects directly to the thin film holder frame at the base, hence cooling of the sample is done through physical contact with the frame.
300.00 300.0 USD
Price Valid only in North America

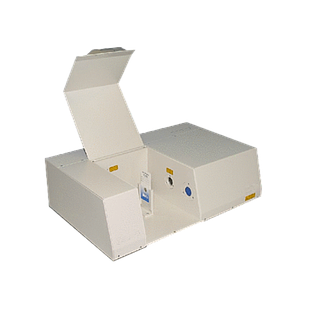

The SC-12 is a general purpose sample chamber that can be configured in multiple ways to address a number of application requirements. The SC-12 includes 4 optical ports (on three sides and one on the top) as well as a side door for easy access to the sample area.
Three of the side walls feature optical ports with a Sciencetech standard B4 hole pattern as well as removable anodized access panels that can be machined to accommodate most types of feedthroughs including electrical, liquid and gas.

The SC-12 can be configured for spectroscopy applications such as diffuse reflection and transmission spectroscopy, or as a light tight reaction chamber for photoelectrolysis research. The 2.2" diameter opening on the top port of the sample chamber is designed to mate to Sciencetech's line of lens based solar simulators such as the SF or SLB series simulators, the Solar LightLine solar simulator, as well as Sciencetech's line of 201-100 lamp houses.

The base of the sample chamber is an imperial optical breadboard with 1/4-20 tapped holes. For the metric version see model SC-12-M.

The SC-12 is 311x 311x 219mm (12.5" x 12.5" x 8.625")(LxWxH) with internal dimensions of approximately 298 x 298 x 200mm (11.75" x 11.75" x 7.8").
Side inputs have a 3" optical height which can be increased using the included baseplate and levelling feet.
The baseplate is 355 x 355 x 6.3mm (14" x 14" x 1/4")

The standard system does not come with a sample holder. See the product literature for more information on how to configure the sample chamber.

Please see our detailed product literature for more information or contact a technical sales representative to discuss how we can help you with your specific application.

Options (not included)
- Valved water inlet and outlet ports
- Push to connect hose feedthrough (standard for Sciencetech vacuum chucks)
- AC power entry module
- Binding posts for electrical feedthrough
- Gas inlet and outlet ports (6mm Swagelok)
- Height adjustable sample tray
- Temperature controlled sample platform

Discuss your full technical needs with an authorized Sciencetech Technical Sales Staff member for further details.
1,650.00
In stock
The SC-12 is a general purpose sample chamber that can be configured in multiple ways to address a number of application requirements. The SC-12 includes 4 optical ports (on three sides and one on the top) as well as a side door for easy access to the sample area.
Three of the side walls feature optical ports with a Sciencetech standard B4 hole pattern as well as removable anodized access panels that can be machined to accommodate most types of feedthroughs including electrical, liquid and gas.

The SC-12 can be configured for spectroscopy applications such as diffuse reflection and transmission spectroscopy, or as a light tight reaction chamber for photoelectrolysis research. The 2.2" diameter opening on the top port of the sample chamber is designed to mate to Sciencetech's line of lens based solar simulators such as the SF or SLB series simulators, the Solar LightLine solar simulator, as well as Sciencetech's line of 201-100 lamp houses.

The base of the sample chamber is an imperial optical breadboard with 1/4-20 tapped holes. For the metric version see model SC-12-M.

The SC-12 is 311x 311x 219mm (12.5" x 12.5" x 8.625")(LxWxH) with internal dimensions of approximately 298 x 298 x 200mm (11.75" x 11.75" x 7.8").
Side inputs have a 3" optical height which can be increased using the included baseplate and levelling feet.
The baseplate is 355 x 355 x 6.3mm (14" x 14" x 1/4")

The standard system does not come with a sample holder. See the product literature for more information on how to configure the sample chamber.

Please see our detailed product literature for more information or contact a technical sales representative to discuss how we can help you with your specific application.

Options (not included)
- Valved water inlet and outlet ports
- Push to connect hose feedthrough (standard for Sciencetech vacuum chucks)
- AC power entry module
- Binding posts for electrical feedthrough
- Gas inlet and outlet ports (6mm Swagelok)
- Height adjustable sample tray
- Temperature controlled sample platform

Discuss your full technical needs with an authorized Sciencetech Technical Sales Staff member for further details.
1,650.00 1650.0 USD
Price Valid only in North America

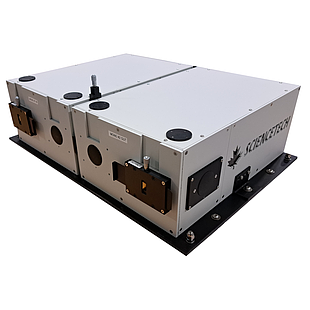

The TLS-55-Q250 is a representative of a large series of Sciencetech Tunable Light Sources (TLS).  This plug and play system consists of a lamp housing with 250W QTH lamp, power supply, 9055 monochromator (1/4 meter), motorized filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
The TLS-55-Q250 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
19,400.00
The TLS-55-Q250 is a representative of a large series of Sciencetech Tunable Light Sources (TLS).  This plug and play system consists of a lamp housing with 250W QTH lamp, power supply, 9055 monochromator (1/4 meter), motorized filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
The TLS-55-Q250 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
19,400.00 19400.0 USD
Price Valid only in North America


The TLS-72-Q250 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 250W QTH lamp, power supply, 9072 monochromator (1/8 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.

The TLS-72-Q250 is an advanced system with optical bandpass as small as 0.5 nm over UV and VIS spectral range, and 0.7 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
17,400.00
The TLS-72-Q250 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 250W QTH lamp, power supply, 9072 monochromator (1/8 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.

The TLS-72-Q250 is an advanced system with optical bandpass as small as 0.5 nm over UV and VIS spectral range, and 0.7 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
17,400.00 17400.0 USD
Price Valid only in North America


The TLS-55-X300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 300W Xe lamp, 601-300 touchscreen power supply, 9055 monochromator (1/4 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
The TLS-55-X300 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
20,341.00
The TLS-55-X300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 300W Xe lamp, 601-300 touchscreen power supply, 9055 monochromator (1/4 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
The TLS-55-X300 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
20,341.00 20341.0 USD
Price Valid only in North America


The TLS-72-X300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with Xe lamp, 601-300 touchscreen power supply, 9072 monochromator (1/8 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
TLS-72-X300 is advanced system with optical bandpass as small as 0.5 nm over UV and VIS spectral range, and 0.7 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
19,400.00
The TLS-72-X300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with Xe lamp, 601-300 touchscreen power supply, 9072 monochromator (1/8 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
TLS-72-X300 is advanced system with optical bandpass as small as 0.5 nm over UV and VIS spectral range, and 0.7 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
19,400.00 19400.0 USD
Price Valid only in North America


9055-DX is a motorized double 1/4m monochromator that can be configured as additive or subtractive. Double monochromators have the advantage of extremely low stray light levels by virtue of using two gratings. An intermediate slit between the two units, used to define the wavelengths that pass to the second unit, also masks off light scattered within the body of the first unit. In double additive operation the 9055DX effective focal length (1/2m), dispersion and resolution (1.7nm/mm and .09nm with a 1200 l/mm grating) are doubled compared to a single unit, making this mode useful where high resolution is important. In double subtractive operation there is no dispersion in the output beam and only a single slit image appears at the output instead of a broad spread of spectral images. This allows the system to operate as a tunable bandpass or notch filter.
This system includes two manual slits (one input and one intermediate). Motorized upgrades and additional slits may be purchased separately.
Gratings also need to be purchased separately, with a minimum of 2 gratings required for the system to operate. Please speak with your Sciencetech technical sales member to ensure proper grating selection.
Please see the technical datasheet for additional information.

The imaging option 9055DX-i uses toroidal optics to compensate for astigmatism inherent in Czerney-Turner type monochromators and spectrographs.
23,180.00
In stock
9055-DX is a motorized double 1/4m monochromator that can be configured as additive or subtractive. Double monochromators have the advantage of extremely low stray light levels by virtue of using two gratings. An intermediate slit between the two units, used to define the wavelengths that pass to the second unit, also masks off light scattered within the body of the first unit. In double additive operation the 9055DX effective focal length (1/2m), dispersion and resolution (1.7nm/mm and .09nm with a 1200 l/mm grating) are doubled compared to a single unit, making this mode useful where high resolution is important. In double subtractive operation there is no dispersion in the output beam and only a single slit image appears at the output instead of a broad spread of spectral images. This allows the system to operate as a tunable bandpass or notch filter.
This system includes two manual slits (one input and one intermediate). Motorized upgrades and additional slits may be purchased separately.
Gratings also need to be purchased separately, with a minimum of 2 gratings required for the system to operate. Please speak with your Sciencetech technical sales member to ensure proper grating selection.
Please see the technical datasheet for additional information.

The imaging option 9055DX-i uses toroidal optics to compensate for astigmatism inherent in Czerney-Turner type monochromators and spectrographs.
23,180.00 23180.0 USD
Price Valid only in North America


This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

299.00
In stock
This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

299.00 299.0 USD
Price Valid only in North America
Copyright © Sciencetech
Contact Us
