This product is no longer made. It has been replaced by SOL-REF-Q-I

The Solar Reference Cell consist of a 20 x 20 mm monocrystalline silicon Photovoltaic Cell encased in a 92 x 70 x 16 mm metal enclosure with a protective quartz window and a temperature sensor.
The temperature sensor is a 100 ohm platinum Resistance Temperature Detector (RTD).

The SCI-REF-Q Solar Reference Cells come with a Sciencetech certificate of calibration and compatible set of connecting cables.
The certificate includes:
Isc, Imax, Voc, Vmax, Pmax, Spectral Correction, Fill Factor, Area and Efficiency.
Measurements are made in accordance with ASTM E948 and E1021.
2,925.00
This product is no longer made. It has been replaced by SOL-REF-Q-I

The Solar Reference Cell consist of a 20 x 20 mm monocrystalline silicon Photovoltaic Cell encased in a 92 x 70 x 16 mm metal enclosure with a protective quartz window and a temperature sensor.
The temperature sensor is a 100 ohm platinum Resistance Temperature Detector (RTD).

The SCI-REF-Q Solar Reference Cells come with a Sciencetech certificate of calibration and compatible set of connecting cables.
The certificate includes:
Isc, Imax, Voc, Vmax, Pmax, Spectral Correction, Fill Factor, Area and Efficiency.
Measurements are made in accordance with ASTM E948 and E1021.
2,925.00 2925.0 USD
Price Valid only in North America

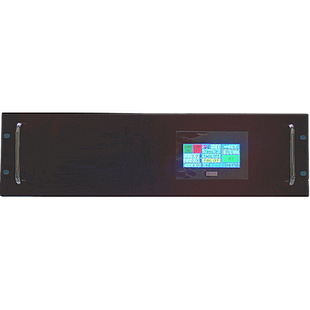

This is an adjustable power supply for Sciencetech's line of 500W Mercury (Hg) Lamps. Includes a USB to serial adapter.

3,959.00
In stock
This is an adjustable power supply for Sciencetech's line of 500W Mercury (Hg) Lamps. Includes a USB to serial adapter.

3,959.00 3959.0 USD
Price Valid only in North America


An adjustable power supply for Sciencetech's line of 1.6kW Mercury (Hg) Lamps. Includes a USB to serial adapter.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
Includes 1 IEC 60320 C19 compatible power cable, select compatible cable for your region.
6,804.00
In stock
An adjustable power supply for Sciencetech's line of 1.6kW Mercury (Hg) Lamps. Includes a USB to serial adapter.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
Includes 1 IEC 60320 C19 compatible power cable, select compatible cable for your region.
6,804.00 6804.0 USD
Price Valid only in North America


An adjustable power supply for Sciencetech's line of 1kW Mercury (Hg) Lamps. Includes a USB to serial adapter.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
Includes 1 IEC 60320 C19 compatible power cable, select compatible cable for your region.
6,804.00
In stock
An adjustable power supply for Sciencetech's line of 1kW Mercury (Hg) Lamps. Includes a USB to serial adapter.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
Includes 1 IEC 60320 C19 compatible power cable, select compatible cable for your region.
6,804.00 6804.0 USD
Price Valid only in North America


.
375.00 375.0 USD
Price Valid only in North America

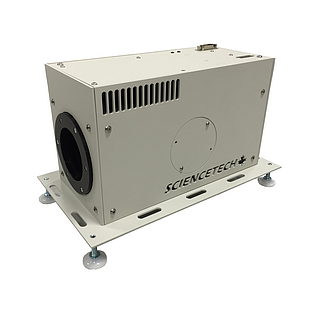

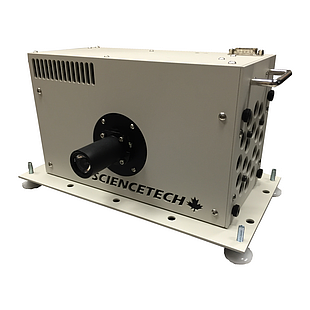

This lamp housing design is optimized for 1600W xenon arc lamps. It features a F/2.5 elliptical reflector.

Lamp Power: 1600W
Lamp Type: Xenon, Ozone free (included)
Reflector Type: Elliptical
Power Supply: 611-1.6k (sold separately)

All Sciencetech XLH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the XLH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
7,300.00
This lamp housing design is optimized for 1600W xenon arc lamps. It features a F/2.5 elliptical reflector.

Lamp Power: 1600W
Lamp Type: Xenon, Ozone free (included)
Reflector Type: Elliptical
Power Supply: 611-1.6k (sold separately)

All Sciencetech XLH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the XLH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
7,300.00 7300.0 USD
Price Valid only in North America


The Sciencetech 9040 is a half meter, high performance monochromator/spectrograph. It supports large size gratings for high light throughput: three sizes are available: 64 × 64mm, 84 × 84 mm, and 102 × 102mm which allow it to achieve apertures of f/6.9, f/5.2 and f/4.0 respectively. This version is f/6.9, and suitable for use with 64 × 64mm sized ruled or holographic reflection gratings.
The 9040 is based on the Czerny-Turner optical configuration. The 9040 supports both single grating and triple grating turret configurations. This version is the triple grating turret version and supports up to three gratings mounted on a rotating turret for wavelength selection. The 9040 is also available in double additive and double subtractive versions to obtain even higher resolution or to minimize stray light.
This model includes a single SS-84 high-resolution manual slit at the input. If an output slit is required, it must be added separately. Motorized slits are available as an upgrade.
This monochromator is not configurable for double pass mode.
The system is configured by default for front input and output ports, but lateral or dual input and output ports can be added separately.
21,070.00
In stock
The Sciencetech 9040 is a half meter, high performance monochromator/spectrograph. It supports large size gratings for high light throughput: three sizes are available: 64 × 64mm, 84 × 84 mm, and 102 × 102mm which allow it to achieve apertures of f/6.9, f/5.2 and f/4.0 respectively. This version is f/6.9, and suitable for use with 64 × 64mm sized ruled or holographic reflection gratings.
The 9040 is based on the Czerny-Turner optical configuration. The 9040 supports both single grating and triple grating turret configurations. This version is the triple grating turret version and supports up to three gratings mounted on a rotating turret for wavelength selection. The 9040 is also available in double additive and double subtractive versions to obtain even higher resolution or to minimize stray light.
This model includes a single SS-84 high-resolution manual slit at the input. If an output slit is required, it must be added separately. Motorized slits are available as an upgrade.
This monochromator is not configurable for double pass mode.
The system is configured by default for front input and output ports, but lateral or dual input and output ports can be added separately.
21,070.00 21070.0 USD
Price Valid only in North America

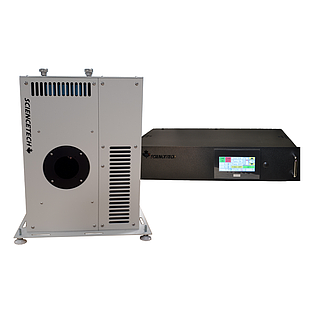

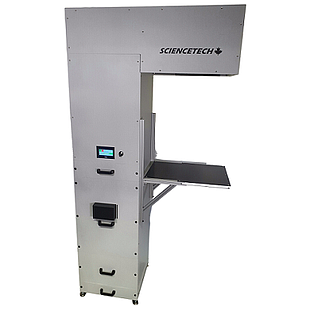

Class: AAA (ASTM E927-10)
Non-uniformity < 3% over 36 measurement locations
Collimation Angle: 2.2º half angle
Target Size: 300mm x 300 mm
Working Distance: 650mm +/- 100mm
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
70,125.00
In stock
Class: AAA (ASTM E927-10)
Non-uniformity < 3% over 36 measurement locations
Collimation Angle: 2.2º half angle
Target Size: 300mm x 300 mm
Working Distance: 650mm +/- 100mm
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
70,125.00 70125.0 USD
Price Valid only in North America

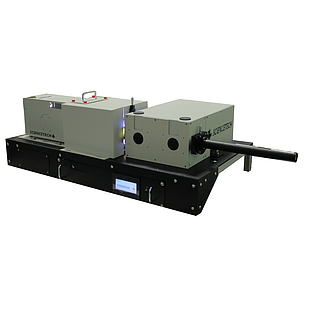

Sciencetech also offers a tunable light source solar simulator combination instrument. This combination system allows a selectable output at the target plane of spatially uniform sun light or monochromatic light.

The tunable light source—solar simulator combination system adds a homogenization unit to the exit port of the monochromator that includes and electronic shutter and 2 position filter tray.

The tunable light source functions the same as the other models in Sciencetech’s tunable light source line but adds the extra functionality of a solar simulator with broadband spatially uniform white light.

For technical specifications, please contact a Sciencetech Representative.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
29,280.00
Sciencetech also offers a tunable light source solar simulator combination instrument. This combination system allows a selectable output at the target plane of spatially uniform sun light or monochromatic light.

The tunable light source—solar simulator combination system adds a homogenization unit to the exit port of the monochromator that includes and electronic shutter and 2 position filter tray.

The tunable light source functions the same as the other models in Sciencetech’s tunable light source line but adds the extra functionality of a solar simulator with broadband spatially uniform white light.

For technical specifications, please contact a Sciencetech Representative.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
29,280.00 29280.0 USD
Price Valid only in North America

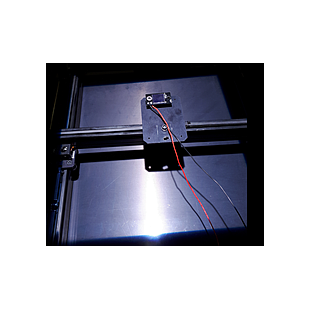

Target size: 500x500mm
DAQ: 16 bit
Detector size : 20x20mm
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 800x800x125
7,475.00
In stock
Target size: 500x500mm
DAQ: 16 bit
Detector size : 20x20mm
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 800x800x125
7,475.00 7475.0 USD
Price Valid only in North America


Target size: 350x350mm
DAQ: 16 bit
Detector size : 20x20mm
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 600x600x125

Includes SciMeasurementStage software
6,485.00
In stock
Target size: 350x350mm
DAQ: 16 bit
Detector size : 20x20mm
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 600x600x125

Includes SciMeasurementStage software
6,485.00 6485.0 USD
Price Valid only in North America


Target size: 100x100mm
DAQ: 16 bit
Detector size : 20x20mm (apertured to 12.5x12.5mm)
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 200x200x125
4,325.00
In stock
Target size: 100x100mm
DAQ: 16 bit
Detector size : 20x20mm (apertured to 12.5x12.5mm)
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 200x200x125
4,325.00 4325.0 USD
Price Valid only in North America


Sciencetech's new 611 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The 611-1.6k is designed to power 1600W Xenon and Hg-Xenon arc lamps. The 611-6k power supply is CE compliant.
The 611 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock
Please see the technical datasheet for more information.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

7,100.00
In stock
Sciencetech's new 611 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The 611-1.6k is designed to power 1600W Xenon and Hg-Xenon arc lamps. The 611-6k power supply is CE compliant.
The 611 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock
Please see the technical datasheet for more information.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

7,100.00 7100.0 USD
Price Valid only in North America


Sciencetech's new 611 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The 611-1k is designed to power 1000W Xenon and Hg-Xenon arc lamps. The 611-1k power supply is CE compliant.
The 611 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock


Power Requirements
200-240 VAC input, 7.5-6.3A, 50/60Hz, Fused 15A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Please see the technical datasheet for more information.
6,880.00
In stock
Sciencetech's new 611 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The 611-1k is designed to power 1000W Xenon and Hg-Xenon arc lamps. The 611-1k power supply is CE compliant.
The 611 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock


Power Requirements
200-240 VAC input, 7.5-6.3A, 50/60Hz, Fused 15A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Please see the technical datasheet for more information.
6,880.00 6880.0 USD
Price Valid only in North America


Sciencetech's new 611 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The 611-500 is designed to power 500W Xenon and Hg-Xenon arc lamps. The 611-500 Power Supply is CE compliant.
The 611 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
100-240 VAC input, 9.1-3.8A, 50/60Hz
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).


Includes a USB to serial adapter.


6,805.00
In stock
Sciencetech's new 611 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The 611-500 is designed to power 500W Xenon and Hg-Xenon arc lamps. The 611-500 Power Supply is CE compliant.
The 611 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
100-240 VAC input, 9.1-3.8A, 50/60Hz
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).


Includes a USB to serial adapter.


6,805.00 6805.0 USD
Price Valid only in North America


.
4,000.00 4000.0 USD
Price Valid only in North America


.
4,000.00 4000.0 USD
Price Valid only in North America


4,000.00 4000.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Focused
Output Beam Diameter: Focused, diameter dependent on working distance
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality focused xenon arc lamp source: power supply, arc lamp housing and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,504.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Focused
Output Beam Diameter: Focused, diameter dependent on working distance
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality focused xenon arc lamp source: power supply, arc lamp housing and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,504.00 6504.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Three lens system
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Three fused silica lenses in the optical assembly give least possible spherical aberration and permit maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
7,370.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Three lens system
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Three fused silica lenses in the optical assembly give least possible spherical aberration and permit maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
7,370.00 7370.0 USD
Price Valid only in North America
Copyright © Sciencetech
Contact Us
