Xe Arc Lamp Light Source

Sciencetech manufactures a variety of light sources with applications for both research and industry. For more information about our light sources and capabilities select a product group above and contact us at sales contact today!

Sciencetech Xenon Arc Lamp Light Sources

Adapted for your convenience

Xenon light sources are specialized light sources producing UV, visible and IR outputs. A complete light source requires at least a lamp, lamp housing, and power supply.

Xenon arc lamps are chosen for their high UV output, their spectral similarity to natural sunlight, and their wide spectral range (UV to the IR).

Sciencetech's Xenon Arc Lamp Light Sources are cost effective, versatile, complete solutions for all your illumination requirements.

All Sciencetech light sources are plug-and-play systems and can be easily adapted towards various test environments. We specialize in manufacturing low to high powered xenon arc lamp sources which come as fully operable system. These systems consist of the xenon arc lamp, lamp housing, power supply and all required optics.

Sciencetech offers a selection of light sources in varying wattages of xenon lamps and other optical characteristics. Xenon short arc lamps are high-pressure discharge lamps. These lamps are especially suitable for optical applications because of their high radiance and luminance.

Xenon Arc Lamp Light Source
Xenon arc lamps provide an ideal point source of light and are therefore excellent for achieving collimated light outputs.
These light sources are also great for applications requiring high intensity light focused on a very small point.

Sciencetech Xenon Arc Lamp Light Source

An Introduction

Our light sources typically include the xenon (Xe) short arc lamp mounted in a housing with a back reflector, condensing/coupling optics, a power supply and all the necessary cables, software, and hardware. Other accessories available.

Xenon (Xe) Lamps

Xenon lamps are filled with pure xenon gas at a very high pressure. These lamps provide a wider range of wavelengths, emitting at a high and relatively constant light flux from the UV, through the visible to the IR wavelengths. Sciencetech provides two types of xenon lamps depending on your applications.

Standard Xenon Lamps

Standard xenon lamp bulb envelope is manufactured with a UV transmitting quartz envelope doped with oxides to minimize the ultraviolet (UV) emission below 250 nm. Sciencetech light sources and solar simulators normally come equipped with these standard xenon short arc lamps.

UV-Enriched Xenon Lamps

UV-enriched xenon lamps are recommended if output is required in the 185 nm to 250 nm region of the spectrum. These xenon lamps use synthetic quartz envelopes that transmit light to wavelengths as short as 185 nm. For UV applications, you may also consider a mercury-xenon or mercury lamp as an alternative. Mercury-xenon lamps have more UV overall in the ~230-400 nm range, but UV-enriched xenon produces more in the shortest wavelengths, from 185-230 nm.

Ozone is generated when oxygen in the surrounding air is optically excited by these shorter wavelengths, so care must be taken to deal with the produced ozone when operating these lamps.

Sciencetech can install forced air exhaustion ports with the system to safely remove the ozone generated in the lamp house.
Nitrogen purging can be done to prevent UV-generated ozone from accumulating indoors. This also allows to conduct measurements below 220nm, which would otherwise be prevented by the absorption of oxygen.

Xenon Arc Lamp Light Source Models

Depending on the type of output beam required, we can provide three main variations of Xenon arc lamp light source models. You can select from one of our convenient packages or contact us to further discuss on changing the elements as required.

To determine the right equipment, first let’s identify the type of the output beam required for your application. Below are the three main varieties of lamp houses offered at Sciencetech. These lamp houses are designed to operate in a vertical or horizontal mode, and come with base plates for both orientations included. In the configuration section below, choose the housing based on the reflector type.

Elliptical Back Reflector - Sciencetech

Elliptical
Back Reflector


The lamp house includes an elliptical back reflector. These lamp houses provide a focused beam spot with highly efficient light collection and optimal light transfer capability.

Spherical Back Reflector - Sciencetech

Spherical Back Reflector with Condensing or Collimating Optics


The lamp house includes a spherical back reflector. With the accompanying refractive optics (lenses) used, this lamp house can produce high quality collimated beams, or focused beams.

Parabolic Back Reflector - sciencetech

Parabolic
Back Reflector


The lamp house includes a parabolic back reflector. This lamp house provides a collimated output with efficient light collection capabilities without the need for lenses/refractive optics.

Contact Us Today
Get more information or request a quote.

Browse Model Categories

Browse sciencetech's wide range of Arc Lamp Light Sources by power level

X

Product Category

View Filter

x
Clear all x

Filter Option



This lamp housing design is optimized for 75W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 75W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,700.00
In stock
This lamp housing design is optimized for 75W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 75W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,700.00 2700.0 USD
Price Valid only in North America


This lamp housing design is optimized for 150W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 150W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-150 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,700.00
In stock
This lamp housing design is optimized for 150W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 150W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-150 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,700.00 2700.0 USD
Price Valid only in North America


This lamp housing design is optimized for 300W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 300W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,700.00
In stock
This lamp housing design is optimized for 300W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 300W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,700.00 2700.0 USD
Price Valid only in North America


This is a legacy product and is no longer produced by Sciencetech

Sciencetech’s 201-100-D lamp housing allows for a vertically mounted 30W deuterium lamp. Such lamps produce a strong broadband UV output from 185-400nm despite its low wattage. The unit is forced air-cooled with a blower at the base that draws air from the top intake to the bottom of the housing. The lamp socket is mounted vertically on alignment pins such that the lamp’s filament can be properly centered on the front light exit port for optimum light output efficiency. The front light exit port includes one 1” fused silica collimating lens to output parallel rays. The lamp and external power supply are sold separately.

Compatible Lamps: 30D2-7-1, 30D2-1-1.8
Compatible Power Supplies: 500-060D
2,817.00
In stock
This is a legacy product and is no longer produced by Sciencetech

Sciencetech’s 201-100-D lamp housing allows for a vertically mounted 30W deuterium lamp. Such lamps produce a strong broadband UV output from 185-400nm despite its low wattage. The unit is forced air-cooled with a blower at the base that draws air from the top intake to the bottom of the housing. The lamp socket is mounted vertically on alignment pins such that the lamp’s filament can be properly centered on the front light exit port for optimum light output efficiency. The front light exit port includes one 1” fused silica collimating lens to output parallel rays. The lamp and external power supply are sold separately.

Compatible Lamps: 30D2-7-1, 30D2-1-1.8
Compatible Power Supplies: 500-060D
2,817.00 2817.0 USD
Price Valid only in North America


This lamp housing design is optimized for 75W xenon arc lamps. It features a parabolic reflector.

Lamp Power: 75W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00
In stock
This lamp housing design is optimized for 75W xenon arc lamps. It features a parabolic reflector.

Lamp Power: 75W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00 2977.0 USD
Price Valid only in North America


This lamp housing design is optimized for 150W xenon arc lamps. It features a parabolic reflector.

Lamp Power: 150W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-150 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00
In stock
This lamp housing design is optimized for 150W xenon arc lamps. It features a parabolic reflector.

Lamp Power: 150W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-150 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00 2977.0 USD
Price Valid only in North America


This lamp housing design is optimized for 300W xenon arc lamps. It features a parabolic reflector.

Lamp Power: 300W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00
In stock
This lamp housing design is optimized for 300W xenon arc lamps. It features a parabolic reflector.

Lamp Power: 300W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00 2977.0 USD
Price Valid only in North America


This lamp housing design is optimized for 75W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 75W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00
In stock
This lamp housing design is optimized for 75W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 75W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00 2977.0 USD
Price Valid only in North America


This lamp housing design is optimized for 150W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 150W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00
In stock
This lamp housing design is optimized for 150W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 150W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00 2977.0 USD
Price Valid only in North America


This lamp housing design is optimized for 300W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 300W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00
In stock
This lamp housing design is optimized for 300W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 300W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
2,977.00 2977.0 USD
Price Valid only in North America

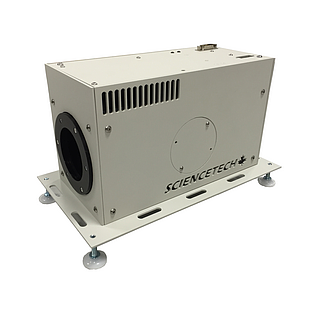

This lamp housing design is optimized for 300W xenon arc lamps. It features a F/1.2 elliptical reflector.

Lamp Power: 300W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
3,420.00
This lamp housing design is optimized for 300W xenon arc lamps. It features a F/1.2 elliptical reflector.

Lamp Power: 300W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
3,420.00 3420.0 USD
Price Valid only in North America


This lamp housing design is optimized for 150W xenon arc lamps. It features a F/1.2 elliptical reflector.

Lamp Power: 150W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-150 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
3,420.00
In stock
This lamp housing design is optimized for 150W xenon arc lamps. It features a F/1.2 elliptical reflector.

Lamp Power: 150W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-150 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
3,420.00 3420.0 USD
Price Valid only in North America


This lamp housing design is optimized for 75W xenon arc lamps. It features a F/1.2 elliptical reflector.

Lamp Power: 75W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
3,420.00
In stock
This lamp housing design is optimized for 75W xenon arc lamps. It features a F/1.2 elliptical reflector.

Lamp Power: 75W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
3,420.00 3420.0 USD
Price Valid only in North America

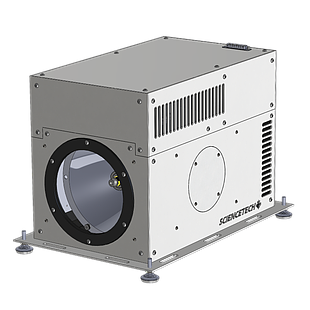

Focused beam lamp housing for 1000W xenon arc lamps. The system features an elliptical reflector for most efficient light collection.
3,850.00
Focused beam lamp housing for 1000W xenon arc lamps. The system features an elliptical reflector for most efficient light collection.
3,850.00 3850.0 USD
Price Valid only in North America


Lamp Power: 150W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 25mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

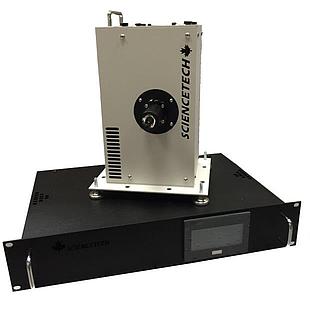

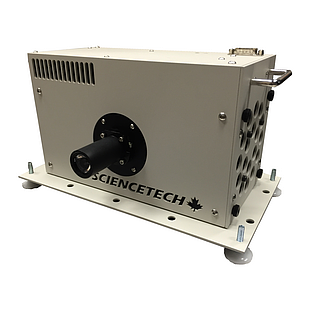

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
5,780.00
In stock
Lamp Power: 150W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 25mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
5,780.00 5780.0 USD
Price Valid only in North America


Lamp Power: 150W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
5,920.00
In stock
Lamp Power: 150W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
5,920.00 5920.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Focused
Output Beam Diameter: Focused, diameter dependent on working distance
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality focused xenon arc lamp source: power supply, arc lamp housing and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,504.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Focused
Output Beam Diameter: Focused, diameter dependent on working distance
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality focused xenon arc lamp source: power supply, arc lamp housing and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,504.00 6504.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 25mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,808.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 25mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,808.00 6808.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,950.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,950.00 6950.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Three lens system
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Three fused silica lenses in the optical assembly give least possible spherical aberration and permit maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
7,370.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Three lens system
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Three fused silica lenses in the optical assembly give least possible spherical aberration and permit maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
7,370.00 7370.0 USD
Price Valid only in North America
Copyright © Sciencetech
