    High Flux Solar Simulator


    Sciencetech's High Flux Solar Simulators (HFSS) systems are used for a variety of applications that require intense and controlled light conditions. They are essential in developing and testing solar receivers and reactors, which are used in concentrating solar power (CSP) systems to convert sunlight into thermal energy.

    These simulators are also used to test thermal energy storage systems, which store heat for later use, ensuring they can effectively capture and release energy under different conditions.

    Additionally, HFSS are employed in materials science to study the behavior of materials under high-temperature and high-radiative flux conditions.

    They are also used in aerospace to test thermal protection systems for space vehicles, ensuring these materials can withstand the extreme conditions of space travel.

    By providing a stable and repeatable light source, HFSS enable researchers to conduct experiments without the variability caused by natural sunlight, leading to more accurate and reliable results.



    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

    A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 200-240 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

    Power Requirements:
    200-240 VAC, 50/60 Hz, 31 A , 3 phase (200-240 V phase-to-phase), 4 wires (3P+E)
    Includes hardwired 6 ft power cable with L15-50P termination.
    Requires a minimum 40 A, 3 phase circuit, 200-240 VAC (phase-phase), 4 wires (3P+E)
    $ 36,999.00
    A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 200-240 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

    Power Requirements:
    200-240 VAC, 50/60 Hz, 31 A , 3 phase (200-240 V phase-to-phase), 4 wires (3P+E)
    Includes hardwired 6 ft power cable with L15-50P termination.
    Requires a minimum 40 A, 3 phase circuit, 200-240 VAC (phase-phase), 4 wires (3P+E)
    $ 36,999.00 36999.0 USD
    Price Valid only in North America

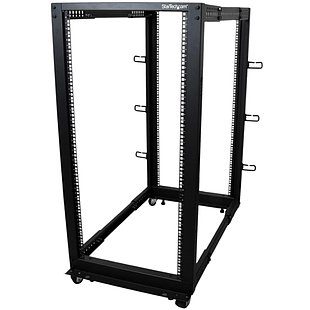

    A power supply rack for Sciencetech’s High Flux Solar Simulator system. Each rack can hold up to four power supplies.
    $ 749.00
    A power supply rack for Sciencetech’s High Flux Solar Simulator system. Each rack can hold up to four power supplies.
    $ 749.00 749.0 USD
    Price Valid only in North America

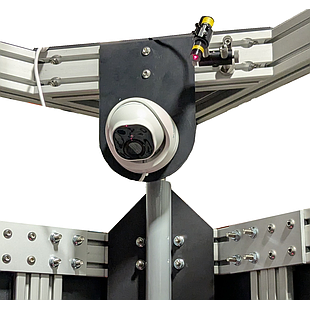

    The High Flux Solar Simulator (HFSS) Technology Package is a great addition to an HFSS system. It includes:
    - A network switch for connecting multiple power supplies and accessories (maximum five power supplies plus two accessories) to a single control computer.
    - A webpage-based camera for safely viewing inside the HFSS support structure
    - Alignment lasers for easily locating the target plane of the radiative modules.
    $ 949.00
    The High Flux Solar Simulator (HFSS) Technology Package is a great addition to an HFSS system. It includes:
    - A network switch for connecting multiple power supplies and accessories (maximum five power supplies plus two accessories) to a single control computer.
    - A webpage-based camera for safely viewing inside the HFSS support structure
    - Alignment lasers for easily locating the target plane of the radiative modules.
    $ 949.00 949.0 USD
    Price Valid only in North America

    A height-adjustable stand for downward-facing operation of Sciencetech’s line of High Flux Solar Simulators (HFSS). This stand holds up to four radiative modules (168-9000) when the High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022) is included. Each radiative module requires one High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022). The support structure includes two access doors, each with its own viewport; one on the front and one on the back. It also includes four access panels on each side of the support structure to allow for routing large cables, pipes, etc. in and out of the support structure based on the experiment to be conducted with the HFSS system.

    Key Dimensions
    Maximum Outer Dimensions (H x W x D)[mm]: 2913 x 1728 x 1728
    Interior Dimensions (H x D)[mm]: 1550 x 1550
    Four Access Panel Dimensions (H x W)[mm]: 558 x 1054, 305 x 1054, 177 x 1054, 177 x 1054
    Target Plane Location (no rotation on each radiative module, normal incidence): 420-825 mm off the floor
    Target Plane Location (all lamps angled to same focal point, 18.1° incidence): 505-910 mm off the floor
    $ 23,699.00
    A height-adjustable stand for downward-facing operation of Sciencetech’s line of High Flux Solar Simulators (HFSS). This stand holds up to four radiative modules (168-9000) when the High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022) is included. Each radiative module requires one High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022). The support structure includes two access doors, each with its own viewport; one on the front and one on the back. It also includes four access panels on each side of the support structure to allow for routing large cables, pipes, etc. in and out of the support structure based on the experiment to be conducted with the HFSS system.

    Key Dimensions
    Maximum Outer Dimensions (H x W x D)[mm]: 2913 x 1728 x 1728
    Interior Dimensions (H x D)[mm]: 1550 x 1550
    Four Access Panel Dimensions (H x W)[mm]: 558 x 1054, 305 x 1054, 177 x 1054, 177 x 1054
    Target Plane Location (no rotation on each radiative module, normal incidence): 420-825 mm off the floor
    Target Plane Location (all lamps angled to same focal point, 18.1° incidence): 505-910 mm off the floor
    $ 23,699.00 23699.0 USD
    Price Valid only in North America

    An E-STOP button add-on for Sciencetech’s High Flux Solar Simulator systems. This E-STOP can be connected to up to four radiative modules.
    $ 649.00
    An E-STOP button add-on for Sciencetech’s High Flux Solar Simulator systems. This E-STOP can be connected to up to four radiative modules.
    $ 649.00 649.0 USD
    Price Valid only in North America

    A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 380-480 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

    Power Requirements:
    380-480 VAC, 50/60 Hz, 17.4-14.2 A, 3 phase (380-480 V phase-to-phase), 4 wires (3P+E)
    Includes one L16-30 power cable.
    $ 36,999.00
    A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 380-480 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

    Power Requirements:
    380-480 VAC, 50/60 Hz, 17.4-14.2 A, 3 phase (380-480 V phase-to-phase), 4 wires (3P+E)
    Includes one L16-30 power cable.
    $ 36,999.00 36999.0 USD
    Price Valid only in North America

    An add-on to Sciencetech’s High Flux Solar Simulator Radiative Modules to provide lateral, rotational, and tilt adjustment of a single radiative module. This add-on is designed to interface with Sciencetech’s line of High Flux Solar Simulator Downward Facing Stands (i.e. 168-8120). Please add one HFSS-ADJUST-DF for each Radiative Module (i.e. 168-9000 or 168-9001) as well as one total HFSS stand (i.e. 168-8120).

    Lateral Adjustment [mm]: ±31
    Rotational Adjustment [°]: ±15
    Tilt Adjustment [°]: ±30

    Please note that the maximum lateral, rotational, and tilt adjustments achievable may be limited further depending on the system configuration. Please discuss your specific requirements with a Sciencetech technical representative.
    $ 3,099.00
    An add-on to Sciencetech’s High Flux Solar Simulator Radiative Modules to provide lateral, rotational, and tilt adjustment of a single radiative module. This add-on is designed to interface with Sciencetech’s line of High Flux Solar Simulator Downward Facing Stands (i.e. 168-8120). Please add one HFSS-ADJUST-DF for each Radiative Module (i.e. 168-9000 or 168-9001) as well as one total HFSS stand (i.e. 168-8120).

    Lateral Adjustment [mm]: ±31
    Rotational Adjustment [°]: ±15
    Tilt Adjustment [°]: ±30

    Please note that the maximum lateral, rotational, and tilt adjustments achievable may be limited further depending on the system configuration. Please discuss your specific requirements with a Sciencetech technical representative.
    $ 3,099.00 3099.0 USD
    Price Valid only in North America

    A single borofloat output window for an HFSS Radiative Module. This output window easily attaches to a radiative module using four screws. It does not completely seal the output of the radiative module due to the requirement for forced air cooling of the arc lamp, but it will protect the interior of the module from direct contamination.
    $ 949.00
    A single borofloat output window for an HFSS Radiative Module. This output window easily attaches to a radiative module using four screws. It does not completely seal the output of the radiative module due to the requirement for forced air cooling of the arc lamp, but it will protect the interior of the module from direct contamination.
    $ 949.00 949.0 USD
    Price Valid only in North America
