Accessories / Parts

TC-1000-120 is a compressor-refrigerant recirculating liquid chiller rated at 900W @25°C liquid & ambient. Chiller control is based on one of four configurable temperature set-points, including the option to lock liquid to ambient for avoiding condensation or to an external K-type thermocouple sensor (not included).

Coolant flow rate, temperature, and reservoir level are monitored.

Cooling capacity: 900W @ 25°C liquid/ambient
Temperature options: liquid set-point, external thermocouple set-point, liquid and ambient delta-T, external thermocouple and ambient delta-T; toggle °C/°F
Designed for an operational temperature range of 0-40°C (ambient and liquid)
Power input: 120VAC, 60Hz (Only)

This item contains all the necessary tubing and connections to connect to any of Sciencetech -L (liquid cooled) cell chucks.

Keep unit upright at all times, and for at least 24 hours before applying power to ensure sufficient oil reaches the compressor.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 3,499.00

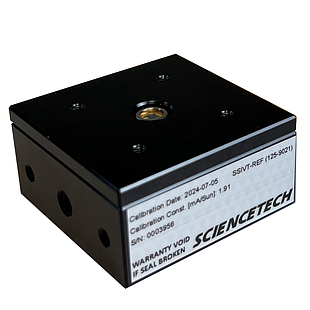

The Sciencetech SSIVT-REF single element silicon detector is designed to be used for monitoring and verifying the Sun level of solar simulators. The SSIVT-REF detector is used effective in sensing wavelengths between 190 nm and 1100 nm and is calibrated at Sciencetech against a NIST traceable calibrated reference cell. The SSIVT-REF detector can be used with Sciencetech SSIVT measurement system or Sciencetech SOL-METER solar power meter. Comes with a detachable cable with 4 banana plugs for connecting to a measurement device such as a source meter or Sciencetech SOL-METER. CE compliant.


Rise time: 0.2 μs
Effective active area: 5.7 sqmm
Dimensions: 50.8 x 50.8 x 25.4 mm

$ 625.00

A motorized 6 position filter wheel capable of holding 25mm (1") filters (either square or circular). The filter wheel connects via USB 2.0 to a computer (USB cable included). The filter wheel software includes a stand alone application but also includes development examples for integrating the filter wheel with LabView or C++ software.

Please select the flush mount option for use with Sciencetech monochromator slits, and select the lens tube mount option for all other cases with Sciencetech parts. For custom applications, please contact our sales team to provide more information on your specific application.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 2,050.00

Neutral density wire mesh filter, transmitting a percentage of incident light, mounted in an FT style holder. These filters are robust to high-powered applications (such as solar simulation), do not affect the non-uniformity of the target, and transmission is spectrally flat. Please select the desired transmission percentage for your application.

Each filter is mounted in an FT-style filter holder.
Each filter has a 73 mm clear aperture.

$ 330.00

An AM0 filter compatible with Sciencetech solar simulators, including FT-style filter holder. Filter clear aperture is a diameter of 76 mm (3"). Please select the product line the filter is intended to be used with to ensure the proper spectral output.

AM0 simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

$ 1,380.00

An AM1.5D filter compatible with Sciencetech solar simulators, including FT-style filter holder. Filter clear aperture is a diameter of 76 mm (3"). Please select the product line the filter is intended to be used with to ensure the proper spectral output.

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.

Please note that for some simulator models the same filter is used to supply an AM1.5G spectral match. Purchasing separate AM1.5G and AM1.5D filters for the same model simulator may not provide a different spectrum.

$ 1,380.00

An AM1.5G filter compatible with Sciencetech solar simulators, including FT-style filter holder. Filter clear aperture is a diameter of 76 mm (3"). Please select the product line the filter is intended to be used with to ensure the proper spectral output.

If the filter is not intended to be used with a Sciencetech solar simulator, the product line "None" may be selected, but the spectral output cannot be guaranteed when paired with a non-Sciencetech source.

AM1.5G simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes both direct light from the sun, and the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the total radiation, known as global radiation, which reaches the ground.

$ 1,380.00

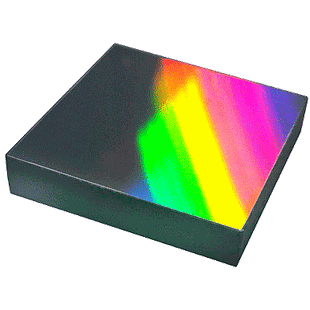

Grating for use with 9040, 9490, and 9150 monochromators (including imaging, single, and double monochromator configurations). A grating holder is included with each grating, compatible with the grating mount. Gratings cannot be removed from their holders once installed, the grating-holder combination can be removed from the grating mount in the monochromator.

Grating size options for the 9040, 9490, and 9150 series are:
64 × 64 mm
84 × 84 mm
102 × 102 mm

For single monochromator configurations, please select one grating. Additional gratings can be purchased to cover different wavelengths.
For double monochromator configurations, please select a quantity of two identical gratings. These gratings must be the same for the double monochromator configuration to operate correctly. Additional gratings can be purchased to cover different wavelengths, if purchased in pairs.

Custom gratings can be accommodated. If you intend to use a custom grating or don't see the option you require, please speak with a Sciencetech Technical Representative.

Contact for Pricing

The SCI-MO reference cell is a robust PCB-mounted solar cell with an active area of 22 × 7mm. The SCI-MO is intended to be used as a reference monitor for determining solar simulator sun level. These reference cells are calibrated for 1 Sun AM1.5G using a Sciencetech Class AAA (ASTM E927-19) solar simulator. Two calibration values (Isc) in mA/Sun and mV/Sun are provided. The SCI-MO is used as the reference cell in PTS-series instruments.

Readout options for the SCI-MO require accessories. They are:
Current (in mA): in no load mode, requires a source meter (such as in SSIVT-series current-voltage measurement systems) to read out.
Voltage (in mV): in loaded mode, requires a simple voltmeter/multimeter (such as MULTIMETER), or a source meter (such as in SSIVT-series current-voltage measurement systems) to read out.
Suns: in no load mode, requires SOL-METER to read out (using current, an integrated load resistor, and a pre-loaded calibration value to display Suns).

Readout accessories, such as SOL-METER, MULTIMETER, and SSIVT-series instruments are sold separately.

The reference cell can be switched into loaded or unloaded mode via a surface mounted switch on the top of the detector PCB. A calibration value is provided for each mode of operation.
A disconnectable 1.2m long cable assembly with 4 color coded banana plugs is provided with each device.

The SCI-MO reference cell is RoHS compliant.

$ 379.00

Sciencetech COM objects are intended to be used by programmers to control Sciencetech modular equipment. SciencetechCOM is a standalone package that allows you to create your own application to control Sciencetech equipment. Each module will have its own set of functionalities and you will find more details about the module operation in your SciSpec user manual. The SciencetechCOM package includes control libraries for all supported Sciencetech hardware

C++ and Python example files are provided. Use C++ or Python 64bit on Windows.
32bit installation is available.
For use with MS Windows 7 and 10. Not tested in Windows 8

$ 610.00

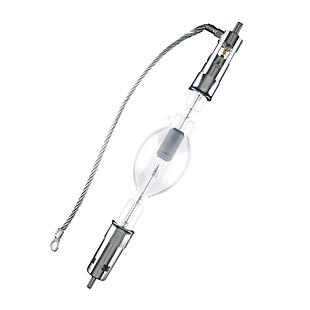

6500W Xenon arc lamp
Ozone Free
Compatible with Sciencetech Ultra-High Power Lamp Houses.

Nominal Wattage 6500 W
Nominal Voltage 39 V
Current (A) 165 A
Current Control Range (A) 133-173 A

Physical attributes
Base Anode SFAx30-14
Base Cathode SFa30-7.9

$ 2,826.00

The SCC-VPME1 is a quiet vacuum pump intended for use with Sciencetech's SCC-series cell chucks. The pump is capable of providing vacuum hold down for cells up to 30 × 30 cm (12" × 12"). It runs quietly, minimizing disruption to the testing environment. This pump is required for cells over 90 × 90 mm (3.5" × 3.5").

Maximum cell size: 30 × 30 cm (12" × 12")
Max vacuum (torr): 75
Noise level @50Hz (dBA) = 45

Contact for Pricing

$ 2,014.00

.

$ 375.00

.

$ 375.00

Sciencetech's PG-HG500 to PS-HG1600 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The PS-HG500-A-T is designed to power 500 W Hg arc lamps. The PS-HG500-A-T Power Supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
100-240 VAC input, 9.1-3.8 A, 50/60 Hz

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 6,805.00

Sciencetech's PS-HG1600-A-T series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The PS-HG1600-A-T is designed to power 1600 W Hg arc lamps. The PS-HG1600-A-T power supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock
Please see the technical datasheet for more information.

Power Requirements
200-240 VAC input, 12.1-9.0 A, 50/60 Hz, Fused 15 A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 7,100.00

Sciencetech's PS-HG500 to PS-HG-1600 series power supplies are designed to work with Sciencetech XLH-series lamp houses. Includes a USB to serial adapter.
The PS-HG1000-A-T is designed to power 1000 W Hg arc lamps. The PS-HG1000-A-T power supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
200-240 VAC input, 7.5-6.3 A, 50/60 Hz, Fused 15 A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 6,880.00

.

$ 375.00

Target size: 500x500mm
DAQ: 16 bit
Detector size : 20x20mm
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 800x800x125

$ 7,475.00
