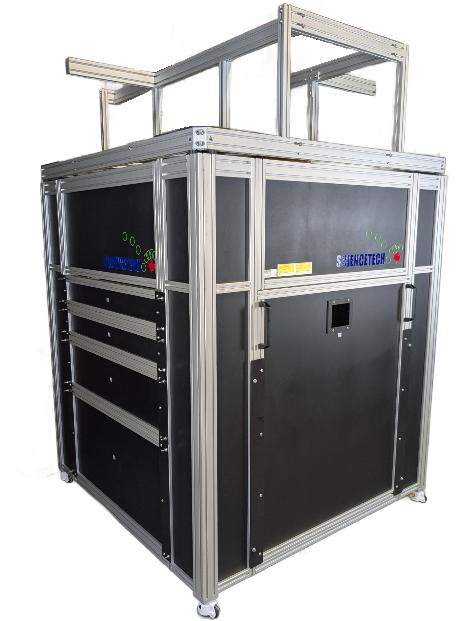

(HFSS-DFSTAND-4A) High Flux Solar Simulator Downward Facing Stand, 4 Radiative Modules, Height Adjustable

A height-adjustable stand for downward-facing operation of Sciencetech’s line of High Flux Solar Simulators (HFSS). This stand holds up to four radiative modules (168-9000) when the High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022) is included. Each radiative module requires one High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022). The support structure includes two access doors, each with its own viewport; one on the front and one on the back. It also includes four access panels on each side of the support structure to allow for routing large cables, pipes, etc. in and out of the support structure based on the experiment to be conducted with the HFSS system.

Key Dimensions
Maximum Outer Dimensions (H x W x D)[mm]: 2913 x 1728 x 1728
Interior Dimensions (H x D)[mm]: 1550 x 1550
Four Access Panel Dimensions (H x W)[mm]: 558 x 1054, 305 x 1054, 177 x 1054, 177 x 1054
Target Plane Location (no rotation on each radiative module, normal incidence): 420-825 mm off the floor
Target Plane Location (all lamps angled to same focal point, 18.1° incidence): 505-910 mm off the floor
