The XPOT2 as a high precision auxiliary potentiostat adds an additional channel to the ZENNIUM series potentiostat for bi-potentiostat functionality. The combination of ZENNIUM and XPOT2 enables rotating ring disk electrode (RRDE) measurements or hydrogen permeation in Devanathan cells. The XPOT2 provides up to ±500 mA output current and up to ±25 V compliance voltage. The XPOT2 contains 9 current ranges which enable it to carry out outstandingly precise and accurate measurements.

In addition, the XPOT2 potentiostat can also be used as a standalone potentiostat and can be controlled by Zahner-Lab.

The Zahner's potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.

-Standalone operation and possible integration in a Python work environment
-Extension for bipotentiostat applications

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

The Zahner PAD4 card provides 4 additional voltage or current input channels which can be used for parallel DC or EIS measurements on segments connected in series. The PAD4 card is an optimal addition to the ZENNIUM potentiostat for stack measurements or segmented cells.

The PAD4 card is used in the fuel cell, electrolyzer stack and battery-pack investigations. In addition, it is used in measurements involving a reference electrode in a 3-electrode cell connection scheme.

Parallel EIS measurements on each segment in a stack enable highly detailed measurement system behavior either in-plane or throughout the stack. Up to 17 EIS signals can be recorded in a frequency range of 10 µHz to 250 kHz. 18-bit AD converters ensure high-quality EIS data.

Overview of PAD4 card variants:
PAD4-HC: for investigation of individual cells in a stack of up to ±100V
PAD4-LC: for investigation of segmented cells in a stack of up to ±25 V
PAD4-HZ: for investigation of batteries with high-resistance reference electrodes or high-resistance objects

-Parallel EIS stack measurements
-Up to 17 channels for ZENNIUM X
-Up to 5 channels for ZENNIUM PRO
-Customizable voltage range for PAD4 channels
-Incorporated with external potentiostats and electronic loads
-3 different models for stacks and segmented cells

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

Zahner's CIMPS is a highly dynamic LED-based system with an active light feedback loop that ensures a controlled and constant light intensity during the photoelectrochemical or photovoltaic measurements. Fast light sources enable dynamic photoelectrochemical measurements like IMPS/IMVS. The robust control of light intensity allows accurate IMPS/IMVS measurements, giving the system its iconic name ""controlled intensity-modulated photo spectroscopy (CIMPS)"". Further information on our light feedback loop and its benefits is provided in the manuscript ""C in CIMPS"".

CIMPS-pro Photo-Electrochemical Workstation
-Zennium pro workstation
-Frequency range: 10 µHz to 8 MHz
-Max. current: ± 3 A
-Controlled voltage: ± 15 V / ± 5 V
-Compliance voltage: ± 28 V
-HDP technology for outstanding dynamic accuracy
-ADF technology for high-precision high-speed CV (option)
-Floating & grounded mode switchable
-5 slots for additional hardware modules
-EPC42 extension card for controlling PP212
-LED potentiostat: PP212
-Current range: ± 10 A
-Voltage range: ± 20 V
-Frequency range: DC - 200 kHz
-LDA2 Light source setup
-Optical bench
-Calibrated feedback sensor
-LSW-1 plug-in LED
-CIMPS aligner bar
-ThalesXT software package
-TestBox, SIMPECC, CIMPS cable set, calibration data
-System is controlled by a Windows8/10-PC (not included)

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

The MIO addon card provides four analog output channels with a voltage range of ±10 V. In addition the MIO card is also equipped with four isolated digital input and four isolated digital relay output channels. The MIO addon card is used to receive and send trigger signals between the ZENNIUM potentiostats and a third party device.

-Remote Integration possible
-Can be controlled in Thales or script software

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

Zahner's TEMP-U2 enables the temperature measurements by direct connection of two thermocouples. Two additional voltage input channels are available and provide the opportunity to record additional variables during the electrochemical measurement. For example, the voltage channels can be configured with a pH electrode or a pressure chamber to record the pH value or chamber pressure during the measurement.

Unless otherwise requested, the TEMP-U is delivered pre-configured for two NiCrNi (type K) thermocouples and two voltage inputs in the range of ±8 V.

-2 thermocouple inputs
-2 analog voltage inputs

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

Electrochemical Workstation

The Zennium pro is a modular electrochemical workstation including a potentiostat / galvanostat and a frequency response analyzer (FRA) unit with a frequency range up to 8 MHz at ±3 A and at a compliance voltage of up to ±28 V. With an input impedance of more than 10 TΩ || 5 pF the workstation is suitable for a wide range of electrochemical tasks.

The electrochemical measurement capabilites of the ZENNIUM pro workstation can be extented by adding up to five additional plug-in cards such as TEMP/U or EPC42. For example, the latter makes it possible to control up to four additional external devices such as power potentiostats of the PP/XPot-series (boosters) or electrical loads of the EL-series. Thus, our Zennium pro electrochemical workstation is able to provide even more advanced measurement methods and allows us to satisfy any of your electrochemical research requirements.

Frequency range: 10 μHz to 8 MHz
Max. current: 3 A
Controlled voltage: 15 V / 5 V
Compliance voltage: 28 V
HDP technology for outstanding dynamic accuracy
ADF technology for high-precision/high-speed CV (option)
Floating & grounded mode switchable 5 slots for additional hardware modules
Accessories: TestBox, cell cable set, calibration data
ThalesXT software package
System is controlled by a Windows7/8/10-PC (not included)

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

This standard IR absorbing water filter is equipped with Fused Quartz windows which transmit UV light. This allows extended UV applications. Horizontal operation only.
Aluminum has superior heat tansfer to Stainless Steel but should not be used in corrosive environments.

$ 1,785.00

This standard optical liquid filter is equipped with fused quartz windows (270 to 2500 nm) which transmit UV light and can be used for UV applications. It can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Aluminum provides superior heat transfer compared to stainless steel but should not be used in corrosive environments.

$ 1,816.00

Sciencetech's touchscreen 75W xenon arc lamp power supply designed for use with Sciencetech's LH- series lamp housing.
This power supply features a 7W2 connection so that only one cable is required to supply all lamp power and communication to the lamp housing. This power supply also has a shutter connection and RS232 connection for electronic control of a shutter or computer control of the power supply if those optional accessories are purchased.

601 series power supplies accept 110-240VAC input. Includes a USB to serial adapter.
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Features
-single 7W2 connection for lamp power, cooling, and communication to lamp house
-easy-to-use touchscreen interface
-shutter and exposure control (if electronic shutter upgrade is ordered)
-lamp start and time log
-safety interlocks

Optional Upgrades
-RS232 computer control with GUI
-temperature monitor
-remote lamp status monitoring
-auto lamp starting

$ 2,767.00

Sciencetech's touchscreen 150W xenon arc lamp power supply designed for use with Sciencetech's LH- series lamp housing.
This power supply features a 7W2 connection so that only one cable is required to supply all lamp power and communication to the lamp housing. This power supply also has a shutter connection and RS232 connection for electronic control of a shutter or computer control of the power supply if those optional accessories are purchased.

601 series power supplies accept 110-240VAC input.
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
Includes a USB to serial adapter.

Features
-single 7W2 connection for lamp power, cooling, and communication to lamp house
-easy-to-use touchscreen interface
-shutter and exposure control (if electronic shutter upgrade is ordered)
-lamp start and time log
-safety interlocks

Optional Upgrades
-RS232 computer control with GUI
-temperature monitor
-remote lamp status monitoring
-auto lamp starting

$ 3,460.00

This lamp housing design is optimized for 75W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 75W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,977.00

This lamp housing design is optimized for 150W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 150W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,977.00

This lamp housing design is optimized for 300W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 300W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,977.00

This lamp housing design is optimized for 75W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 75W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,700.00

Sciencetech's touchscreen 300W xenon arc lamp power supply designed for use with Sciencetech's LH- series lamp housing.
This power supply features a 7W2 connection so that only one cable is required to supply all lamp power and communication to the lamp housing. This power supply also has a shutter connection and RS232 connection for electronic control of a shutter or computer control of the power supply if those optional accessories are purchased.

601 series power supplies accept 110-240VAC input.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Includes a USB to serial adapter.

Features
-single 7W2 connection for lamp power, cooling, and communication to lamp house
-easy-to-use touchscreen interface
-shutter and exposure control (if electronic shutter upgrade is ordered)
-lamp start and time log
-safety interlocks
-RS232 software GUI included, shown below

Optional Upgrades
-temperature monitor
-remote lamp status monitoring
-auto lamp starting

$ 3,460.00

This lamp housing design is optimized for 150W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 150W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-150 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,700.00

This lamp housing design is optimized for 300W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 300W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,700.00

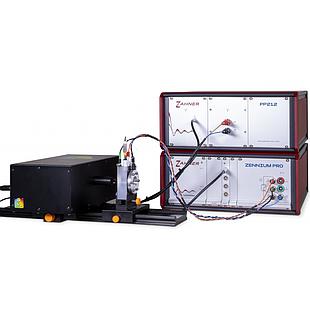

CIMPS-QE/IPCE is an extended CIMPS system with the capability to measure quantum efficiency (QE) or incident photon to current efficiency (IPCE). The CIMPS-QE/IPCE extension consists of an easily mountable and portable tuneable light source (TLS). The TLS contains dynamic LEDs, a monochromator and a feedback control which allow accurate light illumination during the measurements without any warm up time.

Multiple LEDs in the TLS provide higher light intensity across the broad wavelength range and longer operational lifetime as compared to any traditional Xe-lamp. This high light intensity is crucial for IPCE measurements on DSSC, perovskites or organic solar cells or photoelectrodes.

Like the modular LEDs used in the CIMPS system, the TLS is also able to carry out sine-wave modulation for IPCE measurements and does not require a mechanical chopper. During IPCE measurements, a special indicator is also provided which indicates if the measurement parameters are optimum for IPCE measurement or not. Further information about IPCE measurement is provided in our application note CIMPS-IPCE.

Fully Integrated QE/IPCE Photo-Electrochemical Workstation
-Zennium pro workstation
-Frequency range: 10 µHz to 8 MHz
-Max. current: ± 3 A
-Controlled voltage: ± 15 V / ± 5 V
-Compliance voltage: ± 28 V
-HDP technology for outstanding dynamic accuracy
-ADF technology for high-precision/ high-speed CV (option)
-Floating & grounded mode switchable
-5 slots for additional hardware modules
-EPC42 extension card for controlling PP212
-LED potentiostat: PP212
-Current range: ± 10 A
-Voltage range: ± 20 V
-Frequency range: DC - 200 kHz
-LDA2 Light source setup
-Optical bench
-Calibrated feedback sensor
-LSW-1 plug-in LED
-CIMPS aligner bar
-Tunable light source TLS03
-Wavelength range: 365-1020 nm
-typ. res.: 1 nm@430-720 nm, 15 nm@365-420 nm, 40 nm@735-1020 nm
-typ. line width: 10 nm@365-720 nm, 50 nm@735-1020 nm
-Calibration for 1 mm distance
-Calibration for PECC-2 required, optional
-ThalesXT software package
-TestBox, SIMPECC, CIMPS cable set, calibration data
-System is controlled by a Windows8/10-PC (not included)

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

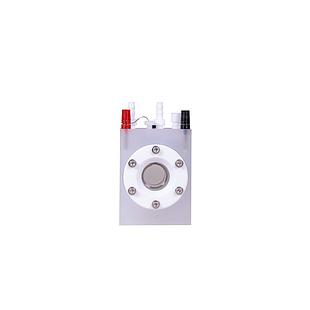

Photo-Electrochemical Cell

The PECC-1/PECC-2 are specially tailored for testing electrode materials with photoelectrochemical techniques. Several mounting options for samples offer flexibility for various tasks.

Front window 20 mm diam., BK7 or quartz
Solid material: Teflon
Ag/AgCl reference electrode & Pt counter-electrode
Cable set
Dimensions: 60 x 25 x 80 mm

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

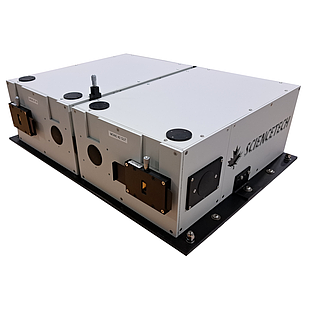

Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.

$ 41,999.00
