This lamp housing design is optimized for 50 W QTH lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 50 W
Reflector Type: Elliptical
Lamp Type: QTH (included)
Power Supply: 6PS-QT250-A-T (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,755.00

This lamp housing design is optimized for 250 W QTH lamps. It features a spherical back reflector.

Lamp Power: 250 W
Reflector Type: Spherical
Lamp Type: QTH (included)
Power Supply: PS-QT250-A-T (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,475.00

This lamp housing design is optimized for 100 W QTH lamps. It features a spherical back reflector.

Lamp Power: 100 W
Reflector Type: Spherical
Lamp Type: QTH (included)
Power Supply: PS-QT250-A-T (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,475.00

This lamp housing design is optimized for 50 W QTH lamps. It features a spherical back reflector.

Lamp Power: 50 W
Reflector Type: Spherical
Lamp Type: QTH (included)
Power Supply: PS-QT250-A-T (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,475.00

This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5G filters (included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 20 cm (8") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 1600 W ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: PS-XE1600-A-T adjustable touchscreen supply

Includes: 20 cm (8") diameter UV transmitting Fresnel lens, igniter.

Power Requirements:
200-240 VAC input, 12.1-9.0 A, 50/60 Hz, Fused 15 A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter.

* Systems can be built for downward-facing operation if specified at time of order.

$ 32,500.00

This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5G filters (included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 28 cm (11") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 3.0kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 621-3.0k adjustable touchscreen supply

Includes: 30 cm (12") diameter UV transmitting Fresnel lens, igniter.

200-240VAC, 20A
Requires 1 NEMA 6-30P power cord

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
* Systems can be built for downfacing operation if specified at time of order

$ 44,900.00

.

$ 375.00

This lamp housing design is optimized for 1000 W QTH lamps. It features a spherical back reflector.

Lamp Power: 1000 W
Reflector Type: Spherical
Lamp Type: QTH (included)
Power Supply: PS-QT2500-A-T (sold separately) or PS-QT1000-F-M (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech XLH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the XLH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 4,190.00

The 9030DS consists of two 100 mm scanning monochromators placed in series in subtractive mode. Bandpass is determined by the width of an intermediate slit, but the 9030DS has a net output dispersion of zero because the monochromators are optically coupled so that the dispersion of the second grating cancels that of the first. This leads to homogenized wavelengths at the output port - there is no spectrum, only a single undispersed slit image - which allows the unit to act as a tunable bandpass or notch filter.

Stray light of all sorts is drastically reduced in a double monochromator, and in the 9030DS it is further minimized by the use of concave holographic gratings. It is ideal for applications where stray light is a problem - where there may be a strong scattered background, such as in spectroradiometry, Raman, or measurements of solar radiation.

The 9030DS can be used as a tunable notch filter to remove one particular wavelength while allowing all others over the bandpass to pass through, making it an ideal instrument to pre-filter out the strong laser excitation wavelength in a fluorescence or Raman system so that the weaker output signals can be observed.

The 9030DS is a fully integrated unit with the two diffraction gratings coupled mechanically for accurate positioning, adjusted manually using a thumb-wheel. It can be upgraded to be motorized and controlled by a computer with the 9030 Motorized Upgrade. Only one motor and drive unit is required for both monochromators, enabling control via Sciencetech Sci-Mono Active-X library or full featured Sci-Spec software.

The Model 9030DS can also be used to pass or filter out several selected wavelengths by using a custom intermediate multi-slit mask instead of a single width intermediate slit. Please contact a Sciencetech Applications Specialist for such custom wavelength filtering.

Mirror coatings have been chosen for this model to enhance performance in the UV-VIS region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a UV to VIS range to pair with the UV/VIS mirror coatings on this model. Two gratings are required.

Please add a minimum of three slits (for the input, output, and intermediate position) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
Available slits include:
Model Slit Width
SF005 - 50 μm
SF010 - 100μm
SF025 - 250μm
SF050 - 500μm
SF100 - 1mm
SF200 - 2mm
SF300 - 3mm

$ 9,399.00

The 9030DA double additive monochromator consists of two 9030 monochromators placed in series. Stray light is drastically reduced in a double monochromator, and in the 9030DA it is further minimized by the use of concave holographic gratings. The inbound light is dispersed by the first grating and again by the second. Both gratings rotate simultaneously in the same direction, and the monochromators are coupled so that the dispersion is double that of a single 9030 monochromator. Bandpass is half of the corresponding 9030 monochromator for the same output slit, and resolution using a 100 µm slit is 0.4 nm.

Mirror coatings have been chosen for this model to enhance performance in the UV-VIS spectral region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a UV to VIS range to pair with the UV/VIS mirror coatings on this model. Two gratings are required.

The 9030DA is a fully integrated unit with the two diffraction gratings coupled mechanically for accurate positioning, adjusted manually using a thumb-wheel. It can be upgraded to be motorized and controlled by a computer with the 9030 Motorized Upgrade. Only one motor and drive unit is required for both monochromators, enabling control via Sciencetech Sci-Mono Active-X library or full featured Sci-Spec software.

Please add a minimum of three slits (for the input, output, and intermediate position) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
Available slits include:
Model Slit Width
SF005 - 50 μm
SF010 - 100μm
SF025 - 250μm
SF050 - 500μm
SF100 - 1mm
SF200 - 2mm
SF300 - 3mm

$ 9,399.00

.

$ 375.00

The Sciencetech 9030 monochromator is a compact, single grating, scanning monochromator with 100 mm focal length (both output and input). It has a manual wavelength selector dial with an optional external motor drive for computerized control. The compact design is made possible by its Seya-Namioka optical layout, using a single holographic concave grating and f/3.2 aperture. The input and output ports are purposely placed optically in-line, making it a simple addition to a straight line beam in an optical system. Being a scanning monochromator, it does not have a flat output field and hence cannot be operated as a spectrograph with a multi-channel detector mounted at the output port. However, it can be used as an excitation wavelength tunable light source.

Mirror coatings have been chosen for this model to enhance performance in the UV-VIS region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a UV to VIS range to pair with the UV/VIS mirror coatings on this model.

Please add a minimum of two slits (for the input and output) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
Available slits include:
Model Slit Width
SF005 - 50 μm
SF010 - 100μm
SF025 - 250μm
SF050 - 500μm
SF100 - 1mm
SF200 - 2mm
SF300 - 3mm

$ 3,639.00

Sciencetech's PG-HG500 to PS-HG1600 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The PS-HG500-A-T is designed to power 500 W Hg arc lamps. The PS-HG500-A-T Power Supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
100-240 VAC input, 9.1-3.8 A, 50/60 Hz

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 6,805.00

Sciencetech's PS-HG1600-A-T series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The PS-HG1600-A-T is designed to power 1600 W Hg arc lamps. The PS-HG1600-A-T power supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock
Please see the technical datasheet for more information.

Power Requirements
200-240 VAC input, 12.1-9.0 A, 50/60 Hz, Fused 15 A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 7,100.00

Sciencetech's PS-HG500 to PS-HG-1600 series power supplies are designed to work with Sciencetech XLH-series lamp houses. Includes a USB to serial adapter.
The PS-HG1000-A-T is designed to power 1000 W Hg arc lamps. The PS-HG1000-A-T power supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
200-240 VAC input, 7.5-6.3 A, 50/60 Hz, Fused 15 A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 6,880.00

.

$ 375.00

This lamp housing design is optimized for 1600 W xenon arc lamps. It features a F/2.5 elliptical reflector.

Lamp Power: 1600 W
Lamp Type: Xenon, Ozone free (included)
Reflector Type: Elliptical
Power Supply: PS-XE1600-A-T (sold separately)

All Sciencetech XLH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the XLH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 7,300.00

The 9040 is Sciencetech's 0.5 m focal length monochromator. This model of monochromator accommodates up to 3 gratings on a rotational turret to automatically scan over all gratings through software. This version can accommodate 64 x 64 mm, 84 x 84 mm, and 102 x 102 mm gratings. Please note that this product includes one slit, but does not include any additional slits or a grating, these must be purchased separately. Please speak with a technical sales member for assistance in selecting the right components for your system. SciMono is included. For Sciencetech's full feature spectroscopy software, please see SciSpec (not included).

Please see the technical datasheet for additional information.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Contact for Pricing

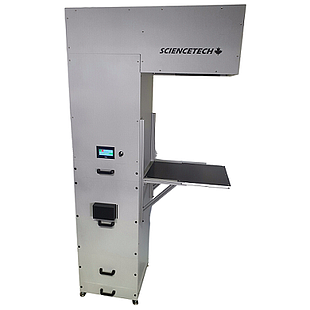

Class: AAA (ASTM E927-10)
Non-uniformity < 3% over 36 measurement locations
Collimation Angle: 2.2º half angle
Target Size: 300 × 300 mm
Working Distance: 650 mm +/- 100 mm
Includes 1600 W xenon arc lamp.
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 200-240 V, 50/60 Hz, 12.1-9.0 A, Fused 15 A, 250 V.
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 70,125.00

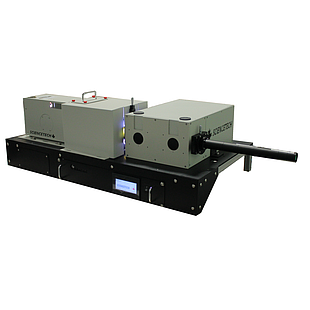

The TLS-55-XE300-SS includes all the features and functionality of a standard TLS-55-XE300 but with the addition of homogenization optics to allow for a solar simulator mode along with the tunable light source mode. This system produces homogenized monochromatic output along with homogenized broadband solar simulator output.

This complete plug and play system consists of:
- 300 W Xe lamp with housing and collection optics
- PS-XE300-A-T touchscreen power supply
- 9055 monochromator (1/4 meter)
- Filter wheel (with 4 sort-order filters)
- AM1.5G filter
- Homogenization system
- SciSpec Software is included for complete computer control of the system

Each system is pre-aligned during production and packaged with system’s test data and detailed manual.

Tunable Light Source Specifications:

- 0.2-24 nm bandpass over UV-VIS spectral range
- 0.4-48 nm bandpass over VIS-NIR
- Bandpass adjustable with included manual slits
- 300-1800 nm spectral range
- 25 mm diameter target size
- ~240 mm working distance

Solar Simulator Specifications:

- 1 Sun, AM1.5G Irradiance
- 25 mm diameter target
- Class ABA, ASTM E927-19
- 25 mm diameter target size
- ~240 mm working distance

Please note the classified area is 25 mm diameter circle. The fully illuminated area is a slightly larger hexagon.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 29,280.00
