A 6" x 6" (152.4 mm x 152.4 mm) air mass filter specifically designed for Sciencetech's Fresnel Solar Simulator Series, including filter holder. The AM0 spectrum simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

$ 4,133.00

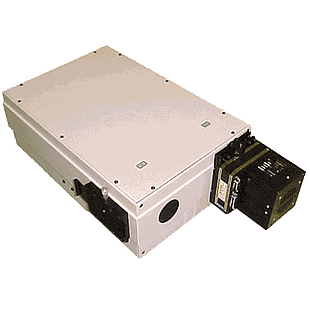

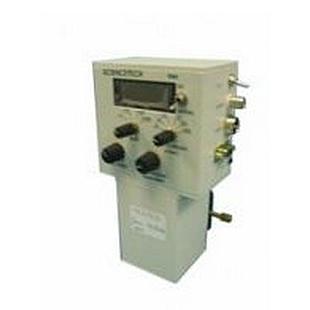

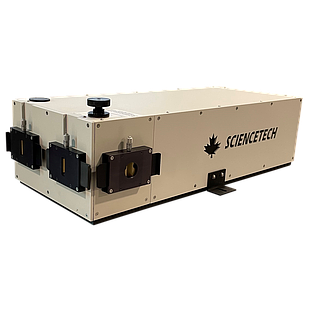

The Sciencetech 9030 monochromator is a compact, single grating scanning monochromator. It has a manual wavelength selector dial with an optional external motor drive for computerized control. The compact design is made possible by its Seya-Namioka optical layout, using a single holographic concave grating and f/3.2 aperture. A pair of removable fixed-width slits are included for the input and output ports. Additional removable slits and custom width slits can also be purchased separately.
Mirror coatings have been chosen for this model to enhance performance in the VIS-NIR region.
There are 5 grating choices (sold separately) covering from UV to near-IR; choose a VIS to NIR range to pair with the VIS-NIR mirror coatings on this model. The 9030 monochromator cannot be used as a spectrograph and therefore only accepts single channel and PMT detectors; however, it can be used as an excitation wavelength tunable light source.
The 9030 is Sciencetech's most economical monochromator with a manual control wavelength selector and removable, fixed-width slits. The input and output ports are purposely placed optically in-line, making it a simple addition to a straight line beam in an optical system. Being a scanning monochromator, it does not have a flat output field and hence cannot be operated as a spectrograph with a multi-channel detector mounted at the output port.

$ 3,539.00

SciSpec is a fully featured Windows application specifically designed to control Sciencetech stepping monochromators. SciSpec is designed to control and coordinate the operation of Sciencetech modular spectroscopy components. These include:
• stepping monochromators
• motorized filter wheels for a long pass, bandpass, short pass, or neutral density filtering
• motorized beam path selection mirrors
• beam line modulators such as motorized iris or chopper
• detectors and data acquisition components such as A/D boards, lock-in amplifiers, and source meters.
• linear diode arrays
• sources such as research arc lamps, LED, and incandescent light sources

Generally, all the components in a modular spectroscopy system must be configured by wavelength to optimize the system operation. SciSpec stores and reads system configurations to provide an optimized system operation and user experience.

Requires Windows 7/10 64bit operating system

$ 610.00

28 mm (1-1/8 inch) transmission mode S-1 photocathode, Side-on type.
Spectral Response: 400 - 1200nm
Wavelength of Maximum Response: 800nm
Minimum Effective Area (HxW): 16 x 18

Quantum Efficiency (at 25 degrees): 0.04% (Typical)
Anode Dark Current (after 30 min storage in darkness): 350 (typical), 1000 (max) nA

$ 1,946.00

Multialkali high sensitivity side-on PMT
Spectral range: 185-900 nm,
Peak sensitivity wavelength: 400nm
Glass UV Envelope

Photocathode Area Size 8 x 24 mm
Photocathode Material Multialkali
Window Material UV glass
Dynode Structure Circular-cage
Anode to Cathode Voltage 1250 V
Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 1000 V
Luminous Sensitivity Min. 140 μA/lm
Luminous Sensitivity Typ. 250 μA/lm
Radiant Sensitivity Typ. 74 mA/W
Anode Luminous Sensitivity Min. 400 A/lm
Anode Luminous Sensitivity Typ. 2500 A/lm
Anode Radiant Sensitivity Typ. 7.4e5 A/W
Anode Dark Current (after 30min.) Typ. 3 nA
Anode Dark Current (after 30min.) Max. 50 nA
Time Response Rise Time Typ. 2.2 ns
Time Response Transit Time Typ. 22 ns

$ 1,130.00

Osram brand Xenon short arc lamp,
Burning Positions: Vertical, horizontal
Envelope Diameter: 46.0 mm
Total Length: 235.0 mm
Length, cathode base to arc: 95.0mm
arc gap length: 3.8mm
Length, base to base: 205mm
Lifespan: 2500 h
Nominal wattage: 1600.00 W
Lamp voltage: 23 V
Nominal current: 65.0 A
Current control range: 50…75 A

Note a XE1600-O lamp may be used in a system previously using an XE1600-U lamp.
Due to the 3.5mm difference in cathode base to arc position, some adjustment in lamp position may be necessary.

$ 1,620.00

Ozone free
Vertical and horizontal operation
Average Life: 1500h
Light Center Length - LCL: 95 mm
Overall Length: 235 mm

$ 1,138.00

This 150W Xe bulb is recommended for Sciencetch solar simulator model SS150 only. It is a specially designed lamp to improve the uniformity of the SS150.

$ 957.00

This filter is part of Sciencetech's standard "Order Sorting Filter Set". It can be ordered separately if required.
Please see the technical datasheet for additional information.

$ 20.00

Wavelength range: 300-1200nm
Dispersion: 12nm/mm (When used with 9030 monochromator)

$ 1,450.00

.

$ 730.00

.

$ 500.00

.

$ 4,000.00

Holographic Grating
2400 lines per mm
Blazed at 250nm
Substrate Size: 110 x 110 x 16mm
Ruled Area: 102 x 102mm

$ 5,500.00

.

$ 500.00

.

$ 730.00

.

$ 3,500.00

.

$ 730.00

.

$ 500.00

.

$ 600.00
