$ 730.00

.

$ 730.00

.

$ 730.00

A Longpass filter designed for use with Sciencetech systems in the Infrared range.
Diameter (mm) 25.0
Diameter Tolerance (mm) +0.0 / -0.1
Thickness (mm) 1.0
Thickness Tolerance (mm) ±0.2
Clear Aperture (%) 90
Surface Accuracy (λ) 3 - 5
Surface Quality 60-40
Parallelism (arcminutes) <10
Transmission (%) >90
Transmission Wavelength (μm) 2.52 - 4.80
Optical Density OD >3.0
Cut-On Wavelength (μm) 2.40
Cut-On Wavelength Tolerance (μm) 0.09
Cut-On Tolerance (%) 5 of Peak Transmission
Slope Factor (%) <6
Substrate Germanium
Operating Temperature (°C) -62 to +71
RoHS Compliant

Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.

$ 416.00

.

$ 500.00

Wavelength range: 400-1600nm
Dispersion: 16nm/mm (When used with 9030 monochromator)

$ 1,593.00

The 9030DS consists of two 100 mm scanning monochromators placed in series in subtractive mode. Bandpass is determined by the width of an intermediate slit, but the 9030DS has a net output dispersion of zero because the monochromators are optically coupled so that the dispersion of the second grating cancels that of the first. This leads to homogenized wavelengths at the output port - there is no spectrum, only a single undispersed slit image - which allows the unit to act as a tunable bandpass or notch filter.
Stray light of all sorts is drastically reduced in a double monochromator, and in the 9030DS it is further minimized by the use of concave holographic gratings. It is ideal for applications where stray light is a problem - where there may be a strong scattered background, such as in spectroradiometry, Raman or UV measurements of solar radiation.
This price includes a standard set of slits including a standard intermediate (inverted) slit, but does not include gratings. We also offer customized intermediate (inverted) slits; please speak with your authorized Sciencetech technical support staff member.
Please see technical datasheet for additional information.

$ 7,799.00

Sciencetech Inc. fully reflective solar simulators have the unparalleled ability to be realigned to allow the solar simulator to be used in many different customized scenarios. This allows the end user to reconfigure the simulator to provide a larger or smaller target with varying degrees of non-uniformity and power output. Most other simulators on the market today do not allow the end user to do this.
Sciencetech Solar Simulator System Alignment Kit includes:
1 sun calibrated alignment Silicon detector, laser and holder, UV protection glasses, Sciencetech multimeter.
Can be used on all of Sciencetech's fully reflective Solar Simulators.

$ 550.00

This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 100μm.

$ 250.00

This 16bit data aquisition module features 3 analog inputs via BNC connectors. The data aquisition board is 16Bit and can measure a single channel up to 50Ks/S. An additional BNC connector for a multi-purpose digital input/output can be used to time measurements and/or send signals to external hardware such as a high speed shutter.

This module includes 1 BNC cable and 1 USB cable so that it is ready to interface with a single channel detector such as a PMT or UVSi photodiode detector (sold seperatley). For spectroscopy systems the Sci-Spec Windows application software to interface with a Windows Based PC is required and is sold separately.

multi-channel dataaquisition is possible using SciSpec software, if this option is required please speak to a Sciencetech technical sales representative.

$ 901.00

This 12-bit data aquisition module features 3 analog inputs via BNC connectors. The data aquisition board is 12Bit and can measure a single channel up to 50Ks/S. An additional BNC connector for a trigger input can be used to time measurements and/or send signals to external hardware such as a high speed shutter.

This module includes 1 BNC cable and 1 USB cable so that it is ready to interface with a single channel detector such as a PMT or UVSi photodiode detector (sold seperatley). For spectroscopy systems the Sci-Spec Windows application software to interface with a Windows Based PC is required and is sold separately.

This module is wired for single ended input for +/-10V input range. This module can be wired for differential inputs upon request.
For most single channel data aquisition options where differential inputs are not required the SCI-DAS-12USB-LS option is a suitable and economical option.

multi-channel dataaquisition is possible using SciSpec software, if this option is required please speak to a Sciencetech technical sales representative.

$ 706.00

Sciencetech’s FSSC flash solar simulator is designed to illuminate small photovoltaic devices up to 5cm × 5cm in size with up to 4000 Suns peak intensity. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately). The uniformity of the system is better than 2% at the target plane.

This product includes a flash system, power supply, and lamp. Air mass filters are sold separately (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 5cm × 5cm (up to 4000 Suns)
Working Distance: 3mm
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: Non-collimated

$ 109,620.00

The Sciencetech 9055F is a 250 mm focal length modified Czerny-Turner monochromator, with a flat field output for spectrograph use. This is designed as a faster version of the 9055 with larger optics for higher light throughput and f/2.5 aperture. All 9055Fs have a computer controlled, motorized turret for automatic grating and wavelength selection. Both input and output ports are situated on the front faceplate of the monochromator/spectrograph, and the system includes one adjustable SS80 slit at the input port. The 9055F supports up to two 64 x 64 mm (clear aperture) gratings.

Please see technical datasheet for further information.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 11,339.00

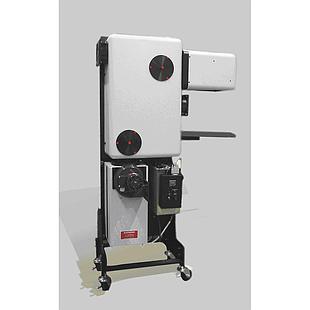

This vertical stand enables high powered fully reflective solar simulators to project their output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The beam is projected down onto a built-in sample platform where the sample such as a solar cell is placed. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).

Without the Downward Facing Vertical Stand, a Solar Simulator projects the beam parallel to the floor at cells mounted vertically.
Please speak with your authorized Sciencetech technical sales staff member to discuss any potential customization options you require.

$ 2,700.00

This vertical stand enables the SS150 fully reflective solar simulator to project its output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).

$ 1,027.00

Class: AAA
Spot size: 25 mm (1”) diameter at 1 sun*
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-A is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-300-A includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*Spot size can be increased to 50mm (2") but will reduce the specifications to Class ABA.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 7,399.00

Class: ABA
Spot size: 25 mm (1”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-150) Adjustable Power Supply with Touchscreen Control

The SF-150-B is a low cost 150W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-150-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*The SF-150B can produce up to 50mm (2") diameter spot size at 1 sun, but will reduce the specifications to Class CBA, with a working distance <25mm (1") from exit port.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 6,314.00

Class: ABA
Target Size: 50mm (2”) diameter
Working Distance: 760mm (31”) ± 25mm (1”)
Collimation: 2.5 degrees half angle
Power Supply: Sciencetech 601-150
Spectral Range 180 - 4400 nm

Sciencetech is pleased to offer the SS-150W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-150W includes air-cooled arc lamp housing, 150W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

$ 20,233.00

Class: ABA, ASTM E927-19
Target Size: 76 mm diameter
Working Distance: 450 mm
Collimation: 3 degrees, half angle
Power Supply: 611-500 (included)
Lamp: 500 W Xenon Arc Lamp, Ozone free (included)
Air Mass Filter: AM1.5G (included)

Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-0.5kW includes air-cooled arc lamp housing, 500 W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

Please speak with your authorized Sciencetech Representative for further details and a full range of options.

Requires 100-240V/ 50/60Hz, 9.1-3.8A, Fused 15A, 250V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 35,999.00

Class: ABA, ASTM E927-19
Target Size: 127 mm diameter
Working Distance: 750 mm
Collimation: 3 degrees, half angle
Power Supply: 611-1k (included)
Lamp: 1000 W Xenon Arc Lamp, Ozone free (included)
Air Mass Filter: AM1.5G (included)

Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-1.0kW includes air-cooled arc lamp housing, 1000 W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

Please speak with your authorized Sciencetech Representative for further details and a full range of options.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 34,999.00
