An E-STOP button add-on for Sciencetech’s High Flux Solar Simulator systems. This E-STOP can be connected to up to four radiative modules.

Contact for Pricing

A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 380-480 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

Power Requirements:
380-480 VAC, 50/60 Hz, 17.4-14.2 A, 3 phase (380-480 V phase-to-phase), 4 wires (3P+E)
Includes one L16-30 power cable.

Contact for Pricing

An add-on to Sciencetech’s High Flux Solar Simulator Radiative Modules to provide lateral, rotational, and tilt adjustment of a single radiative module. This add-on is designed to interface with Sciencetech’s line of High Flux Solar Simulator Downward Facing Stands (i.e. 168-8120). Please add one HFSS-ADJUST-DF for each Radiative Module (i.e. 168-9000 or 168-9001) as well as one total HFSS stand (i.e. 168-8120).

Lateral Adjustment [mm]: ±31
Rotational Adjustment [°]: ±15
Tilt Adjustment [°]: ±30

Please note that the maximum lateral, rotational, and tilt adjustments achievable may be limited further depending on the system configuration. Please discuss your specific requirements with a Sciencetech technical representative.

Contact for Pricing

A single borofloat output window for an HFSS Radiative Module. This output window easily attaches to a radiative module using four screws. It does not completely seal the output of the radiative module due to the requirement for forced air cooling of the arc lamp, but it will protect the interior of the module from direct contamination.

Contact for Pricing

Downward facing stand for the XLH- series lamp housing .
This stand allows for downwards illumination as well as adjusting the location of the uniform plane relative to the baseplate of the downward facing stand.

$ 899.00

The PTS-2-QE system allows an overall "external" quantum value measurement, which is considered the most important factor in cell testing. It includes all the Spectral Response equipment of the PTS-1, as well as a bias light and additional electronics and software to seamlessly allow user-friendly measurements of Quantum Efficiency.

The PTS-2-QE Includes the capability to perform the following measurements:
- Current Voltage (I-V) Testing
- Spectral Response
- External Quantum Efficiency - IPCE
- AC and DC measurement mode

Each PTS-2 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector.
EQE and IV measurement capabilities verified against a solar reference device certified by a ISO 17025 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site.

A preconfigured computer with software is included with the system. An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system also includes 1 IEC 60320 C5 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 46,000.00

The PTS-3-PTD maintains all the capabilities of the PTS-2-QE but adds the Photothermal Deflection Spectroscopy technique.

The PTS-3-PTD Includes the capability to perform the following measurements:
- Current Voltage (I-V) Testing
- Spectral Response
- External Quantum Efficiency - IPCE
- AC and DC measurement Mode
- PTDS Measurement Capability

Each PTS-3 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector.
EQE and IV measurement capabilities verified against a solar reference device certified by a ISO 170205 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site.

A preconfigured computer with software is included with the system. An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system also includes 1 IEC 60320 C5 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 94,750.00

The PTS-2-IQE system allows an overall external quantum efficiency value measurement as well as internal quantum efficiency measurements using an integrating sphere. It includes all the spectral response equipment of the PTS-1, as well as a bias light and additional electronics and software to seamlessly allow user-friendly measurements of quantum efficiency.

The PTS-2-IQE Includes the capability to perform the following measurements:
- Current Voltage (I-V) Testing
- Spectral Response
- External Quantum Efficiency/IPCE
- Internal Quantum Efficiency
- Reflectance
- AC and DC Measurement Mode

Each PTS-2 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector. EQE/IQE and IV measurement capabilities verified against a solar reference device certified by a ISO 17025 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site. A preconfigured computer with software is included with the system.

An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system includes 1 IEC 60320 C5 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 50,000.00

The PTS-1-SR system includes a lamp and monochromator for a tunable light source, which is coupled to a high sensitivity source meter with measurement software. Designed for researchers who have limited budgets but want to start work immediately, this allows the ability to do baseline studies until additional funding for the full QE or CPM system becomes available.

The PTS-1 Includes the capability to perform the following measurements:

- Spectral Response
- External Quantum Efficiency - IPCE, without Optical Bias
- AC and DC Measurement Mode

Each PTS-1 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector. SR measurement capabilities verified against a solar reference device certified by a ISO 17025 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site. A preconfigured computer with software is included with the system.

An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system includes 1 IEC 60320 C5 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 43,000.00

The Sciencetech SSIVT-REF single element silicon detector is designed to be used for monitoring and verifying the Sun level of solar simulators. The SSIVT-REF detector is used effective in sensing wavelengths between 190 nm and 1100 nm and is calibrated at Sciencetech against a NIST traceable calibrated reference cell. The SSIVT-REF detector can be used with Sciencetech SSIVT measurement system or Sciencetech SOL-METER solar power meter. Comes with a detachable cable with 4 banana plugs for connecting to a measurement device such as a source meter or Sciencetech SOL-METER. CE compliant.


Rise time: 0.2 μs
Effective active area: 5.7 sqmm
Dimensions: 50.8 x 50.8 x 25.4 mm

$ 625.00

A motorized 6 position filter wheel capable of holding 25mm (1") filters (either square or circular). The filter wheel connects via USB 2.0 to a computer (USB cable included). The filter wheel software includes a stand alone application but also includes development examples for integrating the filter wheel with LabView or C++ software.

Please select the flush mount option for use with Sciencetech monochromator slits, and select the lens tube mount option for all other cases with Sciencetech parts. For custom applications, please contact our sales team to provide more information on your specific application.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 2,050.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 200 × 200 mm
Working Distance: 0.1-0.5m
Maximum Irradiance: 8.0 Suns (AM0), 10 Suns (AM1.5G), 15 Suns (Unfiltered)
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.

$ 89,800.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 500 × 500 mm
Working Distance: 0.2-1.0 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <20 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.

$ 89,800.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <8 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.

$ 89,800.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): 0.9 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.

$ 118,000.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 150 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): < 0.9 degrees
Lamp Power: 2500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 200-240VAC, 50/60 Hz, 20A (max current), L6-30 plug.

$ 74,800.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 100 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <0.5 degrees
Lamp Power: 1600 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable. The region-specific version must be selected at the time of placing an order.
The cable requires 200-240VAC, 50/60 Hz, 15A (max current), plug type must be specified by country.

$ 60,800.00

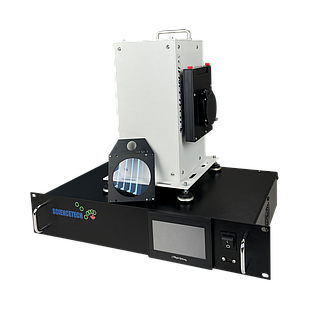

Class: AAA or BAA (ASTM E927-19, IEC 60904-9)
Target size: 50 × 50 mm
Intensity: 1.5 Suns
ND filter for 1 sun operation included
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM0 spectral matching is the standard option. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 1.5 Suns (AM0 irradiance level).
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.

$ 11,883.00

The SSIVT is a complete electrical current-voltage measurement system used to characterize photovoltaic cell performance. This current-voltage tester works by sampling current at different voltages of the photovoltaic cell with a variable impedance load.

This IV measurement system has a separate terminal interface for voltage and current measurements. Each IV curve dataset is saved as a separate ASCII text file.

This I-V Testing Measurement System has a 4 wire Kelvin configuration to remove the resistance effects of the leads and bias the cell at specific voltages.

The I-V Measurement System SSIVT-F includes:

- Source Measure Unit (SMU) - See table for specifications depending on chosen model.
- Load Booster module to increase current measurement range of the SMU (model dependent)
- Sciencetech's SciPV-IV Software for Windows-based control.
- Windows 7/10 32/64 bit
- RS232 to USB dongle

Compatible with Flash (Pulsed) Solar Simulators only.

See brochure for more details.

$ 12,620.00

The SSIVT is a complete electrical current-voltage measurement system used to characterize photovoltaic cell performance. This current-voltage tester works by sampling current at different voltages of the photovoltaic cell with a variable impedance load.

This IV measurement system has a separate terminal interface for voltage and current measurements. Each IV curve dataset is saved as a separate text file.
This I-V Testing Measurement System has a 4 wire Kelvin configuration to remove the resistance effects of the leads and bias the cell at specific voltages.

The I-V Measurement System SSIVT-C includes:
- Source Measure Unit (SMU) - See table for specifications depending on chosen model.
- Sciencetech's SciPV-IV Software for Windows-based control - Windows 10/11
- RS232 to USB dongle
- Test cell

Compatible with Steady State (Continuous) Solar Simulators only.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 4,399.00
