Used to allow the SS150 to direct the beam downwards, upwards, or at 90 degrees to the usual output direction (horizontal). Not included in the Vertical Stand, due to the usual arrangement of allowing the beam to aim downwards (meaning in most cases this component is not required with the vertical stand option).

$ 570.00

This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5G filters (included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 28 cm (11") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: Class B
Lamp: 3.0kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 621-3kW

Includes: 30 cm (12") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 11" diameter, igniter.

200-240VAC, 20A
Requires 1 NEMA 6-30P power cord

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
* Systems can be built for downfacing operation if specified at time of order

$ 45,155.00

A 28mm, side-on type PMT Tube from Hamamatsu.
The effective range is from 185nm to 930nm.

For full technical specifications, please ask your authorized Sciencetech technical sales staff member.

$ 2,170.00

A 28mm, side-on type PMT Tube from Hamamatsu.
The effective range is from 185nm to 710nm.

For full technical specifications, please ask your authorized Sciencetech technical sales staff member.

$ 730.00

A 28mm, side-on type PMT Tube from Hamamatsu.
The effective range is from 185nm to 900nm.
Special feature: extra low dark current, transit time 22ns
input window: 6x8 mm

For full technical specifications, please ask your authorized Sciencetech technical sales staff member.

$ 1,020.00

This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 3mm.

$ 250.00

Interference type Infrared IR Longpass filter with wavelength cutoff of 1500 nm
> 80% Transmission Starts : 1792nm
Maximum Wavelength Suggested: 3080nm

$ 372.00

Sciencetech's [130-REC] is a cooling water recirculator. It is designed to work with any of Sciencetech's liquid cooled solar cell chucks. This recirculator can maintain your sample at room temperature while sinking up to 500W of power from your light source.

-Dissipates up to 500W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate

$ 1,716.00

This is a quick release mount for many of Sciencetech's standard single element detectors or PMTs. It allows the user to easily replace one detector with another, and remain confident in the ability of the system to hold and align various detectors properly with minimal effort. This will not work with either LDA or CCD systems or Cryogenic detectors. Please speak to your Technical Sales member at Sciencetech for more information.

$ 200.00

Sun Screen Testing Industry standard filters for isolating UVA wavelengths (320-400nm)
Schott UG11 Filter for eliminating visible and infrared rays (>400nm)
Schott WG335/3mm or WG345/1mm filter for eliminating UVB and UVC rays (<320nm)
Used in the UVA Protection Factor Test Method (Persistent Pigment Darkening)

$ 900.00

A 3000W (3kW) xenon arc lamp bulb replacement.

$ 1,925.00

.

$ 3,500.00

This SMA Fiber Coupler mates a Sciencetech 2" Beam Condensing Assembly (such as IO2 model condensors) to the input end of an SMA fiber such that the light collected is focused into the SMA fiber tip with great efficiency. The SMA Fiber Coupler screws onto the output end of the 2" Beam Condensing Assembly. Once screwed on, the input tip of the fiber bundle is positioned at the output focal spot for optimum light collection. This assembly also includes an X-Y optical coupler that can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. There are two flange sizes of the Fiber Bundle Coupler available to match the 1 and 2 inch diameter sizes of the Beam Condensing Assembly. Please note that the SMA Fiber Coupler should not be used on its own without the beam condensing assembly as otherwise the light collection efficiency from the light source is very low.

$ 437.00

.

$ 730.00

.

$ 730.00

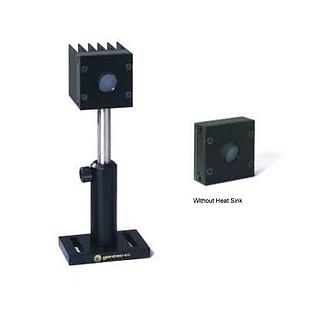

This Broadband Thermopile Detector allows the measurement of infrared light in the 0.19 – 20 µm range. This detector has a 12mm diameter sensor, measures up to 3 W (0.5 uW NEP). Please note that this detector head requires either an external display controller or computer interface (such as the UNO-1, sold separately) to show the measured power. The price shown includes the detector head, post, post holder, and base only.

This thermopile is recommended for smaller light sources (collimated 500W arc lamps and below) and standard solar simulators (<5 Suns, <500 mW/cm2).

$ 1,727.00

This assembly is a customizable F/# matched, 1" diameter, double lens assembly.
The Lens material selected will be Fused Quartz or Fused Silica depending on availability. Best used in the spectral range 250-2500nm

The CON1 lens assemblies are designed to accept collimated light and produce a focused beam at the intended target location
Please specify the required F/# at time of ordering. F/# can be set from F/0.8 to F/10.0
The required F/# must be entered in the sales order notes for efficient processing

Accessories and adapters for coupling available.

$ 585.00

A replacement 300W short arc xenon bulb.
Average lifetime = 1000hrs

$ 960.00

.

$ 3,500.00

The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.

Contact for Pricing
