$ 730.00

.

$ 730.00

Sciencetech's FSSP solar simulator is designed to illuminate targets of 1x1m with 1 sun, or smaller targets with multiple suns. The default spectral match is to ASTM AM1.5G. The flash itself is a stable 1ms length, with options available (purchased separately) to stretch the pulse. Timing and number of flashes can be computer controlled. This unit is a Class AAA flash solar simulator by default, with options available to reduce spatial uniformity in order to increase target size.

Sciencetech can also offer increased spectral ranges and other additional features upon request.

This product includes a flash system, power supply, lamp, and an air mass filter (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 1m × 1m (1 Sun) (Smaller targets available at higher intensities.)
Working Distance: 5-10m
Pulse Length: 1ms (Pulse stretching available)
Collimation: 2° half angle

$ 42,816.00

This SMA Fiber Coupler mates a Sciencetech Beam Condensing Assembly to the input end of an SMA fiber such that the light collected is focused into the SMA fiber tip with great efficiency. The SMA Fiber Coupler screws onto the output end of the Beam Condensing Assembly. Once screwed on, the input tip of the fiber bundle is positioned at the output focal spot for optimum light collection. There are two flange sizes of the Fiber Bundle Coupler available to match the 1 and 2 inch diameter sizes of the Beam Condensing Assembly. Please note that the SMA Fiber Coupler should not be used on its own without the beam condensing assembly as otherwise the light collection efficiency from the light source will be very low.

$ 437.00

Sciencetech’s FSSP-HC-A highly collimated flash solar simulator is capable of illuminating targets up to 1.8 × 1.5m (or 1.5m diameter) with highly collimated light (up to 0.5° half angle). This allows testing of concentrated photovoltaics (CPV) or other applications requiring extremely high collimation. Within the illuminated area, the central 1 × 1m or larger meets Class A uniformity requirements. Please speak with your Sciencetech technical support staff for Class A uniformity matching over the entire illumination area. The default spectral match is to ASTM AM1.5D.

This product includes a flash system, power supply, collimating mirror, and lamp. Air mass filters are available separately (AM1.5D and AM1.5G, with additional filters available upon request). Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A (Central 1m × 1m)
Temporal Instability: Class A
Target Size: 1.8m × 1.5m (1 Sun)
Working Distance: 5m
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: 0.5° half angle

$ 150,000.00

This upgrade allows a Manual 9030 to be operated by computer control. SciMono is included.
Only a single motorized upgrade is required for 9030DS, 9030DAs, or a single 9030.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 2,399.00

Wavelength range: 250-800nm
Dispersion: 8nm/mm (When used with 9030 monochromator)

$ 1,495.00

.

$ 500.00

.

$ 730.00

.

$ 730.00

Element Size: 1mm x 1mm sq.
Operating Wavelength: 2 – 13um
Wavelength Peak: ~12.0um
Wavelength Response: >= 13.0um (750cm-1)
D* (λp,10000,1) (cmHz1/2W-1): >= 4.0^10
Dewar Hold Time: 12 hours minimum with liquid N2
FoV/Window: 60 degrees/ ZnSe
Responsivity: >= 2000 (pk. (V/W))
Resistance: 20-100 ohms
Time Constant: ~1.0 usec
MSL-8 side looking metal Dewar 8 hour hold time

$ 2,935.00

.

$ 730.00

.

$ 500.00

This is a room-temperature detector for use with the SPS-300. This includes the DTGS detector with a mounting flange, but requires the use of a dual-phase lock-in amplifier (sold separately). Sciencetech's wideband detector design comes packaged in a mounting flange compatible with our SPS-300. It is connectorized to be powered directly from the Stanford SR-810/830 type lock-in amplifiers with a detachable cable. The spectral range is limited by window selection. This detector comes with a HDPE window standard.

Element size: 2.0 mm dia.
Spectral bandwidth: 16 to 100um (for HDPE window, other window materials available)
Sensitivity: 200 V/W
Frequency response: 10Hz - 265Hz (-3db points)
N.E.P.: 5x10-10 watts (@100Hz)
Power requirements: +/- 15 to +/- 24 volts max @ +/- 8 mA max.
Power connections:
DB-9M
Pins 2,3,4,5,9 no connection
+V In Pin 1
-V In Pin 6
Common Pin 7
Case GND Pin 8
Signal Connection: BNC

Suitable for direct connection to Stanford SR-810/830 lockin preamp power (not included).

This is a room-temperature detector for use with the SPS-300. This includes the DTGS detector with a mounting flange, but requires the use of a dual-phase lock-in amplifier (sold separately).

Contact for Pricing

This option includes all the components necessary to reach micro-Torr vacuum, including gauges, ports, valves, and both a roughing and turbo pump.
If only milli-Torr levels of vacuum are needed, please purchase the "SPS 300 Standard Vacuum Operation" upgrade instead.

Contact for Pricing

This includes all the necessary parts for vacuum operation including seals, valves, gauges, and port covers, as well as a roughing pump capable of reaching mTorr vacuum. The SPS-300 itself is capable of maintaining higher levels of vacuum operation, but requires a turbo pump in order to reach those levels of vacuum.
For higher vacuum operation (up to micro-Torr applications), please purchase the "SPS 300 Ultra-High Vacuum Operation" upgrade instead, as it includes all items listed here in addition to a turbo pump.

Contact for Pricing

The standard SPS-300 has a 50mm translating stage, wich can provide resolution up to 0.12 wavenumbers. The high resolution upgrade option extends the translating stage to 300mm, allowing the SPS-300 to achieve a resolution of 0.020 wavenumbers. Due to the increased stage length, an extension to the vacuum-sealed body is needed to accommodate the extra distance.

Contact for Pricing

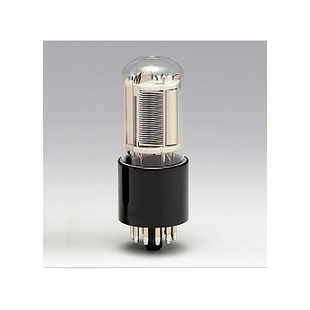

Photon counting head using 28mm dia. Side on PMT. Spectral response range 185nm - 850nm. Low dark counts in UV to near IR range.
For full technical specifications, please contact your authorized Sciencetech technical sales staff member.

$ 3,663.00

This device is designed to be coupled to one of Sciencetech's IV Test systems. The Load Booster is inserted between the Keithley and the device under test with the Keithley current range set to 0.1A and used in remote (4 wire) sensing mode. The Load Booster effectively expands the IV testing current range.
Load Boosters may only be used in pulsed mode operation. They cannot be used for continuous illumination and measurement.
Voltage Range: 200V
Current Range: 10A

$ 5,000.00

Class: ABA
Spot size: 50 mm (2”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 50 mm (2”) at 1 sun
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-B is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-300-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 7,219.00
