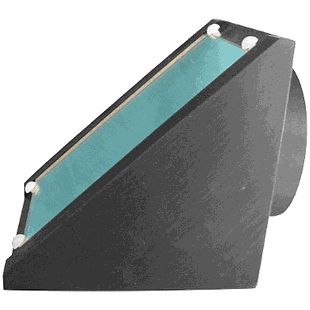

Used to allow the SS150 to direct the beam downwards, upwards, or at 90 degrees to the usual output direction (horizontal). Not included in the Vertical Stand, due to the usual arrangement of allowing the beam to aim downwards (meaning in most cases this component is not required with the vertical stand option).

$ 655.00

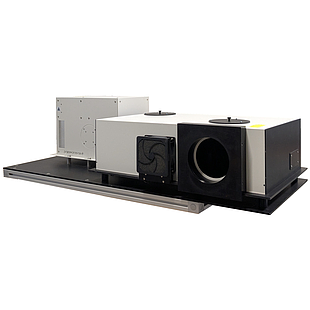

This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0 kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5G filters (included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 28 cm (11") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: Class B
Lamp: 3.0 kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: PS-XE3000-A-T

Includes: 30 cm (12") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 11" diameter, igniter.

Power Requirements: 200-240 VAC, 50/60 Hz, 20 A. This system requires 1 NEMA 6-30P compatible power cables. Please select one region-specific power cable (see product 491-9004) at no cost.

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
* Systems can be built for downfacing operation if specified at time of order

Contact for Pricing

A 28mm, side-on type PMT Tube from Hamamatsu.
The effective range is from 185nm to 710nm.

For full technical specifications, please ask your authorized Sciencetech technical sales staff member.

Contact for Pricing

A 28mm, side-on type PMT Tube from Hamamatsu.
The effective range is from 185nm to 900nm.
Special feature: extra low dark current, transit time 22ns
input window: 6x8 mm

For full technical specifications, please ask your authorized Sciencetech technical sales staff member.

Contact for Pricing

This is a single fixed width slit for Sciencetech's monochromators. It requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
The slit height is 8mm. The slit width is 3mm.

$ 253.00

Interference type Infrared IR Longpass filter with wavelength cutoff of 1500 nm
> 80% Transmission Starts : 1792nm
Maximum Wavelength Suggested: 3080nm

Contact for Pricing

Sciencetech's [130-REC] is a cooling water recirculator. It is designed to work with any of Sciencetech's liquid cooled solar cell chucks. This recirculator can maintain your sample at room temperature while sinking up to 500W of power from your light source.

-Dissipates up to 500W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate

Contact for Pricing

This is a quick release mount for many of Sciencetech's standard single element detectors or PMTs. It allows the user to easily replace one detector with another, and remain confident in the ability of the system to hold and align various detectors properly with minimal effort. This will not work with either LDA or CCD systems or Cryogenic detectors. Please speak to your Technical Sales member at Sciencetech for more information.

Contact for Pricing

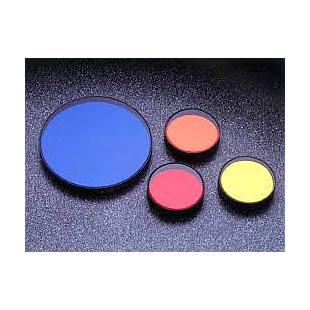

Sun Screen Testing Industry standard filters for isolating UVA wavelengths (320-400nm)
Schott UG11 Filter for eliminating visible and infrared rays (>400nm)
Schott WG335/3mm or WG345/1mm filter for eliminating UVB and UVC rays (<320nm)
Used in the UVA Protection Factor Test Method (Persistent Pigment Darkening)

Contact for Pricing

A 3000W (3kW) xenon arc lamp bulb replacement.

Contact for Pricing

This Broadband Thermopile Detector allows the measurement of infrared light in the 0.19 – 20 µm range. This detector has a 12 mm diameter sensor, measures up to 3 W (0.5 uW NEP). Please note that this detector head requires either an external display controller or computer interface (such as the UNO-1, sold separately) to show the measured power. The price shown includes the detector head, post, post holder, and base only.

This thermopile is recommended for smaller light sources (collimated 500 W arc lamps and below) and standard solar simulators (<5 Suns, <500 mW/cm2).

Contact for Pricing

A replacement 300W short arc xenon bulb.
Average lifetime = 900hrs

$ 970.00

The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.

Contact for Pricing

A Longpass filter designed for use with Sciencetech systems in the Infrared range.
Diameter (mm) 25.0
Diameter Tolerance (mm) +0.0 / -0.1
Thickness (mm) 1.0
Thickness Tolerance (mm) ±0.2
Clear Aperture (%) 90
Surface Accuracy (λ) 3 - 5
Surface Quality 60-40
Parallelism (arcminutes) <10
Transmission (%) >90
Transmission Wavelength (μm) 2.52 - 4.80
Optical Density OD >3.0
Cut-On Wavelength (μm) 2.40
Cut-On Wavelength Tolerance (μm) 0.09
Cut-On Tolerance (%) 5 of Peak Transmission
Slope Factor (%) <6
Substrate Germanium
Operating Temperature (°C) -62 to +71
RoHS Compliant

Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.

Contact for Pricing

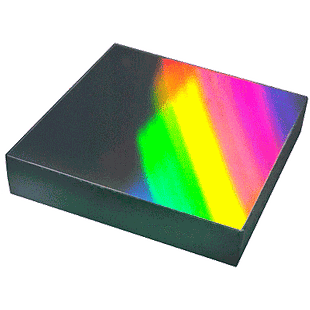

Wavelength range: 400-1600 nm
Dispersion: 16 nm/mm (When used with 9030 monochromator)

Contact for Pricing

Sciencetech Inc. fully reflective solar simulators have the unparalleled ability to be realigned to allow the solar simulator to be used in many different customized scenarios. This allows the end user to reconfigure the simulator to provide a larger or smaller target with varying degrees of non-uniformity and power output. Most other simulators on the market today do not allow the end user to do this.
Sciencetech Solar Simulator System Alignment Kit includes:
1 sun calibrated alignment Silicon detector, laser and holder, UV protection glasses, Sciencetech multimeter.
Can be used on all of Sciencetech's fully reflective Solar Simulators.

Contact for Pricing

This is a single fixed width slit for Sciencetech's monochromators. It requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
The slit height is 8mm. The slit width is 100μm.

$ 253.00

This data acquisition module features 3 analog inputs via BNC connectors. The data acquisition board is 16-bit and can measure a single channel up to 50 kS/s. An additional BNC connector for a multi-purpose digital input/output can be used to time measurements and/or send signals to external hardware such as a high speed shutter.

This module includes 1 BNC cable and 1 USB cable so that it is ready to interface with a single channel detector such as a PMT or Si photodiode detector (sold separately). For spectroscopy systems the SciSpec Windows application software to interface with a Windows Based PC is required and is sold separately.

Multi-channel data acquisition is possible using SciSpec software, if this option is required please speak to a Sciencetech technical sales representative.

$ 1,413.00

This data acquisition module features 3 analog inputs via BNC connectors. The data acquisition board is 12-bit and can measure a single channel up to 50 kS/s. An additional BNC connector for a multi-purpose digital input/output can be used to time measurements and/or send signals to external hardware such as a high speed shutter.

This module includes 1 BNC cable and 1 USB cable so that it is ready to interface with a single channel detector such as a PMT or Si photodiode detector (sold separately). For spectroscopy systems the SciSpec Windows application software to interface with a Windows Based PC is required and is sold separately.

Multi-channel data acquisition is possible using SciSpec software, if this option is required please speak to a Sciencetech technical sales representative.

$ 1,110.00

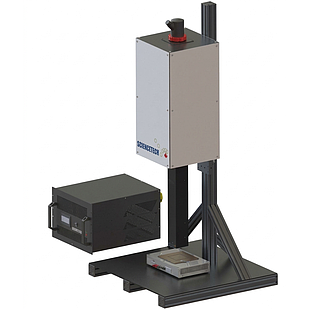

Sciencetech’s FSSC flash solar simulator is designed to illuminate small photovoltaic devices up to 5cm × 5cm in size with up to 4000 Suns peak intensity. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The typical flash is 1 ms long, but pulse stretching options are available for longer, flatter pulses (purchased separately). The uniformity of the system is better than 2% at the target plane.

This product includes a flash system, power supply, and lamp. Air mass filters are sold separately (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options.

Spectral Match (AM1.5G): Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 5 cm × 5 cm
Irradiance at Target: Up to 4000 Suns
Working Distance: 3mm
Pulse Length: 1 ms standard, pulse stretching up to 4 ms available
Collimation: Non-collimated
Lamp Type: Xenon, Flash
Lamp Energy: 4800 J
Lamp Lifetime: 25,000 flashes

Power Requirements: 200-240 VAC, 12 A

Contact for Pricing
