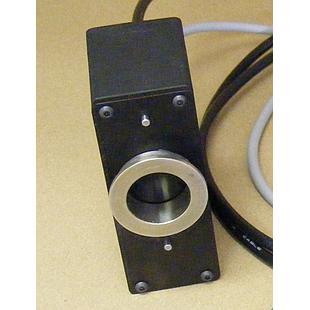

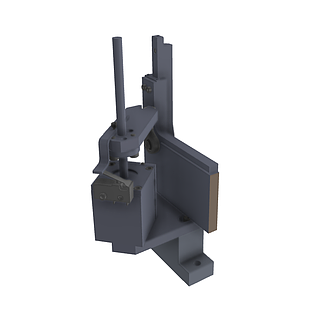

The SH-2-B-OF is a computer controlled shutter for 201, LH-S, XLH-S lamp houses and SF solar simulators. Based on the successful SSES lines of blade shutters for Sciencetech's line of high powered solar simulators.
An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. THe best option for performing exposure testing is to integrate an electronic shutter system inside the beam homogenizer. The electronic shutter is computer controlled with an activation time of <150ms. Software for the shutter controller is included with this item. The standard shutter controller connects to a computer via RS232. RS232-USB converters are available and work with this product. In addition to computer control the shutter can be controlled via a toggle switch on the shutter controller box.

This shutter can be used with any high powered light source and can effectively block a 2" diameter beam. See the brochure information for a mounting pattern.
This shutter is open frame and the shutter mechanism is exposed. For an enclosed shutter please see the SH-XLH-B product.

This device can be controlled through Sciencetech's touch screen power supplies (including automated exposure time control).
Please note leaving the shutter closed for extremely long periods of time while the arc lamp is on may cause damage to the motorized components.

$ 500.00

The SCI-SCC6-B cell chuck is an economical way of providing electrical connection to the back of your test cells. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.
Working Area: 6" x 6"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: N/A

$ 3,099.00

The SCI-SCC3-L-B cell chuck is an economical way of providing electrical connection to the back of your test cells and liquid cooling. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 3" x 3"
Temperature Range: dew point - 80 ºC
Power Input: N/A
Power Usage: N/A
Options: Water Recirculator or Temperature Control Unit

$ 3,599.00

Alphalas 3648 pixel linear CCD.
UV to IR spectral range 200 - 1100 nm, 16-bit ADC, large 32 MB of fast DDR2 onboard RAM, max. 269.5 fps, high-speed USB 2.0
Housing: 90 x 25 x 105 mm (W x H x D)
Comes with specific USB power/signal cable for interfacing to a computer.
Works with Sciencetech SciSpec Software integrating camera readout and monochromator position information. This camera is also compatible with LabView. A C++ programming library is available for this camera at extra cost.

This camera can also be triggered using TTL signals making it a perfect option for interfacing with Sciencetech's high speed shutters for decay measurements.

$ 2,717.00

.

$ 1,095.00

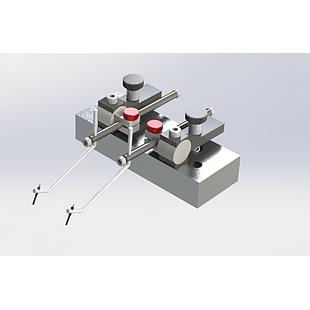

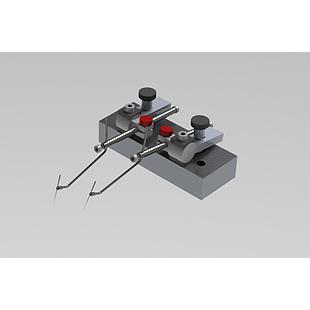

Sciencetech’s (SCP-SP-G) is a micropositioning probe station with a magnetic base and a gold-plated spring probe. It utilizes thumbscrews for adjustment. 0.3” is the magnitude of fine adjustment for this probe.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.

$ 1,179.00

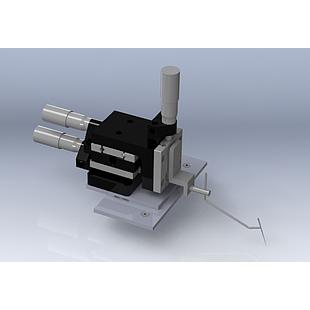

Sciencetech's (SCP-MP-G) is a micropositioning probe station with a magnetic base and a gold-plated spring probe. It utilizes micrometer heads for accurate repeatable adjustment. 0.5” is the magnitude of fine adjustment for this probe.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.

$ 2,601.00

Wavelength range: 800-3200nm
Dispersion: 32nm/mm
Recommended only for the model 9030 compact monochromator.

$ 1,495.00

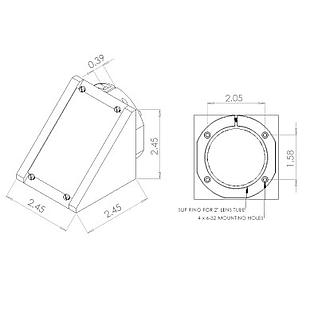

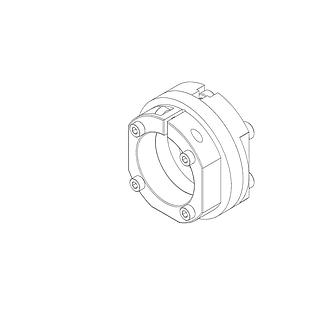

This manual shutter mounts to light sources that use 2" (50.8mm) diameter lens tubes. The model MS-2 manual shutter can also be mounted on 2" Beam Turning Units (CTBT-2). This shutter can be used with XLH and LH lamp housings and products based on XLH and LH lamp housings.

$ 150.00

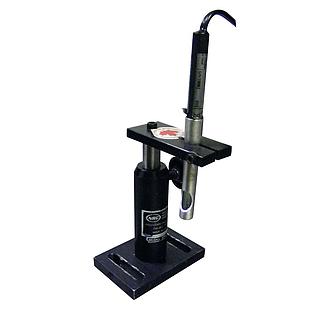

This accessory is a base and post assembly designed to work with 2" diameter optical assemblies. The PM90 allows a 2" optical assembly to be held vertically or horizontally and rotated through any angle, and is adjustable to any height above the included base plate from 0 to 12". The included 6x12" base plate can be secured to a standard optical table or left free standing. This accessory can be used with Sciencetech's AX Solar LightLine solar simulators to allow for horizontal or vertical operation (and at any angle) by holding to output optic at the end of the 4 foot light guide.

$ 400.00

The SS-84-M is a High Resolution motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS84 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.

This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.

$ 3,300.00

The SS-80-M is a Motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders. The SS-80-M motorized slit comes with Sciencetech SciSlit software for controlling the slit. See the product brochure for more information on the slit accuracy and step size.

$ 2,988.00

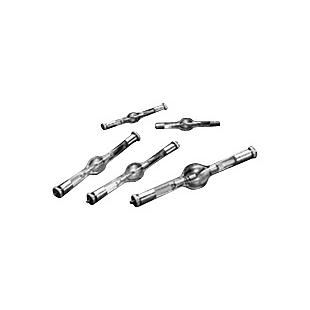

Replacement 150W Short arc Xenon lamp.
Vertical or Horizontal operation.

$ 460.00

The SCC-VP vacuum pump is designed for use with Sciencetech's solar cell chucks and provides ~10 psi of vacuum in a light, and inexpensive package.
The SCC-VP produces considerable vibration noise.
For a quiet vacuum pump see the SCC-VPME1.

$ 685.00

Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.

$ 400.00

Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.

$ 300.00

Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.

$ 200.00

The SCI-SCC3-B cell chuck is an economical way of providing electrical connection to the back of your test cells. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.
This cell chuck can be used with Sciencetech's PTS systems
Working Area: 3" x 3"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: N/A

$ 698.00

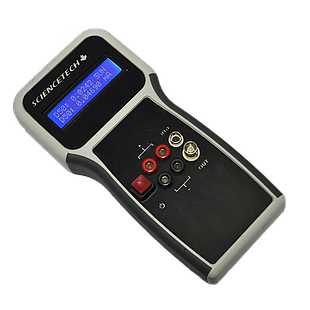

Hand held UV Radiometer.
Irrad. Range 19.99 W/m2 Ery
Response 280-400 nm Diffey Erythermal Action Spectrum
Resolution 0.01 W/m2
Conv. Rate 3.0 Readings/Sec
Display 3.5 Digit LCD
Digit Size 0.4 inch high
Oper. Temp 32° F TO100° F
Oper. Humid. 5% TO 80% RH
Accuracy ±10% REF.NIST
Dimensions (in.) 4.2L x 2.4W x 0.9D (inches)
Weight 4.5 OZ. (incl. batt.)
Power Source 9-Volt DC Battery
Lens UV Glass
Diffuser Teflon
Detector SIC/IF Photodiode

$ 450.00

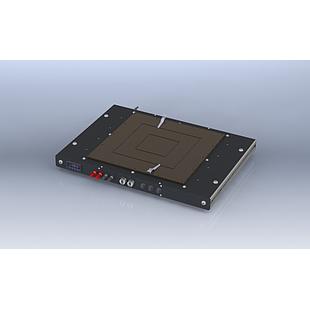

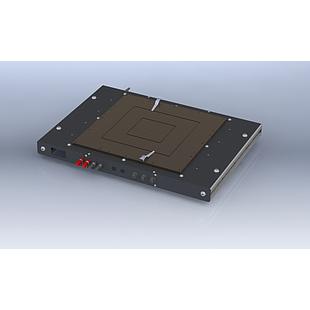

The SCI-SCC6-L-F cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

The SCI-SCC6-L-F is a reversible chuck that allows you to make electrical contacts to the back of your device under test and flip the chuck for back-illumination.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit

$ 3,400.00
